Raman Analyzer

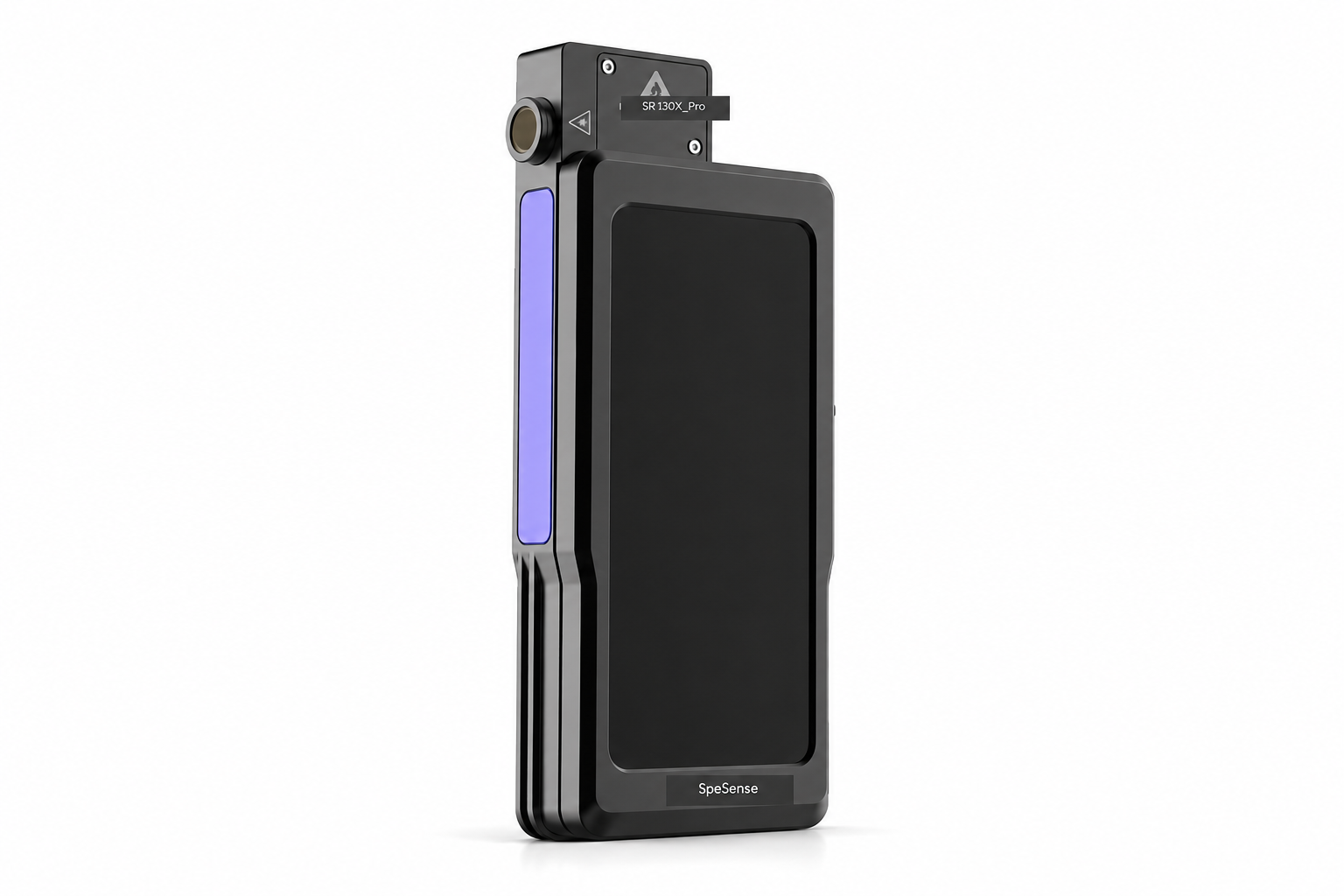

SR130X_Pro
手持式面阵扫描拉曼检测仪
产品亮点
● Area-scan acquisition reduces local laser power density at the
sample surface

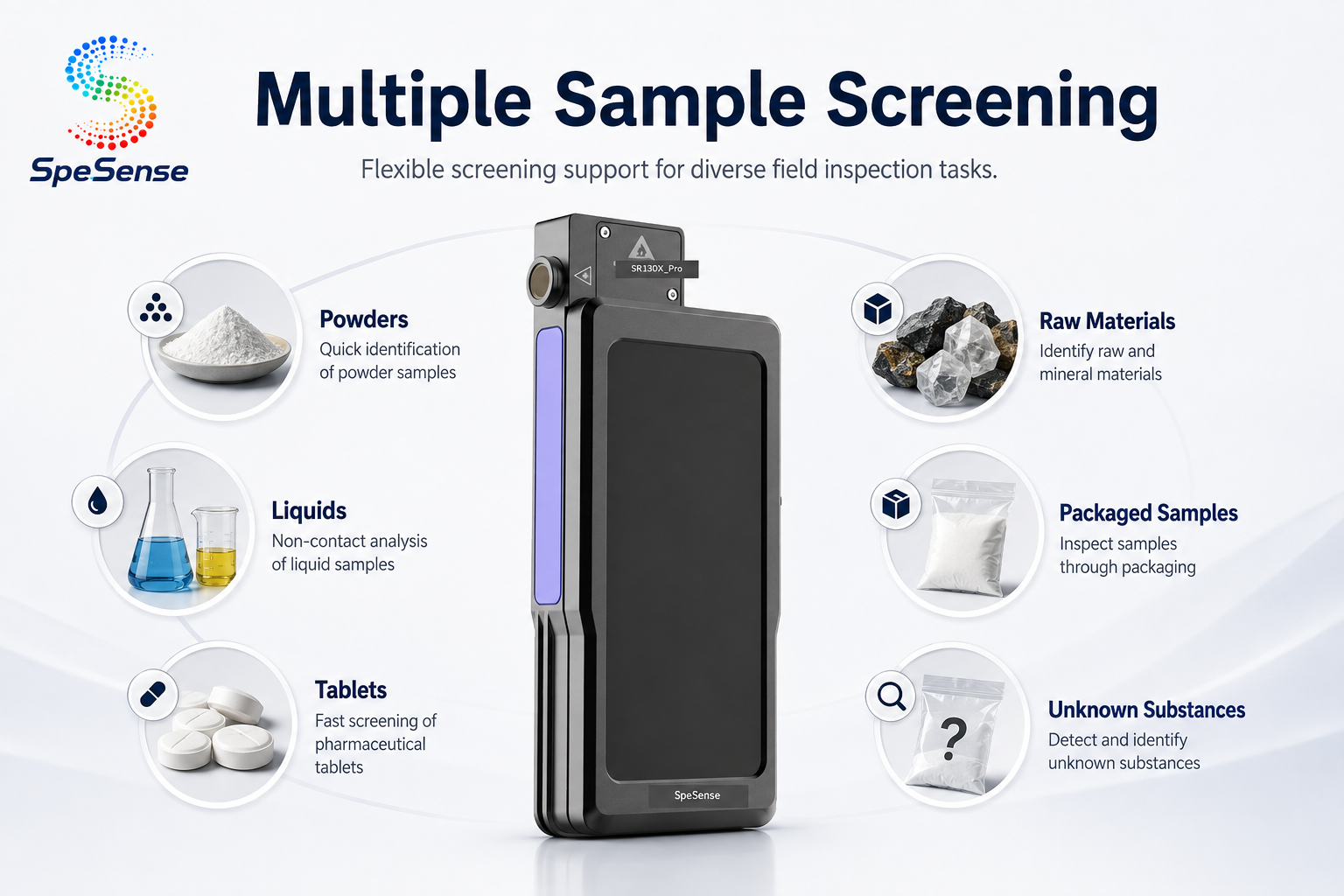

● Rapid identification of solids, liquids and powders
● Non-contact optical measurement with through-container
capability
● Replaceable battery for extended field operation
● Suitable for dark-colored and challenging samples
● Mixture analysis for component and proportion identification
● Rapid differentiation of natural and synthetic fibers
● Non-destructive analysis for valuable textiles or cultural objects
sample surface
● Rapid identification of solids, liquids and powders
● Non-contact optical measurement with through-container
capability
● Replaceable battery for extended field operation
● Suitable for dark-colored and challenging samples
● Mixture analysis for component and proportion identification
● Rapid differentiation of natural and synthetic fibers
● Non-destructive analysis for valuable textiles or cultural objects
产品概述
The SpeSense SR130X Pro Handheld Area-Scan Raman Analyzer is designed for rapid, non-destructive identification of solids, liquids and powders in laboratory and field applications. Featuring 785 nm Raman excitation, an adjustable 0–500 mW laser and a broad 200–3200 cm⁻¹ spectral range, its area-scan technology distributes laser energy across the sample surface to reduce local power density, making it especially suitable for dark-colored, sensitive and challenging samples. With through-container non-contact measurement, mixture analysis, Wi-Fi and 4G connectivity, and more than 12 hours of battery operation, the SR130X Pro provides a flexible solution for material identification, chemical analysis, textile authentication and field Raman spectroscopy.
| Item | Specification |
| Dimensions | 182 × 88 × 30 mm |
| Weight | ≥500 g |
| Battery life | >12 h |
| Excitation wavelength | 785 nm |
| Laser power | 0-500 mW, adjustable |
| Spectral range | 200-3200 cm⁻¹ |
| Resolution | 6-8 cm⁻¹ |
| Laser lifetime | 10,000 h |
| Operating temperature | -20 to 50 °C |
| Working distance | Continuously adjustable |
| Battery | Replaceable; supports high-capacity battery |
| Connectivity | Wi-Fi, 4G |
| Database | >1k |

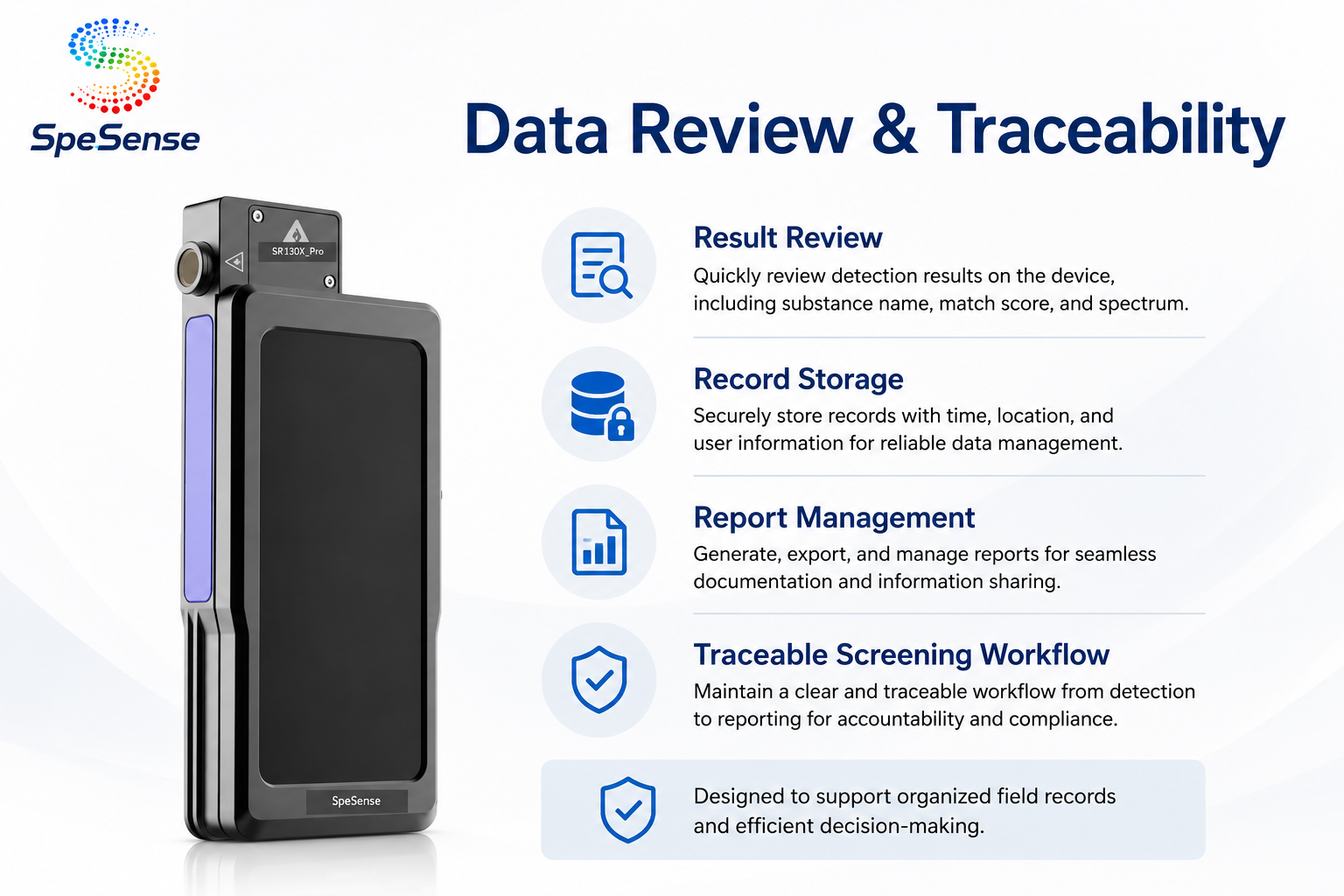

| Software functions | Model matching; report generation, etc. |
