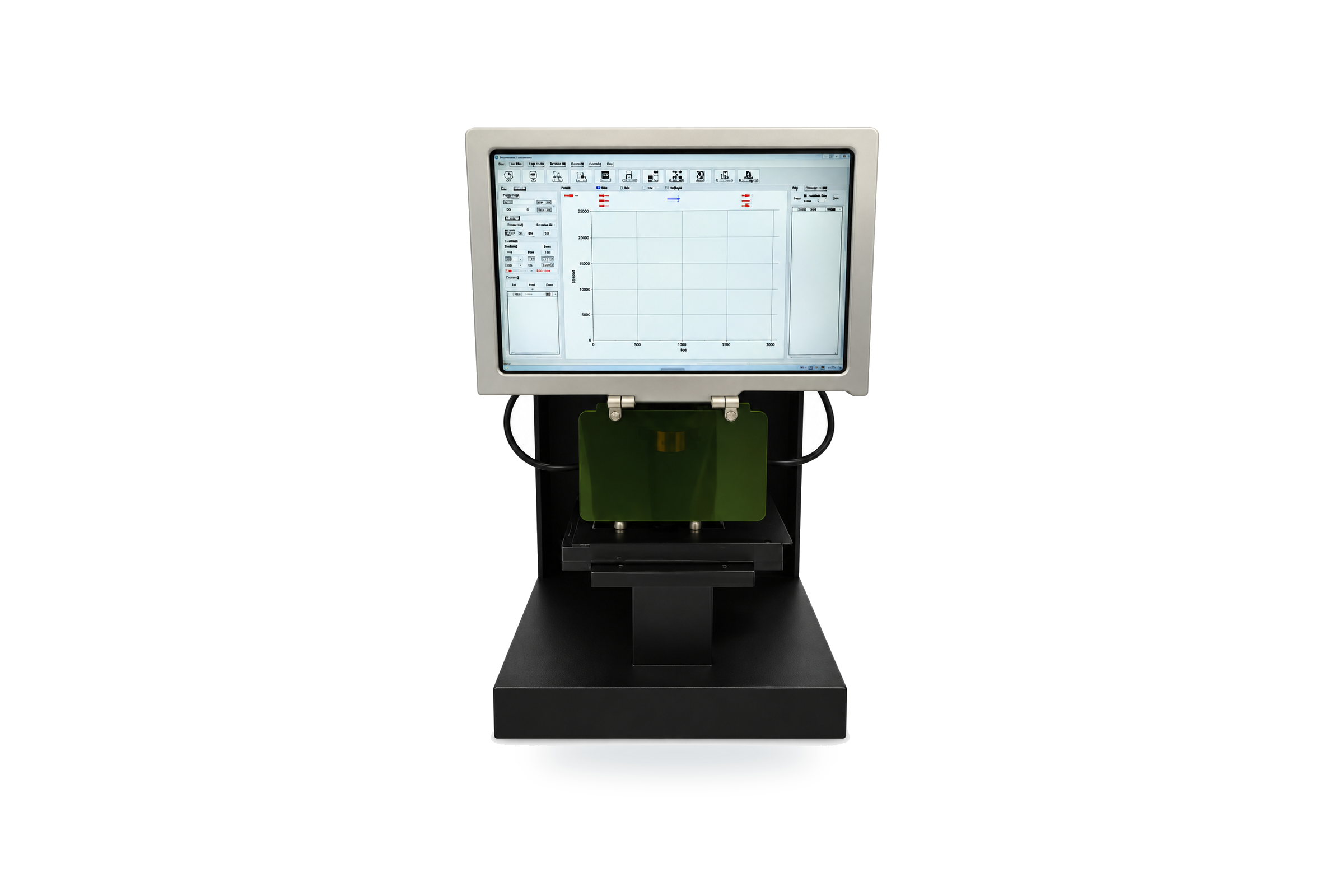

Raman Analyzer
SR 300Z-01
显微拉曼光谱仪
产品亮点

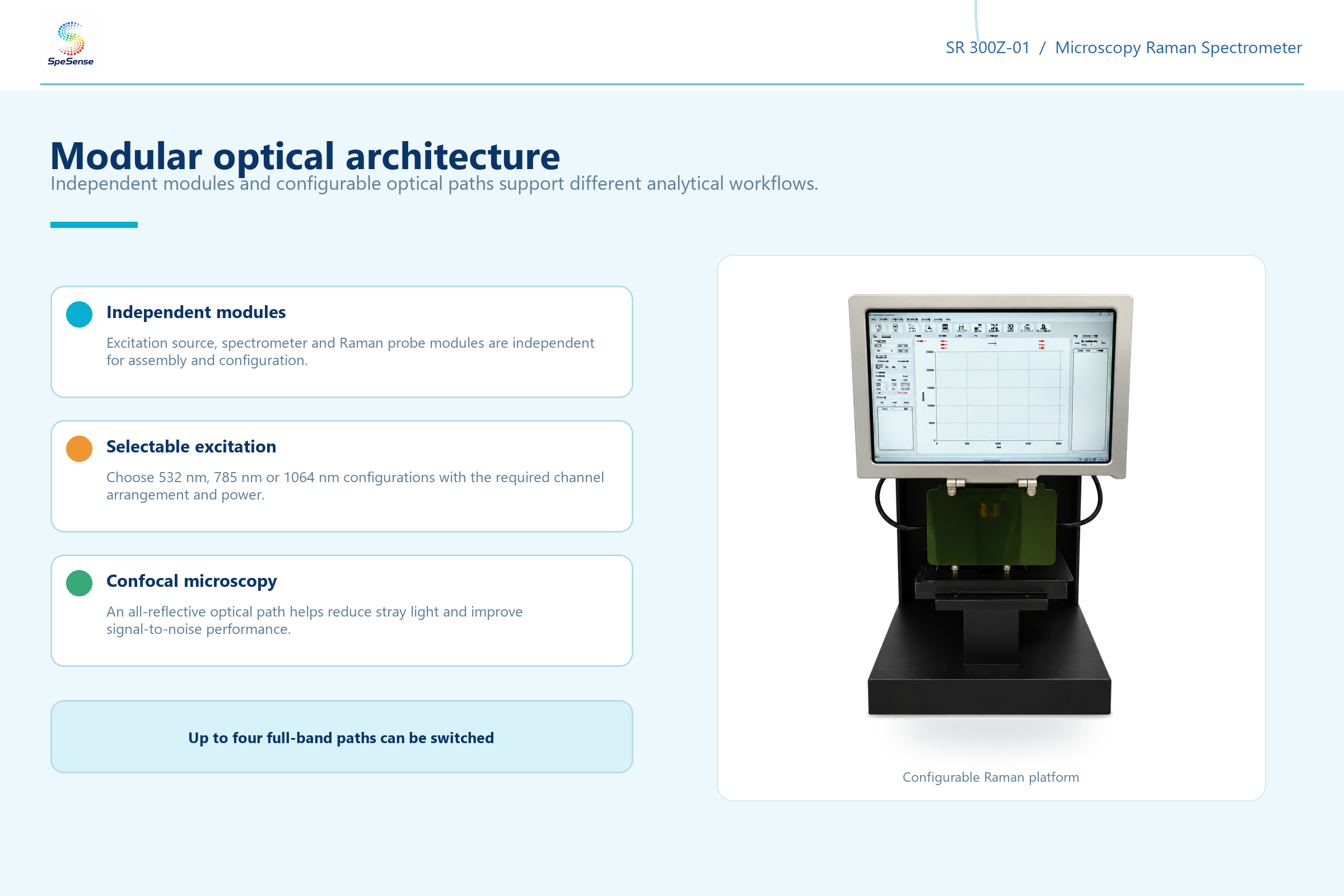

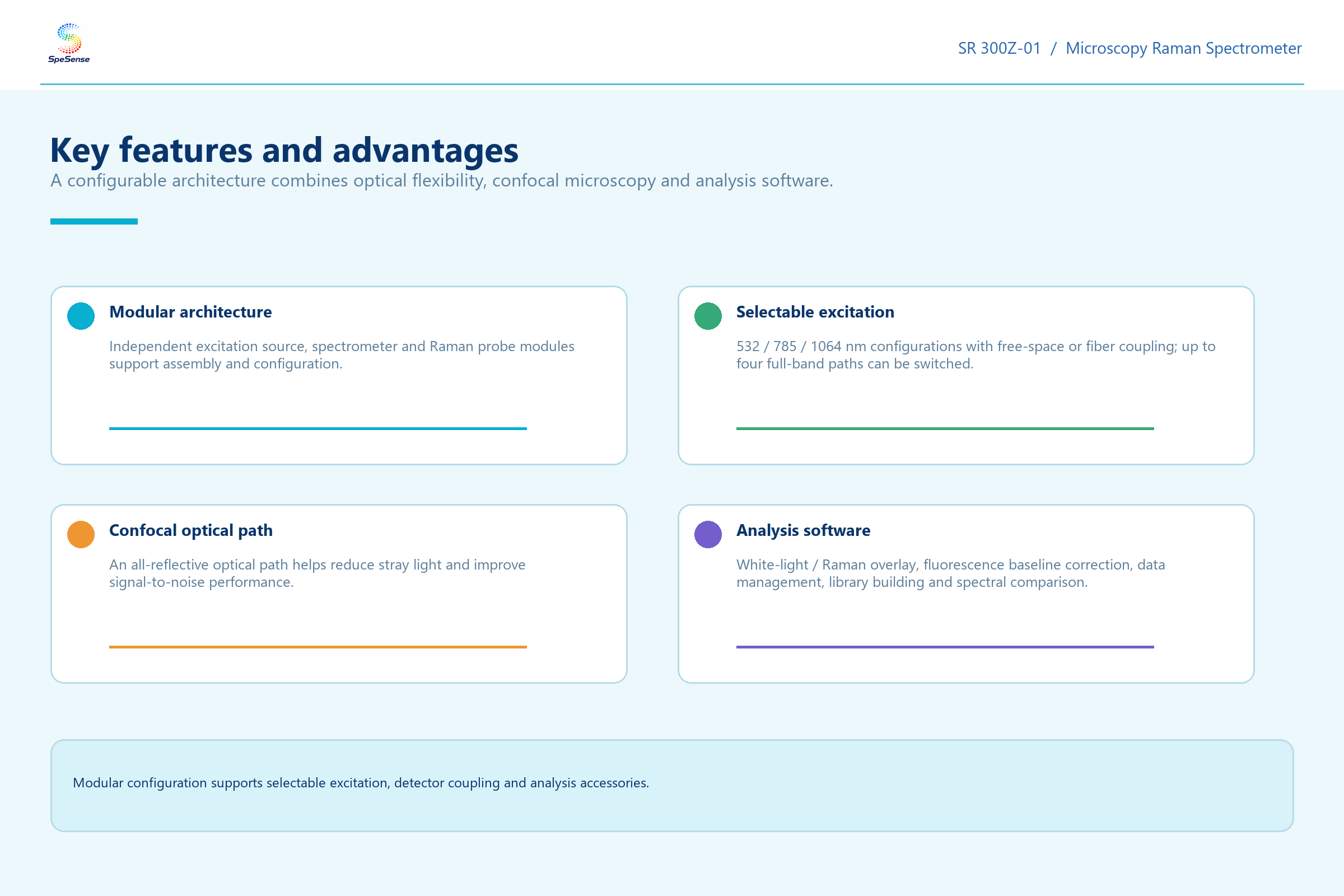

● Modular architecture with independent excitation source, spectrometer and Raman probe modules.
● Selectable excitation wavelengths with free-space or fiber coupling; up to four full-band paths can be switched.
● Confocal microscopy and an all-reflective optical path help reduce stray light and improve signal-to-noise performance.
● High-sensitivity detector architecture with up to four detector coupling interfaces.
● Selectable excitation wavelengths with free-space or fiber coupling; up to four full-band paths can be switched.
● Confocal microscopy and an all-reflective optical path help reduce stray light and improve signal-to-noise performance.
● High-sensitivity detector architecture with up to four detector coupling interfaces.
产品概述

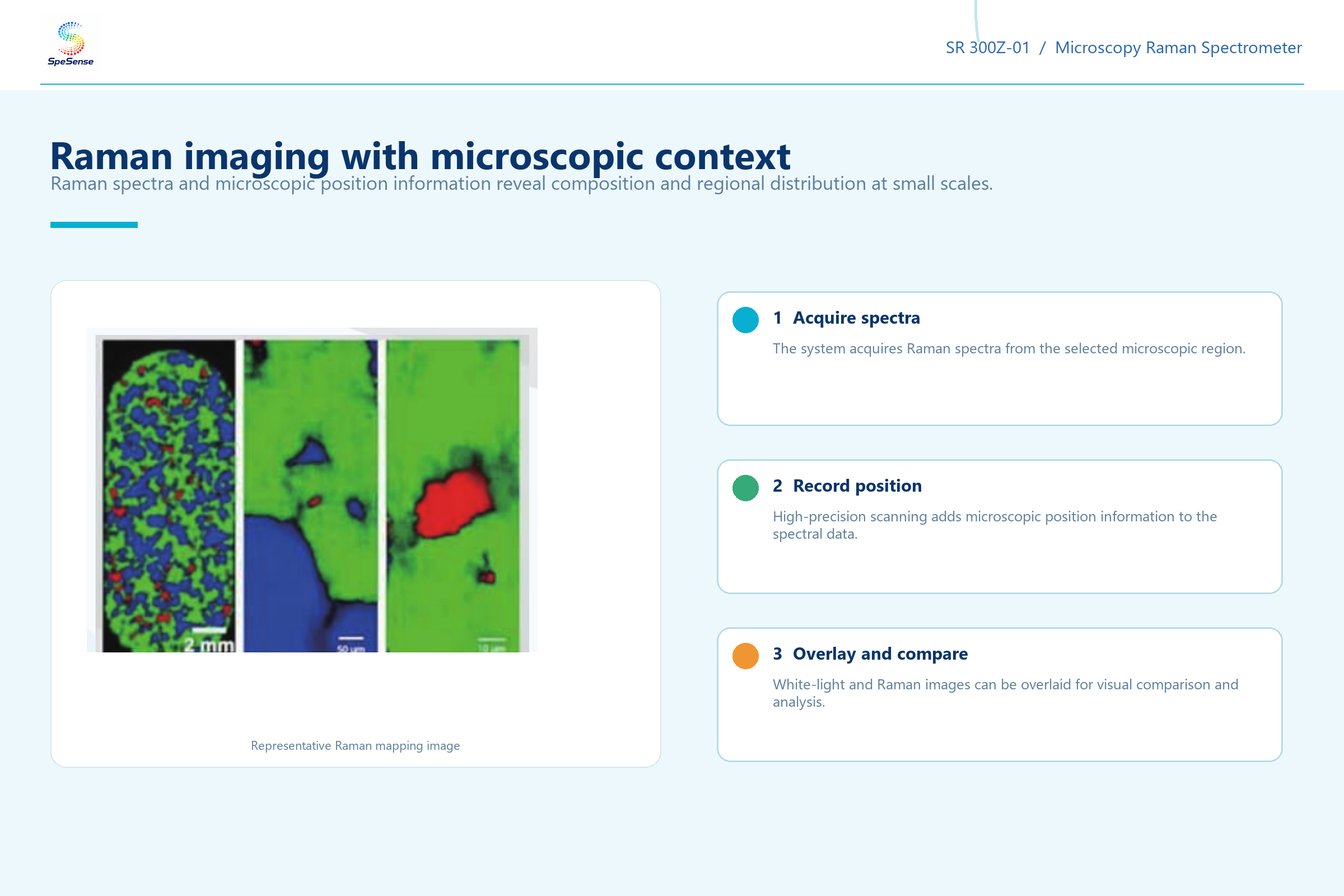

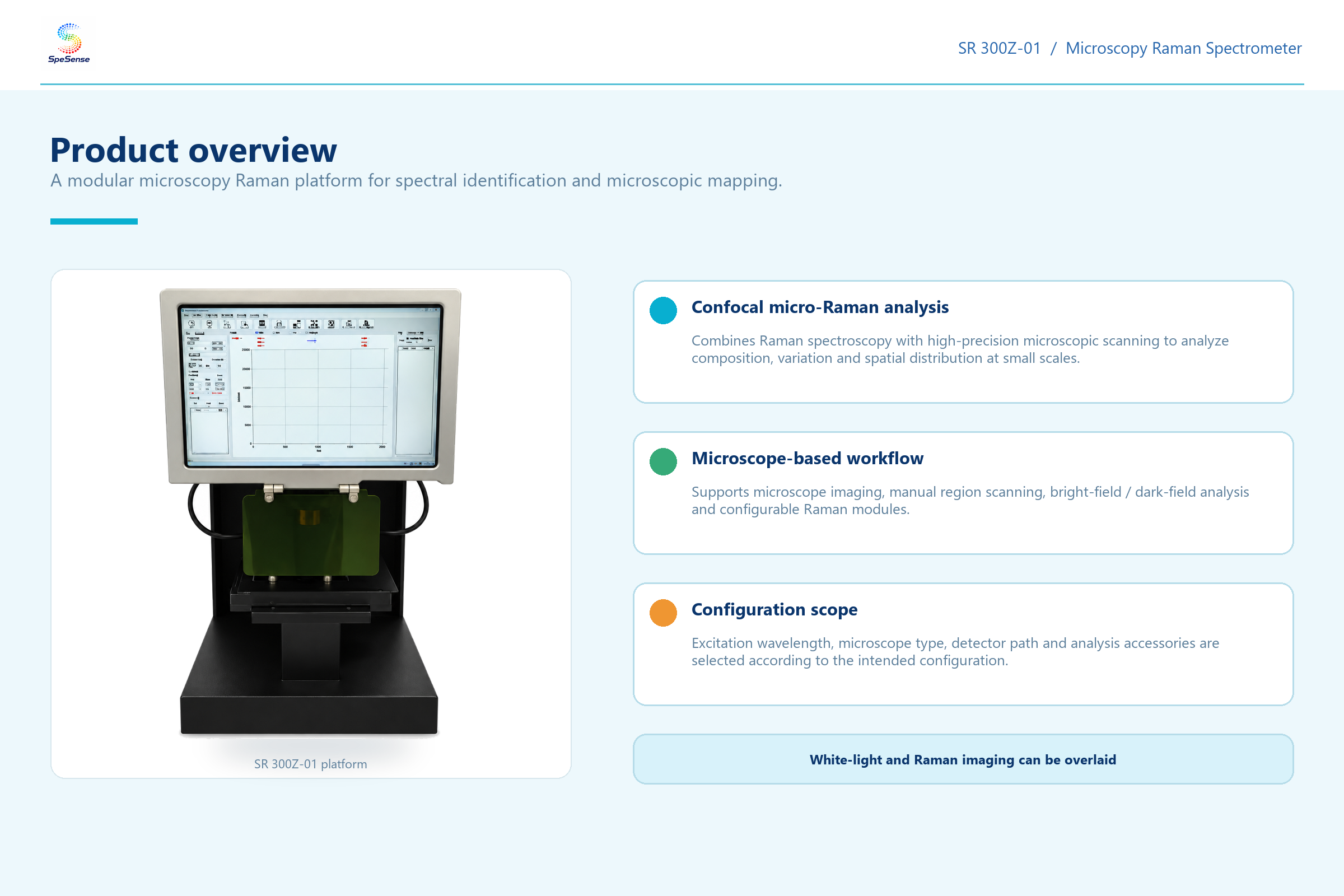

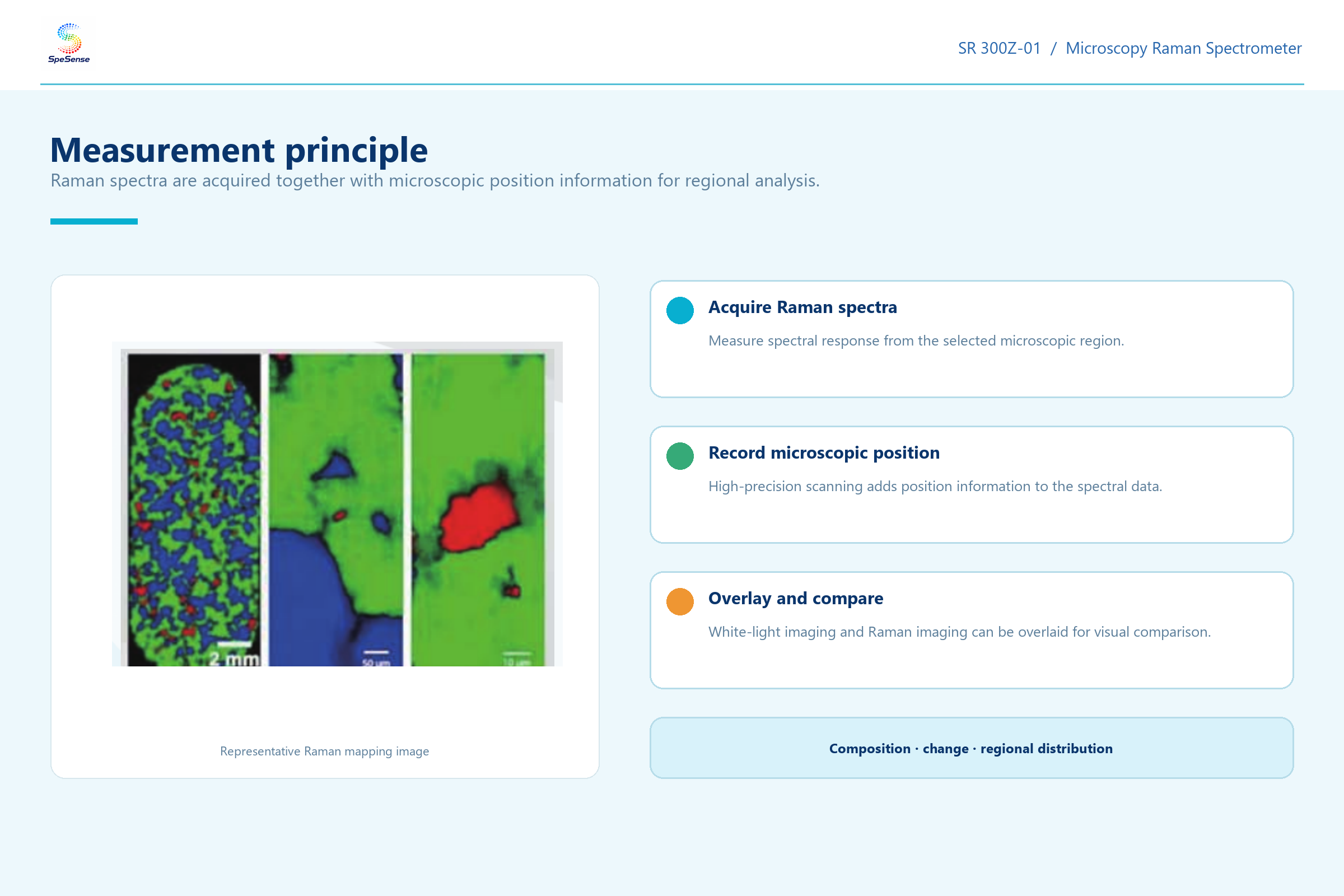

• SR 300Z-01 combines Raman spectroscopy with high-precision microscopic scanning to analyze composition, variation and spatial distribution at small scales.

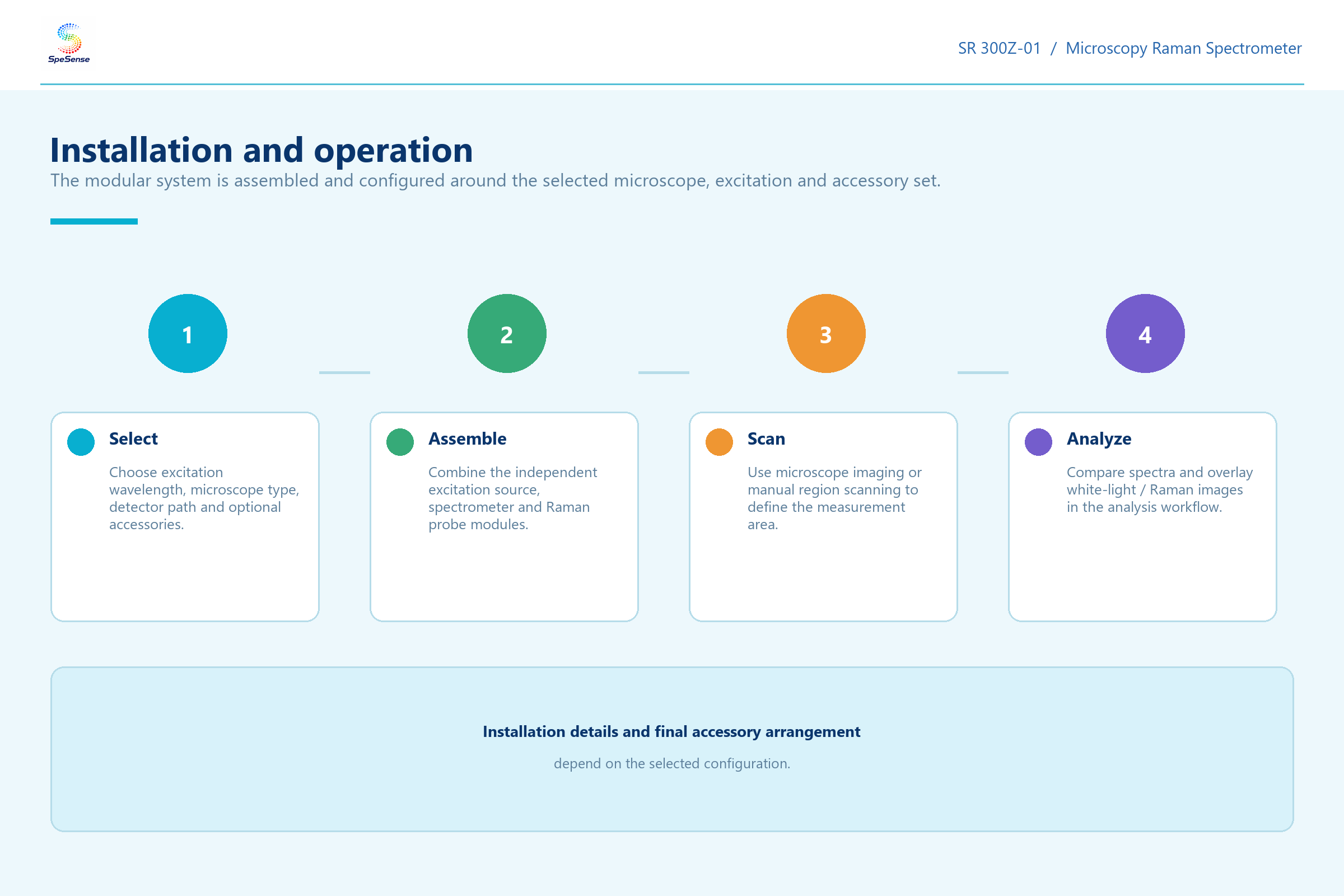

• The modular system supports microscope imaging, manual region scanning, bright-field/dark-field analysis and configurable Raman modules.

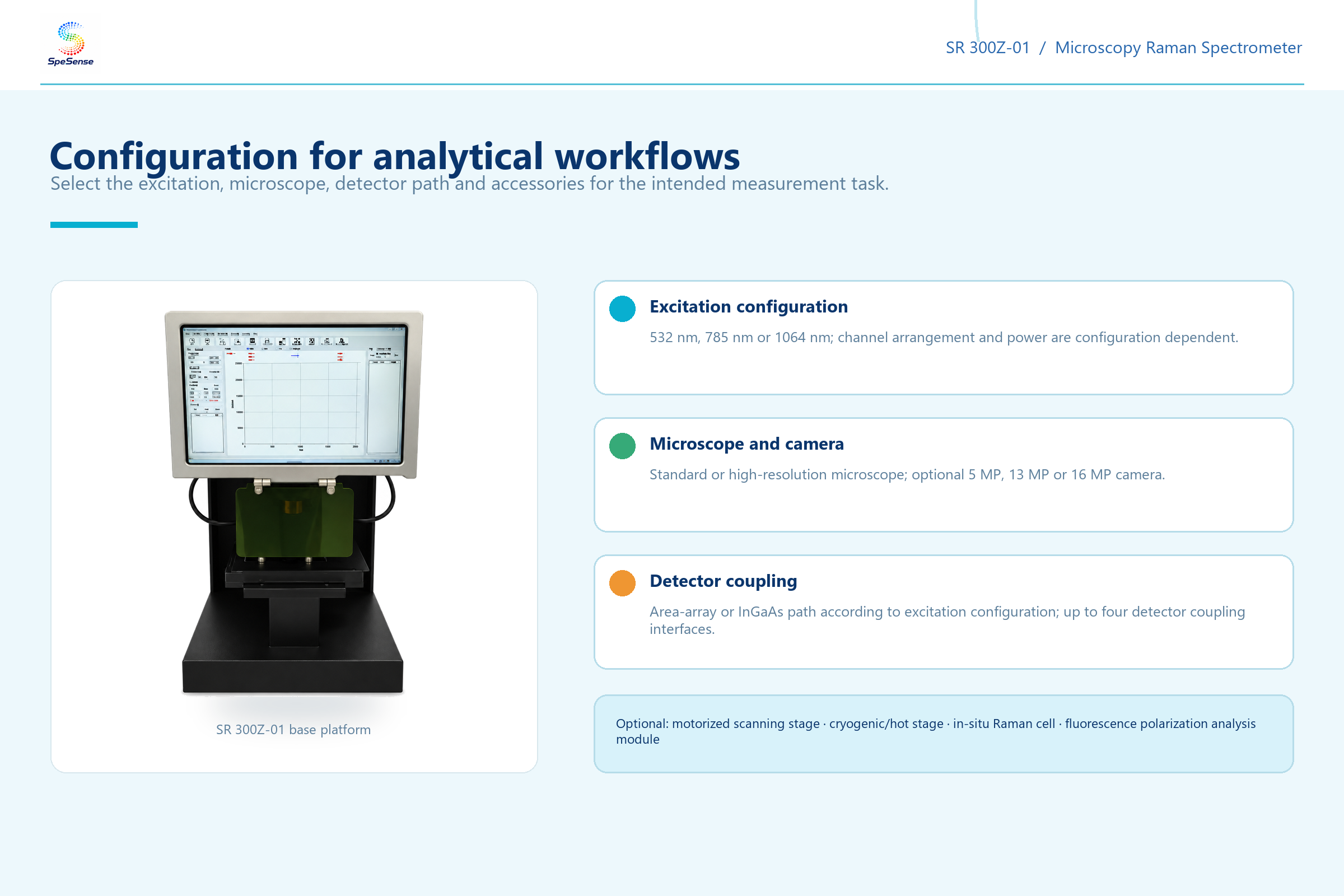

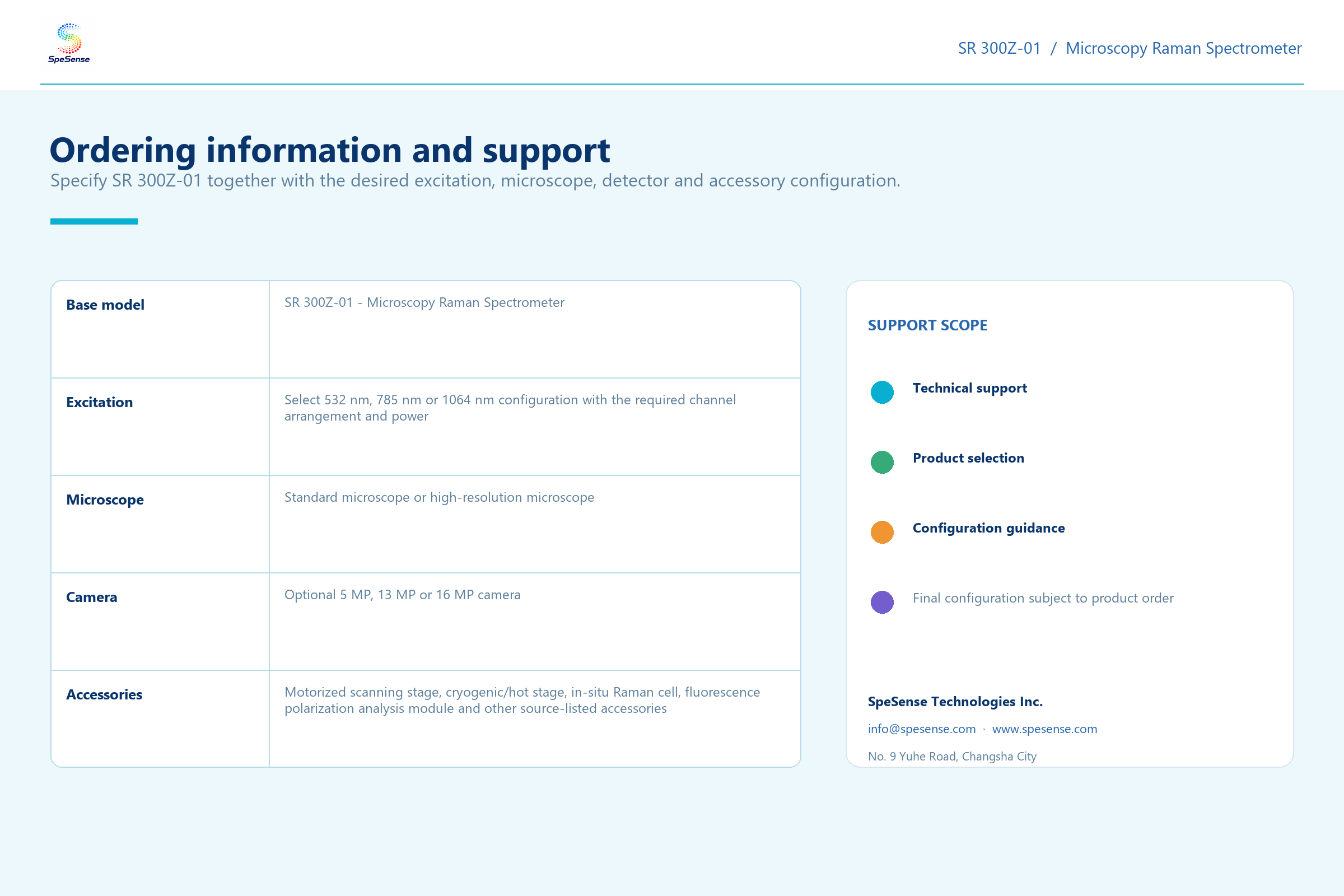

• Configuration options include excitation wavelength, microscope type, detector path and analysis accessories as specified in the source material.

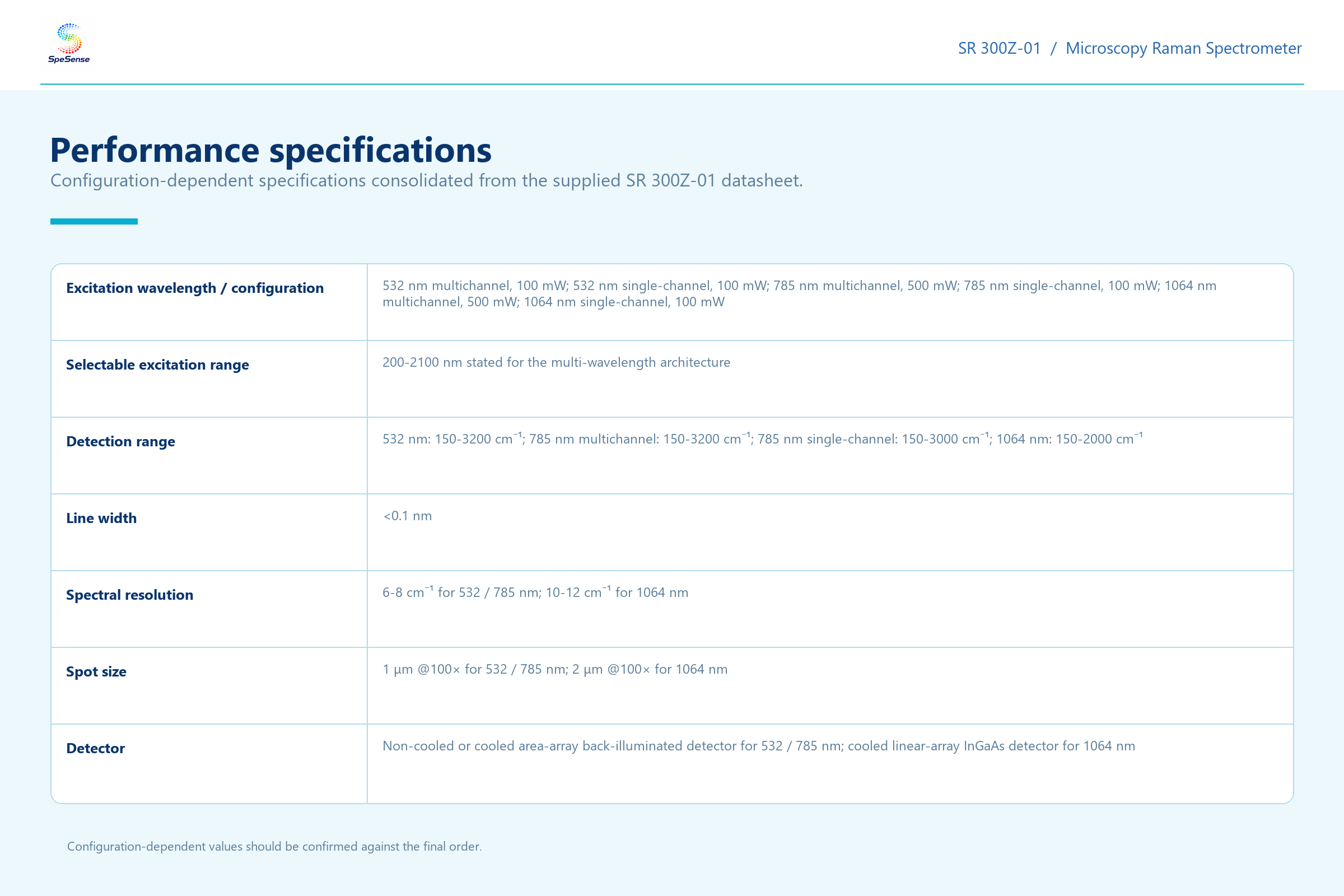

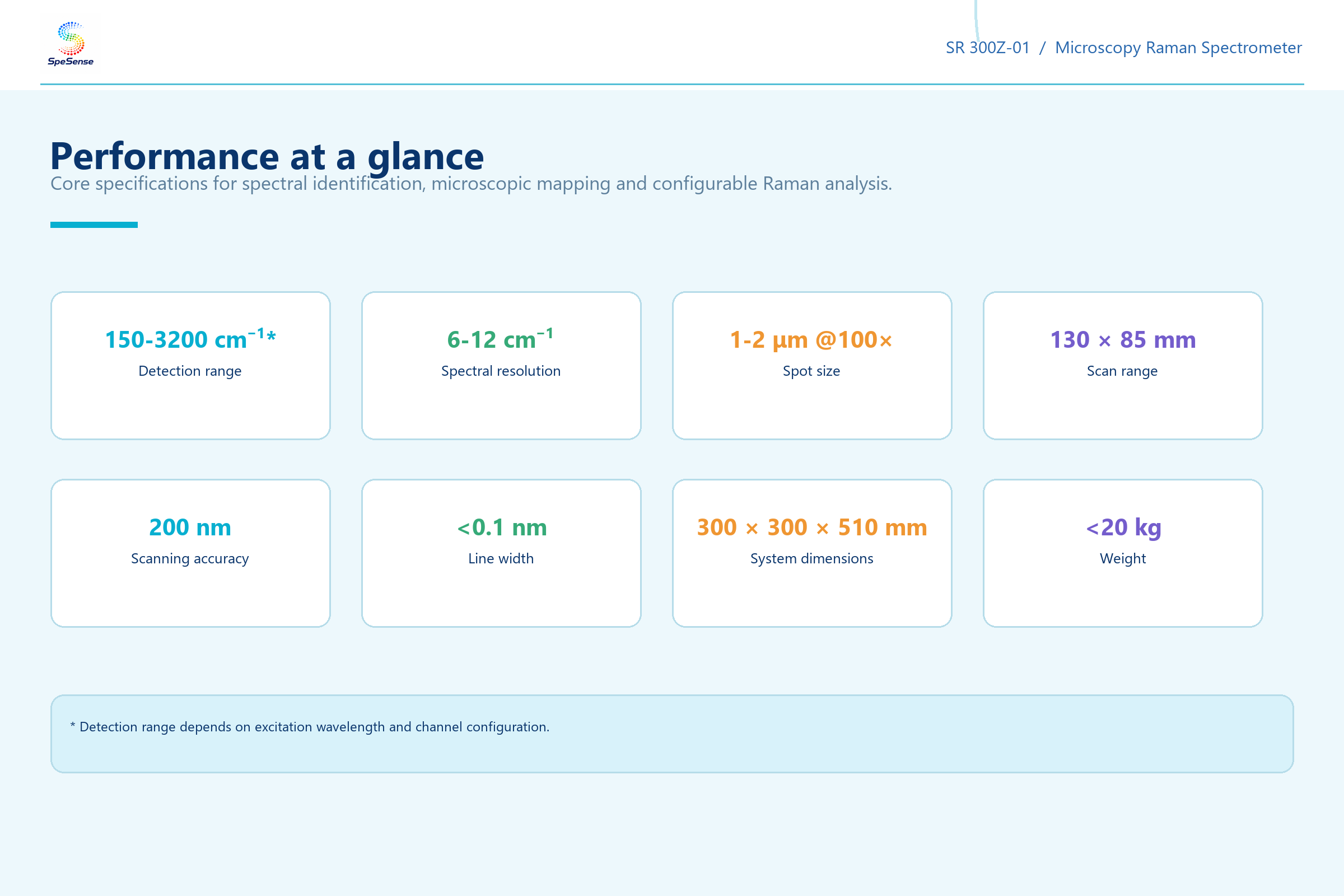

| Item | Specification |
| Product model | SR 300Z-01 |
| Excitation wavelength / configuration | 532 nm multichannel, 100 mW; 532 nm single-channel, 100 mW; 785 nm multichannel, 500 mW; 785 nm single-channel, 100 mW; 1064 nm multichannel, 500 mW; 1064 nm single-channel, 100 mW |
| Selectable excitation range | 200-2100 nm stated for the multi-wavelength architecture |
| Detection range | 532 nm: 150-3200 cm⁻¹; 785 nm multichannel: 150-3200 cm⁻¹; 785 nm single-channel: 150-3000 cm⁻¹; 1064 nm: 150-2000 cm⁻¹ |
| Line width | <0.1 nm |
| Spectral resolution | 6-8 cm⁻¹ for 532 nm and 785 nm configurations; 10-12 cm⁻¹ for 1064 nm configurations |
| Spot size | 1 μm @100× for 532 nm and 785 nm; 2 μm @100× for 1064 nm |
| Detector | Non-cooled or cooled area-array back-illuminated detector for 532/785 nm configurations; cooled linear-array InGaAs detector for 1064 nm configurations |
| Microscope | Standard microscope or high-resolution microscope, configuration dependent |
| Objective selection | 10× / 20× / 50× / 100×; for 1064 nm single-channel configuration, three near-infrared objectives 5× / 10× / 20× |
| Camera | Optional 5 MP, 13 MP or 16 MP camera |

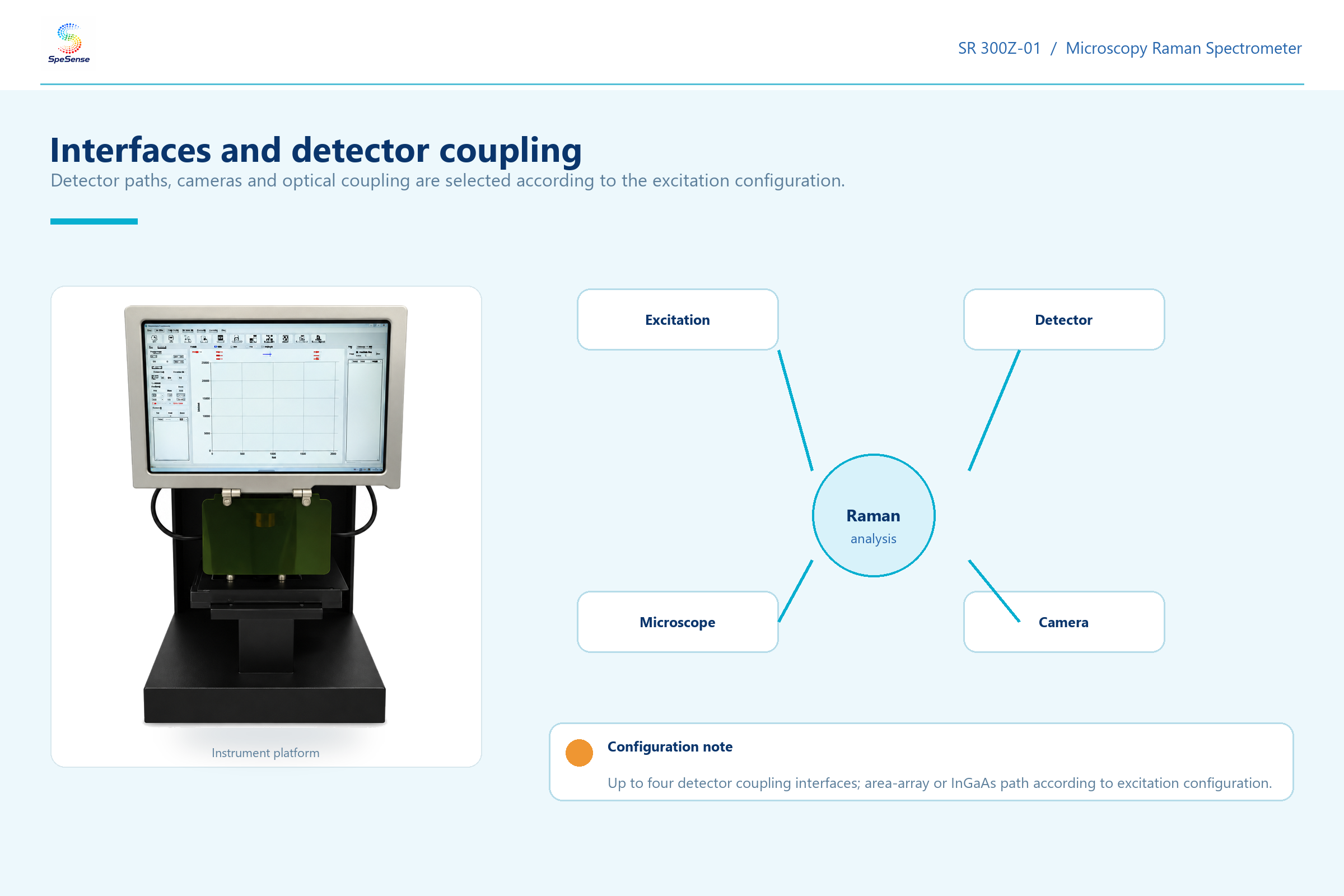

| Detector coupling | Up to four detector coupling interfaces |
| Scan range | 130 × 85 mm |
| Scanning accuracy | 200 nm |

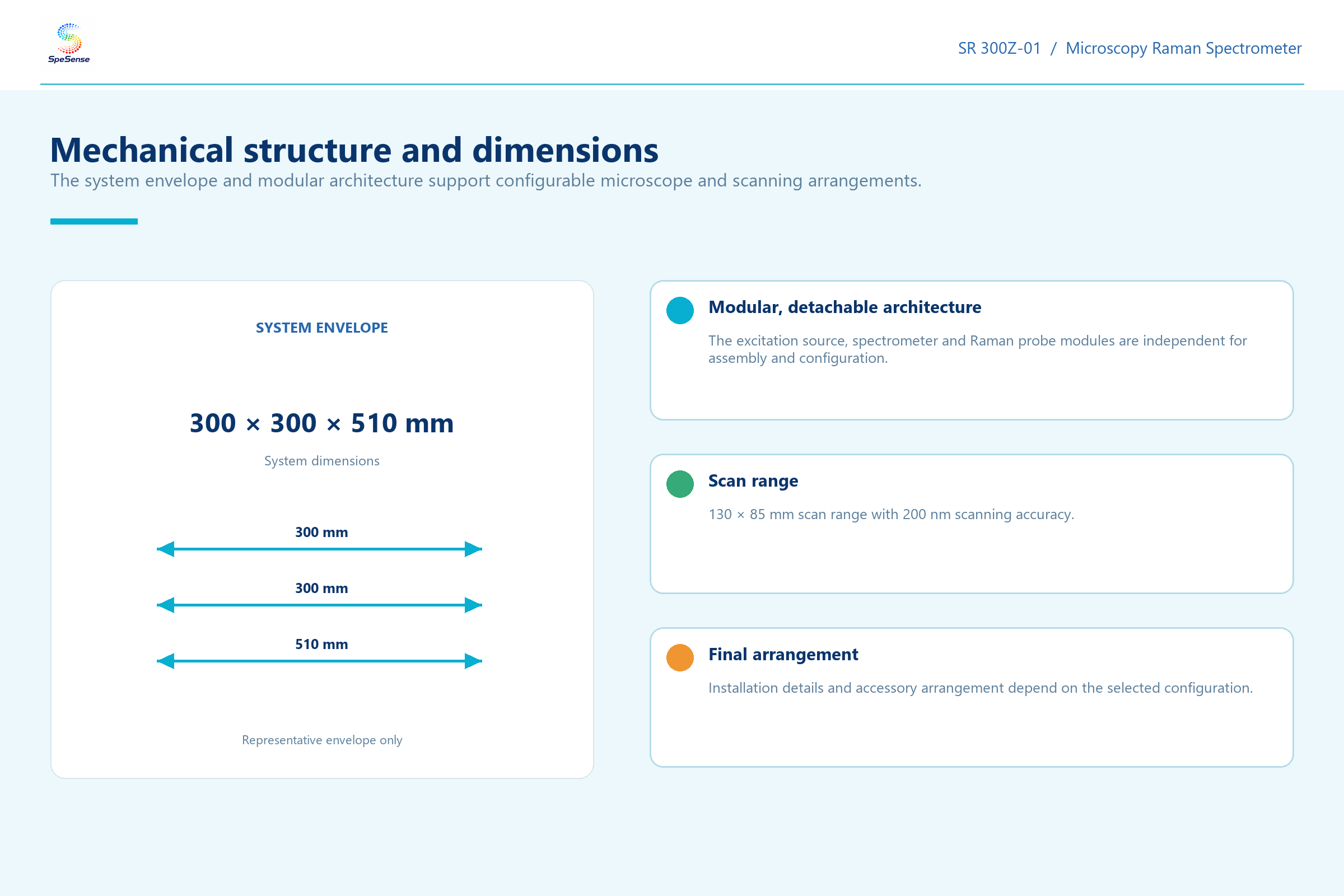

| System dimensions | 300 × 300 × 510 mm |
| Weight | <20 kg |

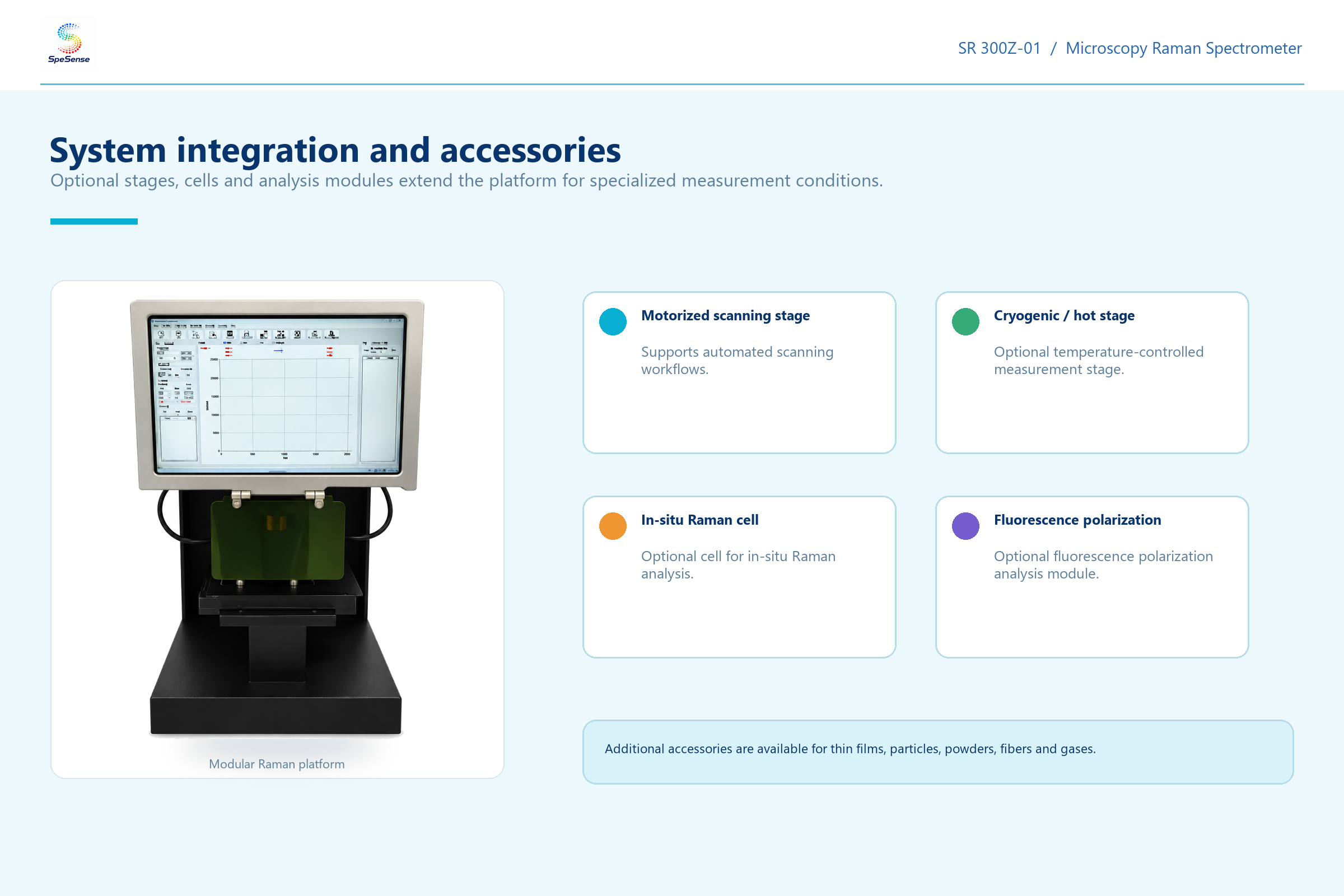

| Optional accessories | Motorized scanning stage, cryogenic/hot stage, in-situ Raman cell and fluorescence polarization analysis module |
