NIR Spectrometers

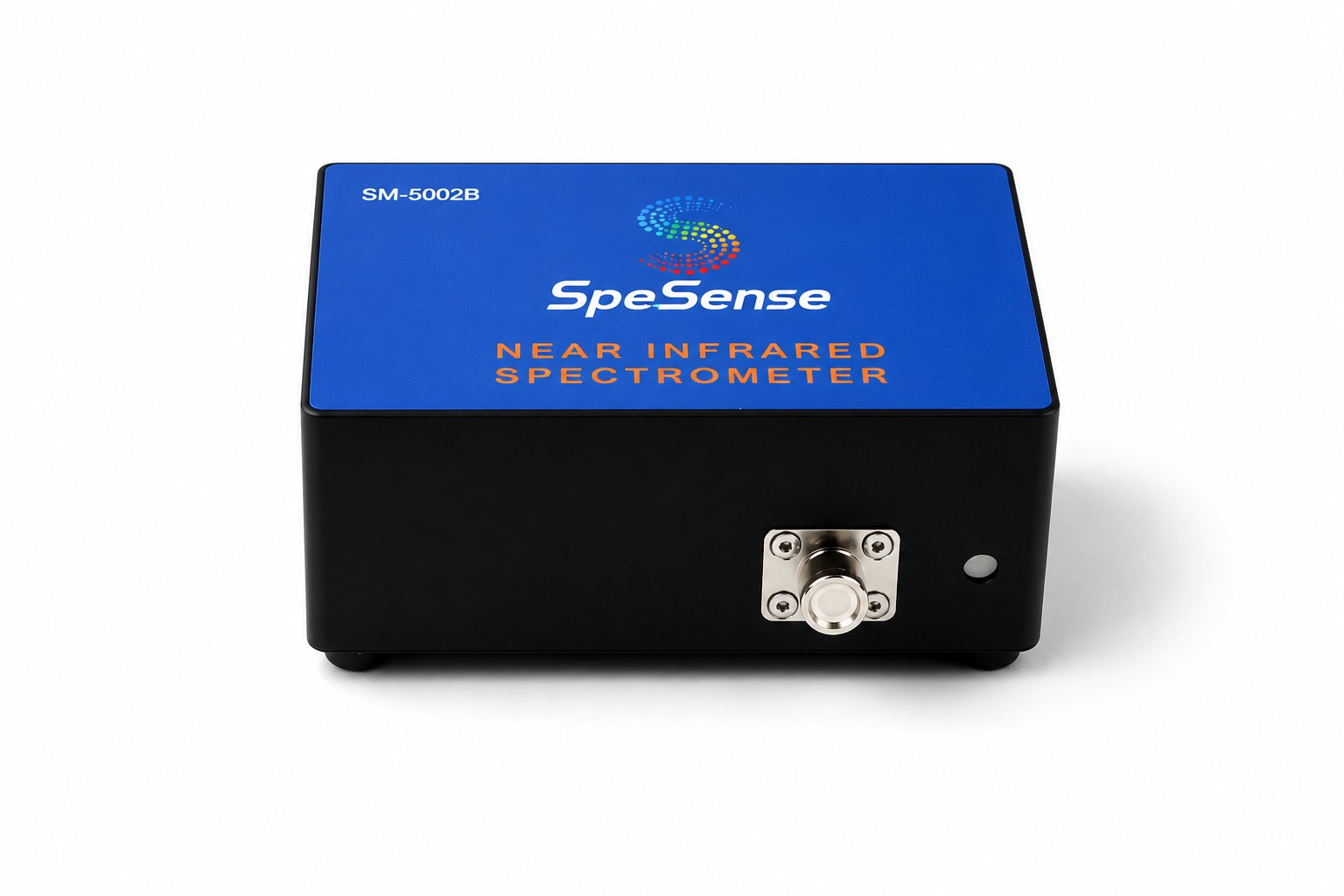

SM-5002B
高性能近红外光谱仪

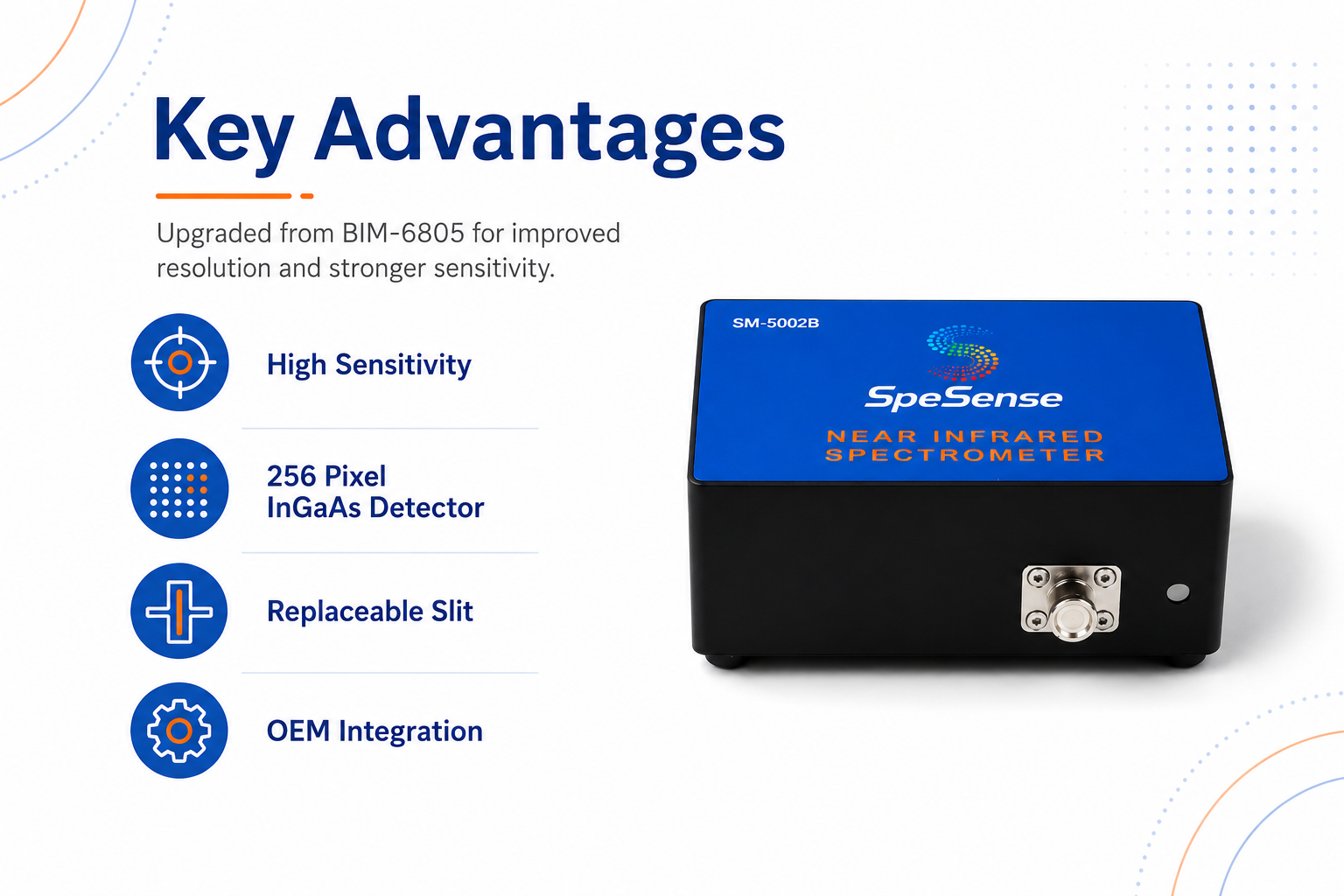

产品亮点
● Utilizes uncooled InGaAs detector with ultra-low power consumption

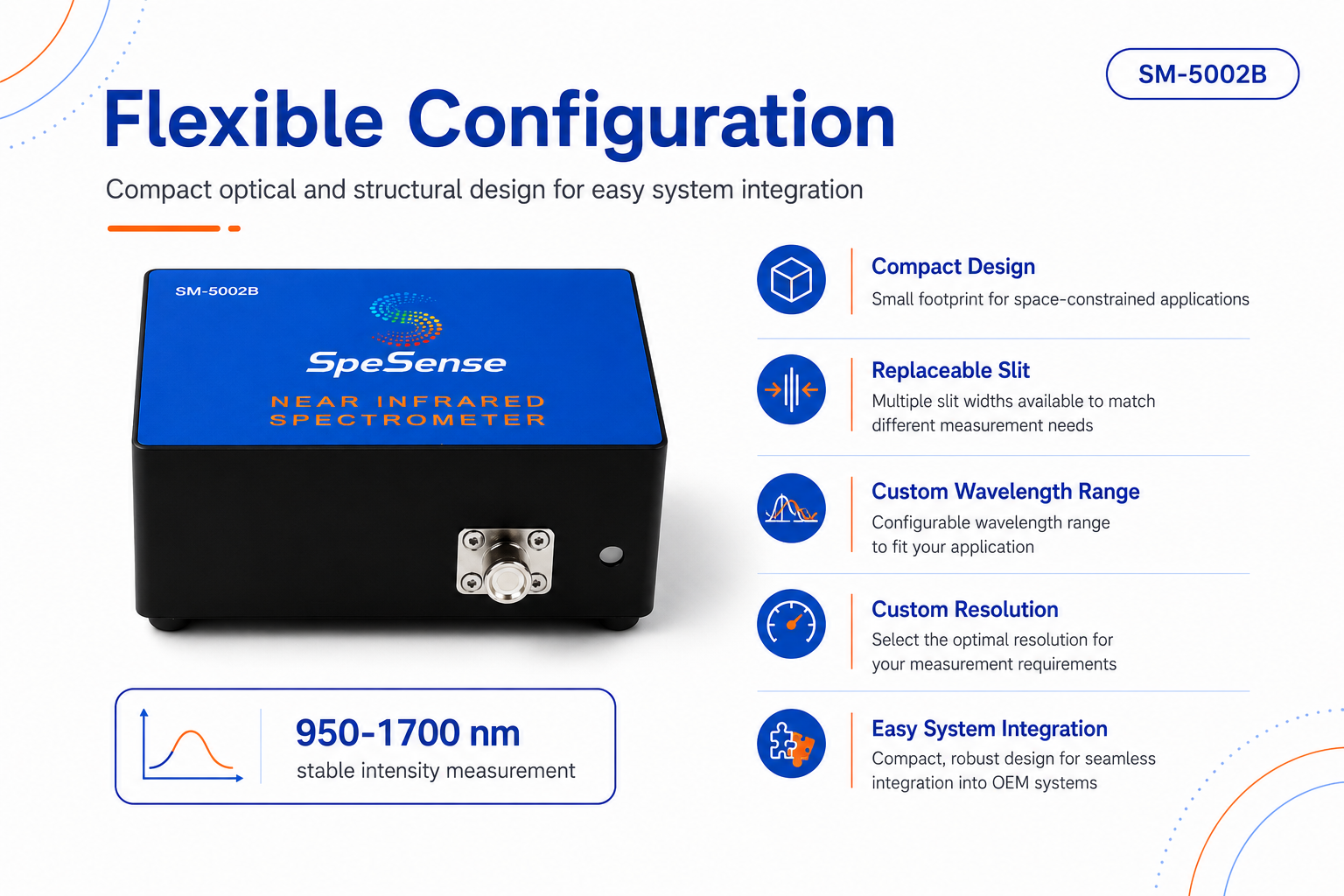

● Compact optical and mechanical design for easy system integration
● Interchangeable slits for flexible resolution/sensitivity adjustment
● Selectable wavelength ranges and resolutions
● Broad spectral range (920nm-1700nm) with stable intensity
● Supports secondary development and OEM integration

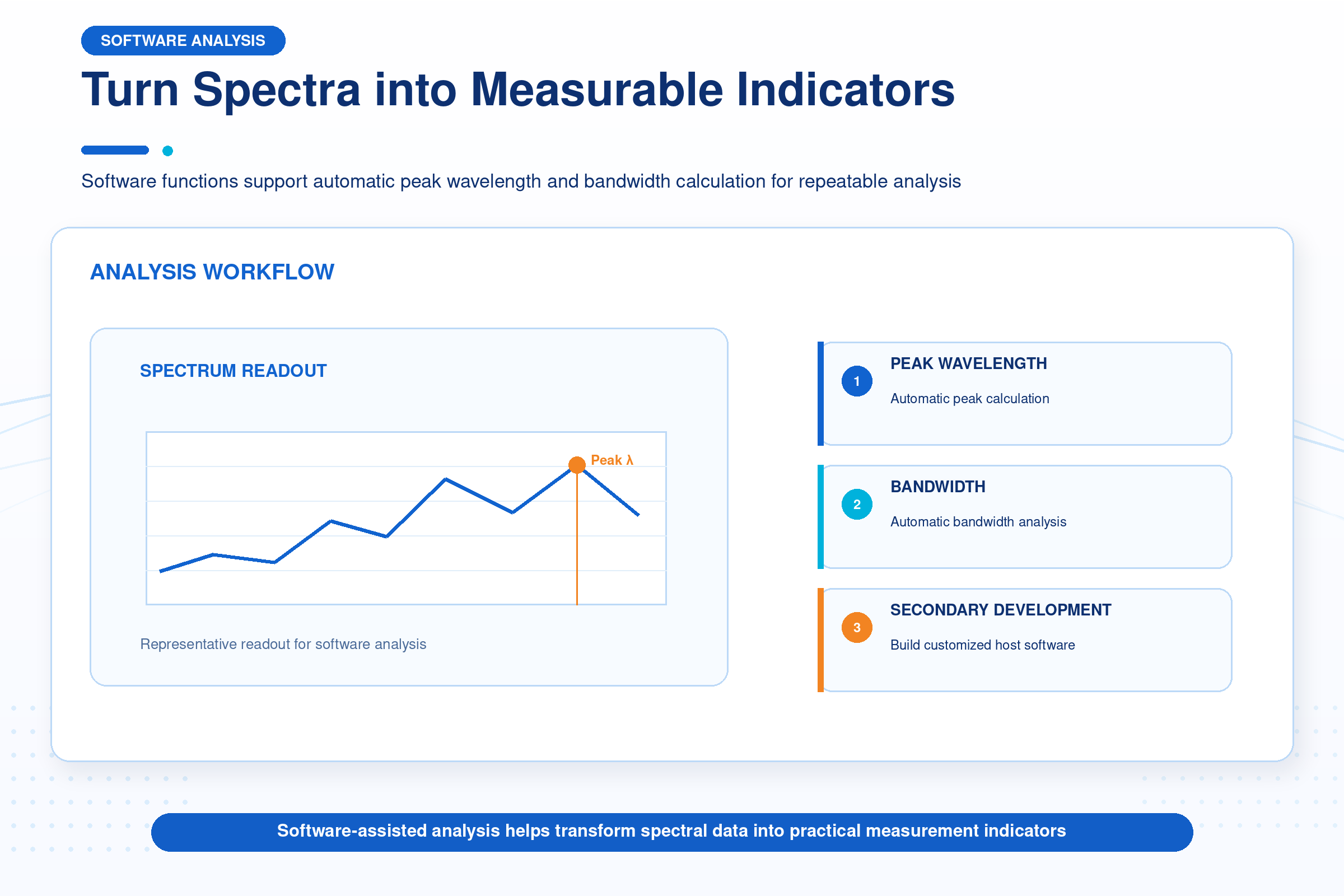

● Powerful software with automatic peak wavelength and bandwidth calculation
● Compact optical and mechanical design for easy system integration
● Interchangeable slits for flexible resolution/sensitivity adjustment
● Selectable wavelength ranges and resolutions
● Broad spectral range (920nm-1700nm) with stable intensity
● Supports secondary development and OEM integration
● Powerful software with automatic peak wavelength and bandwidth calculation
产品概述

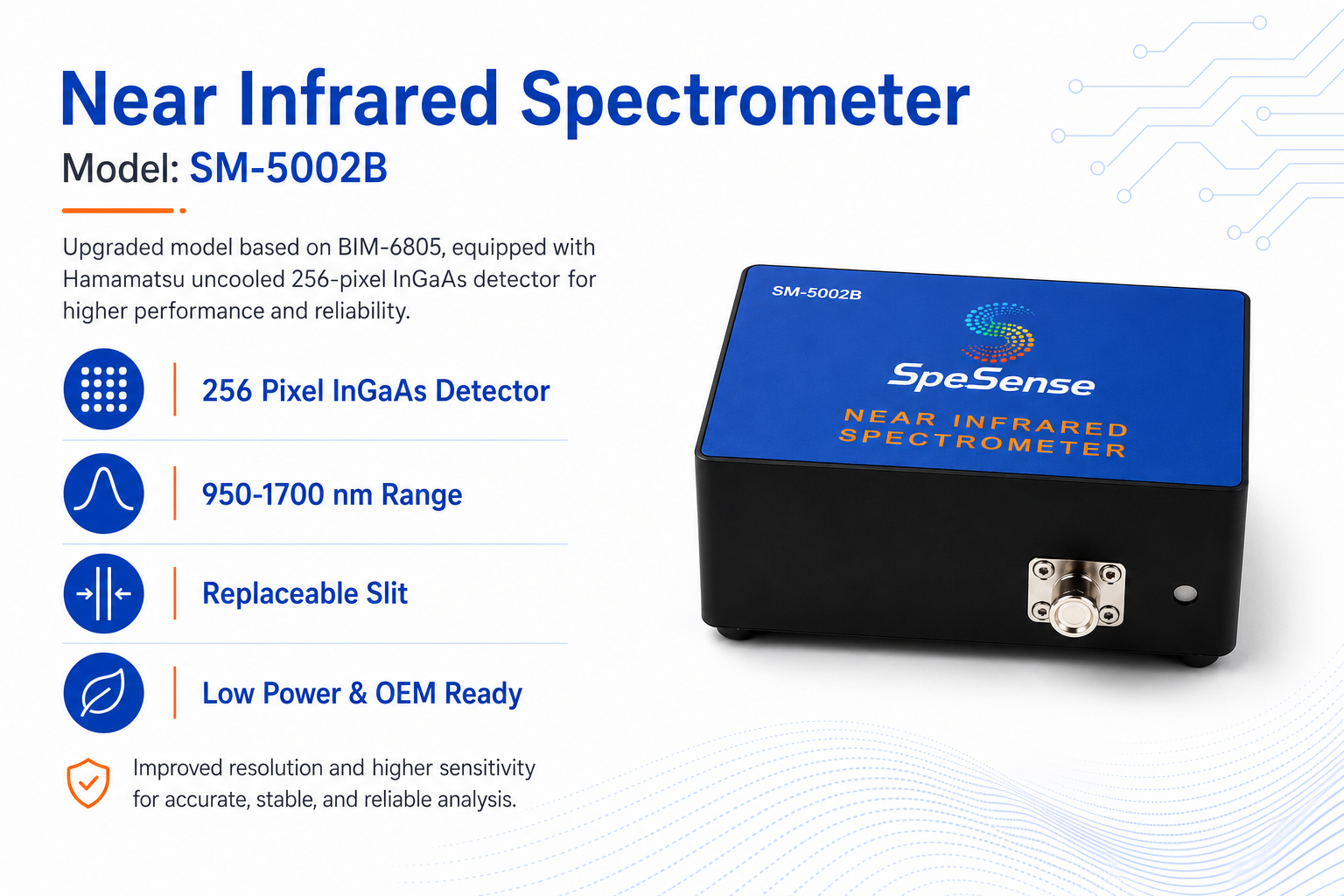

The SpeSense SM-5002B High-Performance NIR Spectrometer is designed for near-infrared spectral analysis across the 920–1700 nm wavelength range. Featuring a 256-pixel uncooled InGaAs detector, approximately 5 nm optical resolution and a dynamic range of up to 50,000:1, it provides enhanced sensitivity and spectral performance for material identification, food and agricultural analysis, moisture measurement, process monitoring and scientific research. Its compact design, SMA905 fiber interface, USB/RS232 connectivity and OEM development support make it ideal for portable and integrated NIR spectroscopy systems.

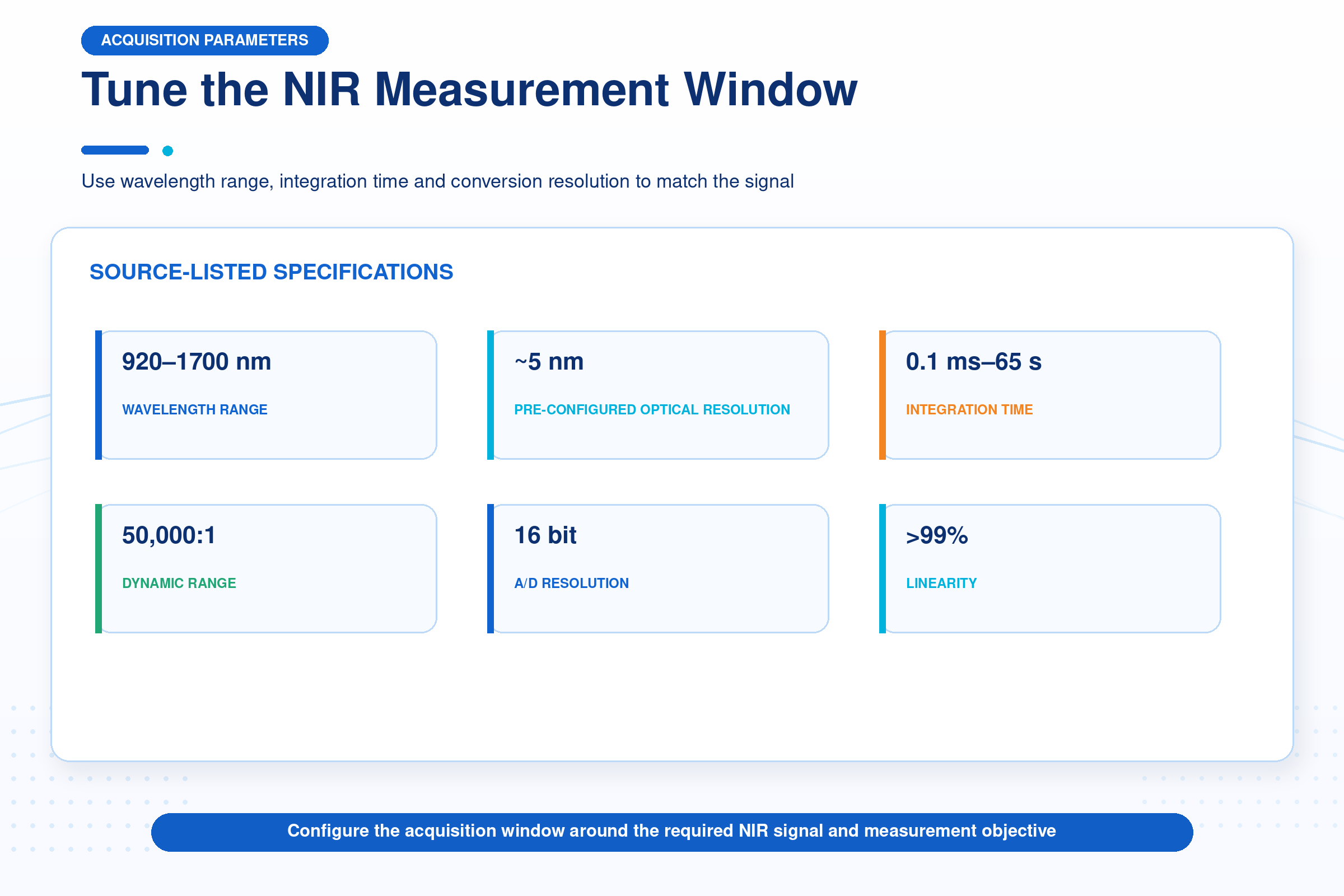

| Item | Specification |
| Model number | SM-5002B |
| Wavelength range | 920-1700 nm |
| Optical resolution | ~5 nm (pre-configured) |

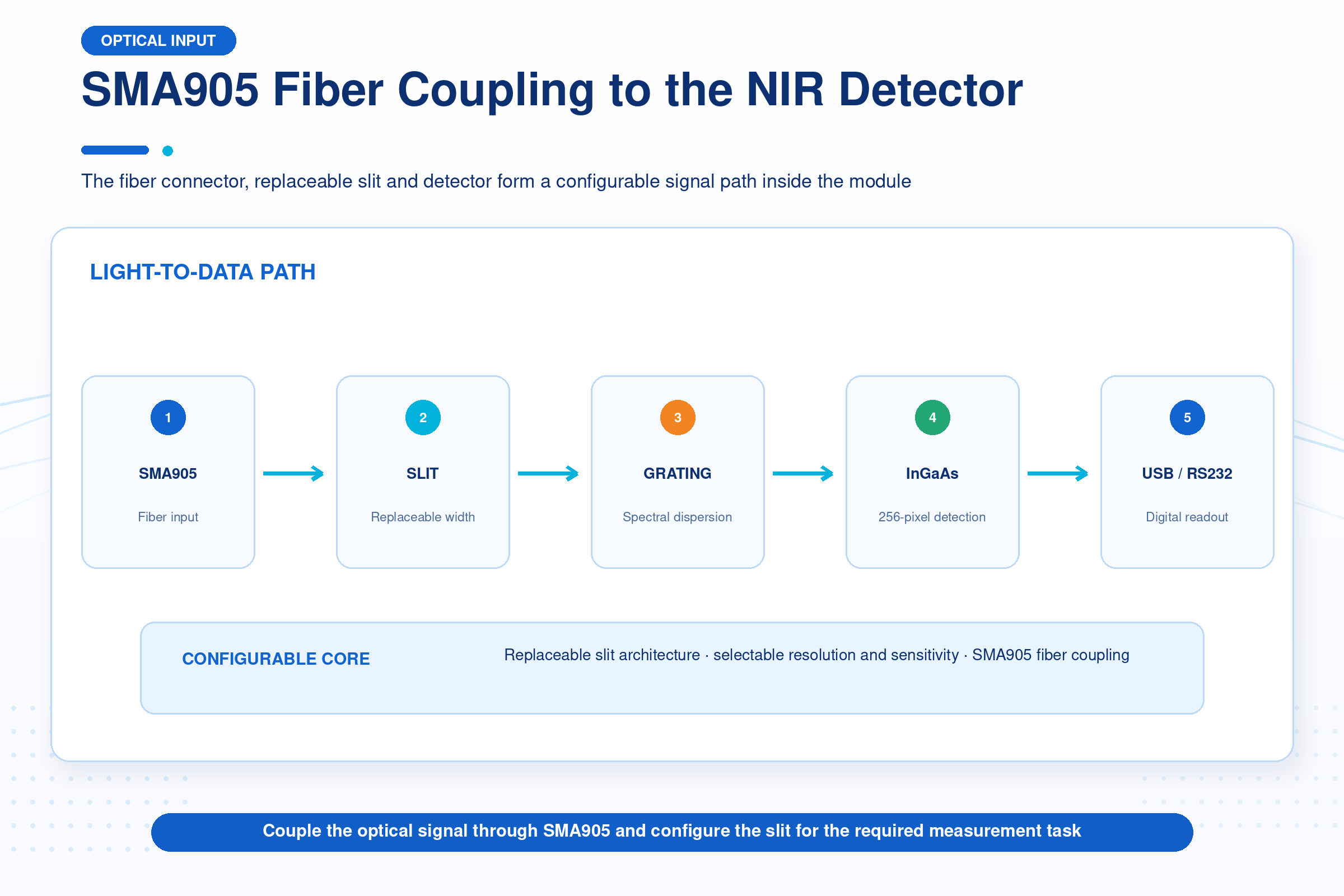

| Fiber connector | SMA905 |

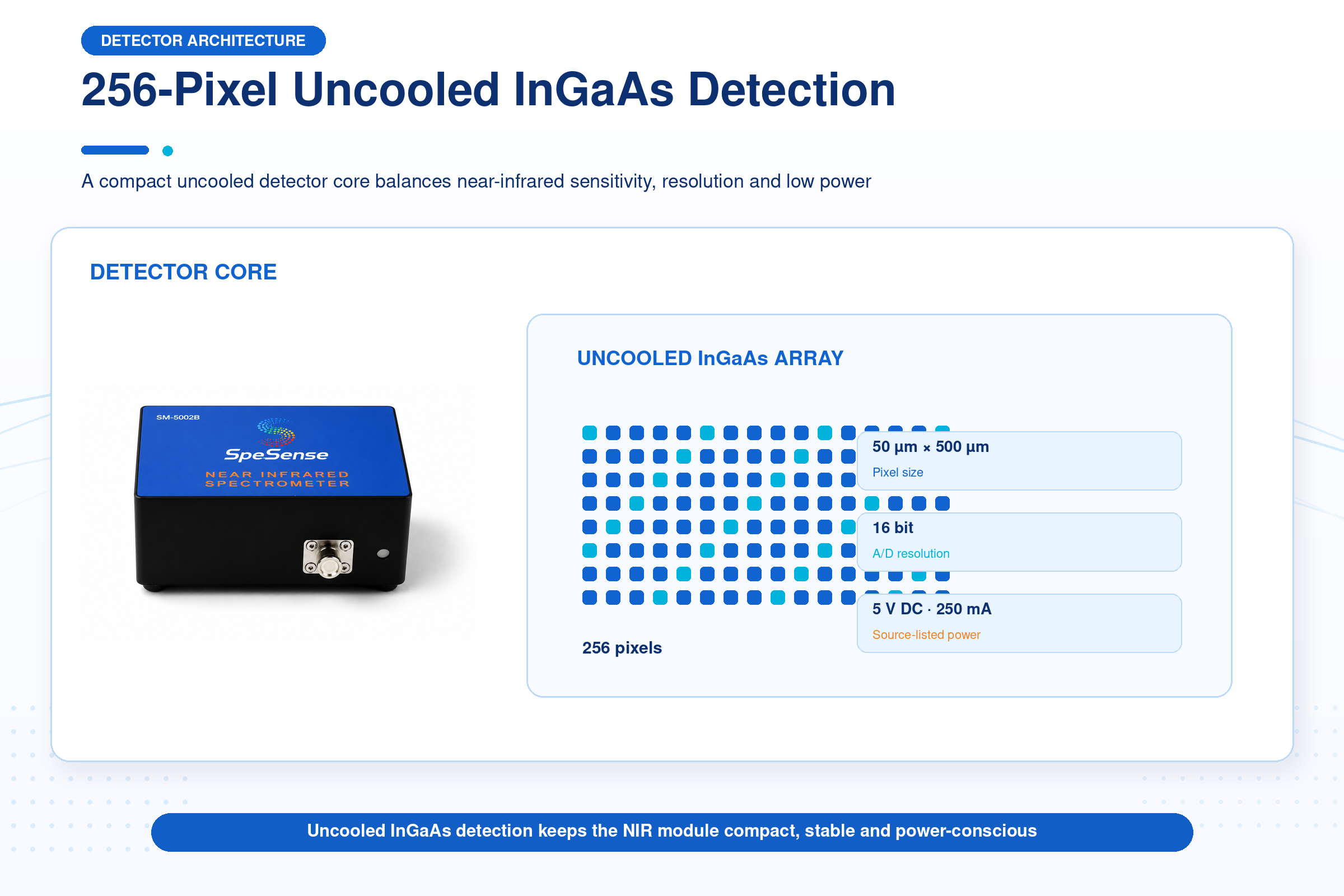

| Detector | InGaAs 256-pixel uncooled detector |
| Pixel size | 50 µm x 500 µm |
| A/D resolution | 16 bit |
| Integration time | 0.1 ms-65 s |
| Dynamic range | 50,000:1 |

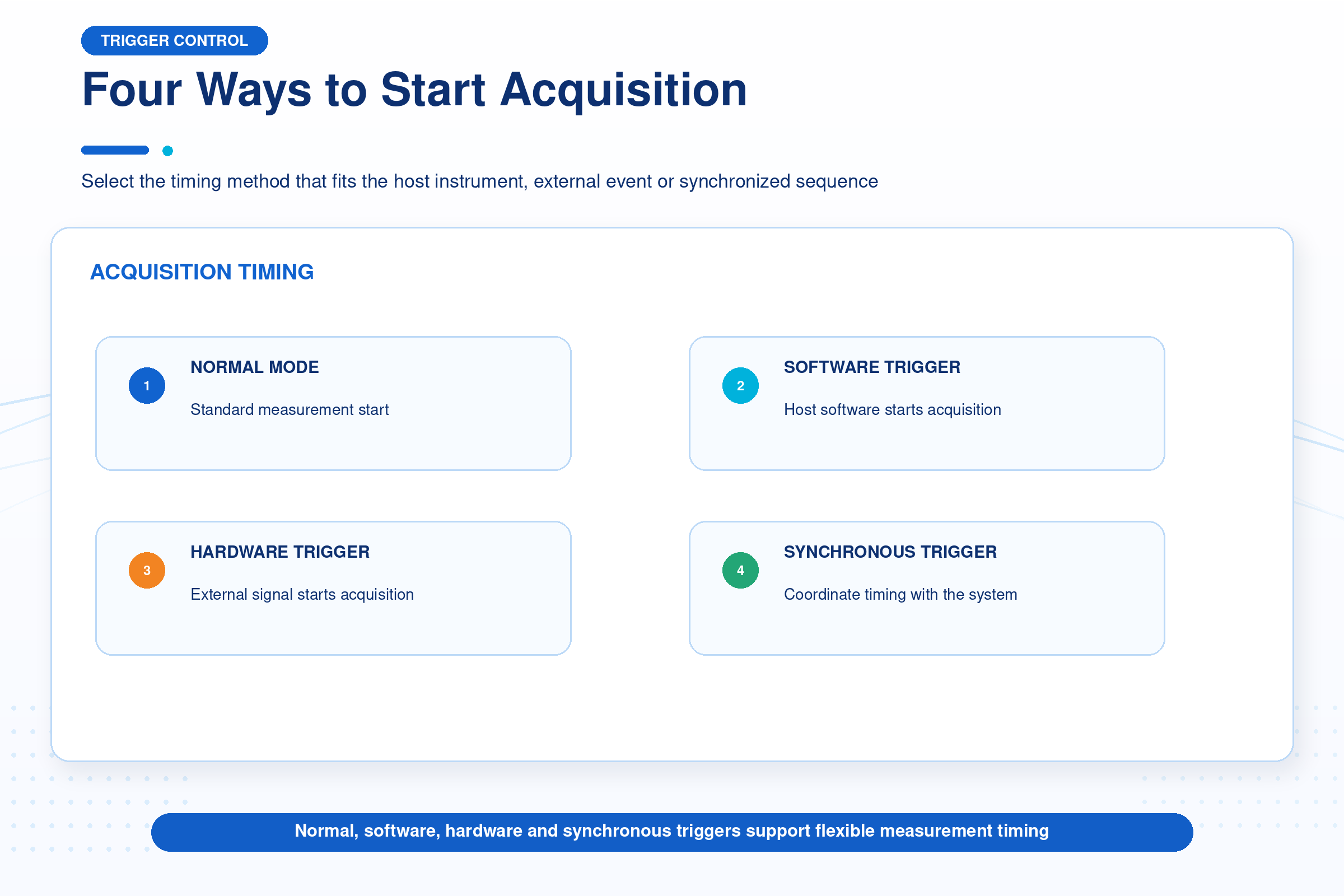

| Trigger modes | Normal, mode, software, hardware and synchronization trigger |
| Power consumption | 5 V DC, 250 mA |

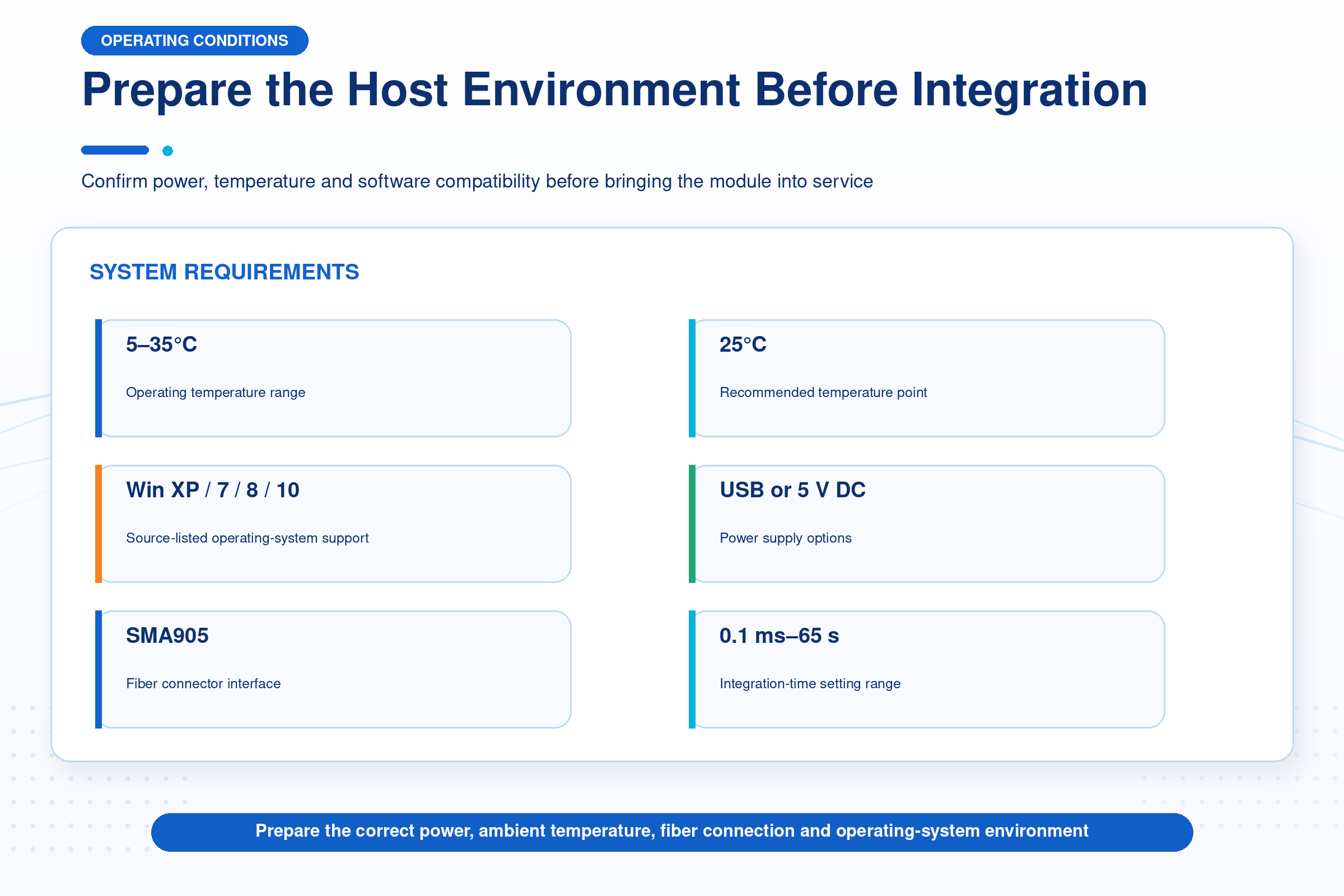

| Operating temperature | 5-35°C (25°C recommended) |

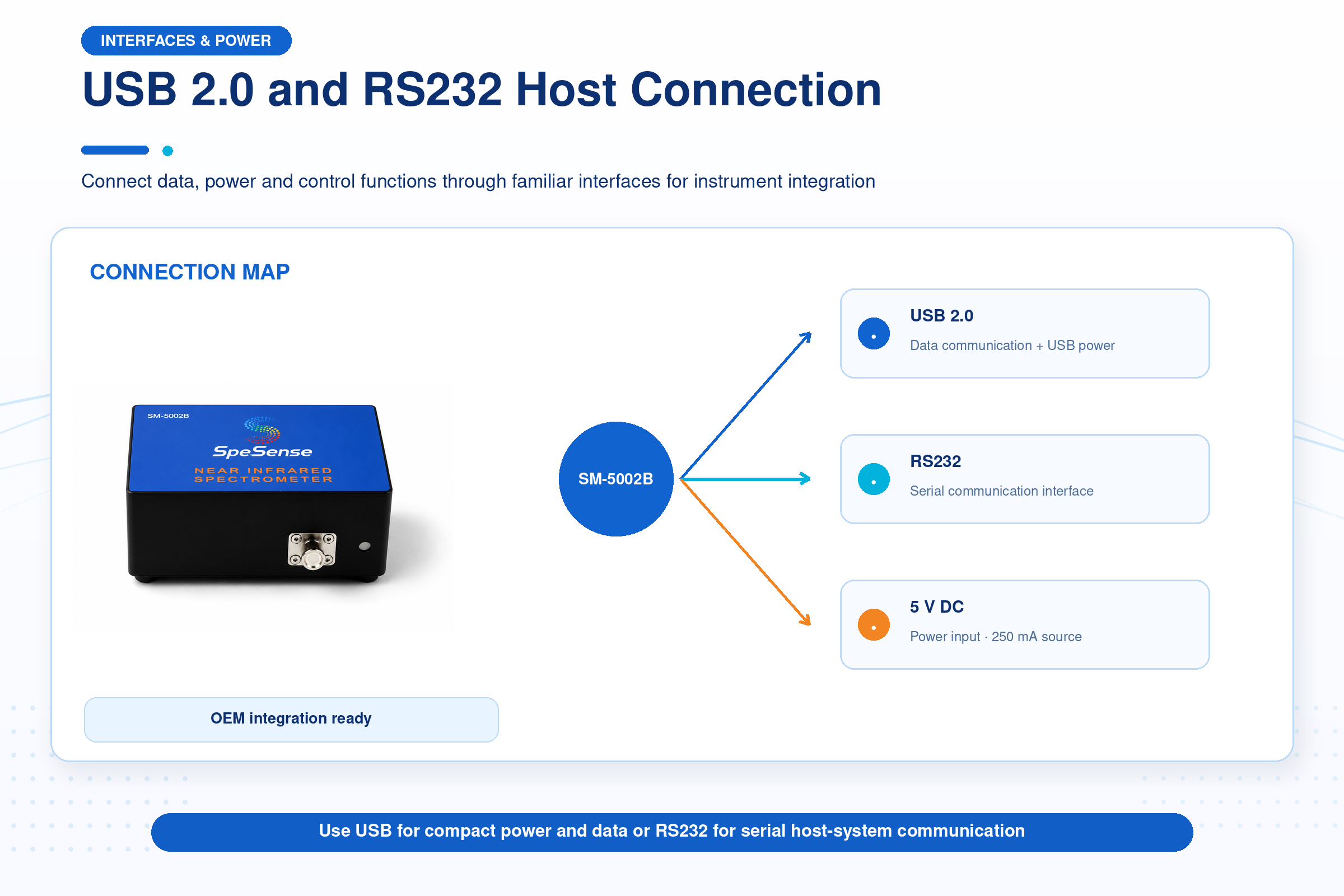

| Communication interface | USB 2.0; RS232 |
| Operating system | Win XP, Win 7, Win 8, Win 10 |
| Linearity | >99% |
| Power supply | USB or 5 V DC |

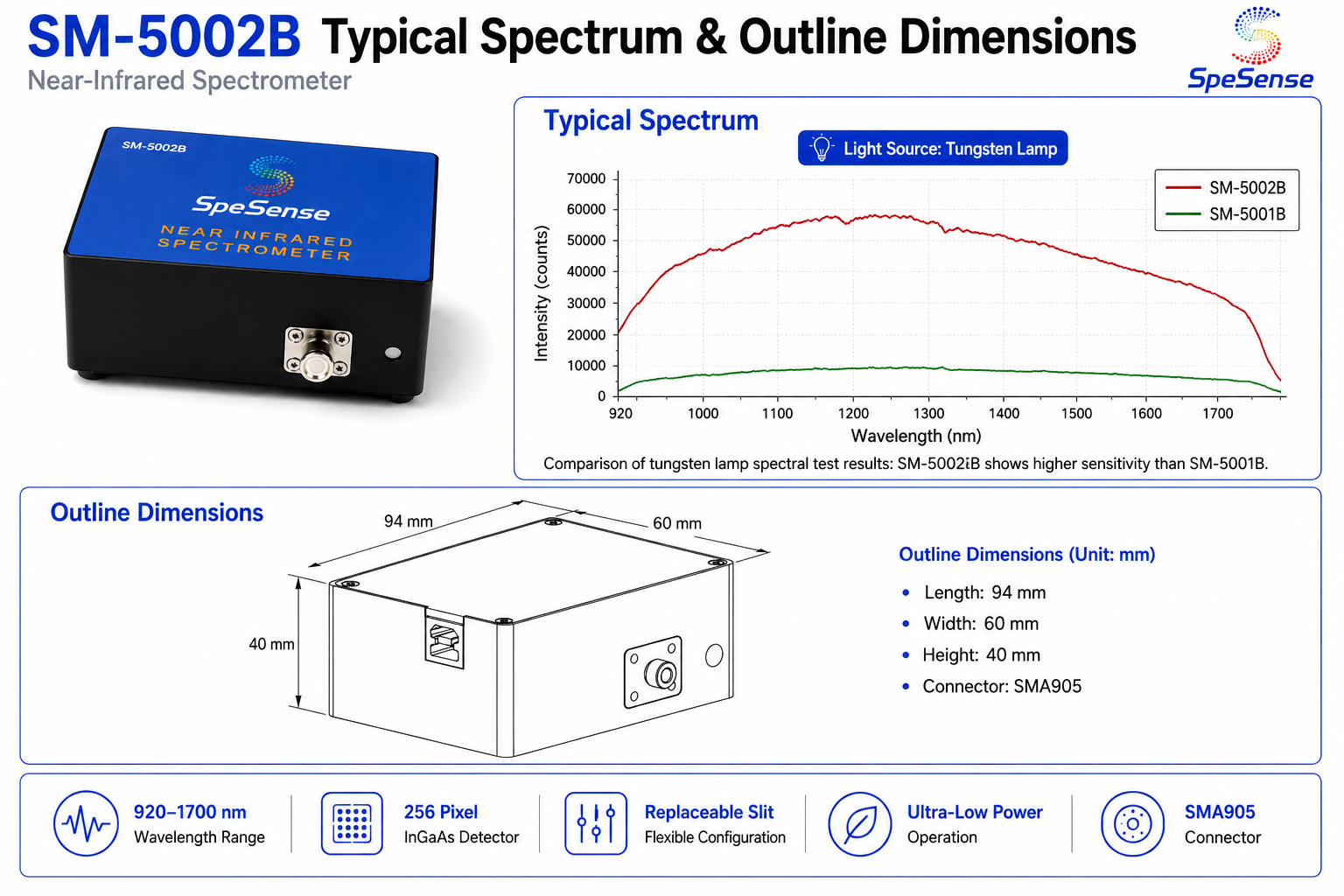

| Dimension | 94 x 60 x 36.5 mm |
