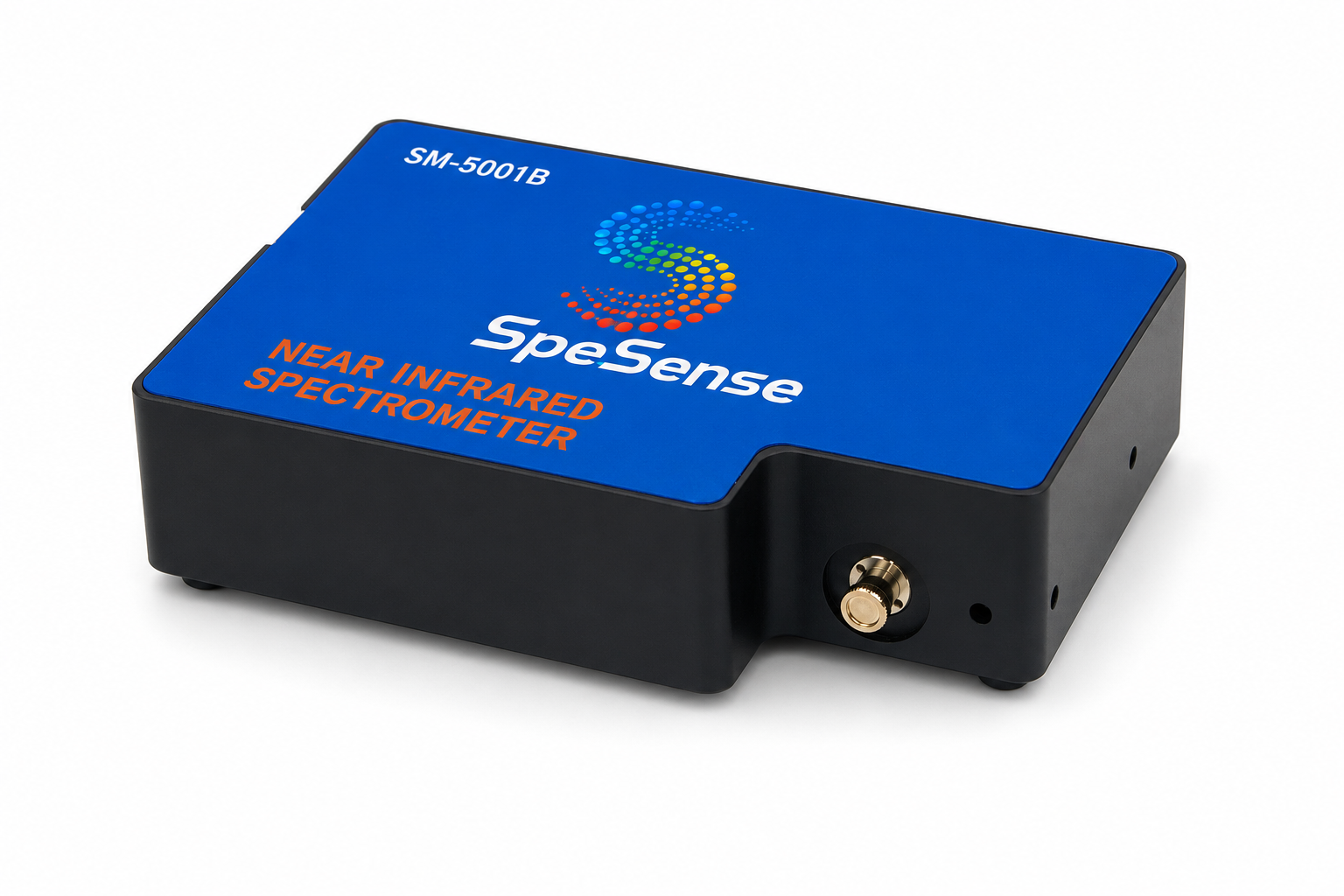

NIR Spectrometers
SM-5001B
高性价比近红外光谱仪
产品亮点

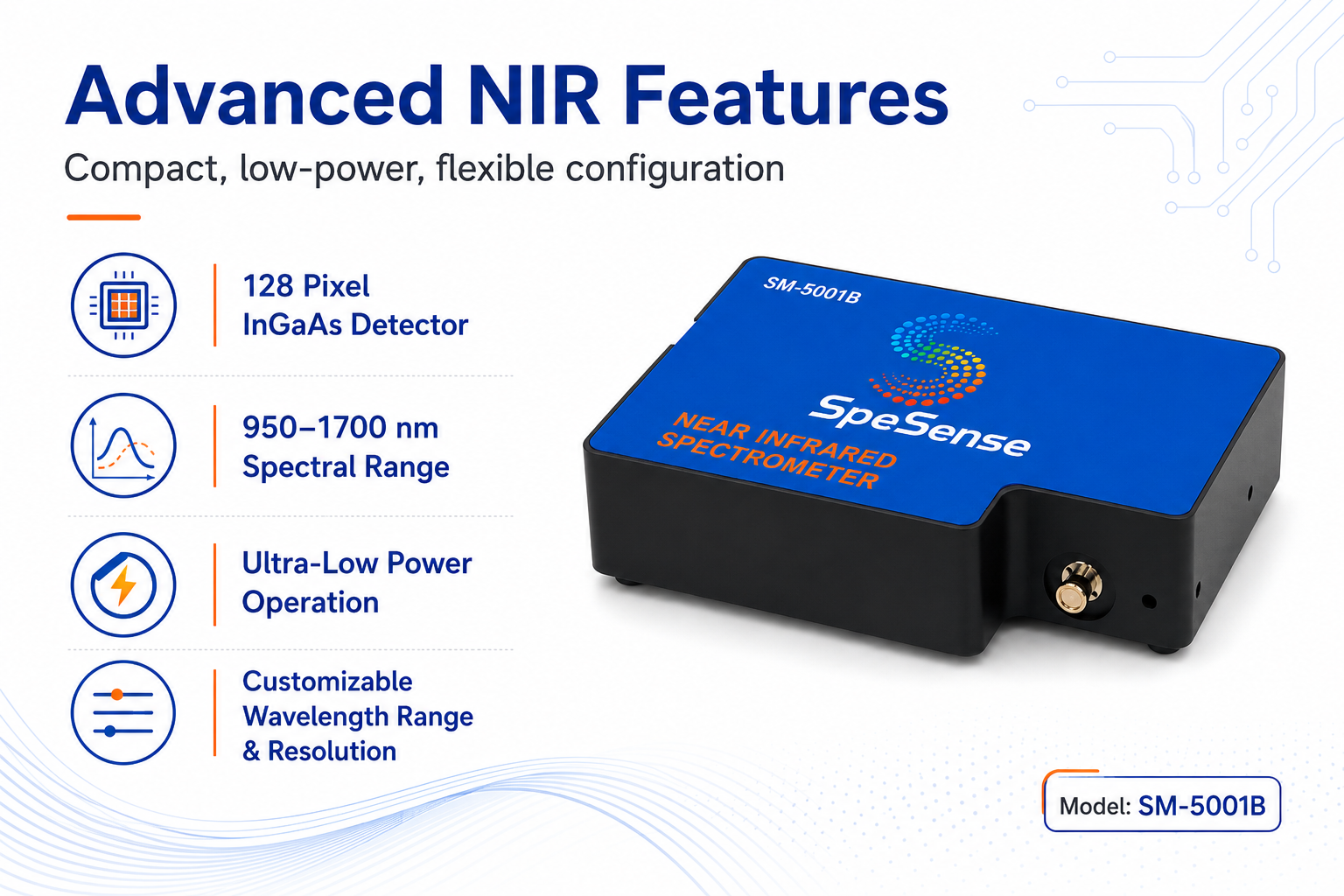

● Uses an uncooled InGaAs detector with extremely low power consumption
● Available in 128-pixel and 256-pixel detector versions
● Compact optical path and structural design for easy system integration

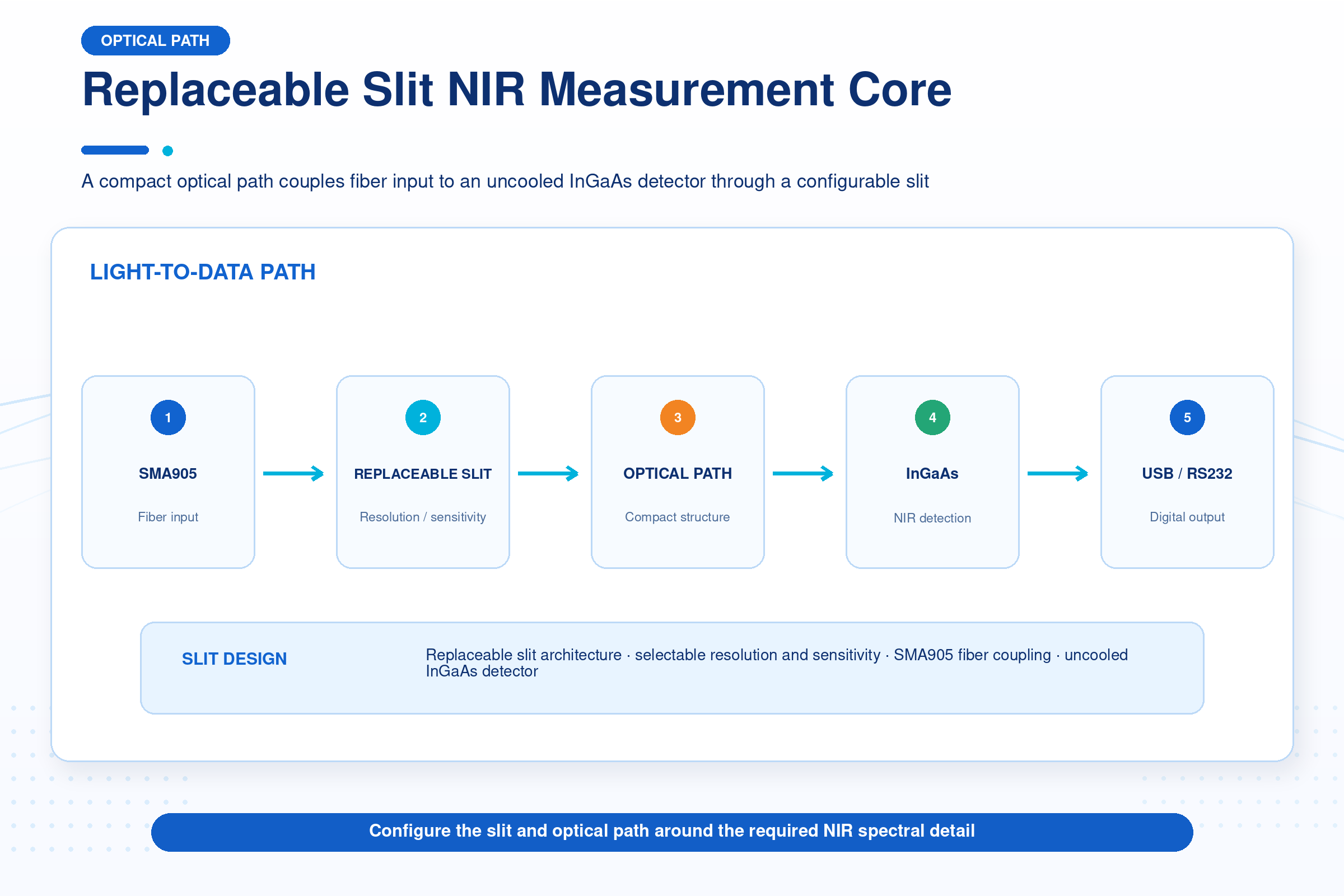

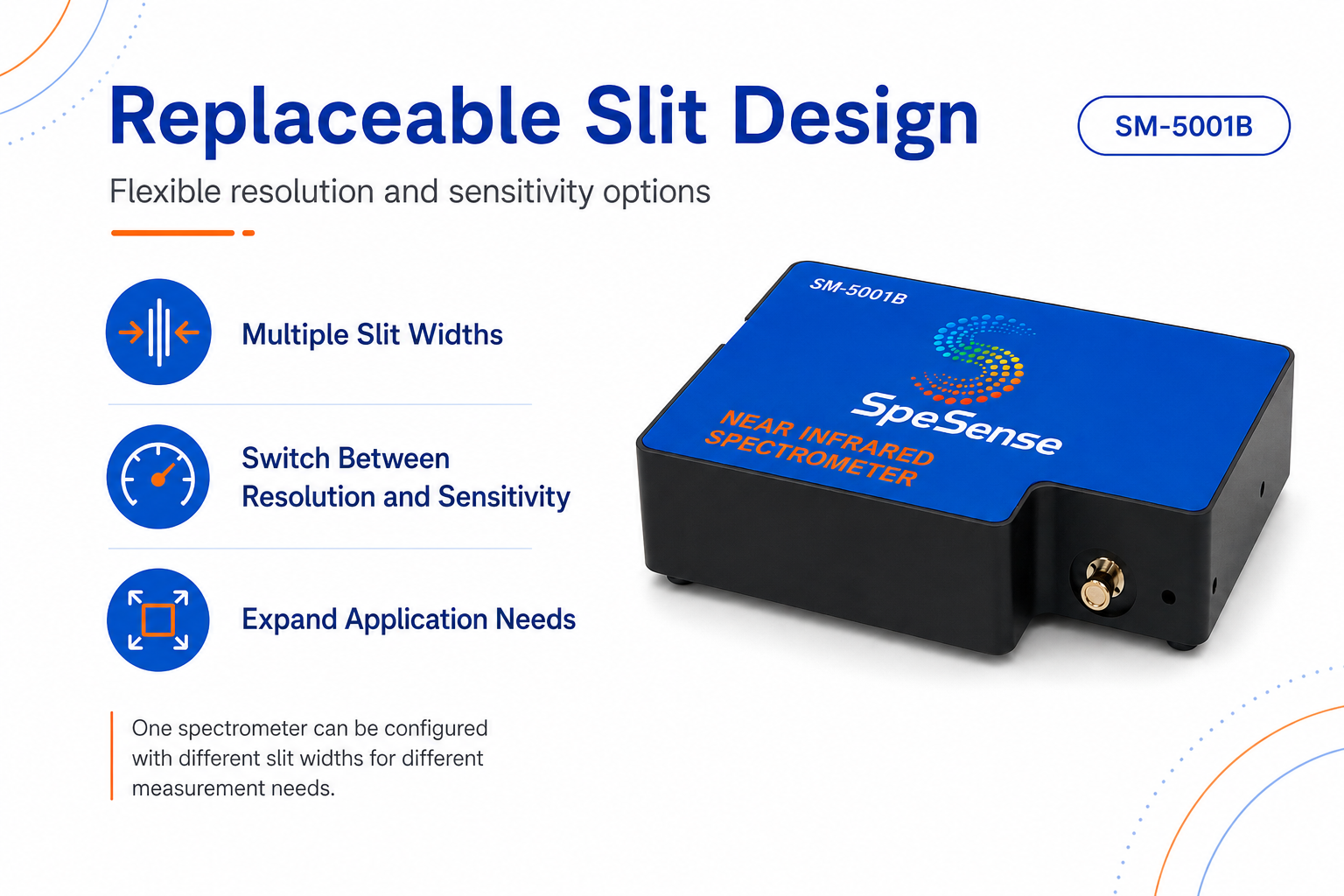

● Interchangeable slit design allows for flexible switching between different resolutions and sensitivities
● Selectable wavelength ranges and resolutions
● Wide spectral measurement range (950 nm–1700 nm) with stable intensity

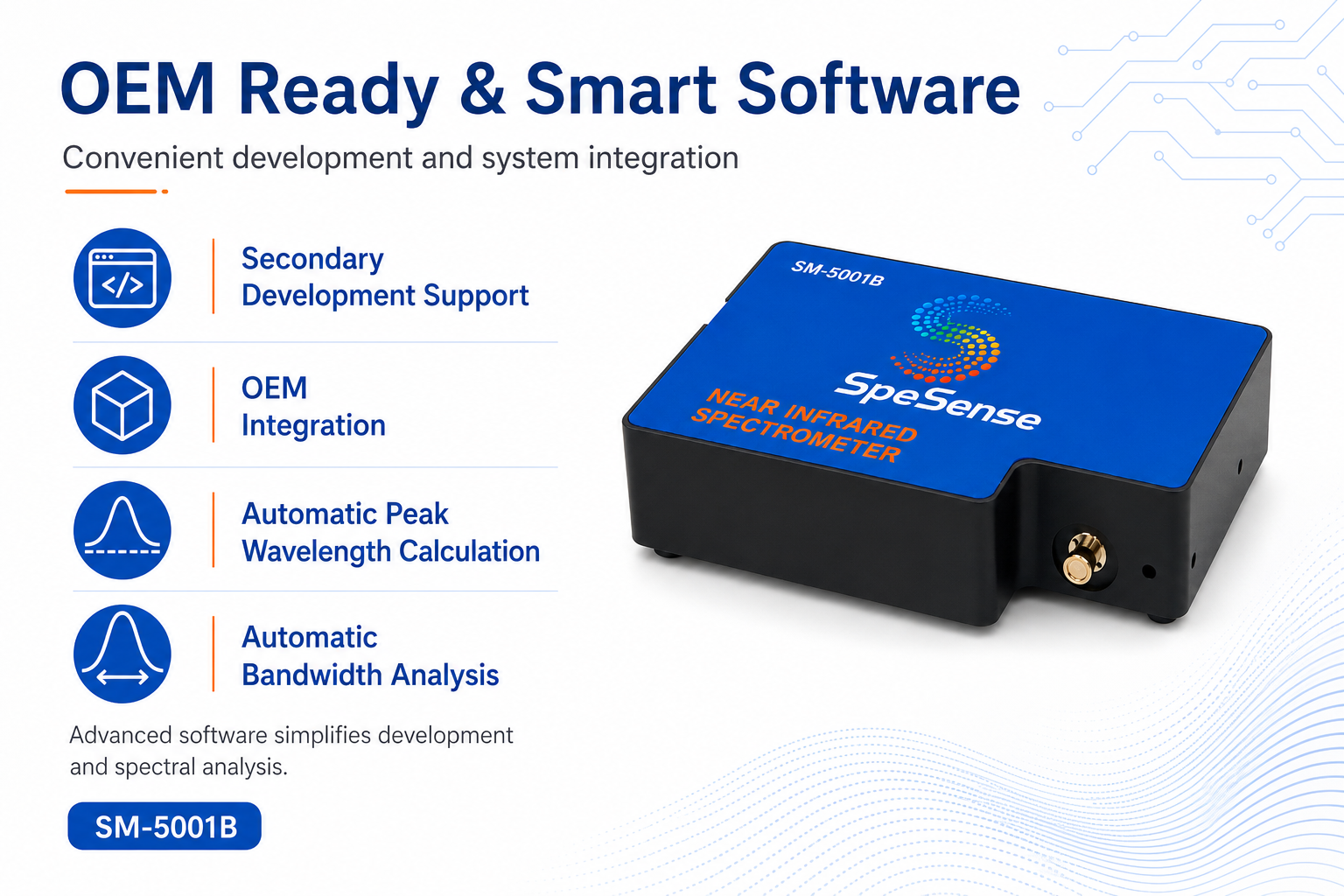

● Supports secondary development and OEM integration

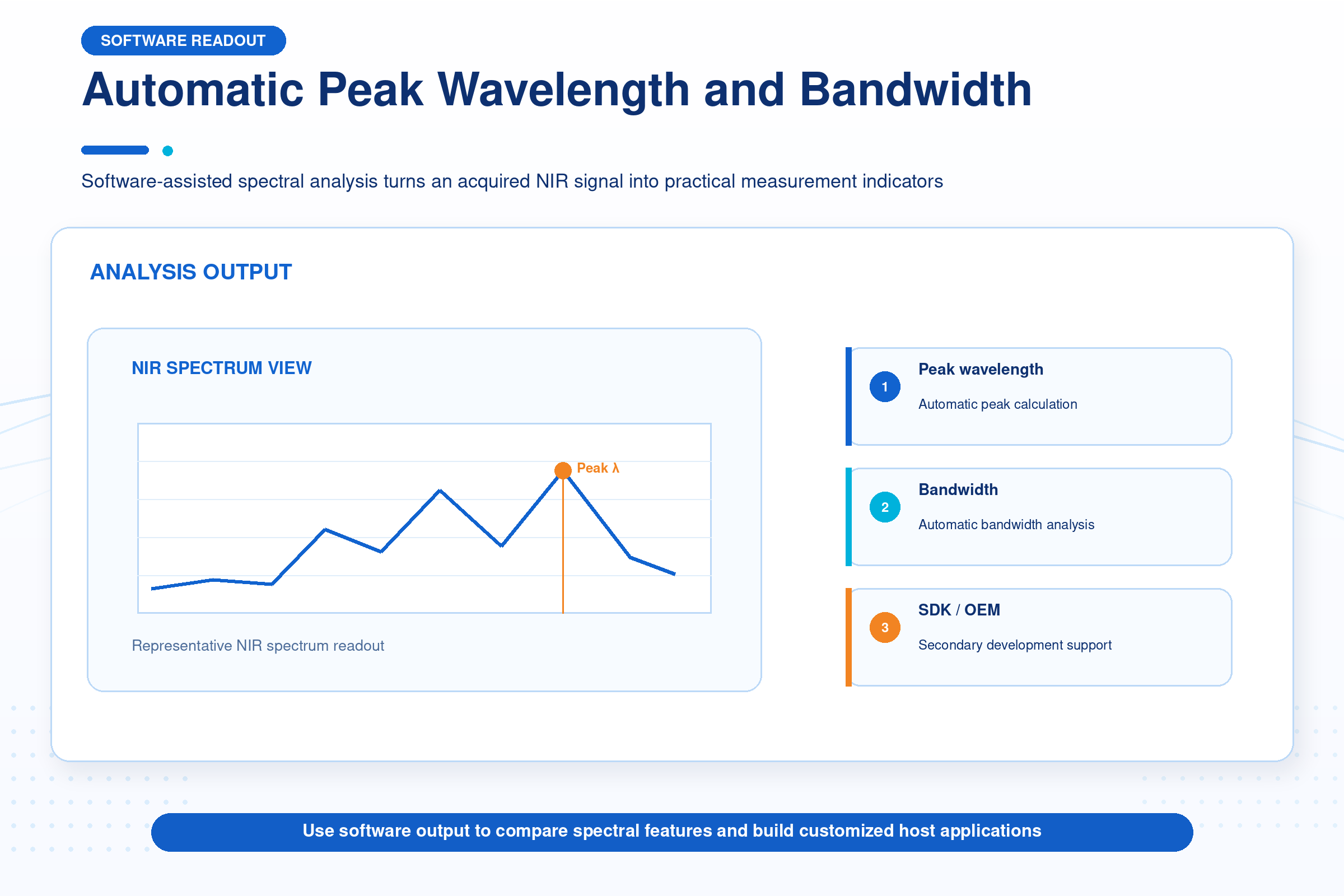

● Powerful software capabilities, including automatic calculation of peak wavelength and bandwidth
● Available in 128-pixel and 256-pixel detector versions
● Compact optical path and structural design for easy system integration
● Interchangeable slit design allows for flexible switching between different resolutions and sensitivities
● Selectable wavelength ranges and resolutions
● Wide spectral measurement range (950 nm–1700 nm) with stable intensity
● Supports secondary development and OEM integration
● Powerful software capabilities, including automatic calculation of peak wavelength and bandwidth
产品概述

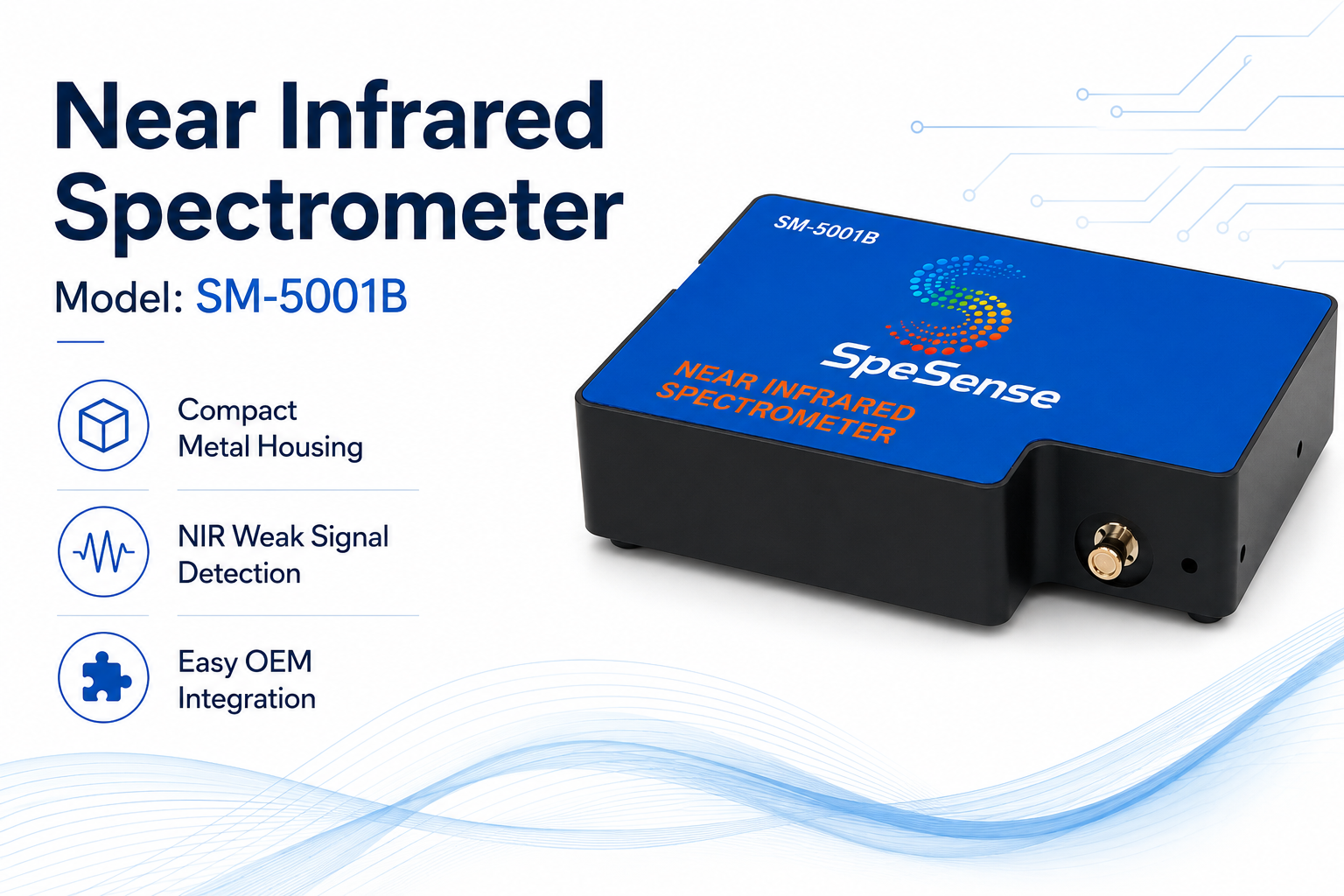

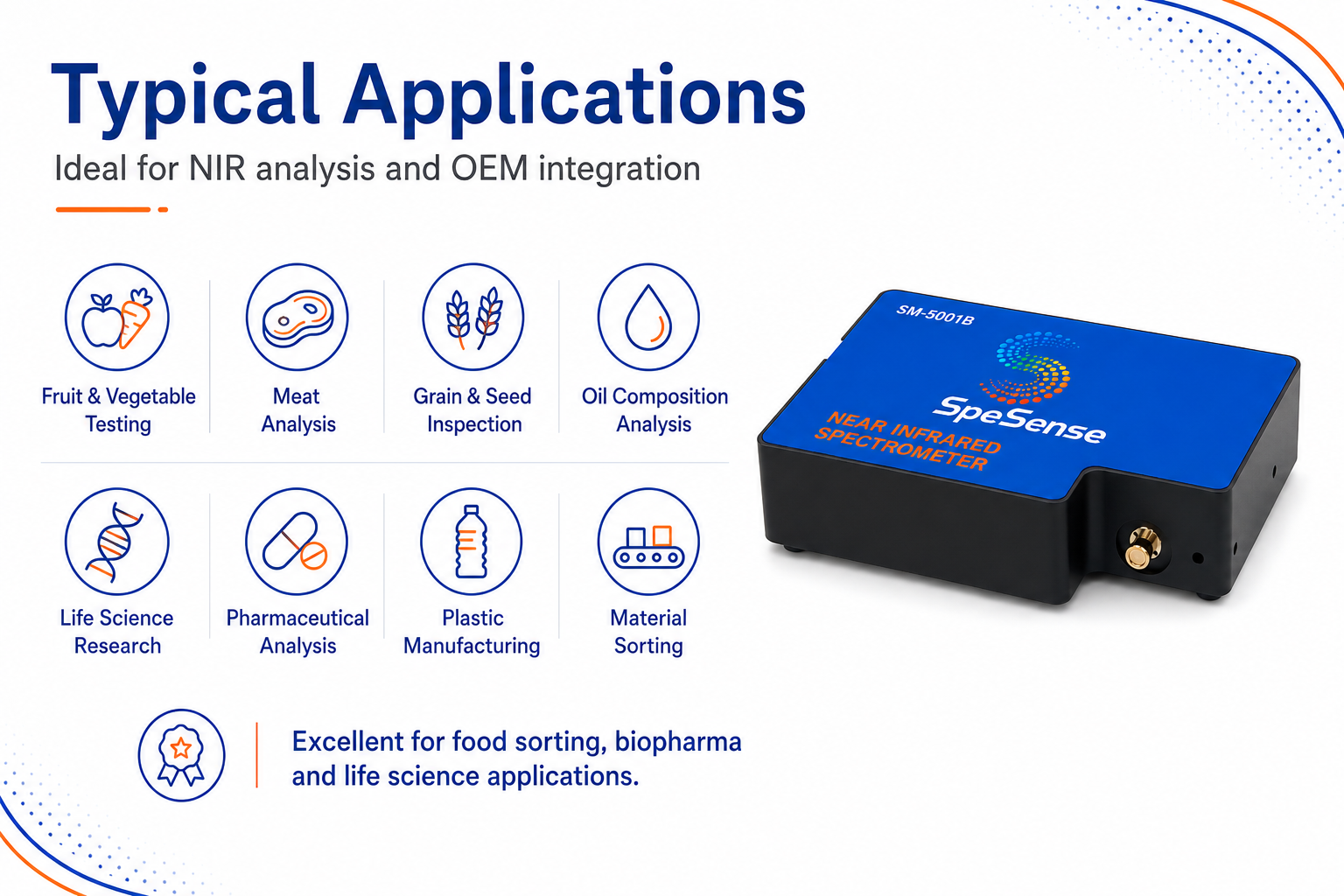

The SpeSense SM-5001B is a compact and cost-effective NIR spectrometer designed for near-infrared spectral measurement from 950 to 1700 nm. Using a low-power uncooled 128-pixel InGaAs detector, it provides stable NIR detection in a compact optical platform suitable for material analysis, process monitoring, agricultural testing, food analysis and OEM sensing systems. Interchangeable slit options, configurable spectral performance and support for secondary development make the SM-5001B a practical solution for portable and embedded near-infrared spectroscopy applications.
| Item | Specification |

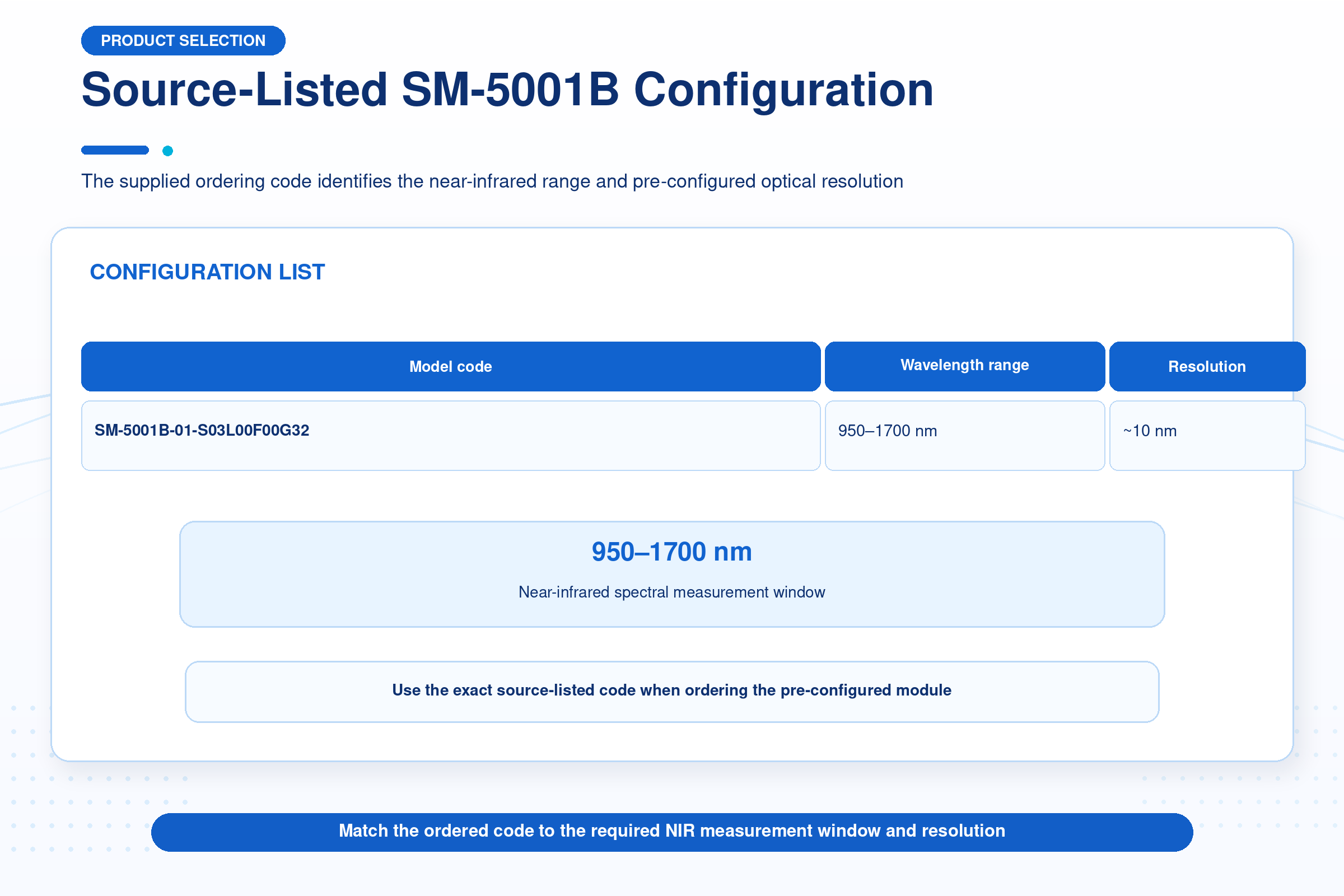

| Model number | SM-5001B |

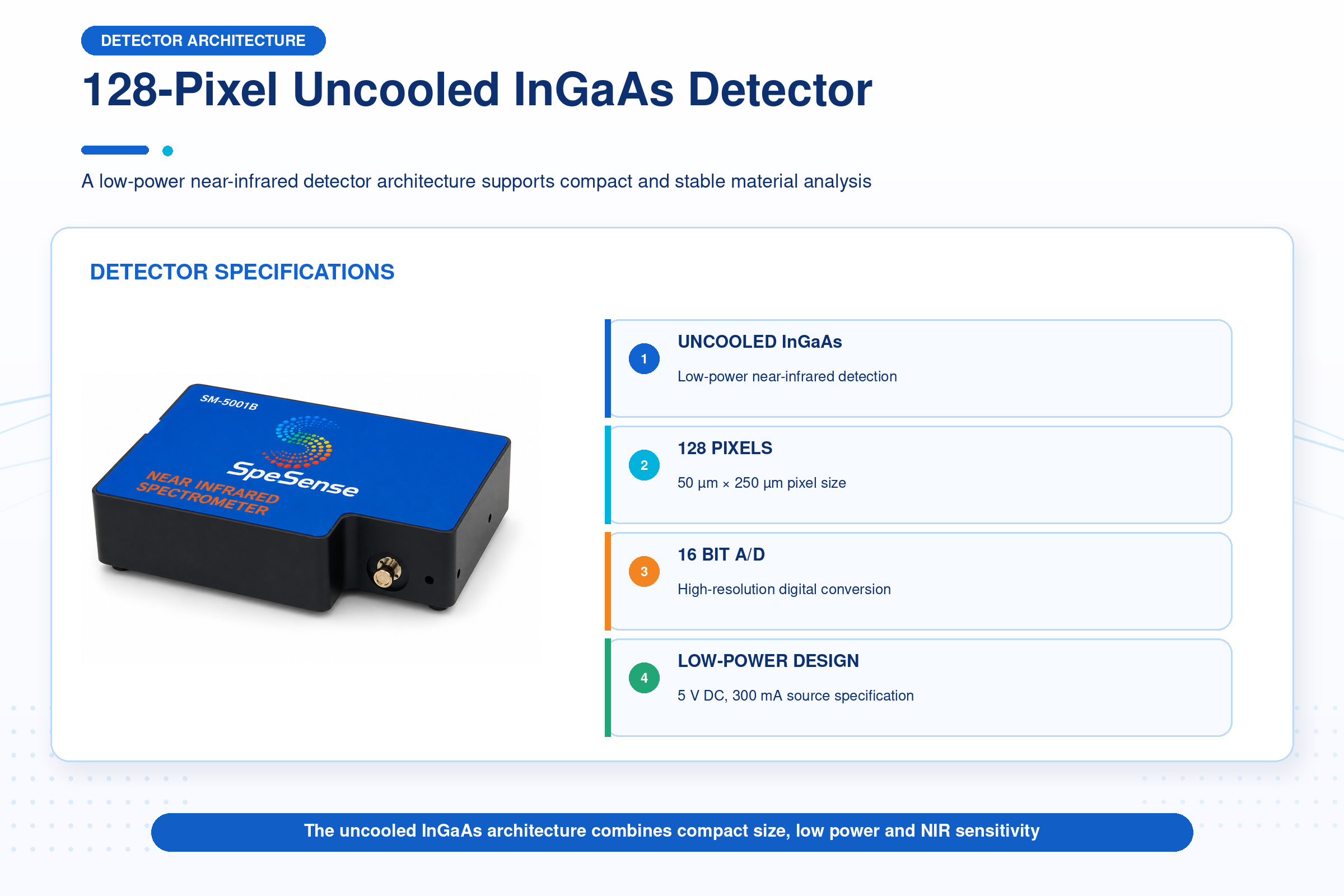

| Detector | InGaAs 128-pixel uncooled detector |
| Pixel size | 50 µm × 250 µm |

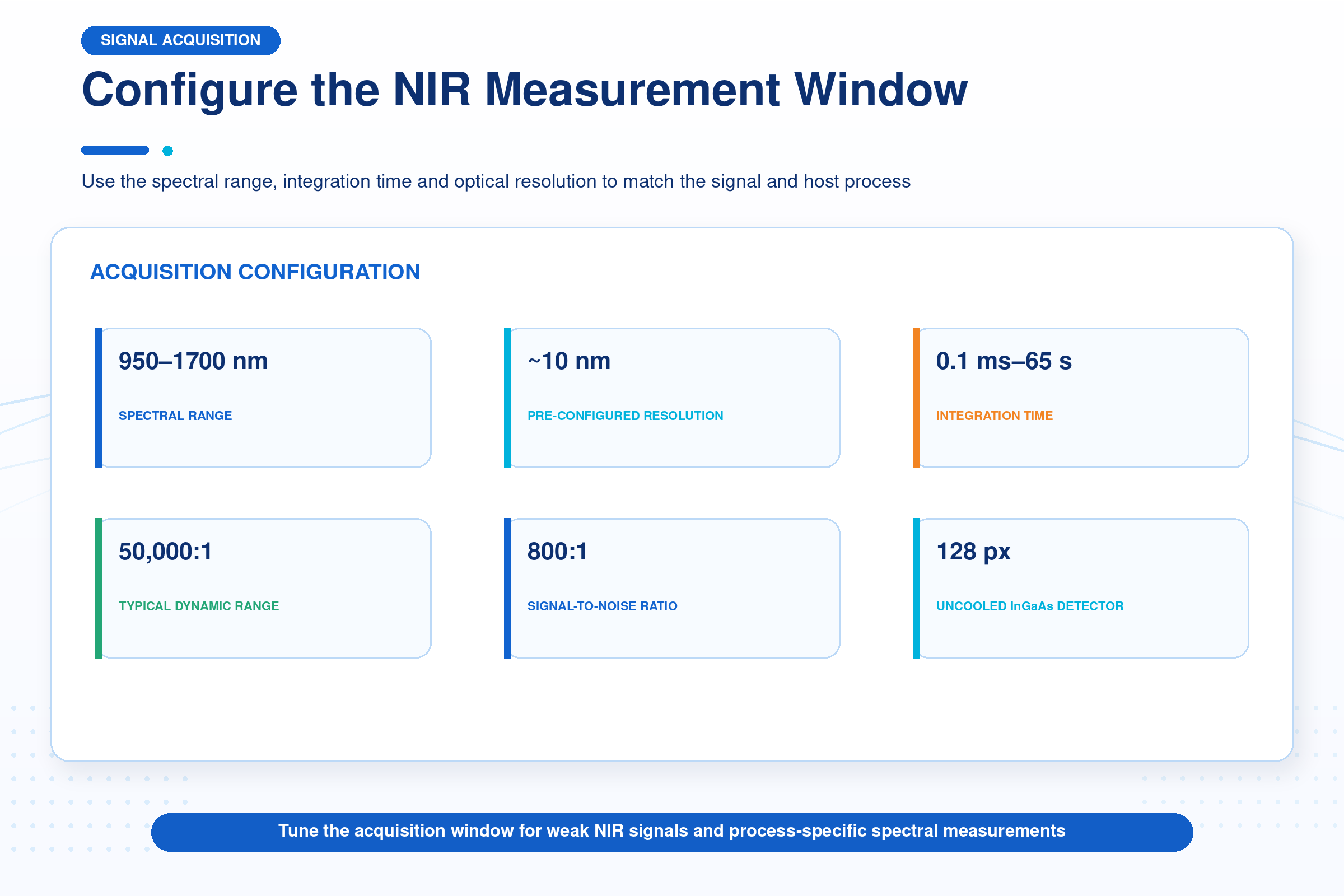

| Wavelength range | 950-1700 nm |
| Optical resolution | ~10 nm (pre-configured) |
| A/D resolution | 16 bit |
| Integration time | 0.1 ms-65 s |

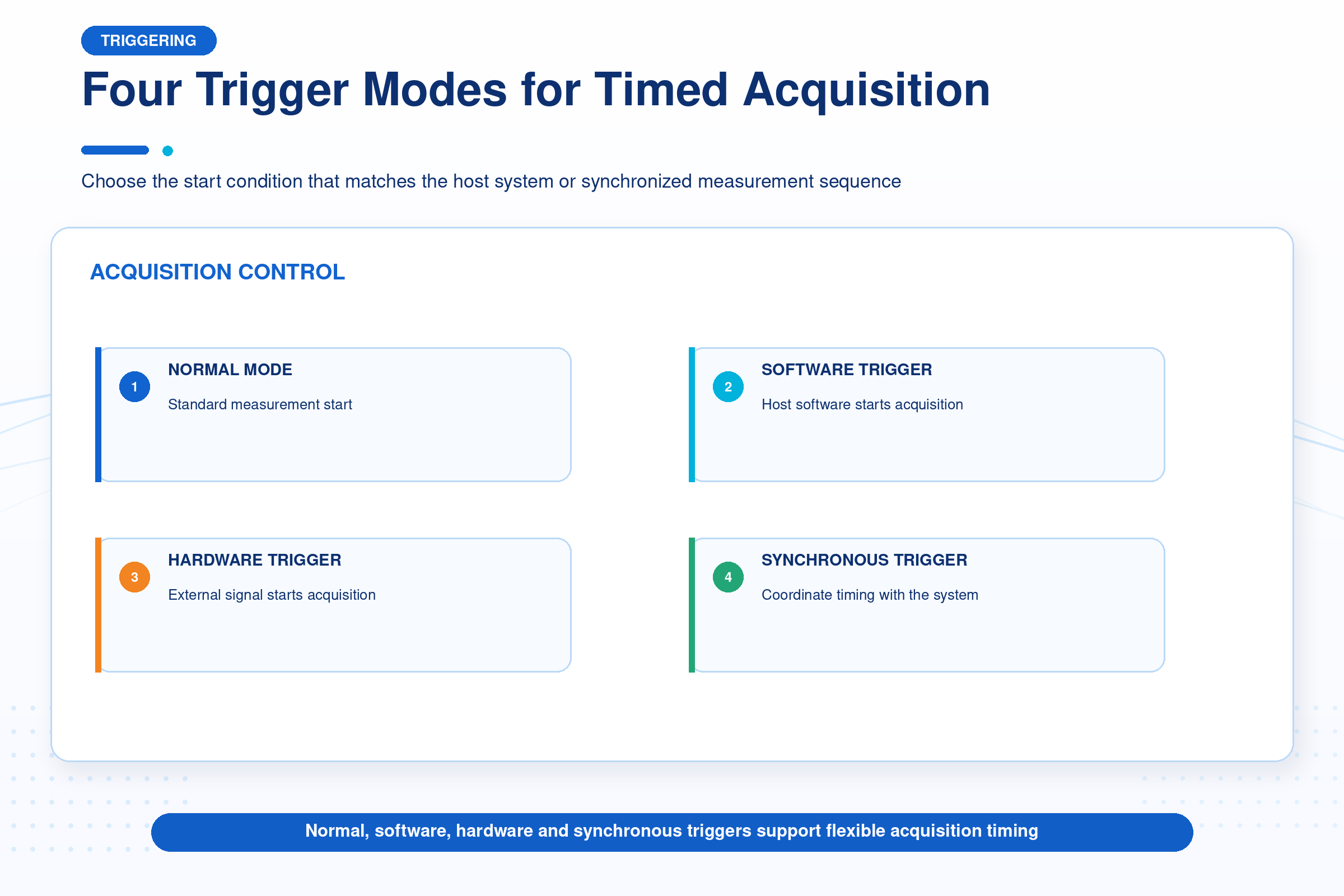

| Trigger modes | Normal mode, software trigger, hardware trigger and synchronous trigger |

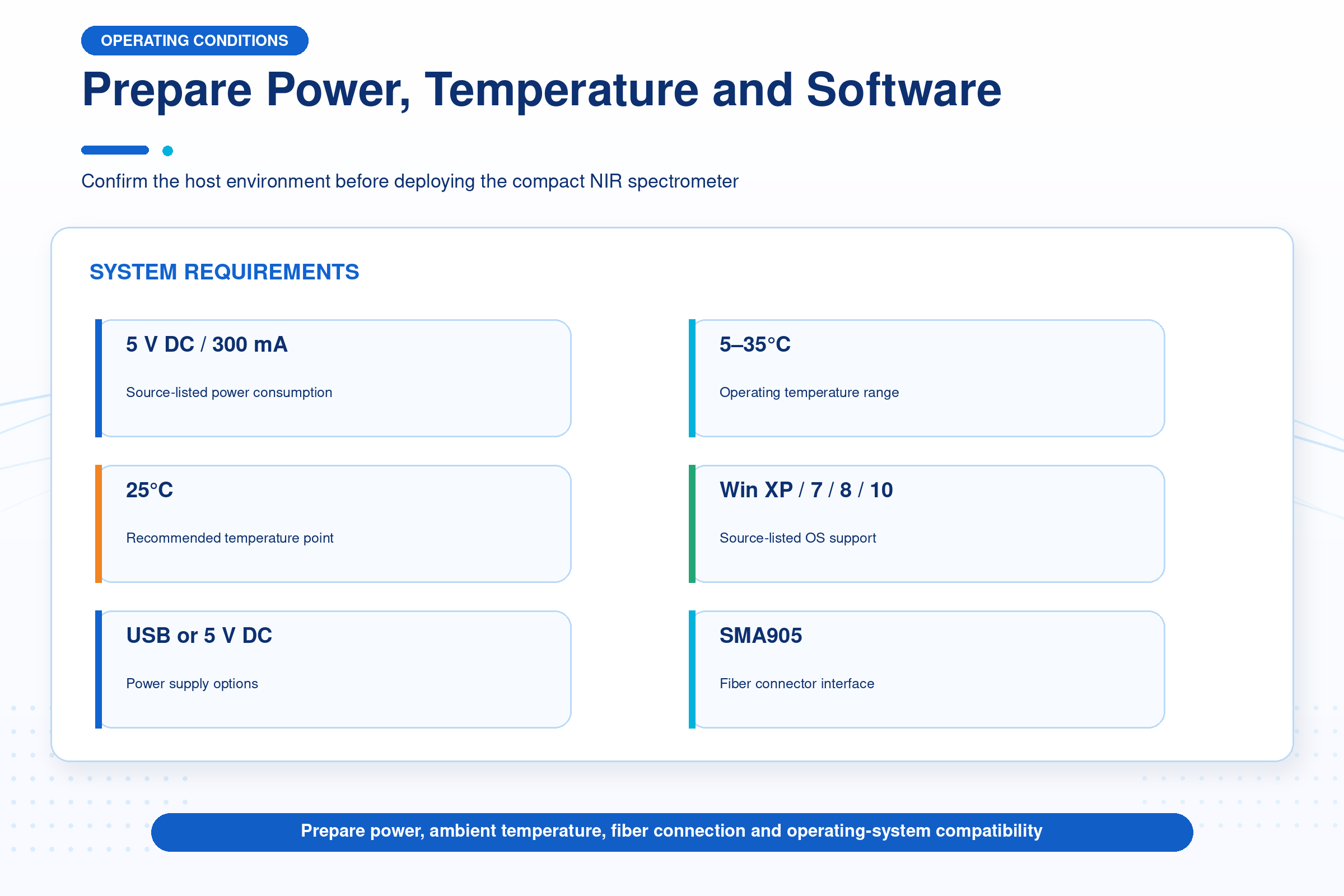

| Power consumption | 5 V DC, 300 mA |

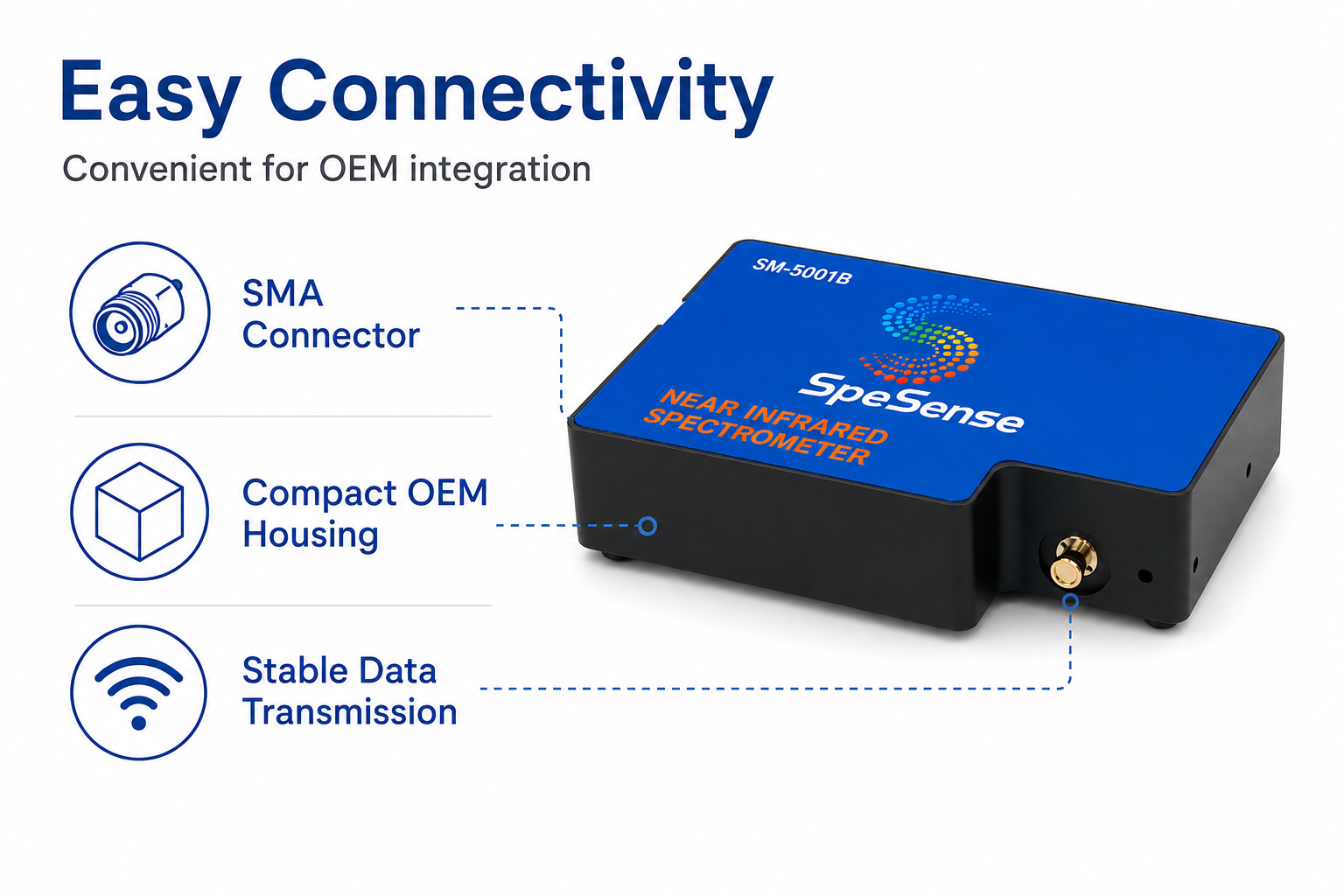

| Fiber connector | SMA905 |
| Operating temperature | 5-35°C (25°C recommended) |

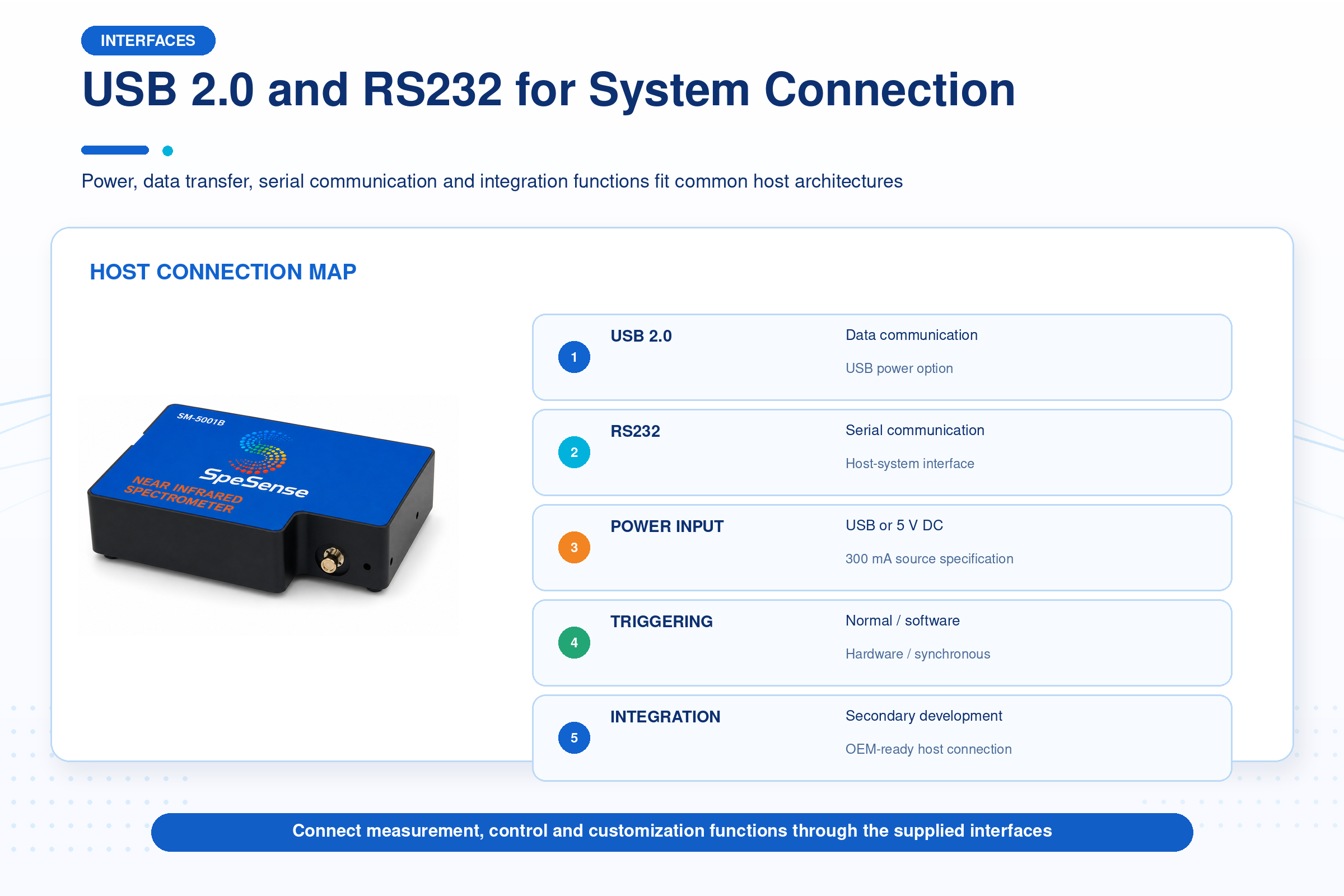

| Communication interface | USB 2.0; RS232 |
| Operating system | Win XP, Win 7, Win 8, Win 10 |
| Power supply | USB or 5 V DC |

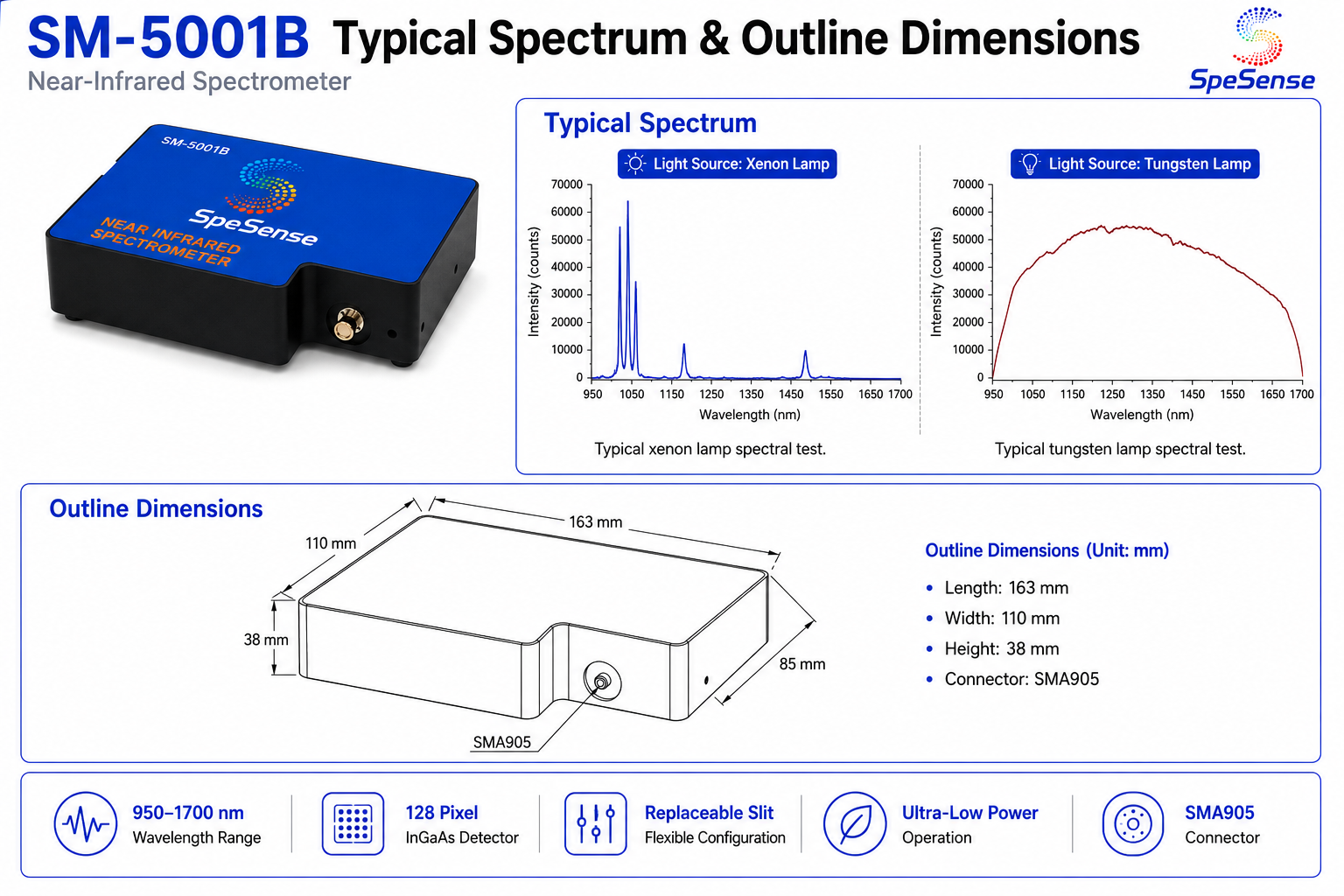

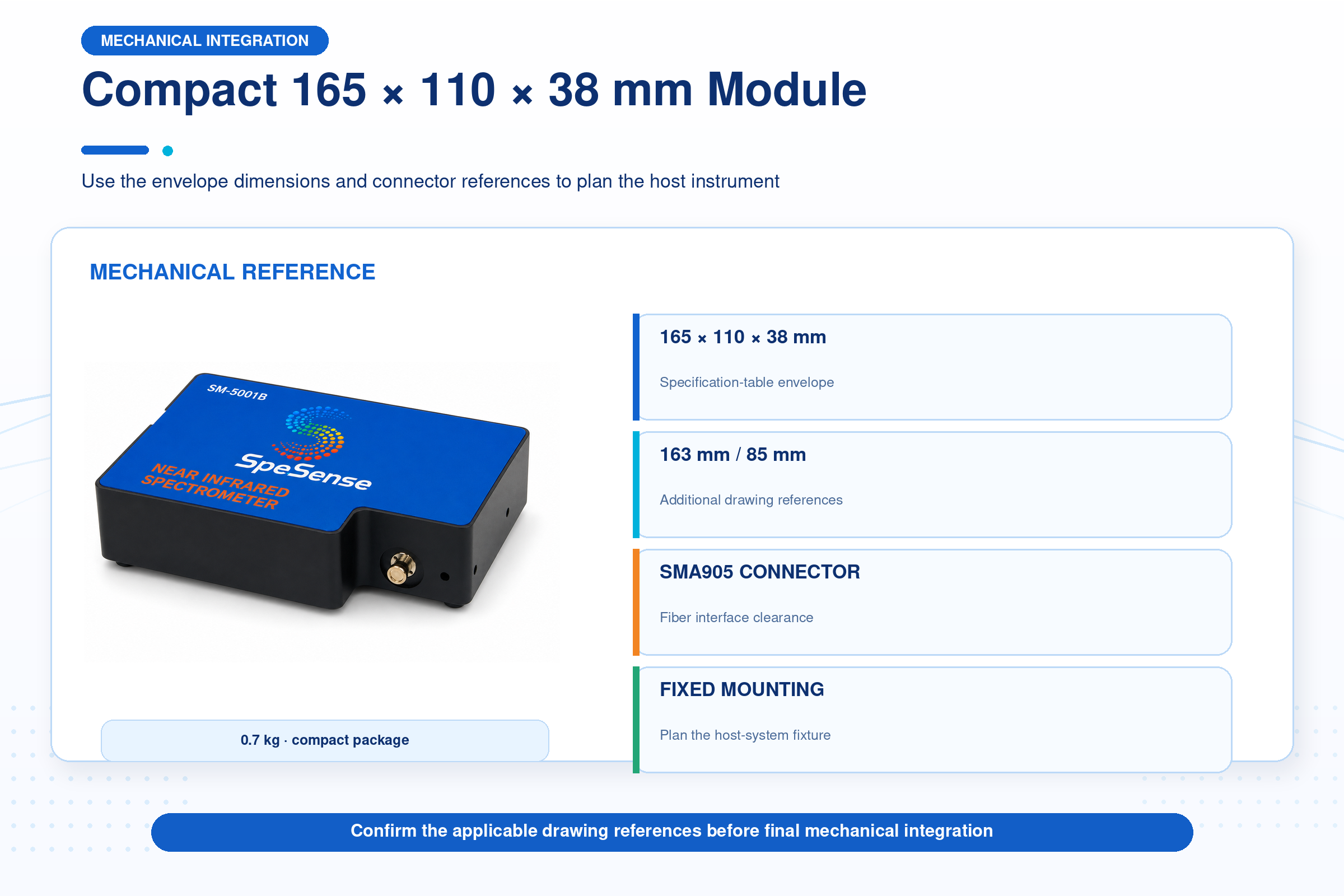

| Dimension | 165 × 110 × 38 mm |
