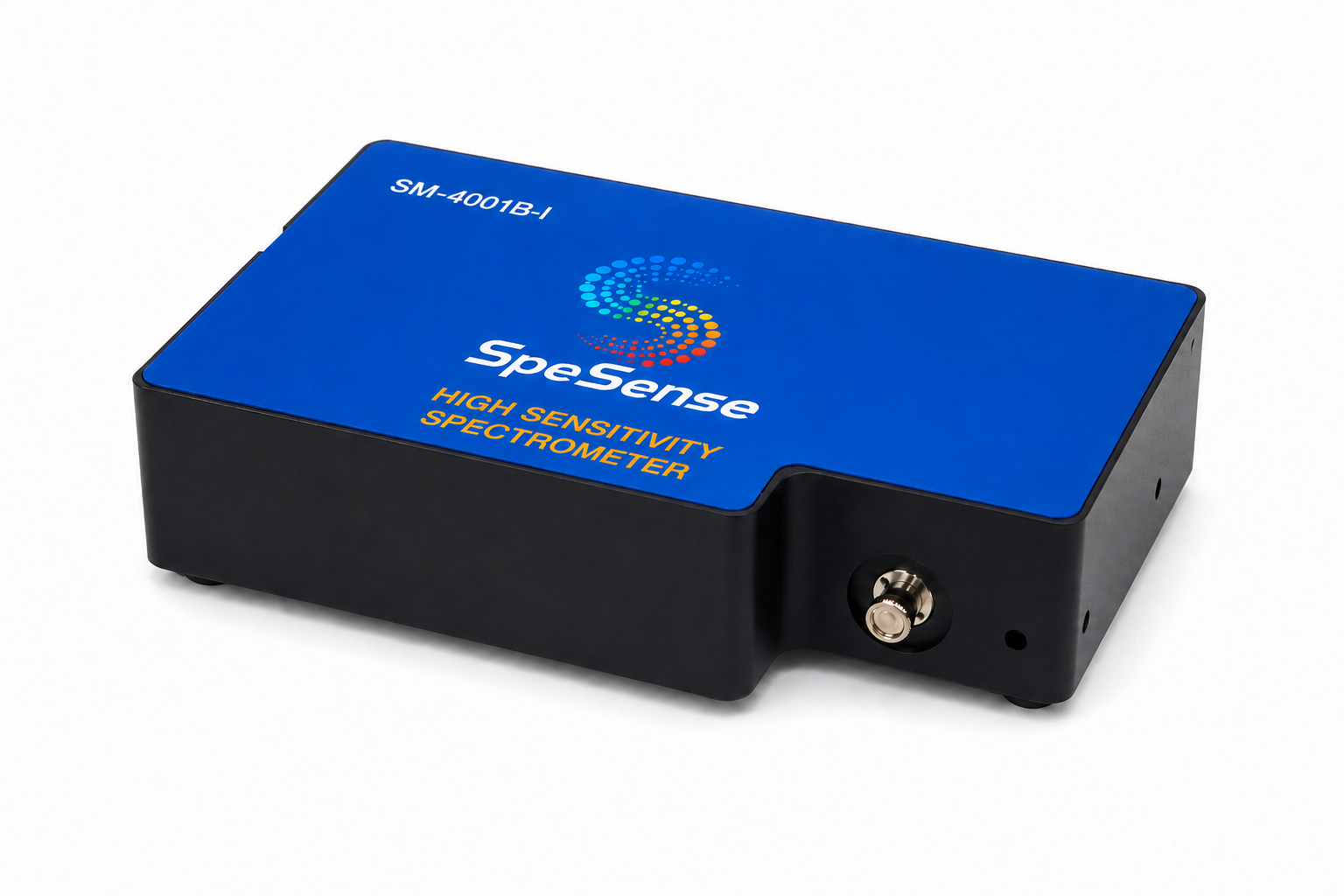

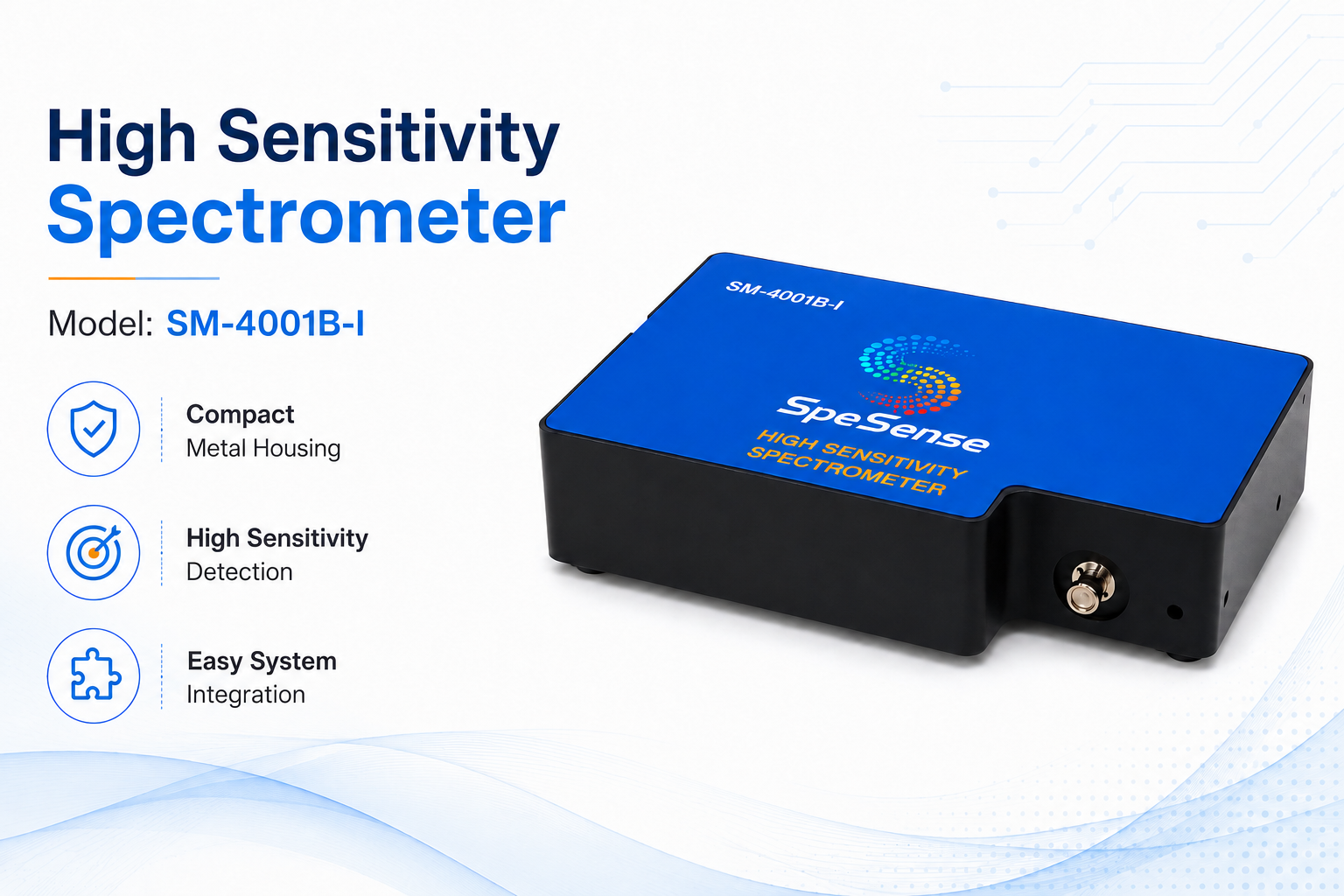

UV-Visible Spectrometers
SM-4001B-I
高灵敏度和红外增强光谱仪
产品亮点
● Handy and compact, size is as small as a name card

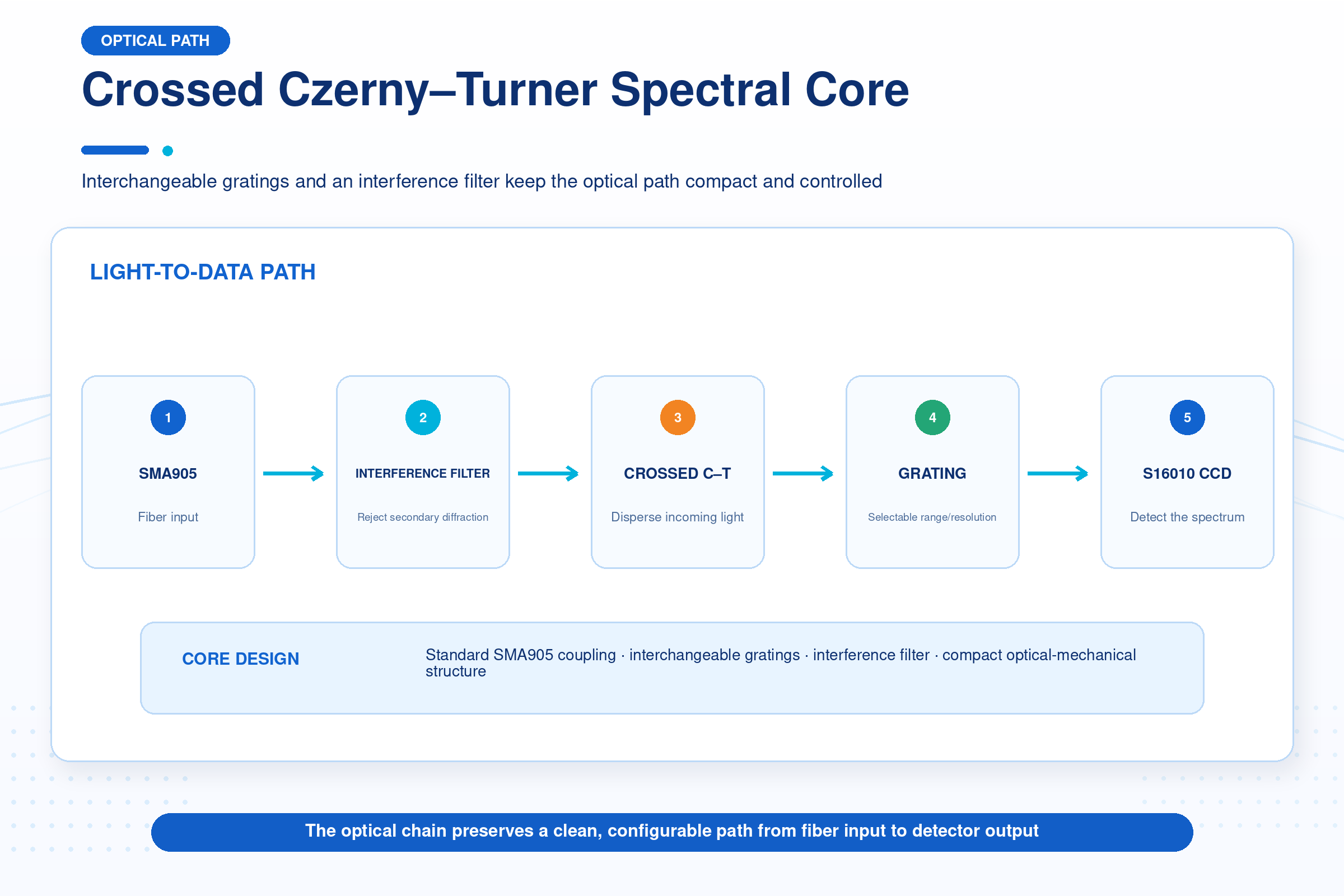

● Crossed czerny-Turner optical design
● Interference filter to eliminate the secondary diffraction spectrum

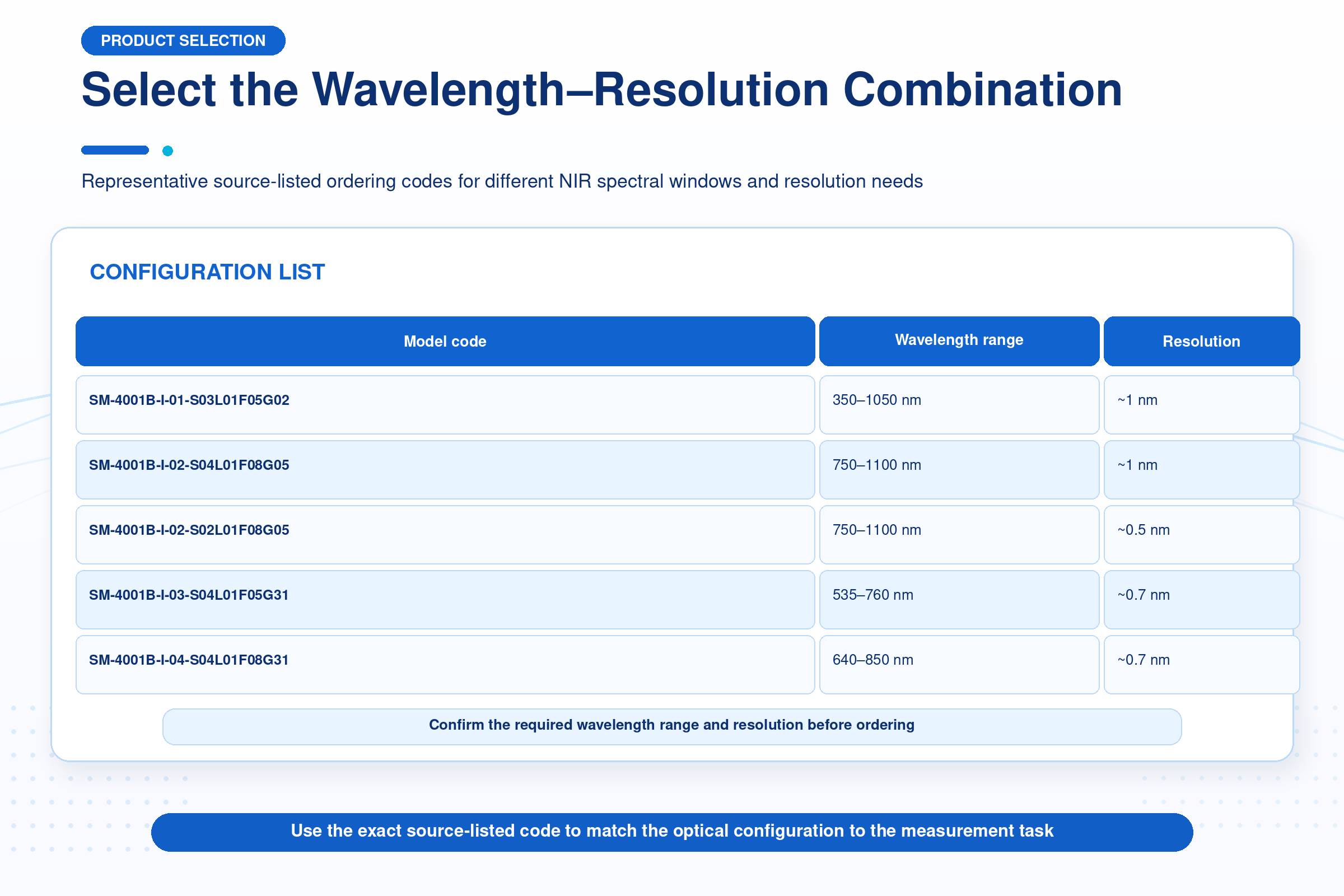

● Wavelength range and optical resolutions are selectable

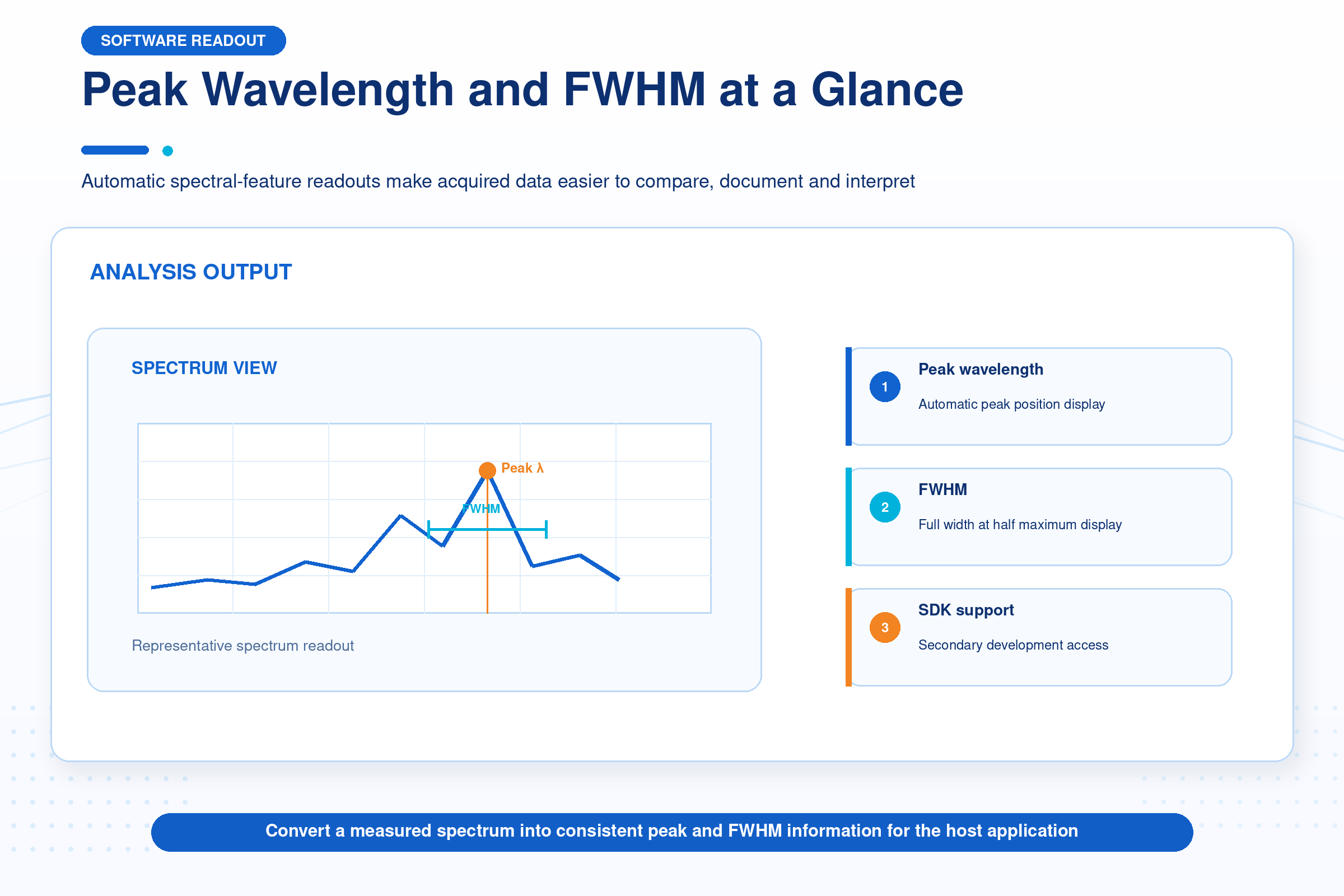

● Auto display peak wavelength and FWHM
● SDK provided for secondary development and customization
● Dynamic Range: 50,000:1 (typical)
● Hamamatsu back-illuminated area CCD sensor
● NIR-sensitive model (optimized 800-1100nm)
● Crossed czerny-Turner optical design
● Interference filter to eliminate the secondary diffraction spectrum
● Wavelength range and optical resolutions are selectable
● Auto display peak wavelength and FWHM
● SDK provided for secondary development and customization
● Dynamic Range: 50,000:1 (typical)
● Hamamatsu back-illuminated area CCD sensor
● NIR-sensitive model (optimized 800-1100nm)
产品概述

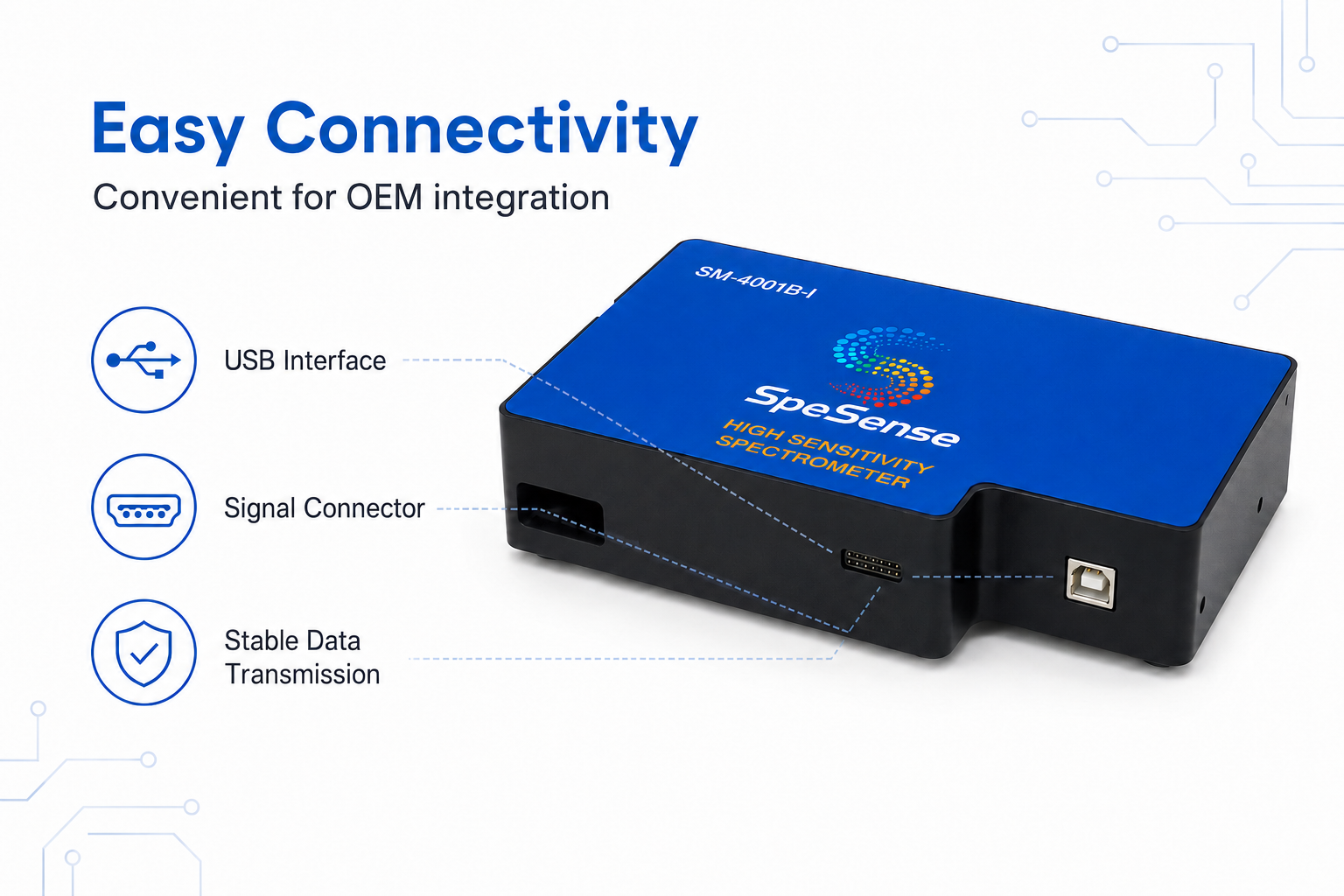

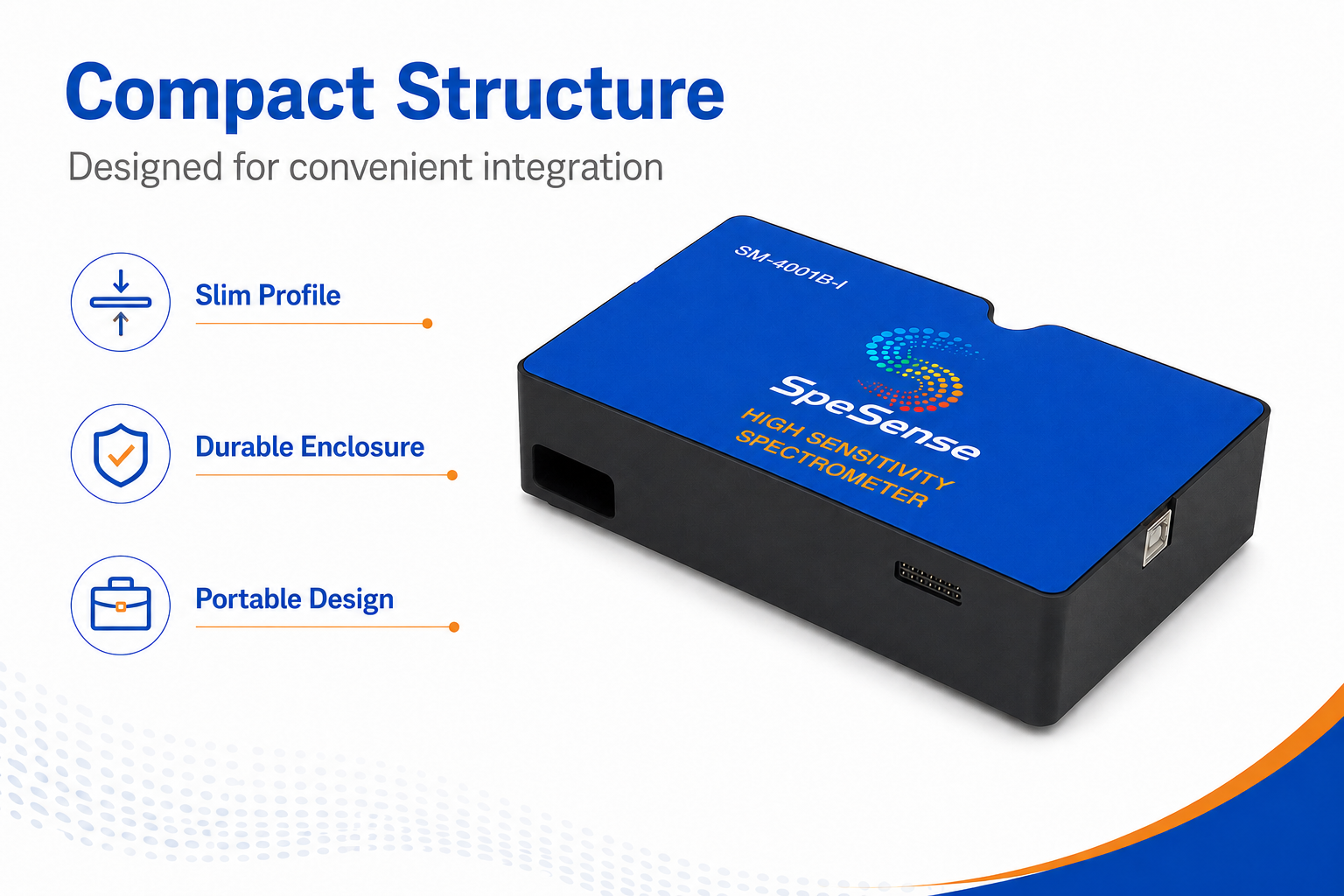

The SpeSense SM-4001B-I is a high-sensitivity NIR-enhanced spectrometer optimized for weak-signal measurement in the near-infrared region. Featuring a back-illuminated area CCD detector with enhanced sensitivity from 500 to 1100 nm, an 800:1 signal-to-noise ratio and a typical dynamic range of 50,000:1, it delivers reliable performance for NIR spectroscopy, low-light spectral analysis, emission measurement and scientific research. Its compact design, SMA905 fiber interface and USB/RS232 connectivity also support OEM and industrial spectroscopy system integration.
| Item | Specification |
| Model number | SM-4001B-I |

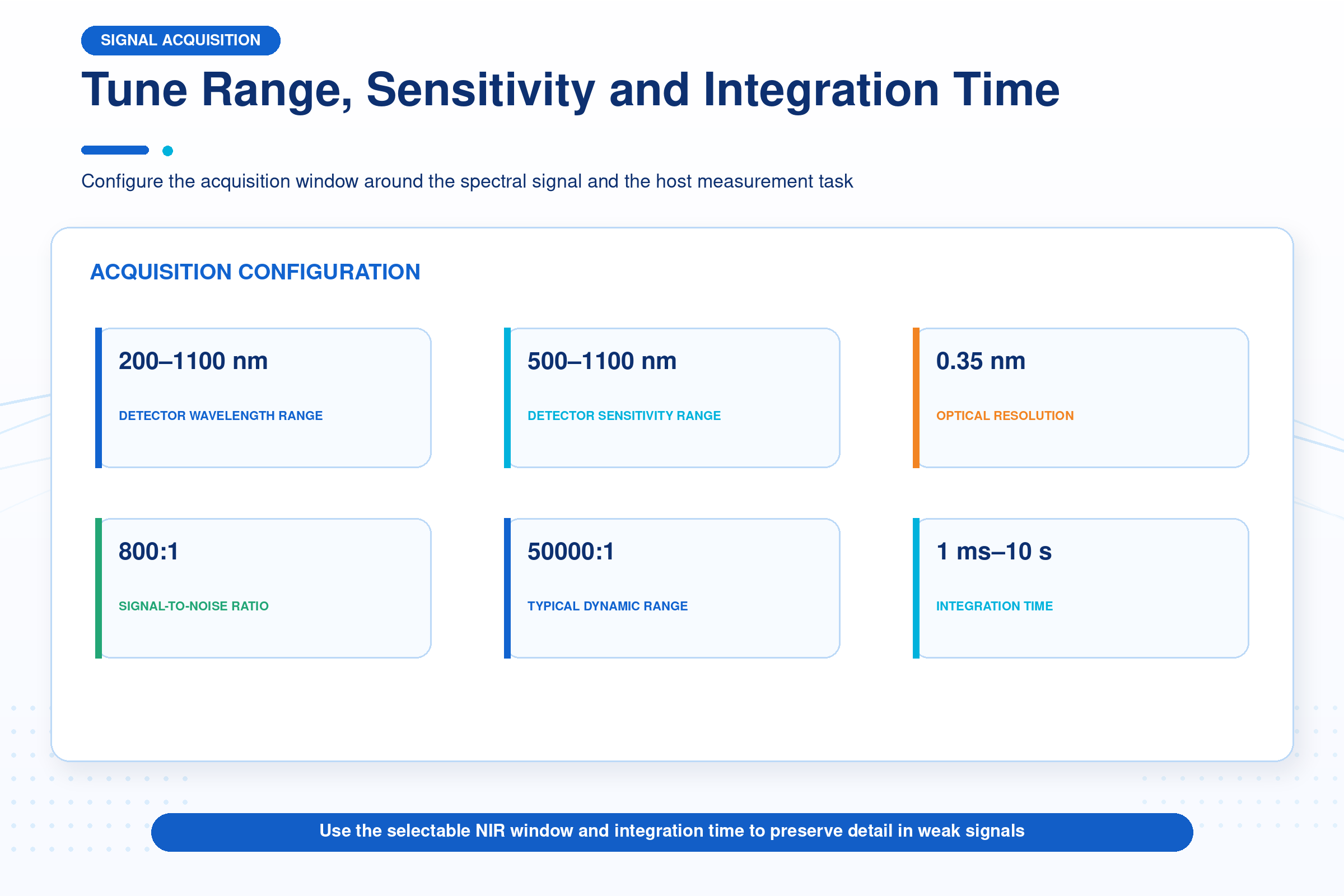

| Detector wavelength range | 200–1100 nm |
| Detector sensitivity range | 500–1100 nm |
| Resolution | 0.35 nm |
| Fiber connector | SMA905 |
| Detector | Hamamatsu S16010 series area-array back-illuminated CCD |
| Pixels | 2048 × 64 pixels; each pixel 14 µm × 14 µm |
| Signal-to-noise ratio | 800:1 |
| A/D resolution | 16 bit |
| Integration time | 1 ms–10 s |
| Dynamic range | 50000:1 typical |

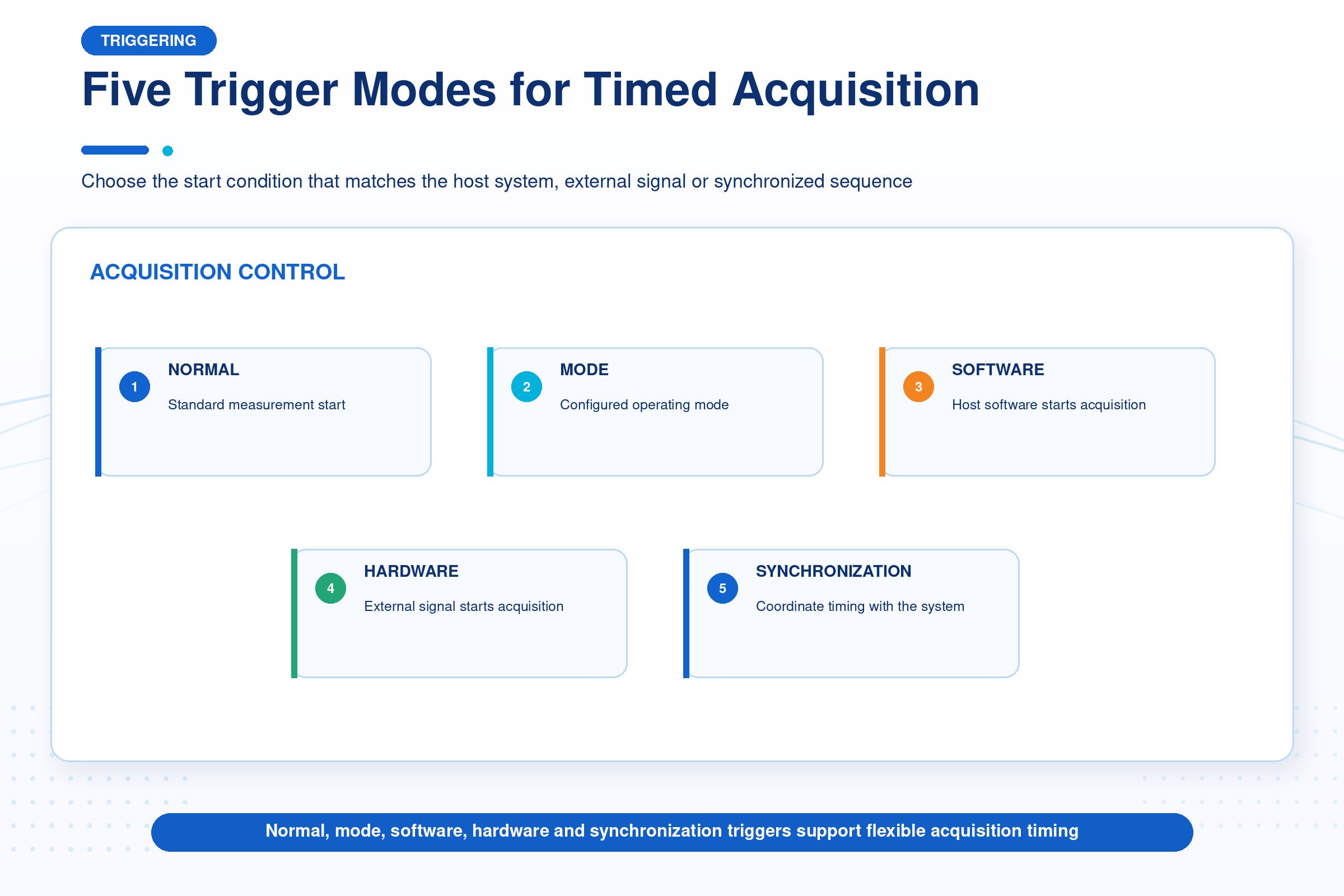

| Trigger modes | Normal, mode, software, hardware and synchronization trigger |

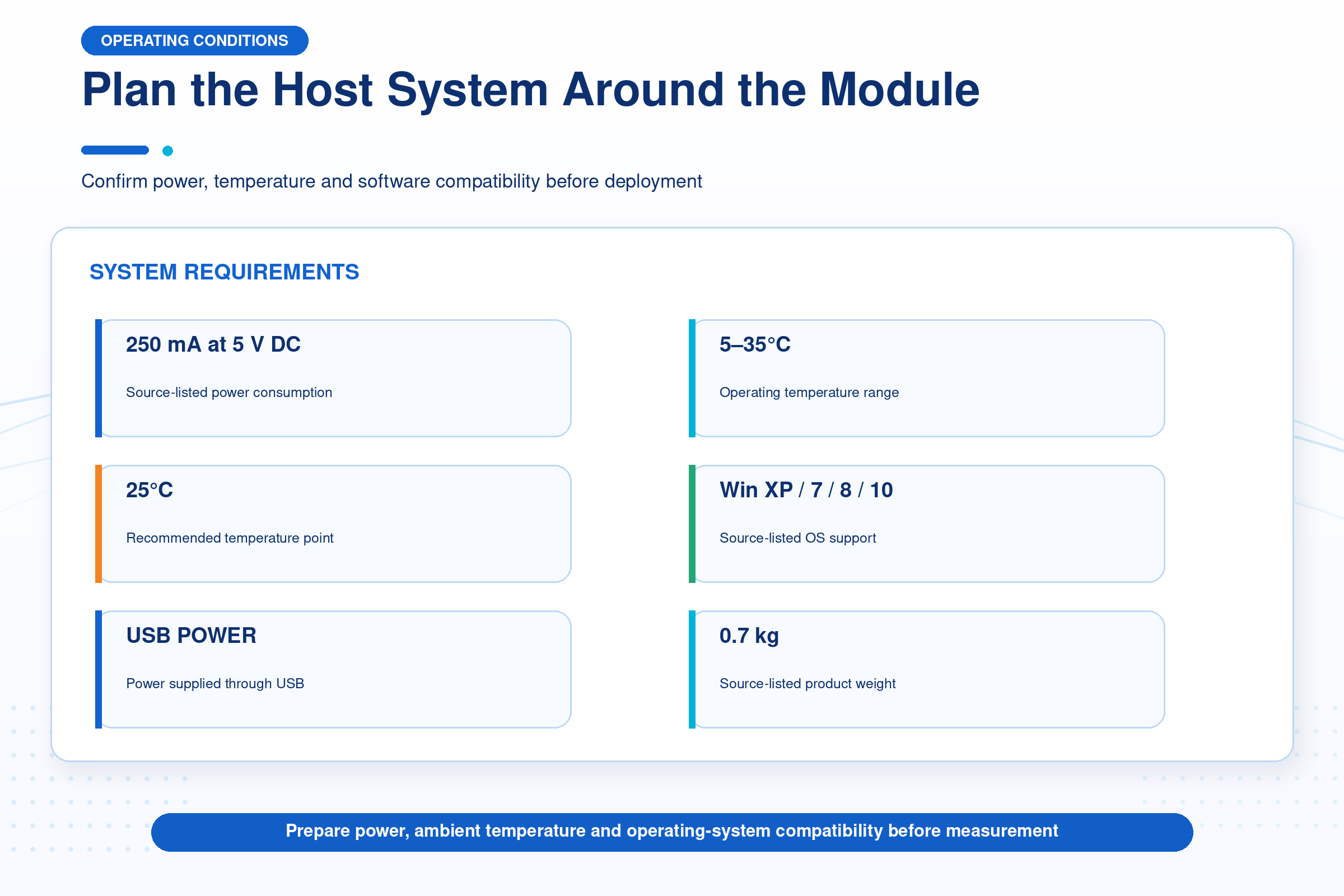

| Power consumption | 250 mA at 5 V DC |
| Operating temperature | 5–35°C (25°C recommended) |
| Communication interface | USB 2.0 (12 Mbps); RS232 (115200 bps) |
| Operating system | Win XP, Win 7, Win 8, Win 10 |
| Linearity | >99% |
| Power supply | USB |

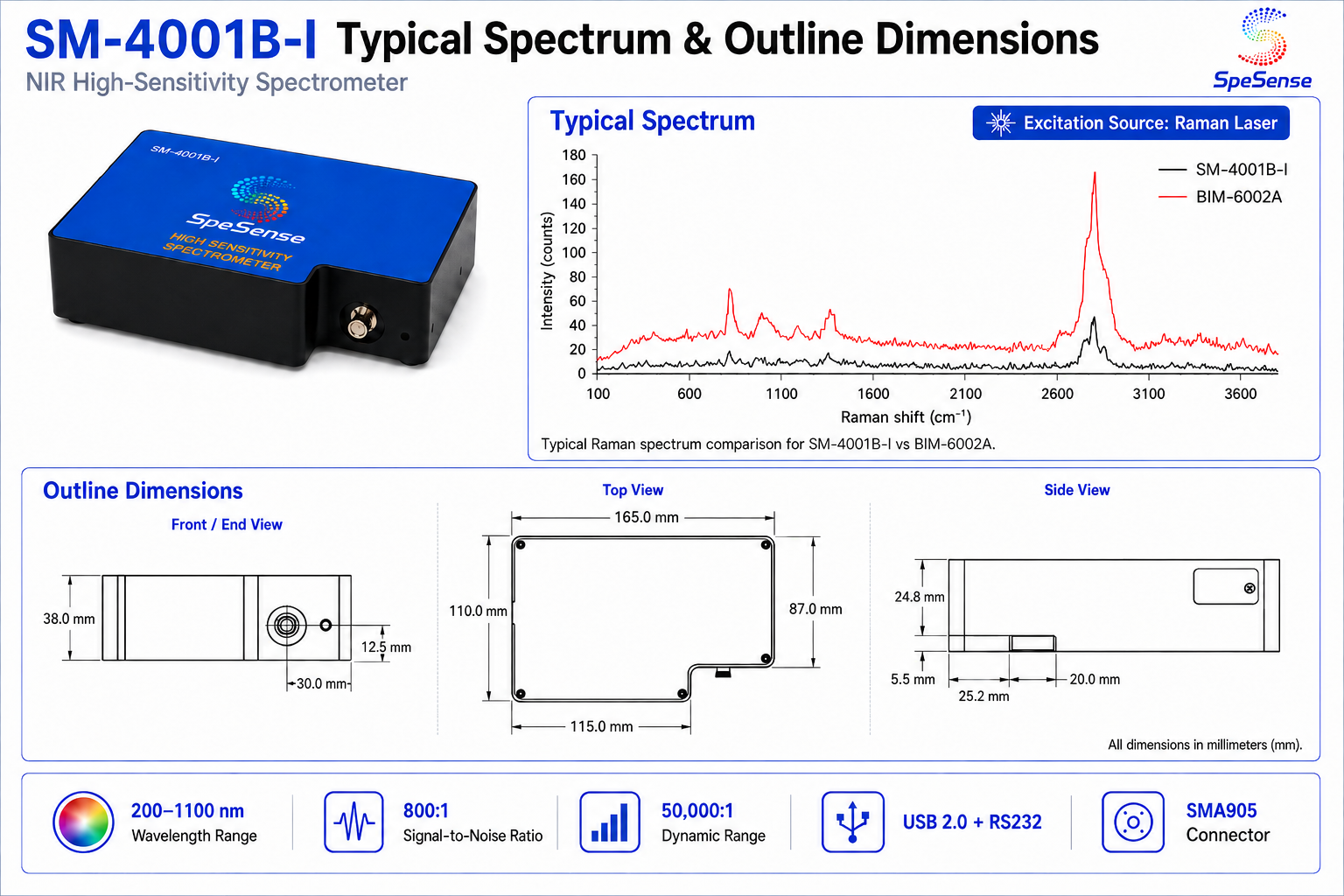

| Dimension | 165 × 110 × 38 mm |
| Weight | 0.7 kg |
