UV-Visible Spectrometers

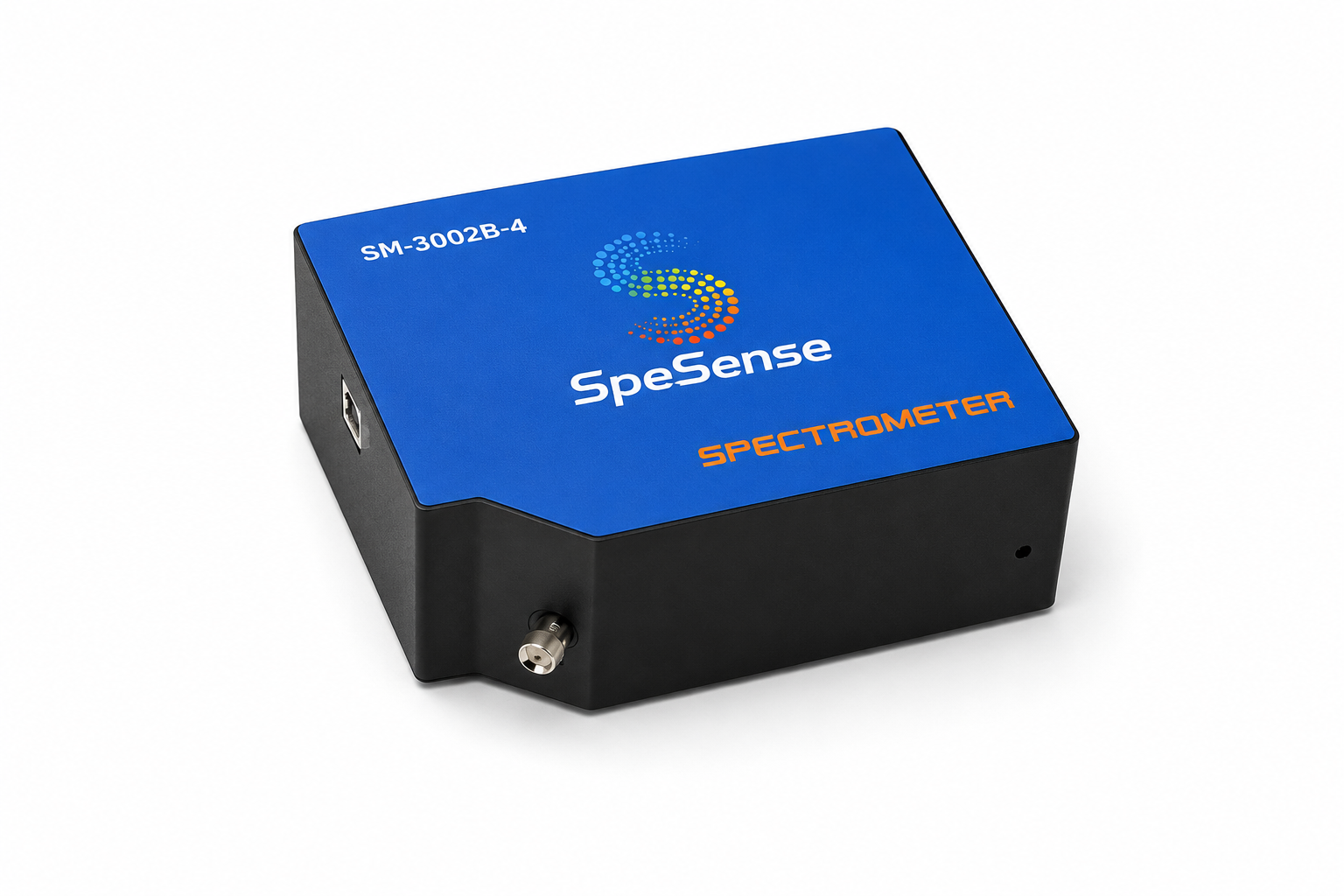

SM-3002B-4
高分辨率和4096像素光谱仪
产品亮点

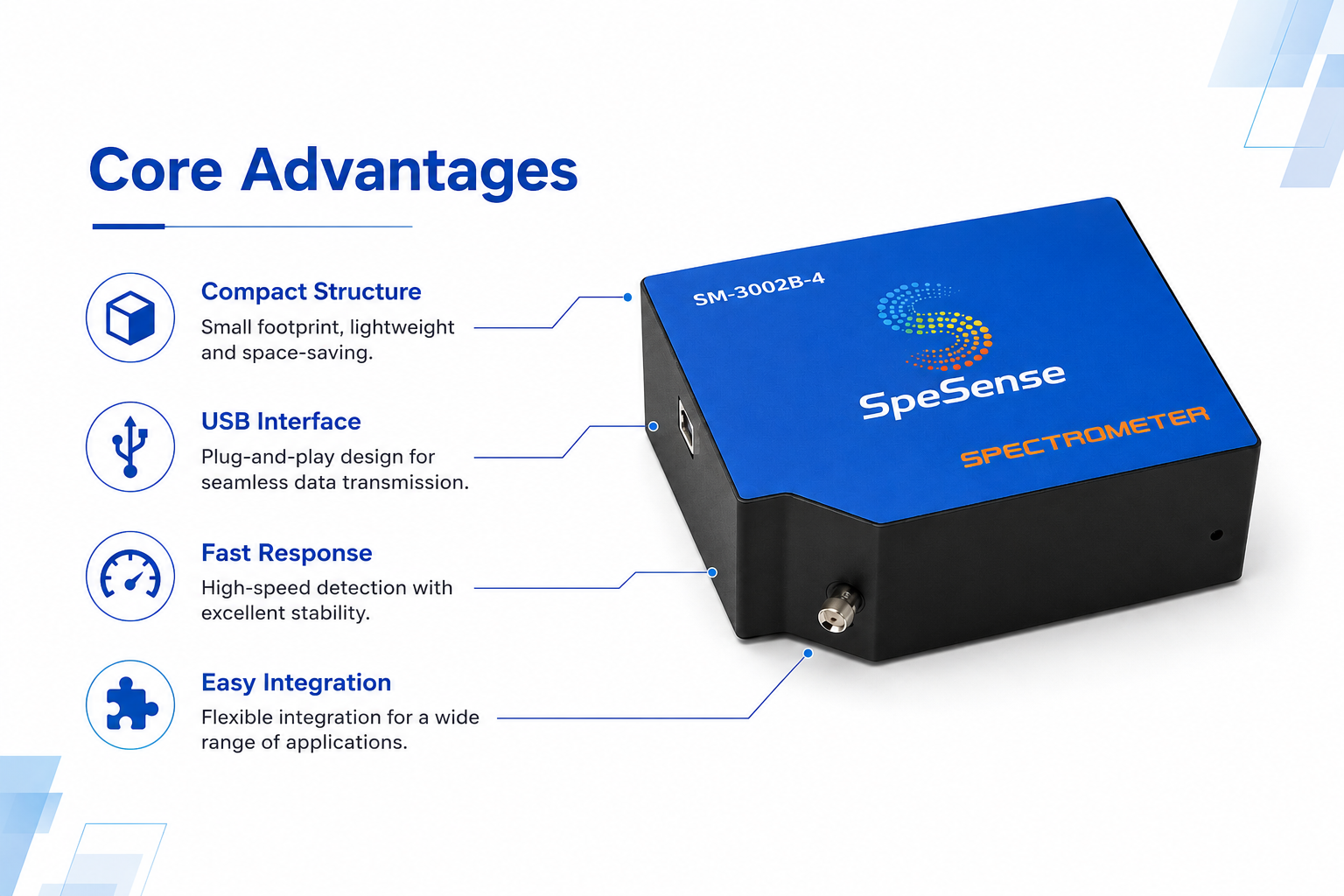

● Handy and compact, size is as small as a name card
● The optical resolution can be up to 0.1 nm at most.

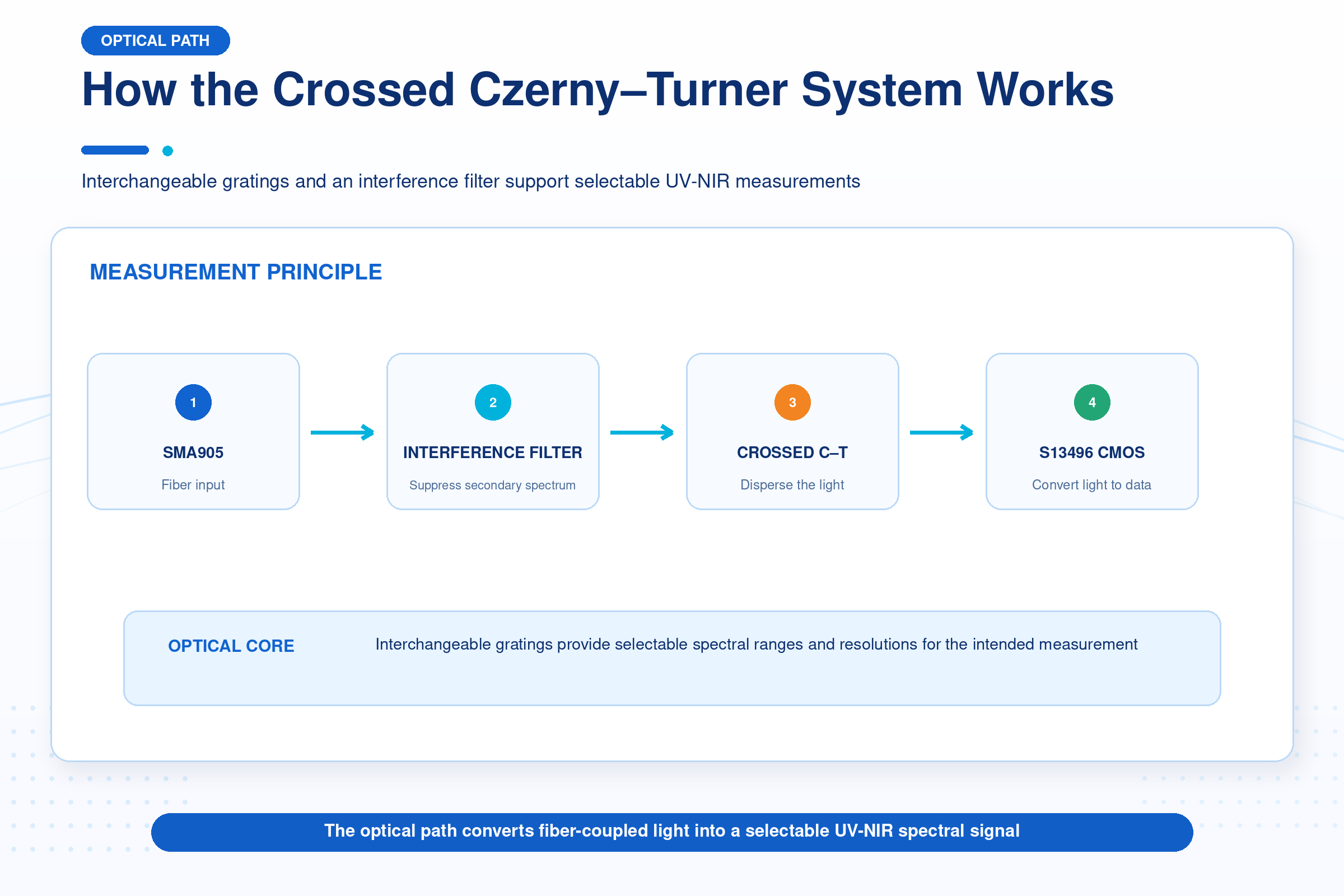

● Crossed czerny-Turner optical design
● Interference filter to eliminate the secondary diffraction spectrum
● Standard SMA905 fiber connector

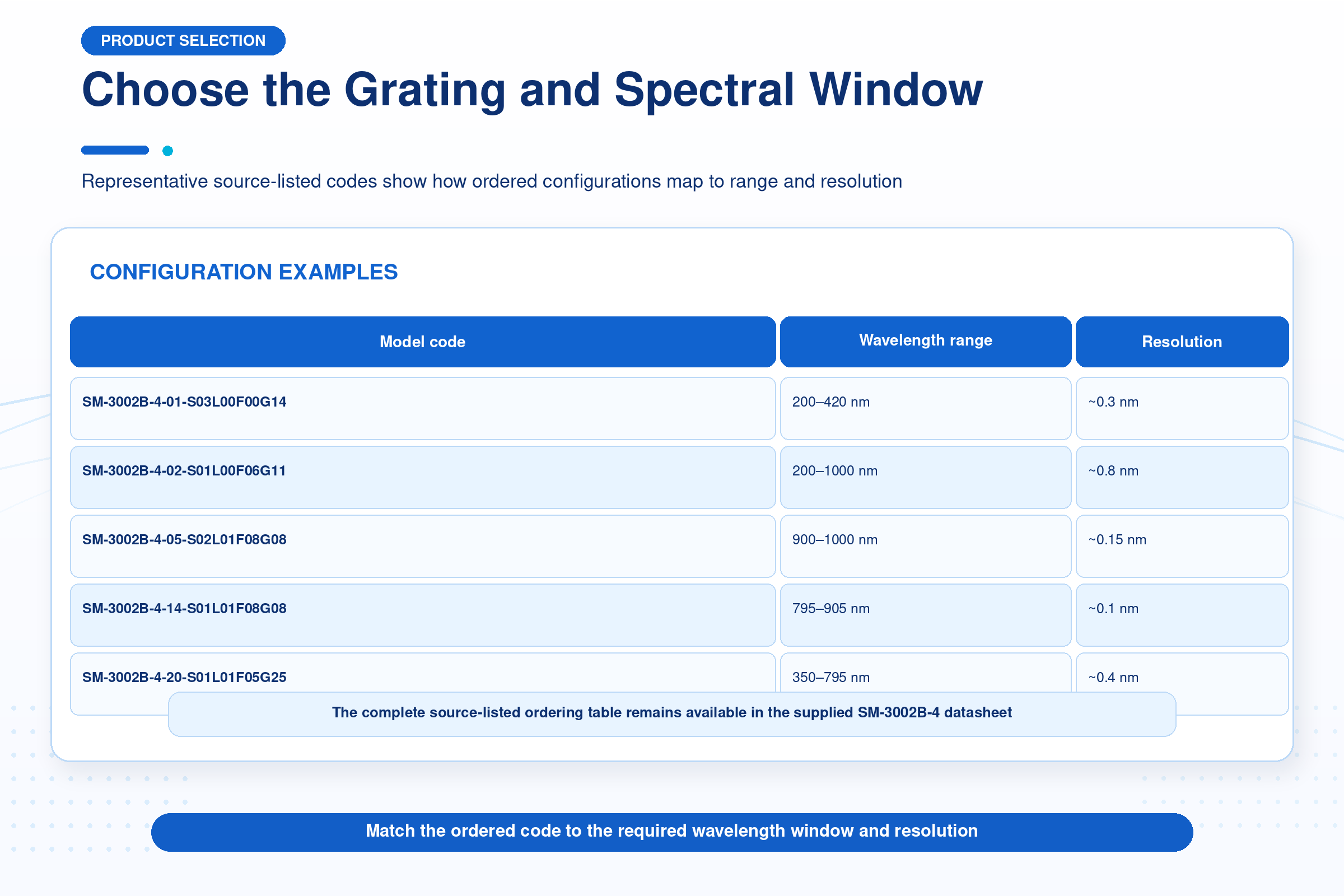

● Wavelength range and optical resolutions are selectable
● USB 2.0 for data transmission and power supply
● RS232，multiple trigger modes for flexible operation

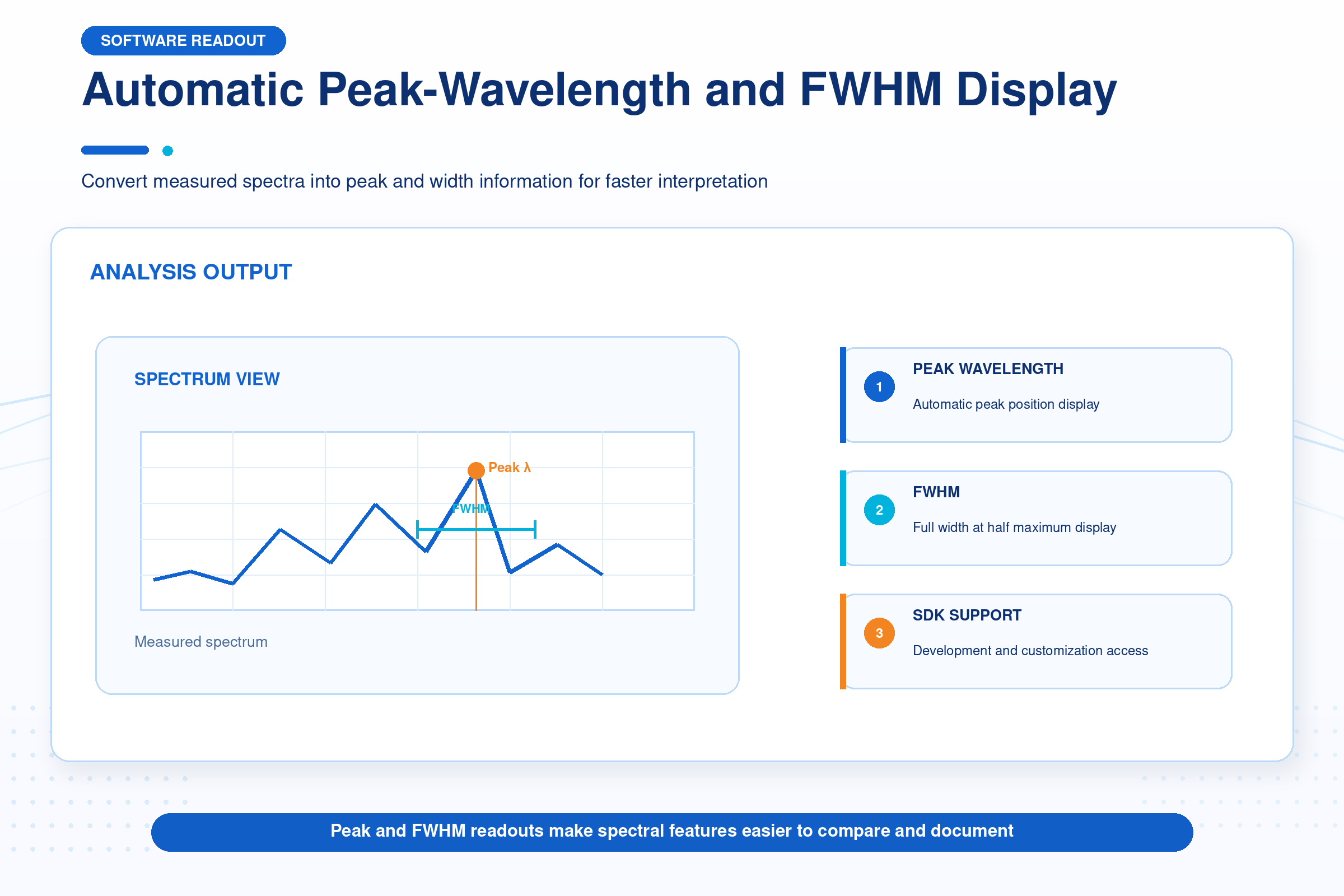

● Auto display peak wavelength and FWHM
● Fixed holes in the bottom and side are for integration
● SDK provided for secondary development and customization
● The optical resolution can be up to 0.1 nm at most.
● Crossed czerny-Turner optical design
● Interference filter to eliminate the secondary diffraction spectrum
● Standard SMA905 fiber connector
● Wavelength range and optical resolutions are selectable
● USB 2.0 for data transmission and power supply
● RS232，multiple trigger modes for flexible operation
● Auto display peak wavelength and FWHM
● Fixed holes in the bottom and side are for integration
● SDK provided for secondary development and customization
产品概述
The SpeSense SM-3002B-4 is a high-resolution 4096-pixel spectrometer designed for detailed spectral measurement from 200 to 1100 nm. Its 4096-pixel linear CMOS detector, optical resolution of approximately 0.1 nm, 600:1 signal-to-noise ratio and 10,000:1 dynamic range provide excellent performance for wavelength analysis, emission spectroscopy, laser and LED testing, and scientific optical measurement. With an SMA905 fiber interface, USB and RS232 connectivity and flexible triggering, the SM-3002B-4 is also suitable for OEM spectroscopy and automated measurement systems.
| Item | Specification |
| Model number | SM-3002B-4 |
| Wavelength range | 200–1100 nm, optional |
| Resolution | 0.1 nm |
| Fiber connector | SMA905 |

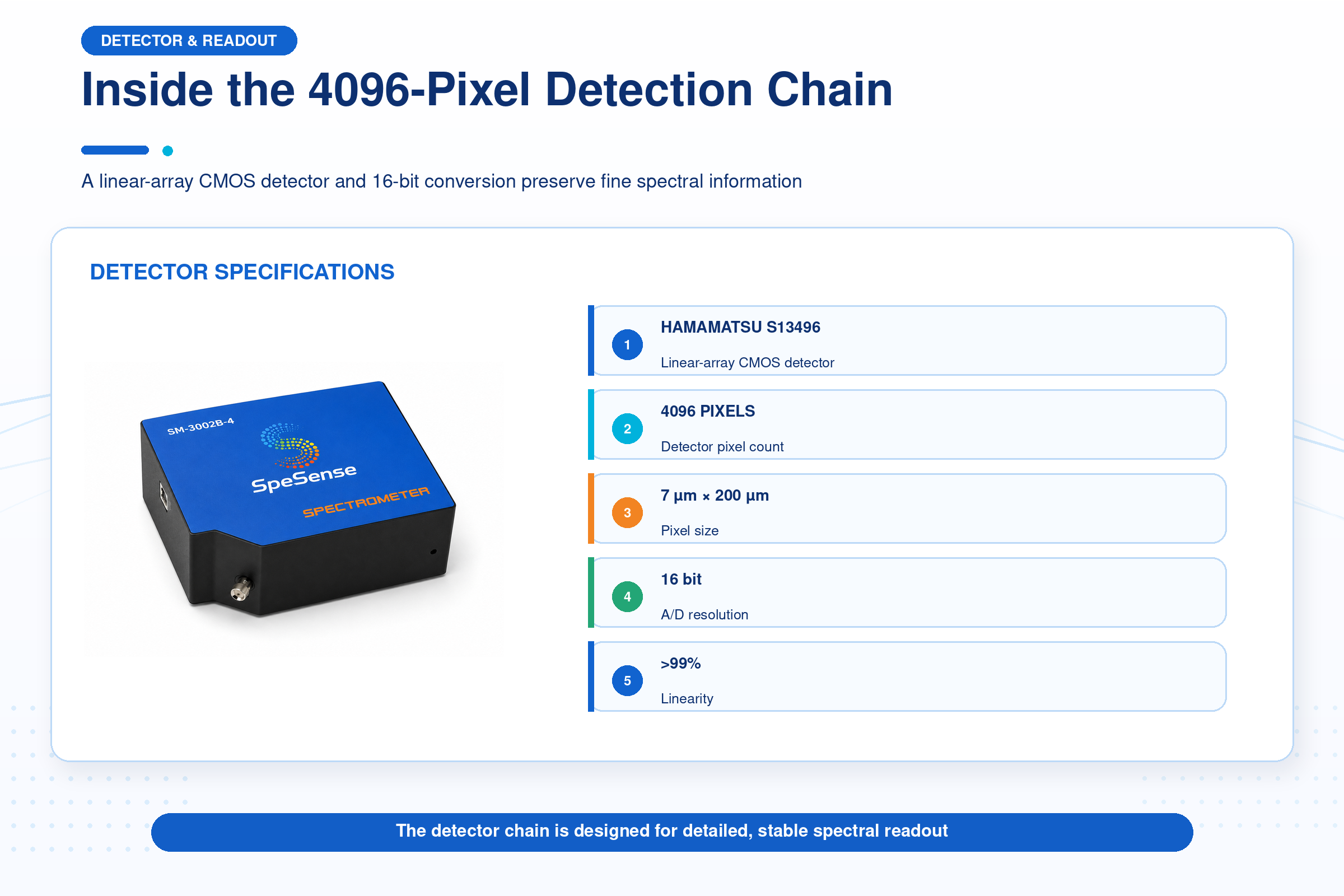

| Detector | Hamamatsu S13496 linear-array CMOS |
| Pixels | 4096 pixels; each pixel 7 µm × 200 µm |
| Signal-to-noise ratio | 600:1 full spectrum |
| A/D resolution | 16 bit |
| Integration time | 0.5 ms–65 s |
| Dynamic range | 10000:1 |

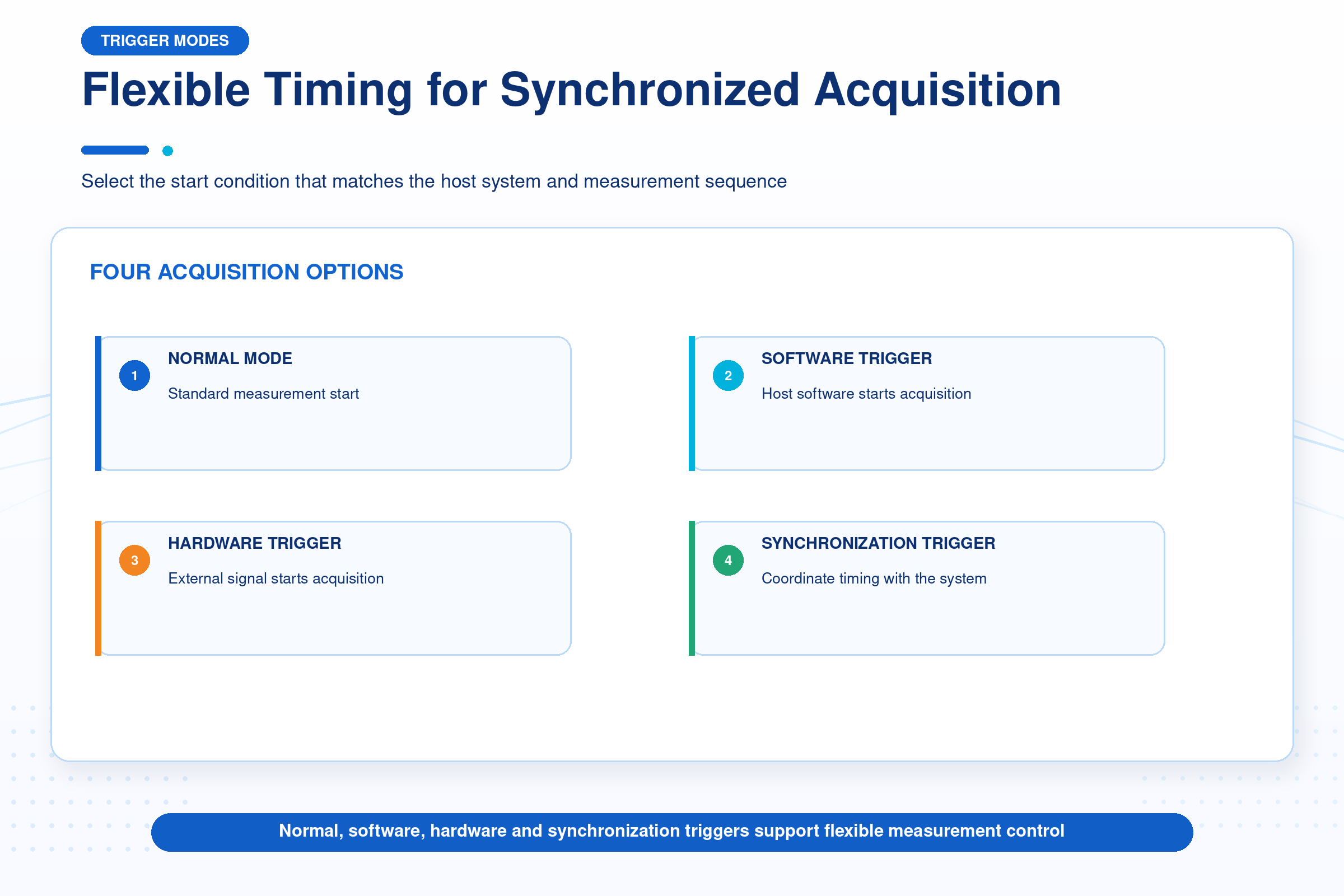

| Trigger modes | Normal, mode, software, hardware and synchronization trigger |
| Power consumption | 250 mA at 5 V DC |
| Operating temperature | 5–35°C (25°C recommended) |

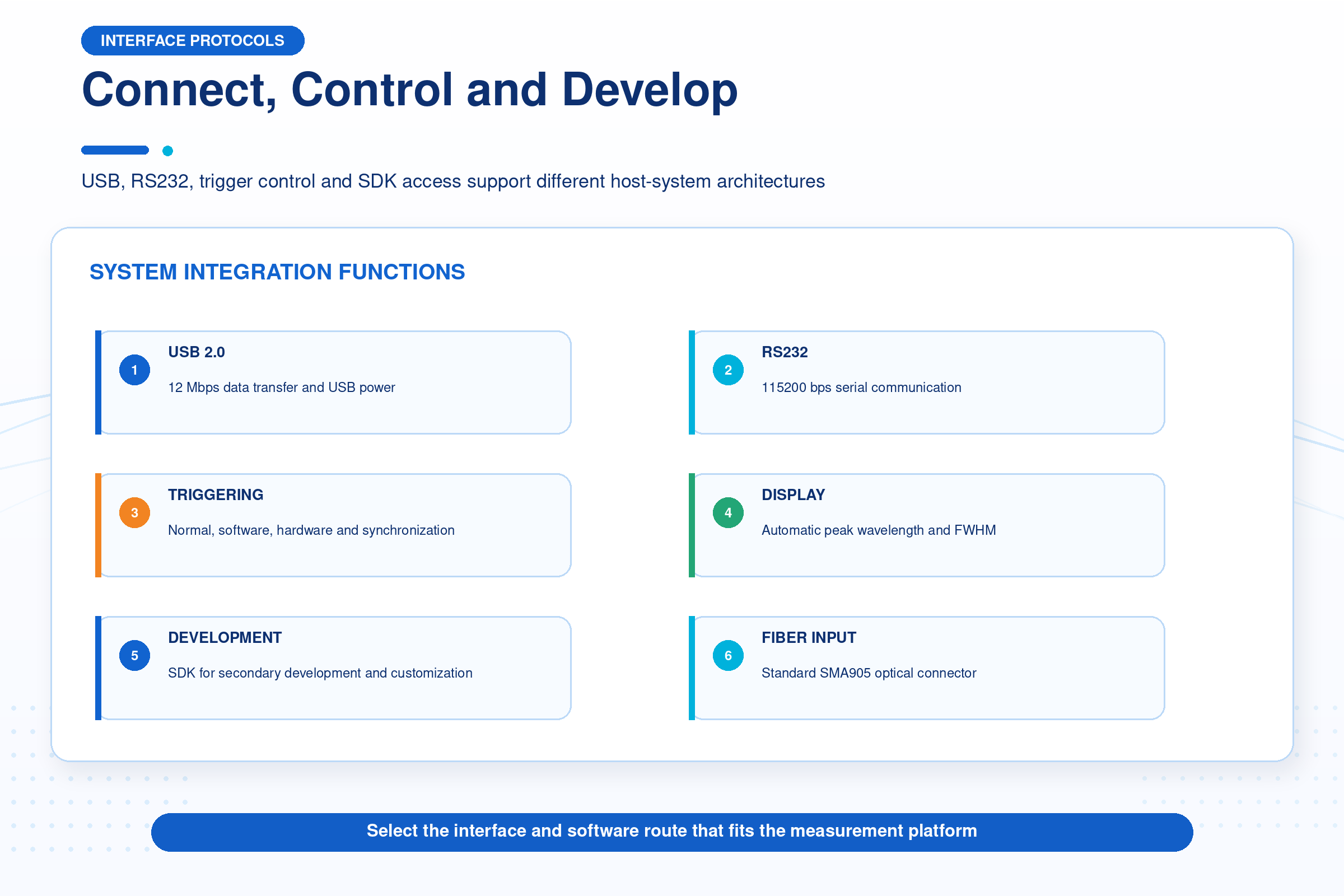

| Communication interface | USB 2.0 (12 Mbps); RS232 (115200 bps) |
| Operating system | Win XP, Win 7, Win 8, Win 10 |
| Linearity | >99% |
| Power supply | USB |

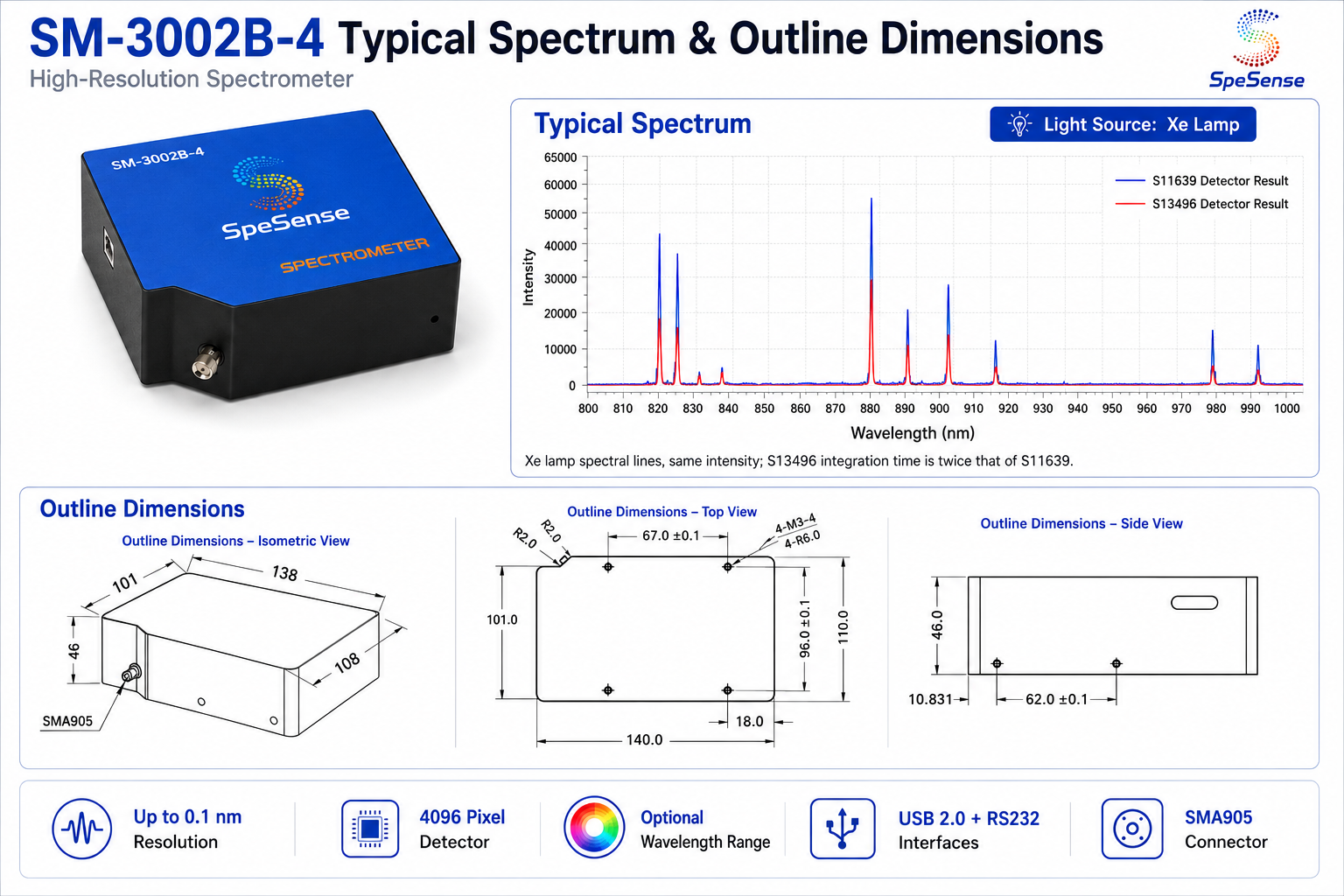

| Dimension | 140 × 110 × 46 mm |
| Weight | 0.7 kg |
