UV-Visible Spectrometers

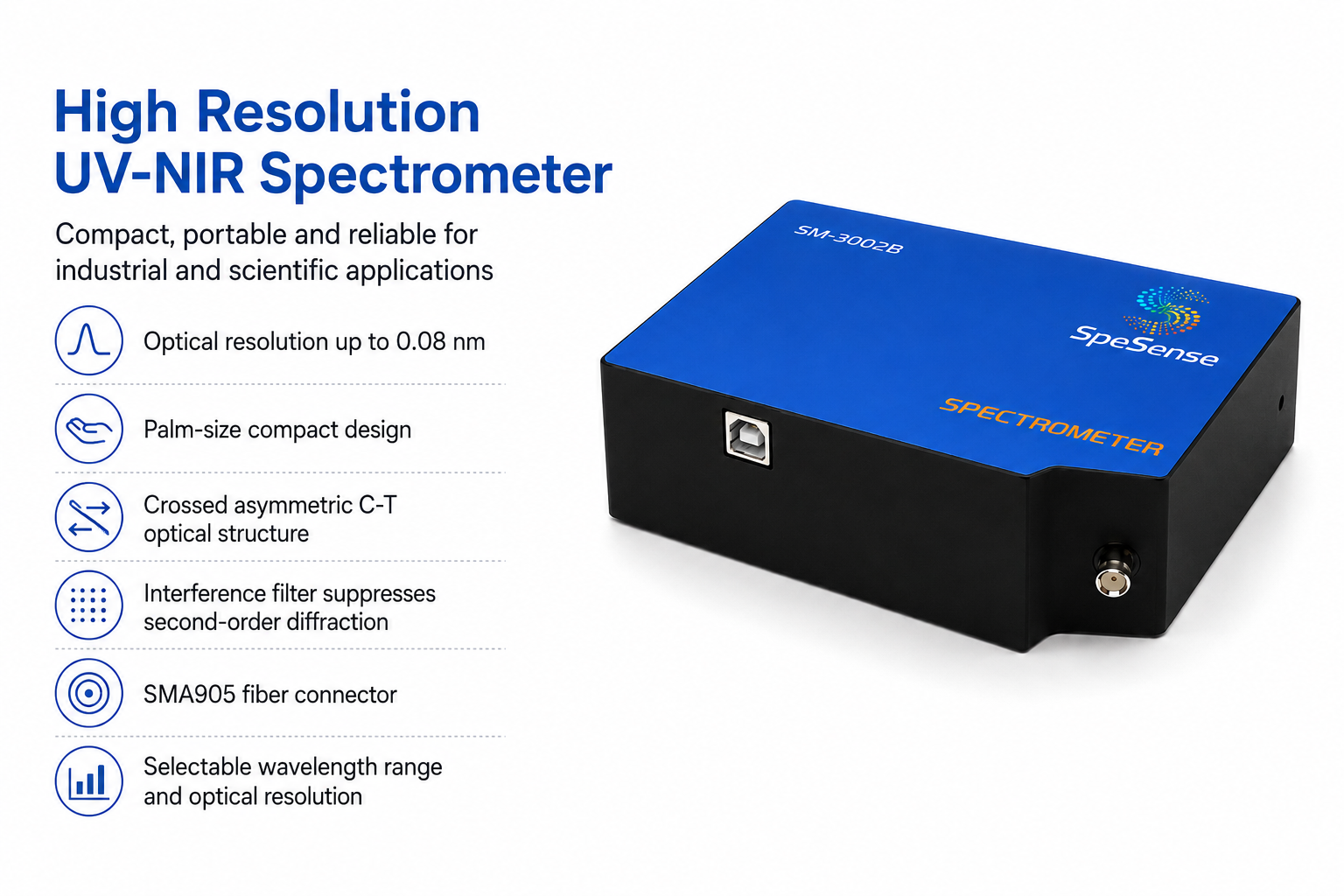

SM-3002B
High-Resolution Spectrometer&Wide range
产品亮点
• The optical resolution can be up to 0.08 nm
• Handy and compact, size is as small as a name card

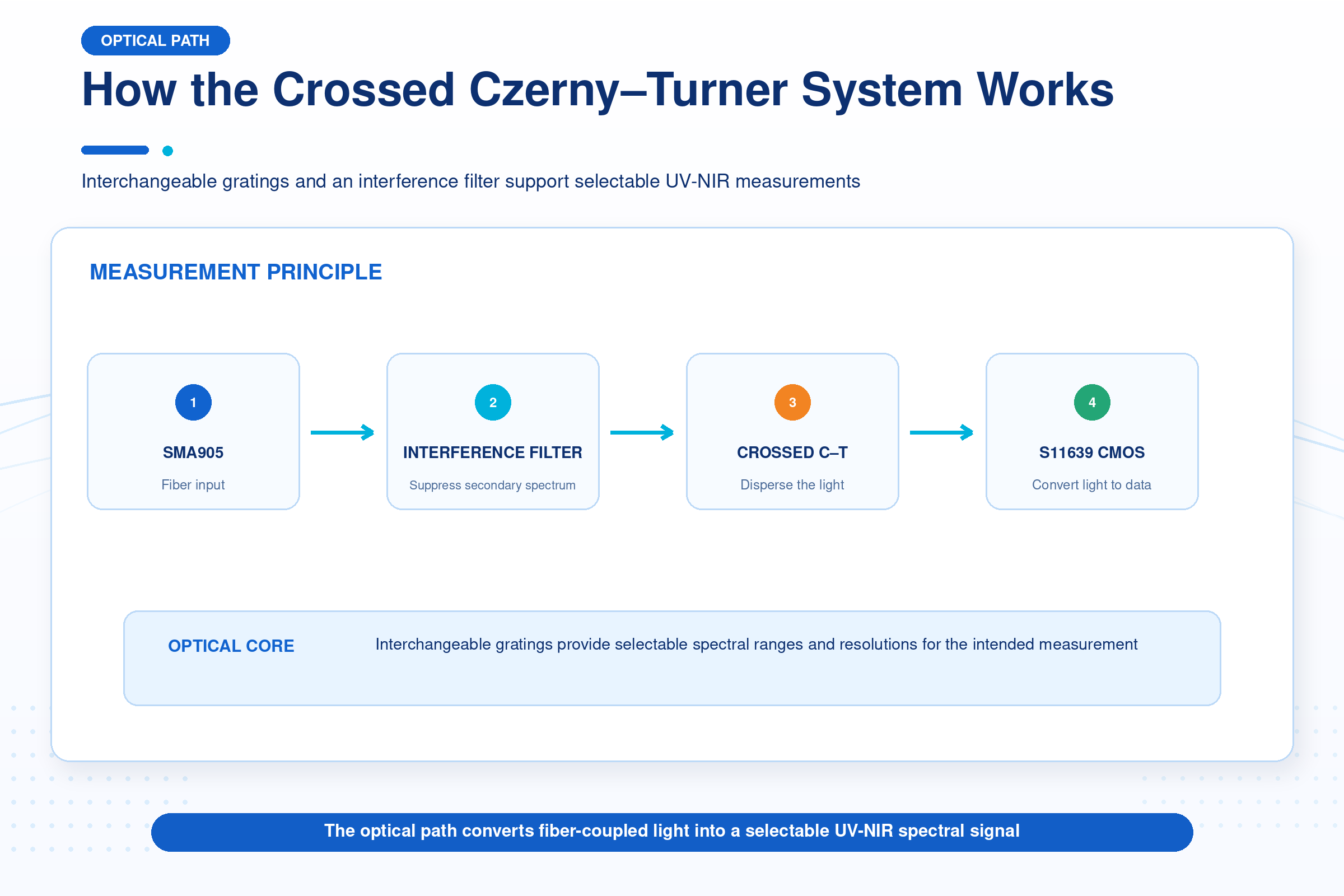

• Crossed czerny-Turner optical design
• Interference filter to eliminate the secondary diffraction spectrum
• Standard SMA905 fiber connector
● Wavelength range and optical resolutions are selectable
● USB 2.0 for data transmission and power supply
● RS232, multiple trigger modes for flexible operation

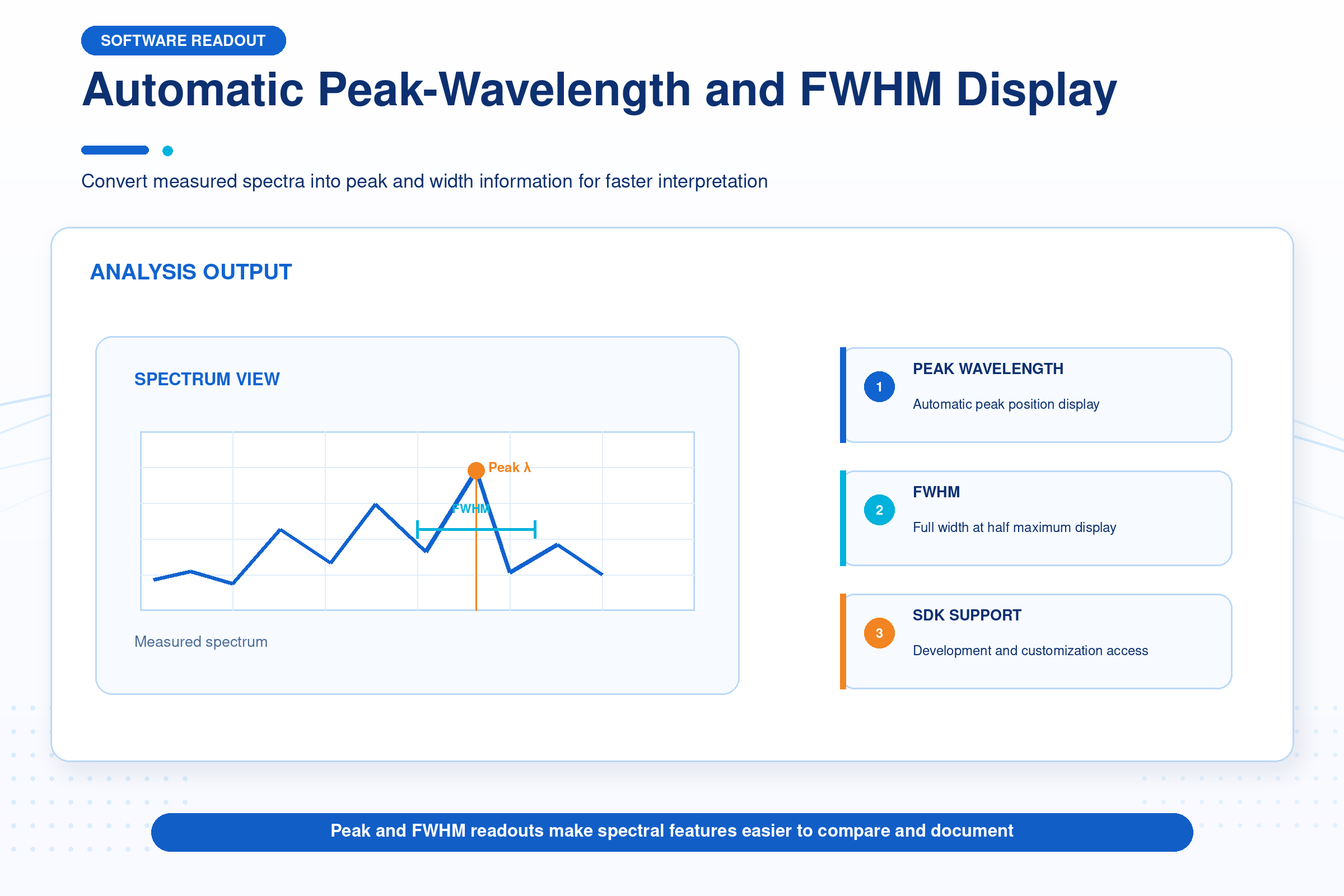

● Auto display peak wavelength and FWHM
● Fixed holes in the bottom and side are for integration

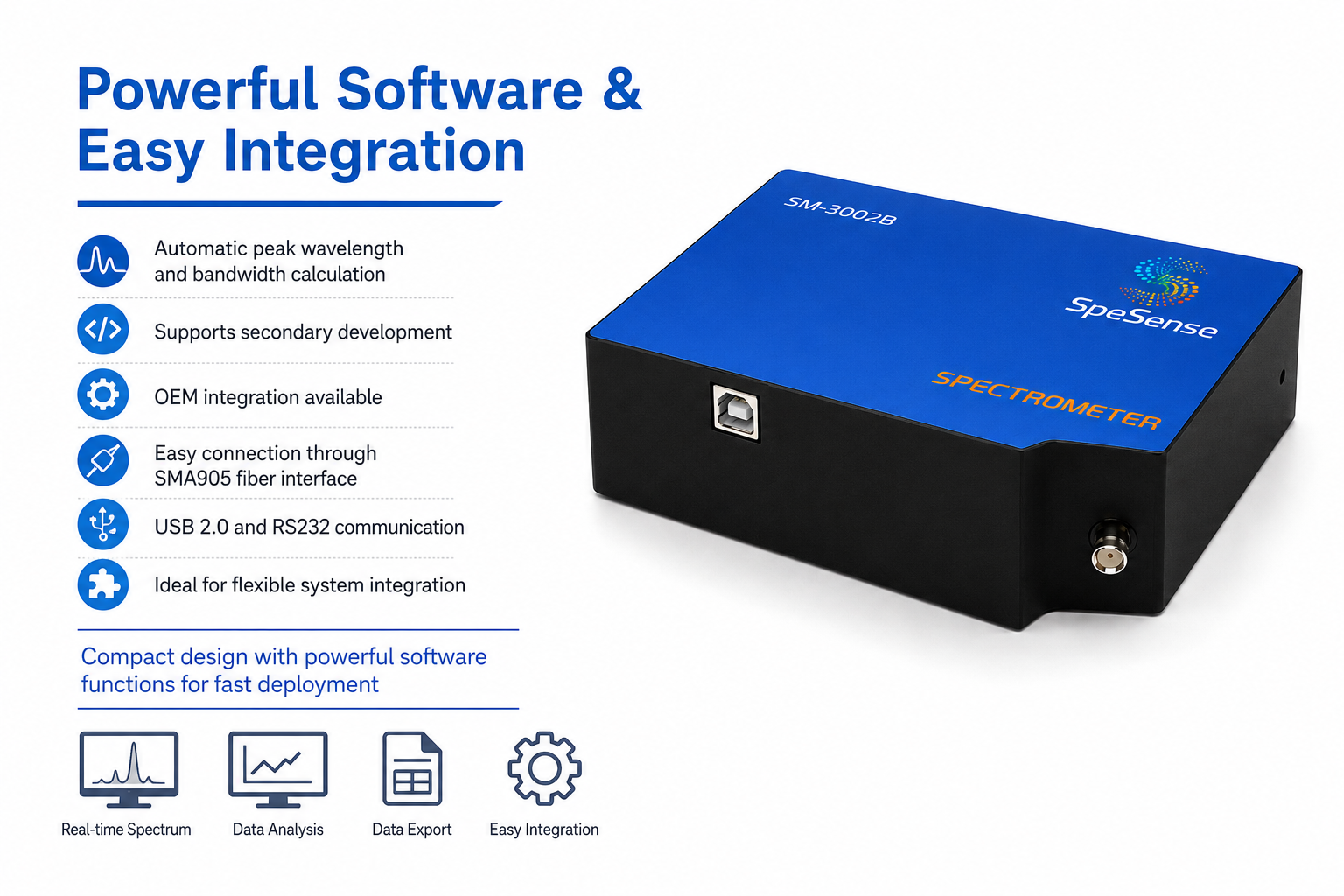

● SDK provided for secondary development and customization
● Mounting holes (bottom & side) for easy system integration
• Handy and compact, size is as small as a name card
• Crossed czerny-Turner optical design
• Interference filter to eliminate the secondary diffraction spectrum
• Standard SMA905 fiber connector
● Wavelength range and optical resolutions are selectable
● USB 2.0 for data transmission and power supply
● RS232, multiple trigger modes for flexible operation
● Auto display peak wavelength and FWHM
● Fixed holes in the bottom and side are for integration
● SDK provided for secondary development and customization
● Mounting holes (bottom & side) for easy system integration
产品概述

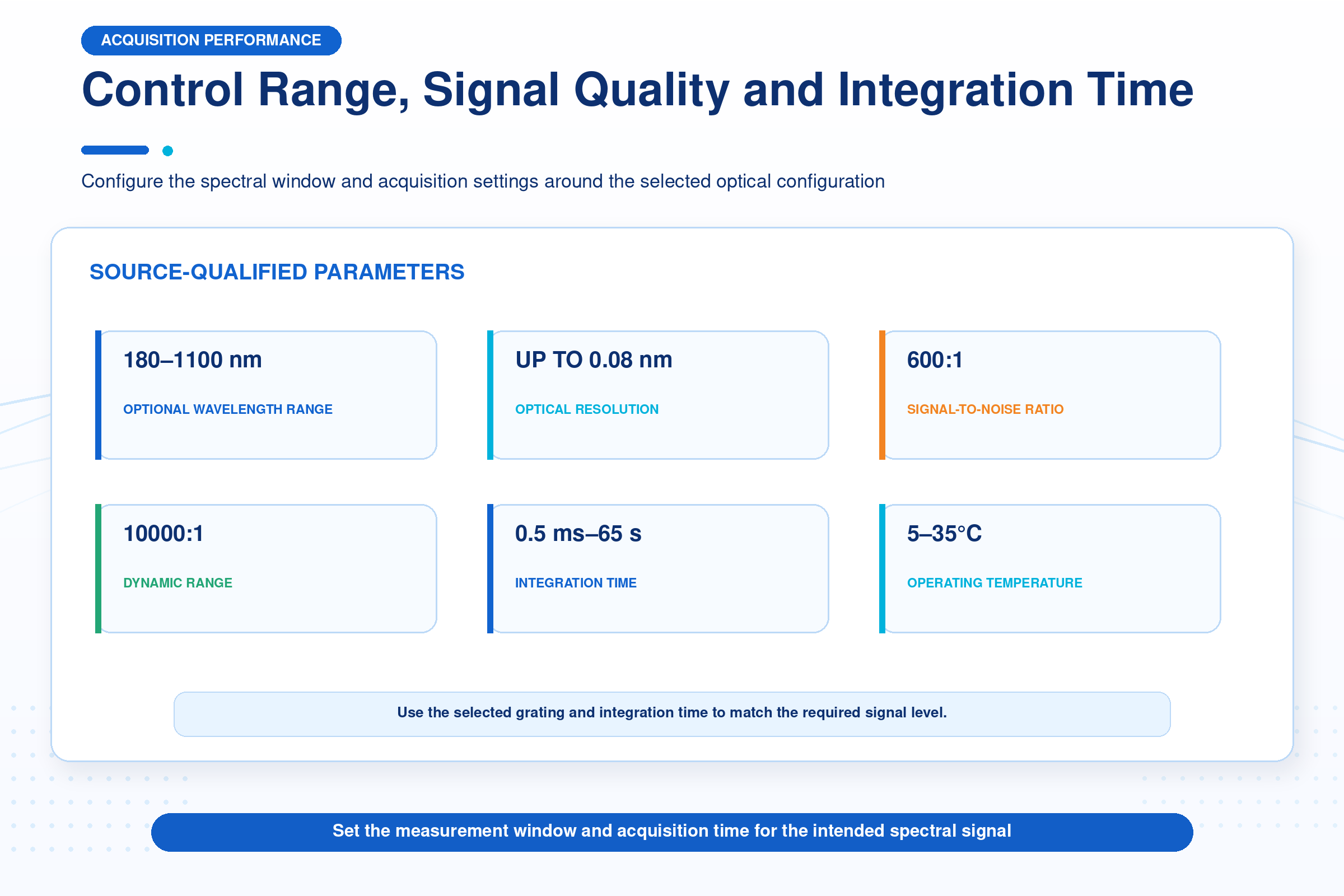

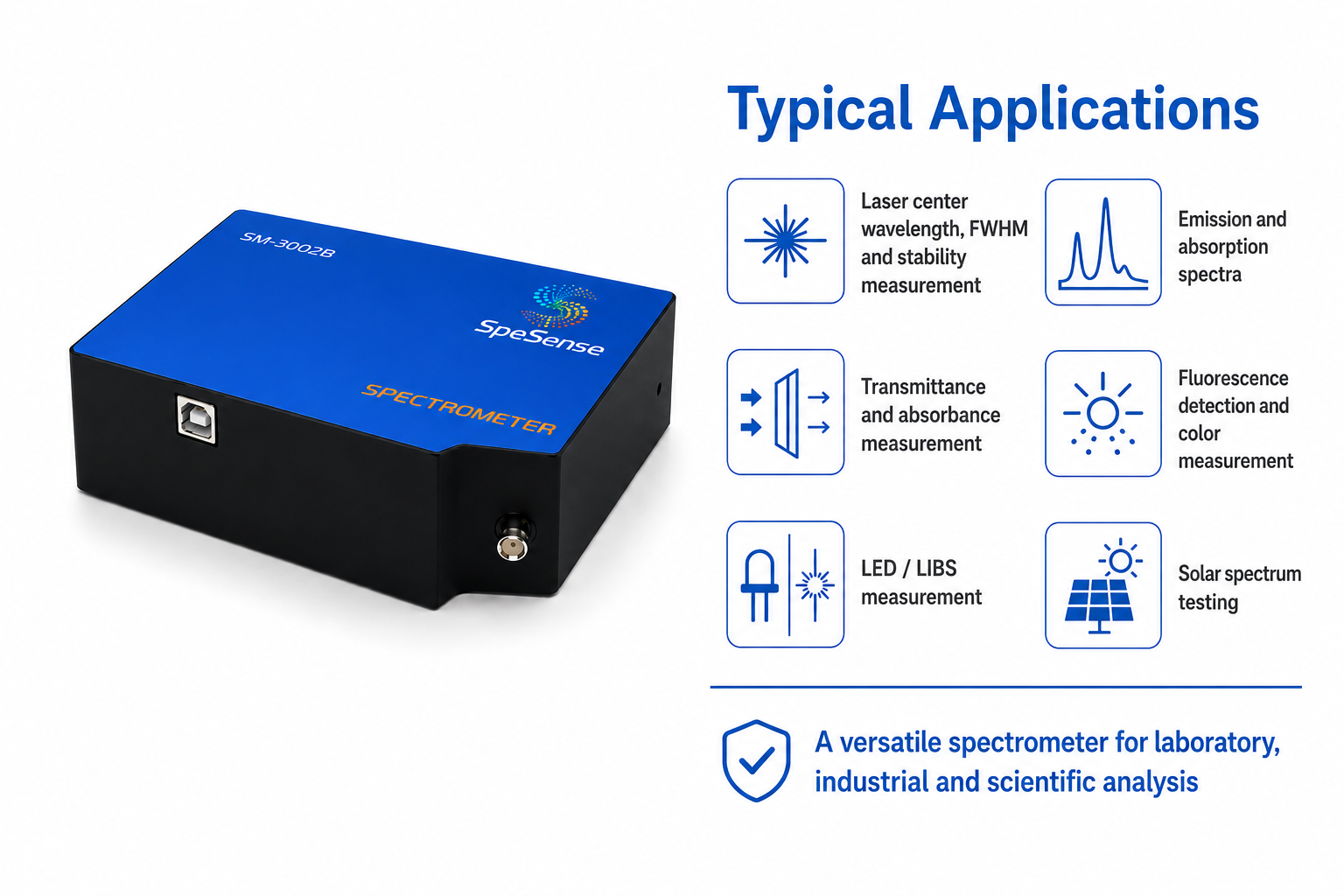

The SpeSense SM-3002B High-Resolution Spectrometer is engineered for precision spectral analysis across a configurable 180–1100 nm wavelength range. With optical resolution down to approximately 0.08 nm, a 2048-pixel CMOS detector, 600:1 signal-to-noise ratio and 10,000:1 dynamic range, it is suitable for demanding applications including laser and LED characterization, emission spectroscopy, wavelength monitoring and laboratory optical measurement. USB 2.0, RS232 communication and SDK support enable convenient integration into OEM and automated spectroscopy systems.
| Item | Specification |
| Model number | SM-3002B |

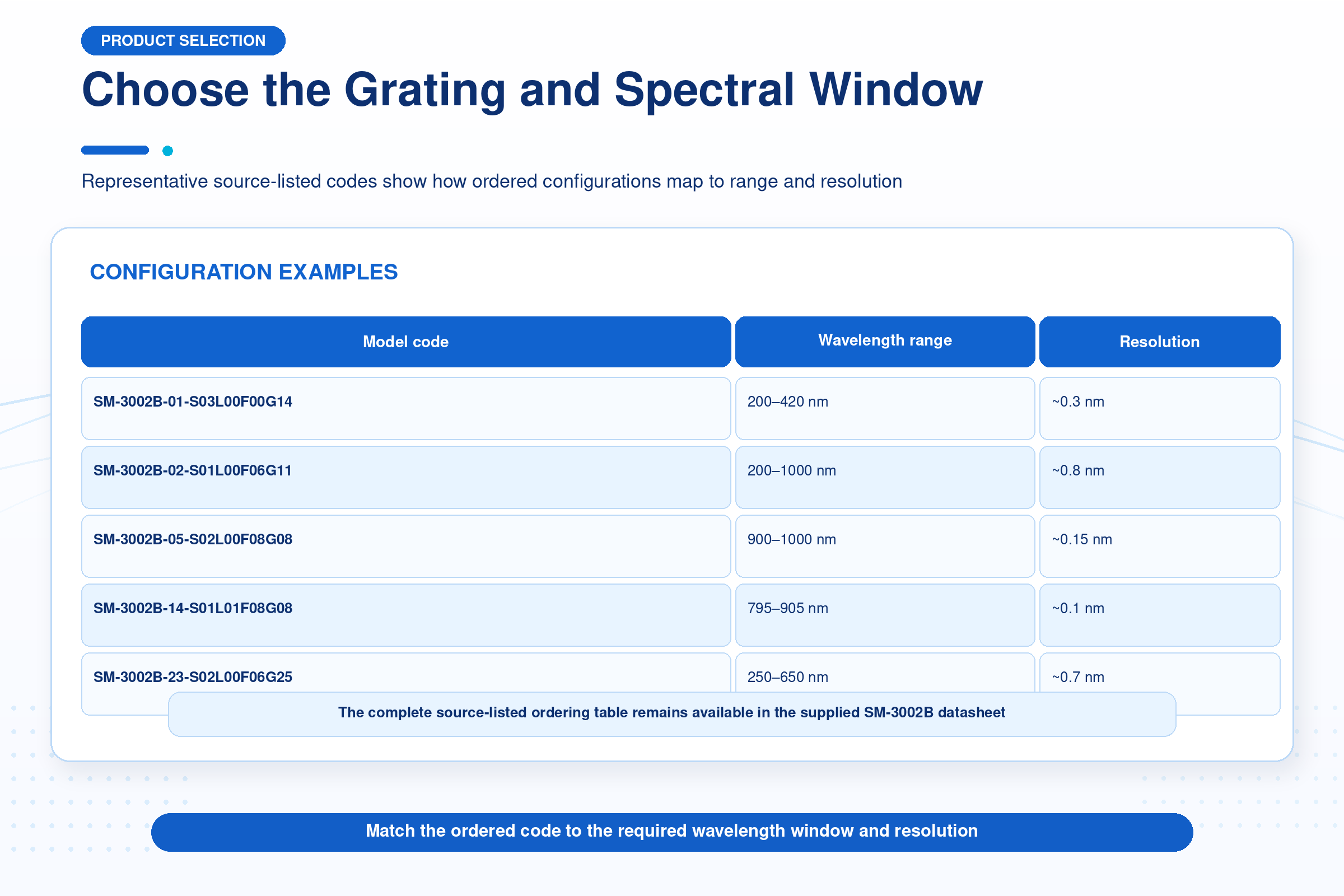

| Wavelength range | 180–1100 nm, optional |
| Resolution | Up to 0.08 nm; the source specification table lists optimum ~0.08 nm |
| Fiber connector | SMA905 |

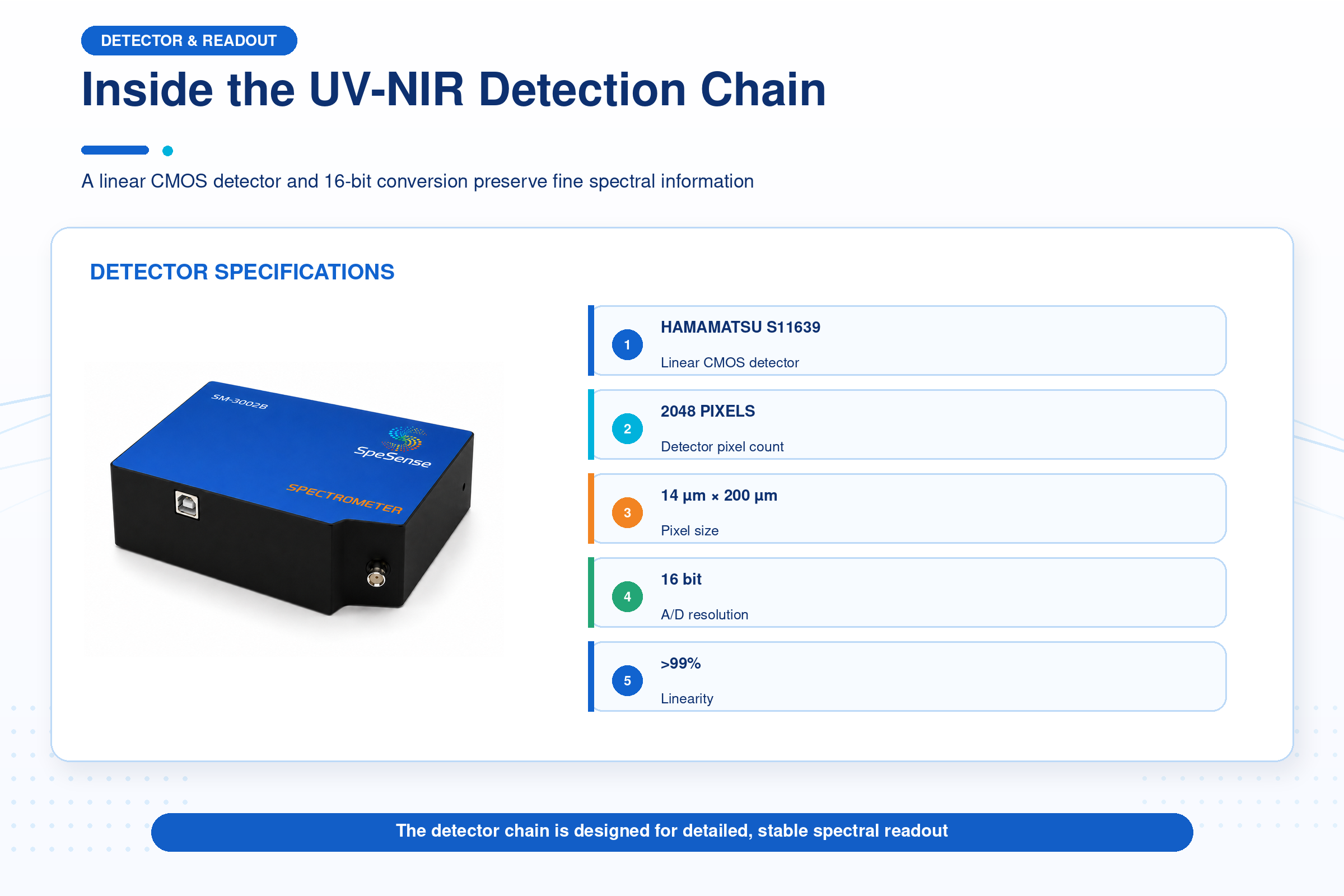

| Detector | Hamamatsu S11639 linear CMOS |
| Pixels | 2048 pixels; each pixel 14 µm × 200 µm |

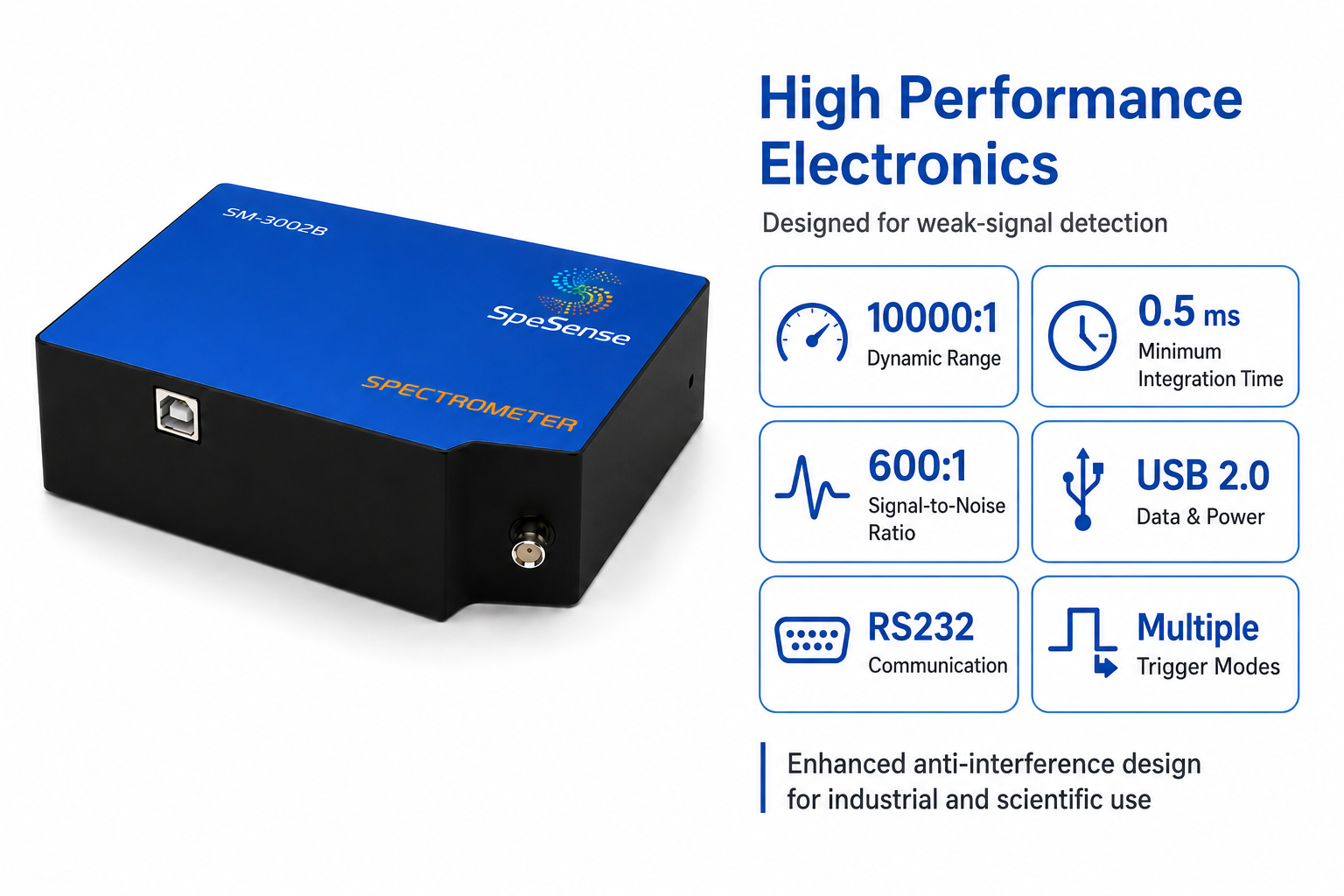

| Signal-to-noise ratio | 600:1 |
| A/D resolution | 16 bit |
| Integration time | 0.5 ms–65 s |
| Dynamic range | 10000:1 |

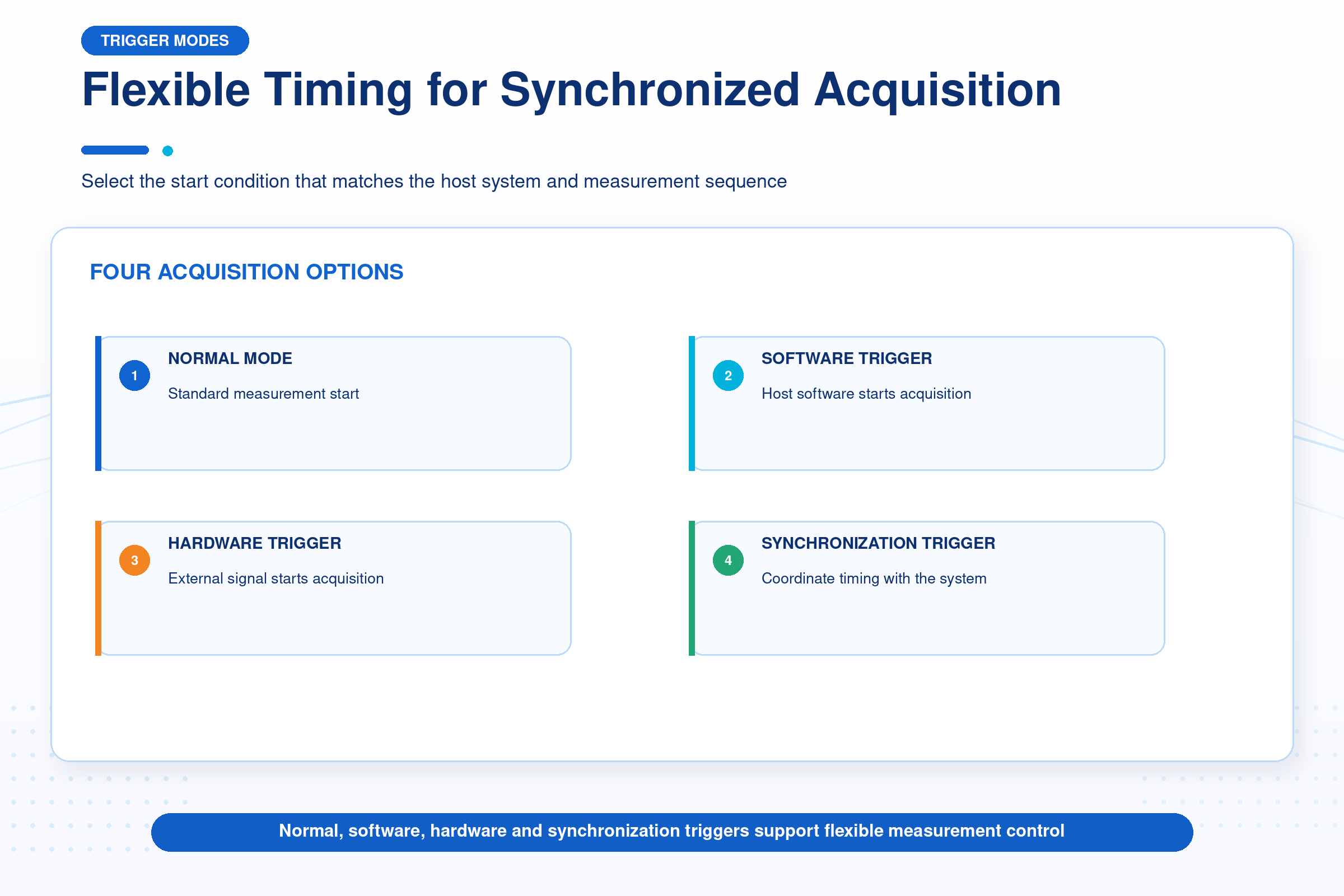

| Trigger modes | Normal, mode, software, hardware and synchronization trigger |

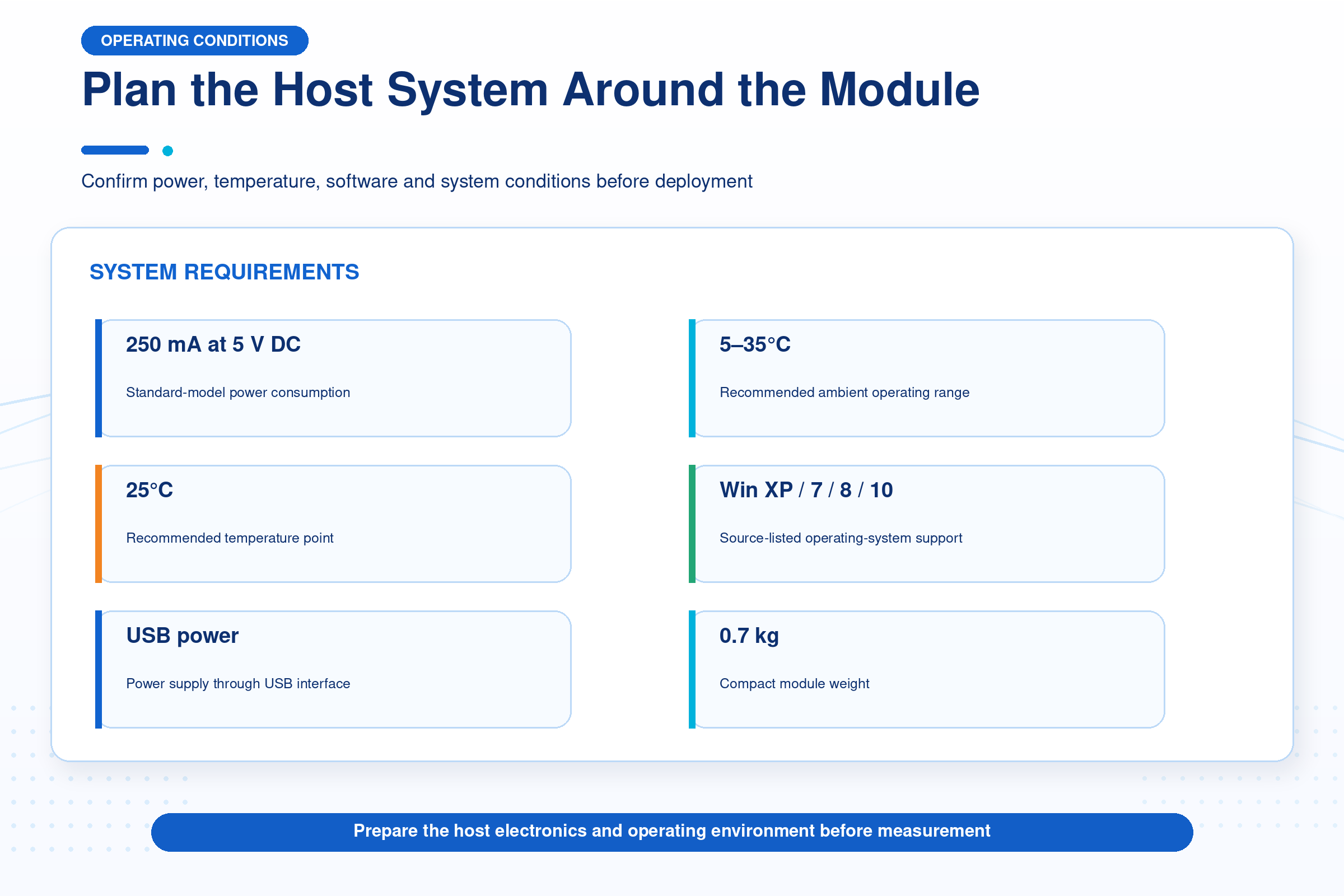

| Power consumption | 250 mA at 5 V DC |
| Operating temperature | 5–35°C (25°C recommended) |

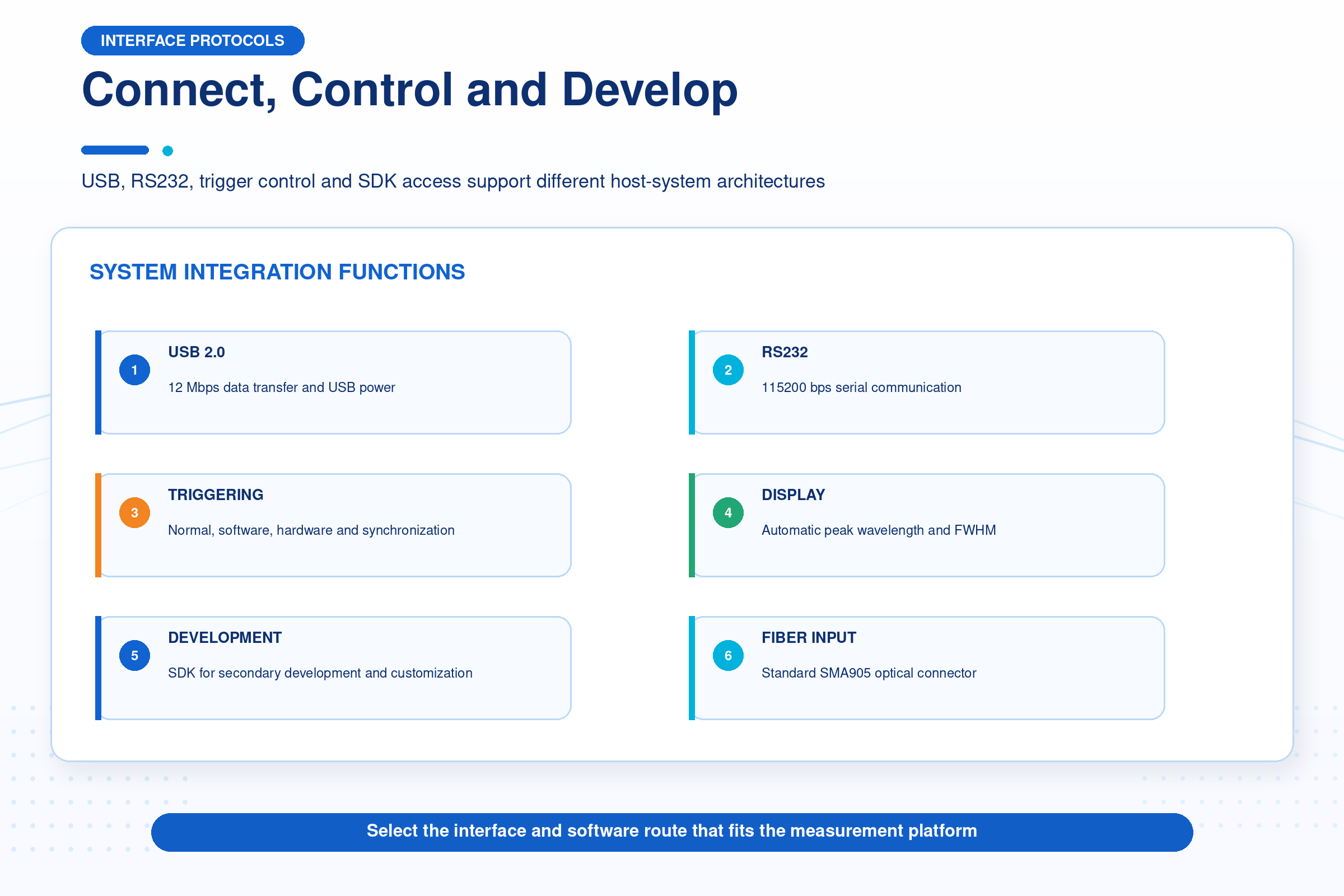

| Communication interface | USB 2.0 (12 Mbps); RS232 (115200 bps) |
| Operating system | Win XP, Win 7, Win 8, Win 10 |
| Linearity | >99% |
| Power supply | USB |

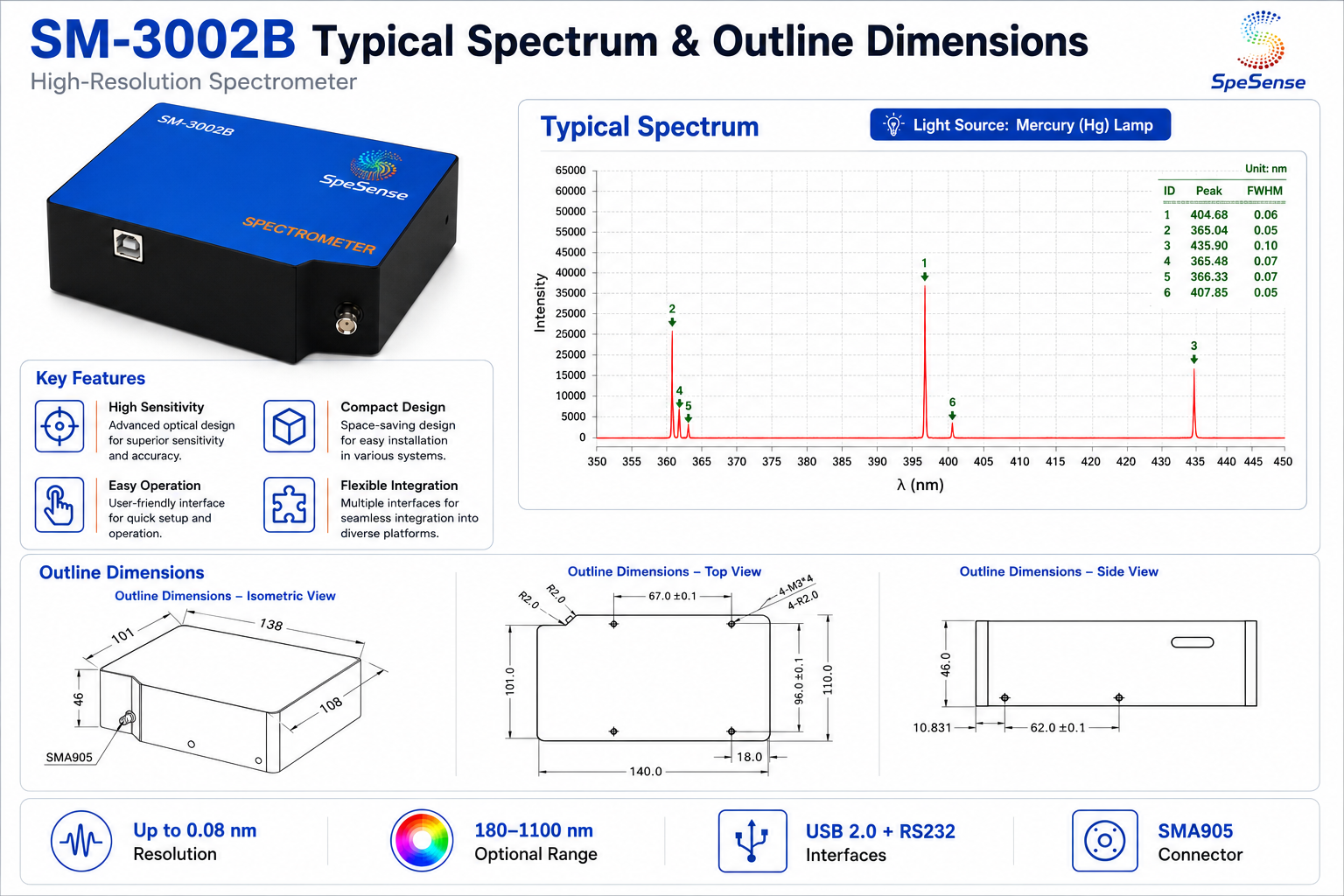

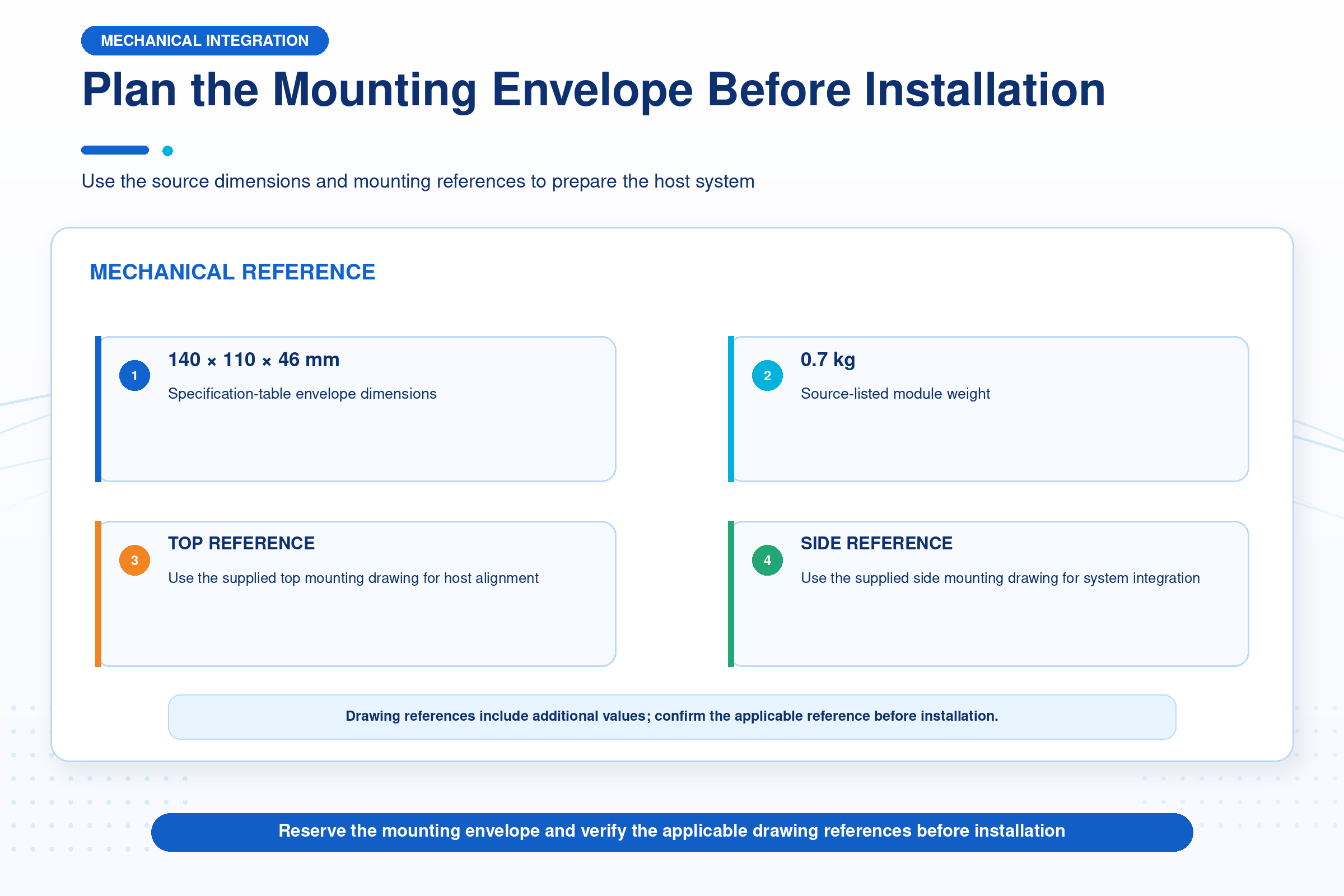

| Dimension | 140 × 110 × 46 mm (source specification table) |
| Weight | 0.7 kg |
