UV-Visible Spectrometers

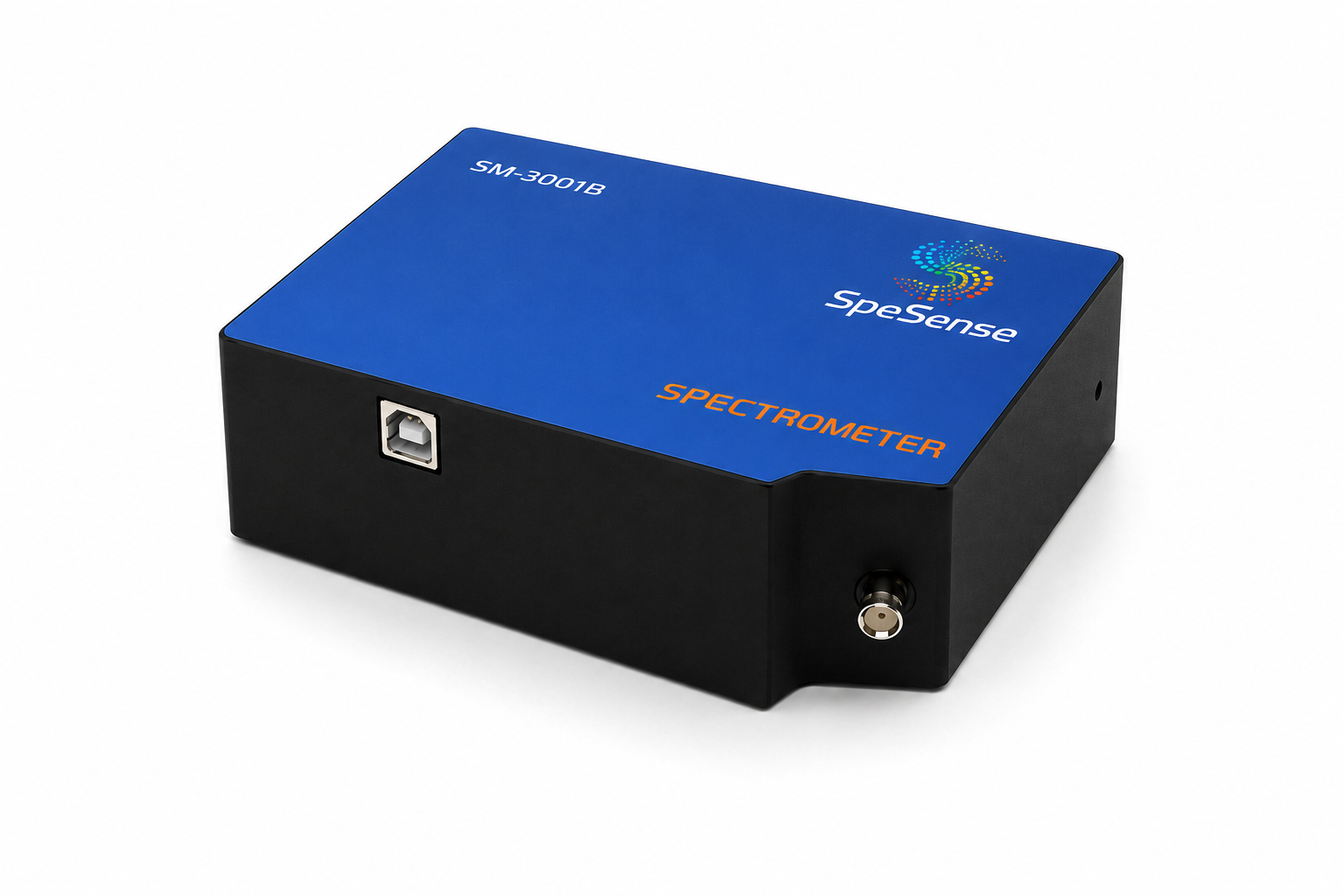

SM-3001B
高分辨率光谱仪
产品亮点
● Handy and compact, size is as small as a name card

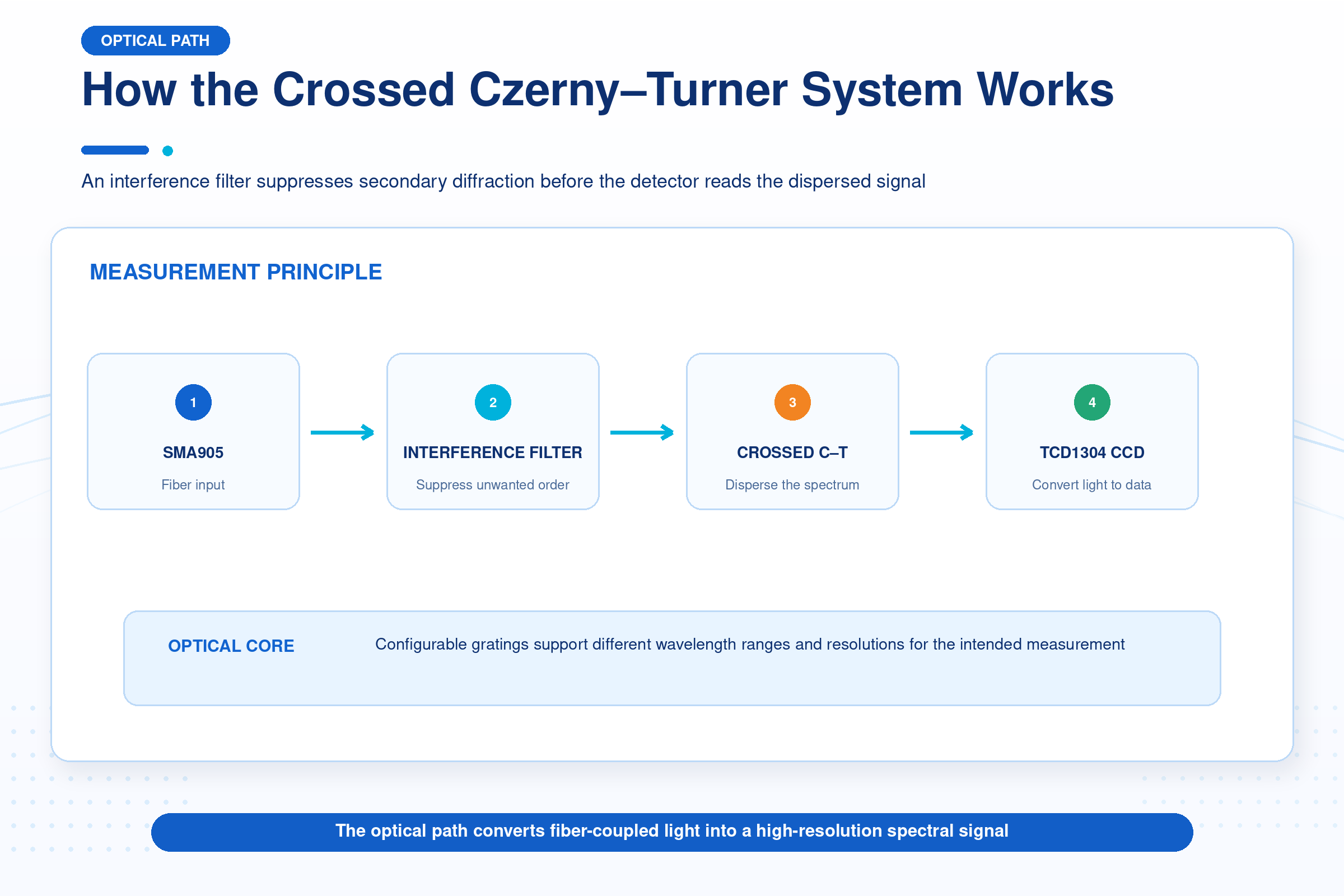

● Crossed czerny-Turner optical design
● Interference filter to eliminate the secondary diffraction spectrum

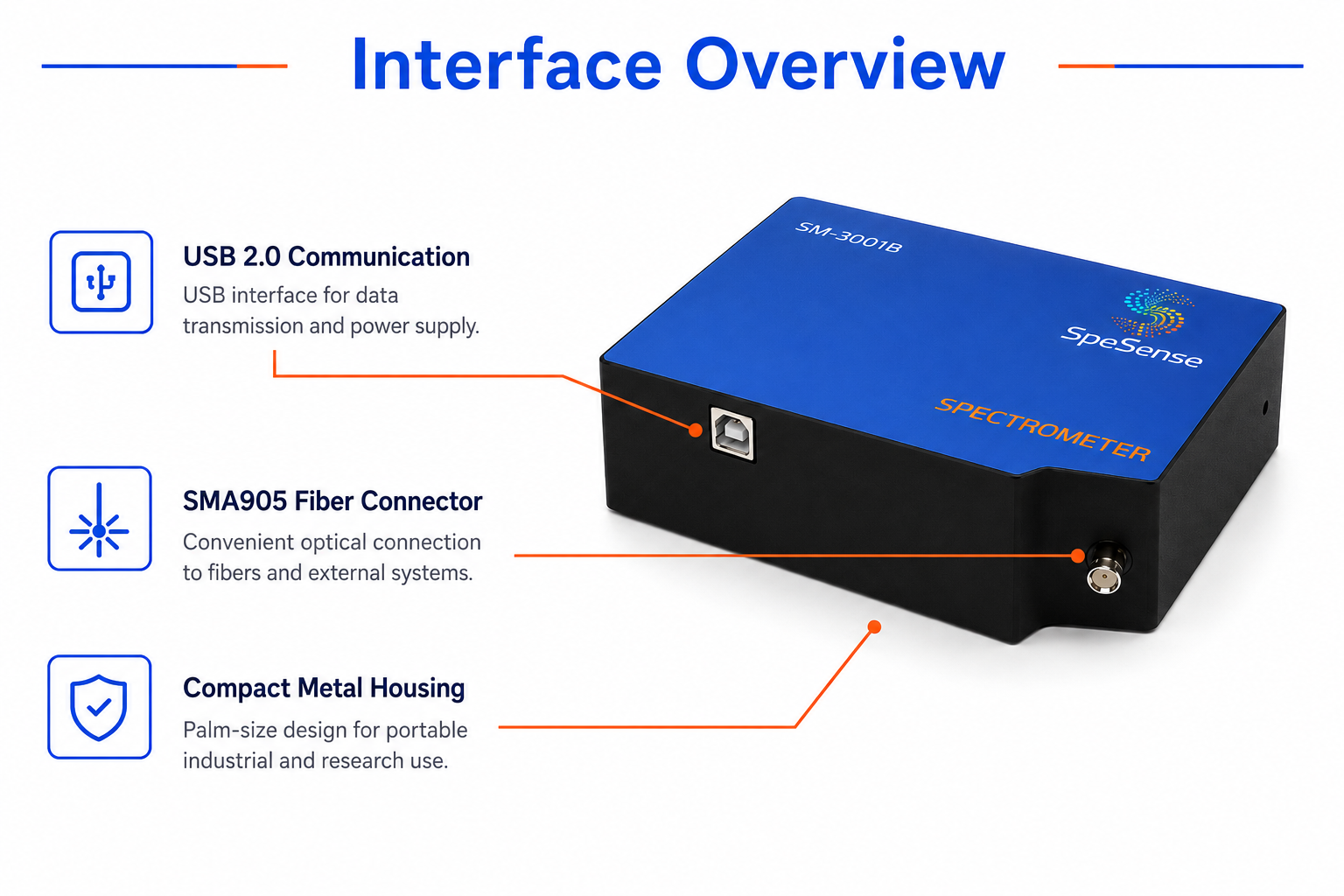

● Standard SMA905 fiber connector
● Wavelength range and optical resolutions are selectable
● USB 2.0 for data transmission and power supply
● RS232， multiple trigger modes for flexible operation

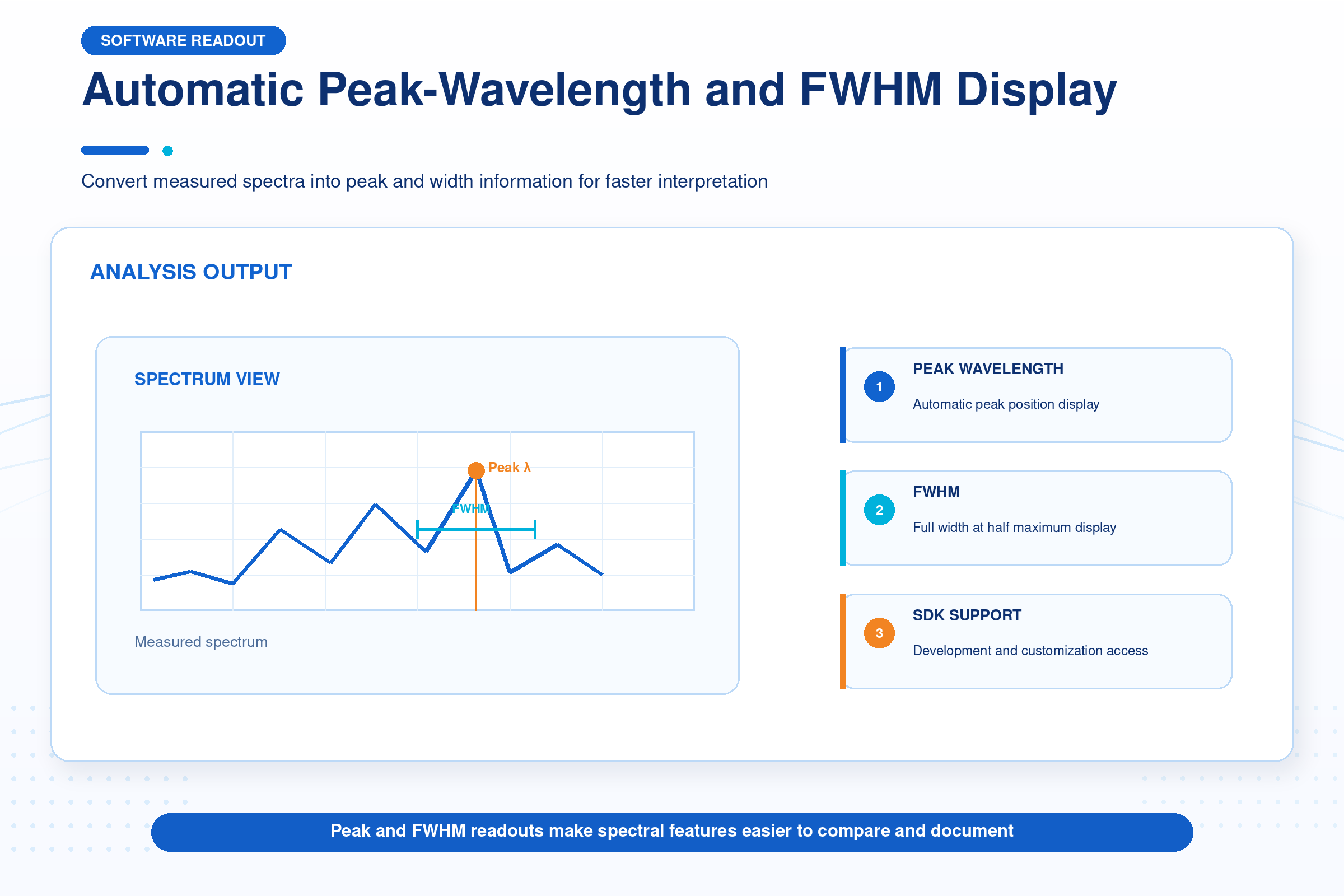

● Auto display peak wavelength and FWHM
● Fixed holes in the bottom and side are for integration
● SDK provided for secondary development and customization
● Mounting holes (bottom & side) for easy system integration
● Crossed czerny-Turner optical design
● Interference filter to eliminate the secondary diffraction spectrum
● Standard SMA905 fiber connector
● Wavelength range and optical resolutions are selectable
● USB 2.0 for data transmission and power supply
● RS232， multiple trigger modes for flexible operation
● Auto display peak wavelength and FWHM
● Fixed holes in the bottom and side are for integration
● SDK provided for secondary development and customization
● Mounting holes (bottom & side) for easy system integration
产品概述
The SpeSense SM-3001B High-Resolution Spectrometer is designed for precision spectral measurement in scientific research, optical testing and industrial sensing applications. Featuring a 3648-pixel linear CCD detector, selectable wavelength configurations, an SMA905 fiber interface and a compact optical design, it provides reliable spectral acquisition for applications such as light-source characterization, wavelength measurement and laboratory spectroscopy. USB and RS232 communication, multiple trigger modes and system-integration features make the SM-3001B suitable for both standalone measurement and OEM applications.
| Item | Specification |

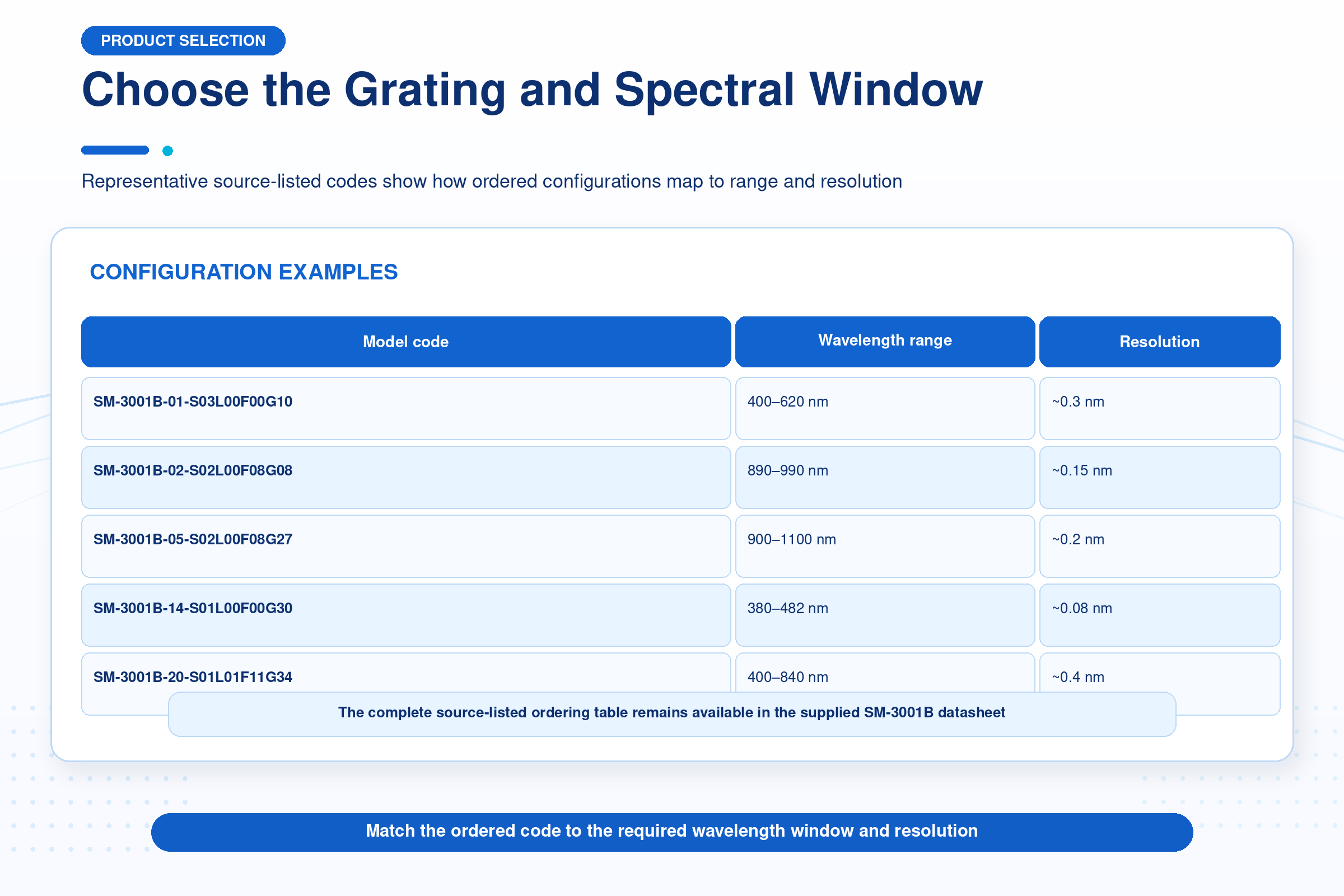

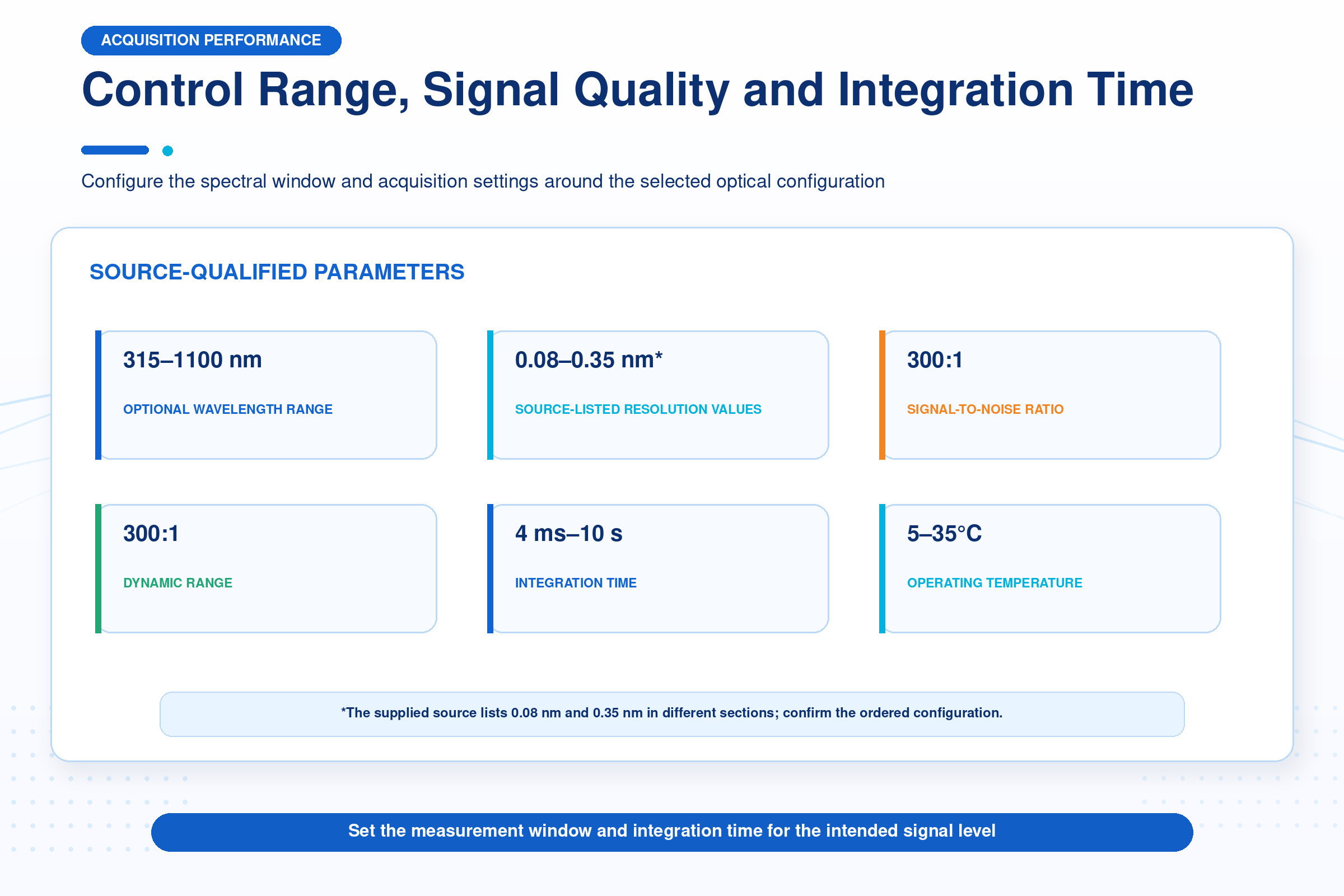

| Wavelength range | 315–1100 nm, optional |
| Resolution | 0.35 nm in the specification table; the source introduction states resolution up to 0.08 nm. Confirm for the selected configuration. |
| Fiber connector | SMA905 |

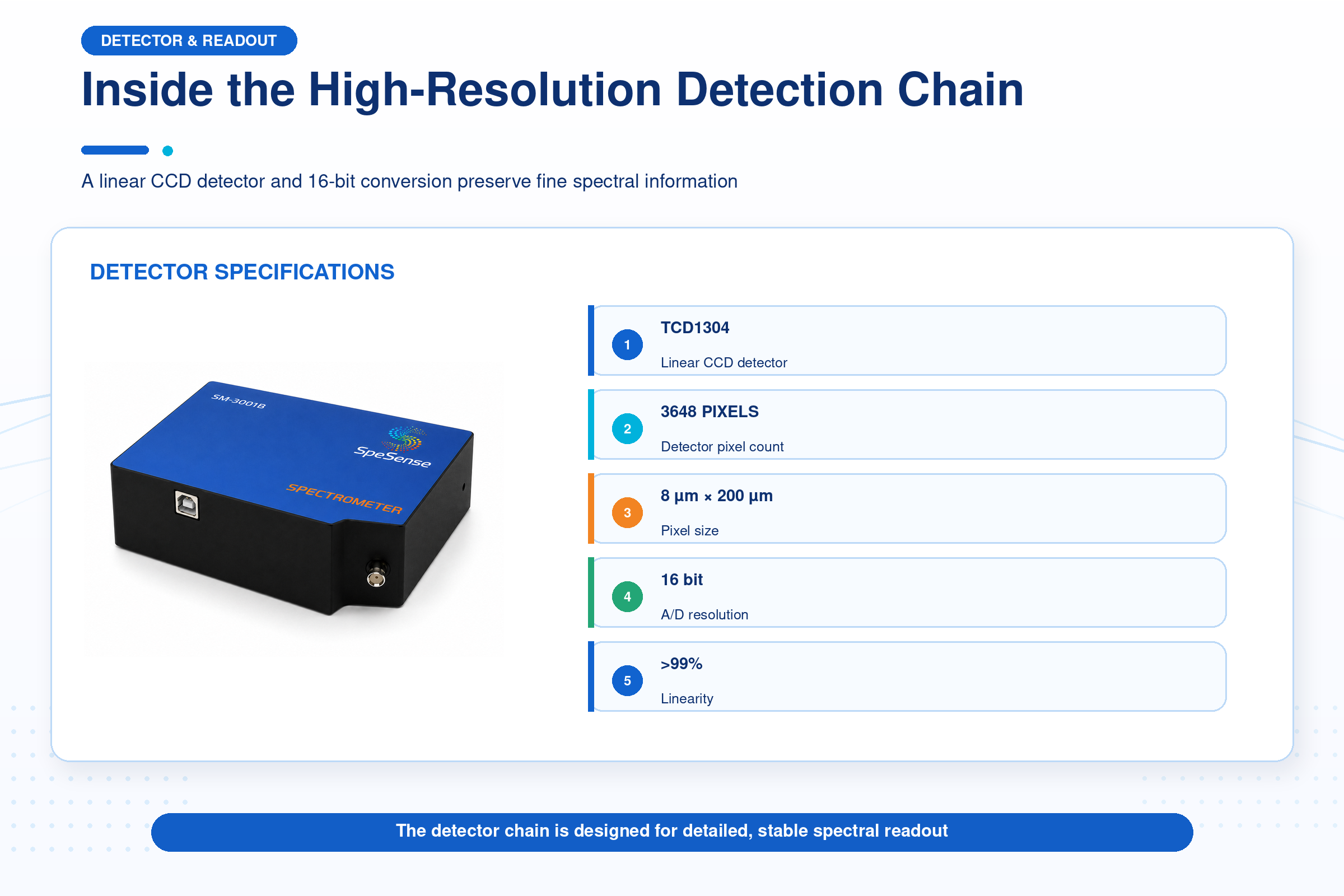

| Detector | TCD1304 linear CCD |
| Detector pixels | 3648 pixels; each pixel 8 µm × 200 µm |
| Signal-to-noise ratio | 300:1 |
| A/D resolution | 16 bit |
| Integration time | 4 ms–10 s |
| Dynamic range | 300:1 |

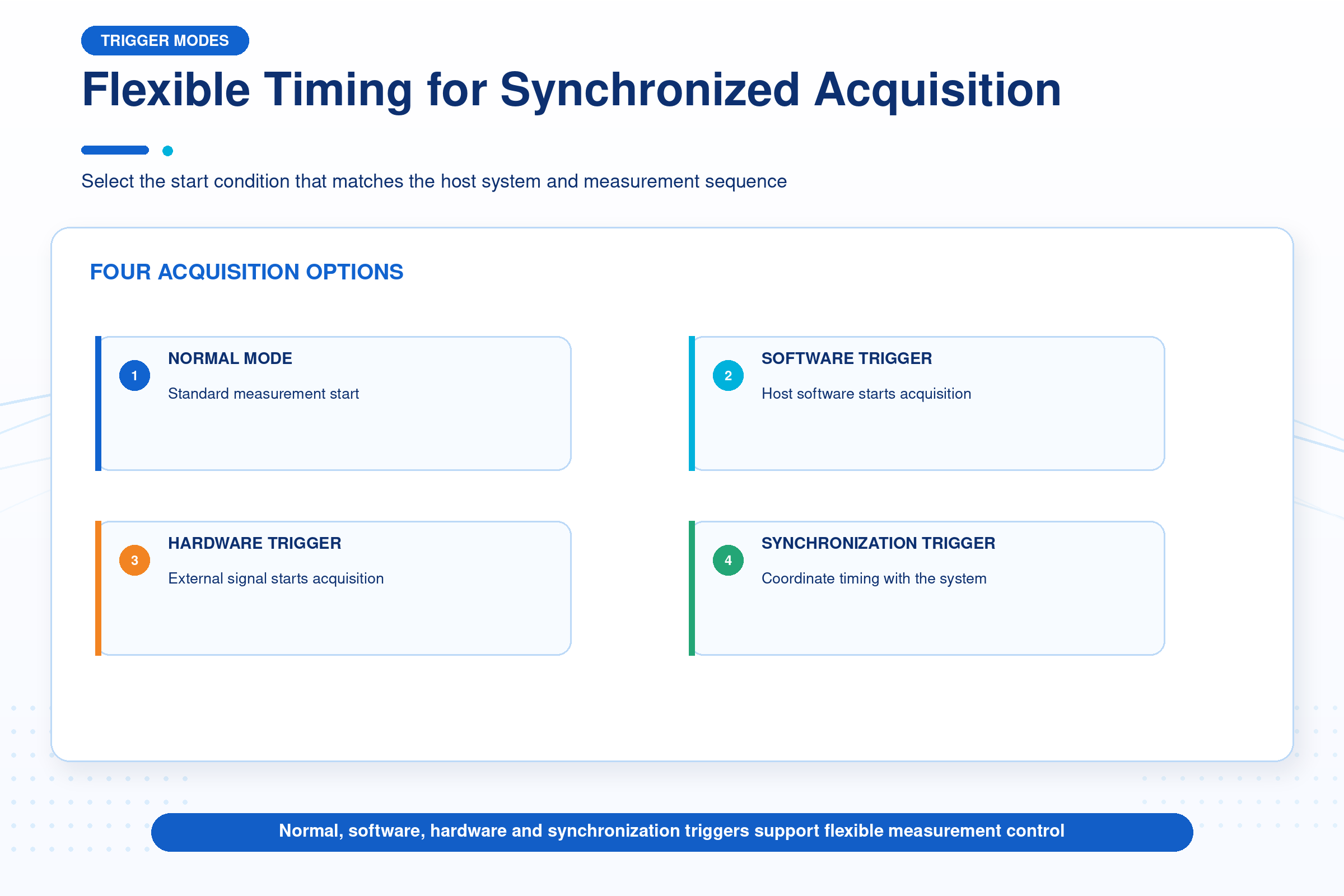

| Trigger modes | Normal, mode, software, hardware and synchronization trigger |

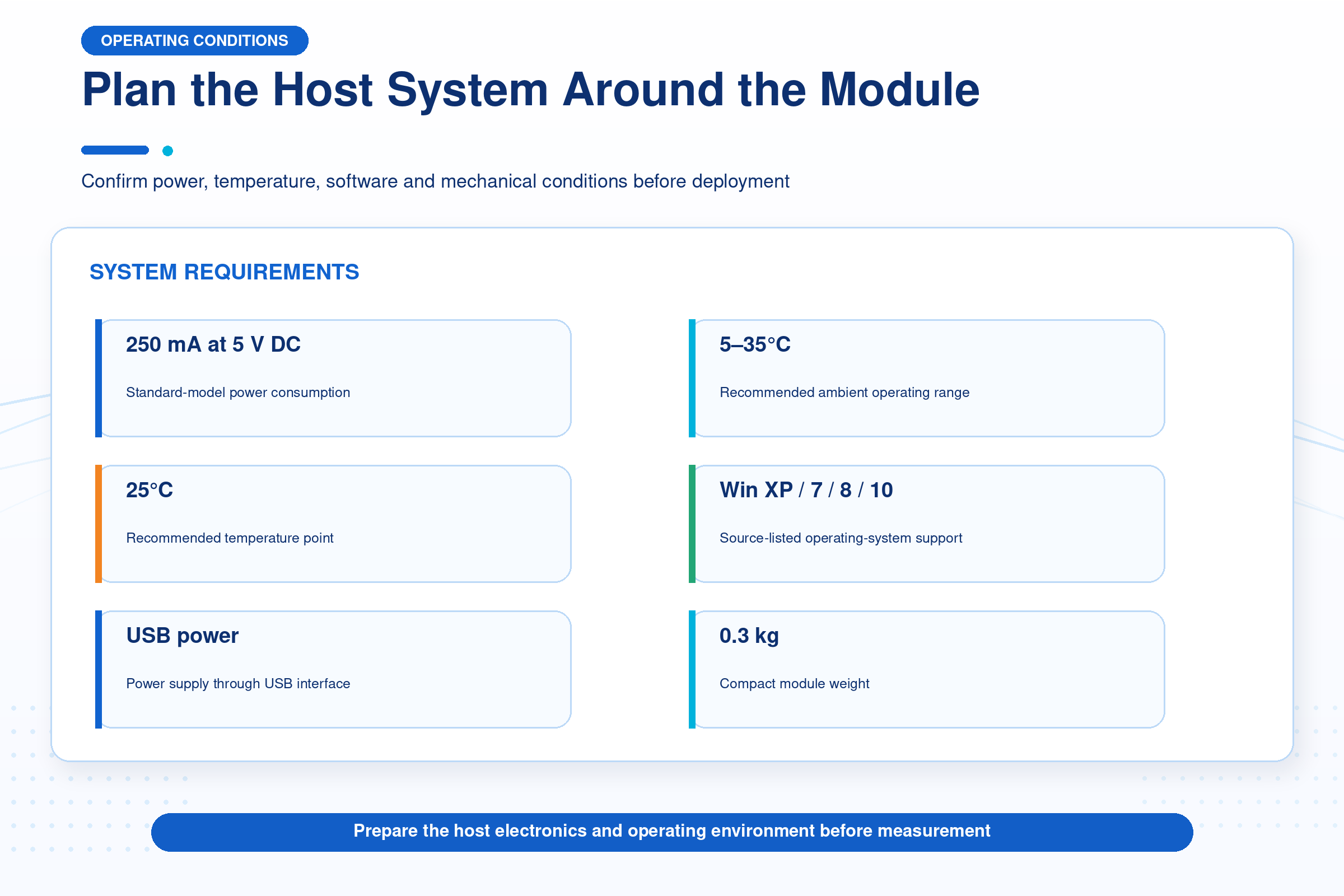

| Power consumption | 250 mA at 5 V DC |
| Operating temperature | 5–35°C (25°C recommended) |

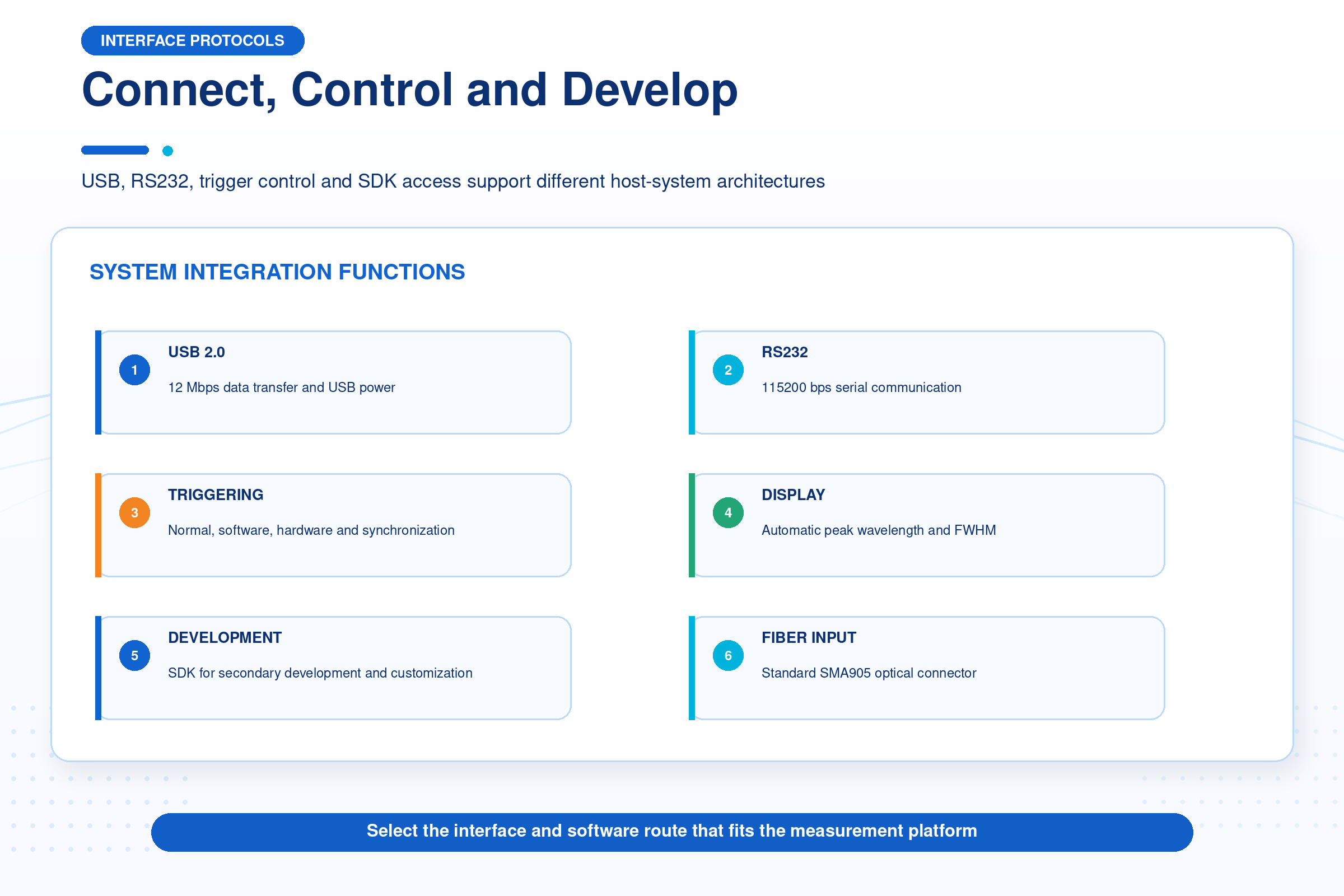

| Communication interface | USB 2.0 (12 Mbps); RS232 (115200 bps) |
| Operating system | Win XP, Win 7, Win 8, Win 10 |
| Linearity | >99% |
| Mounting holes | Fixed mounting holes at the bottom and side for system integration; see supplied drawing. |
| Power supply | USB |

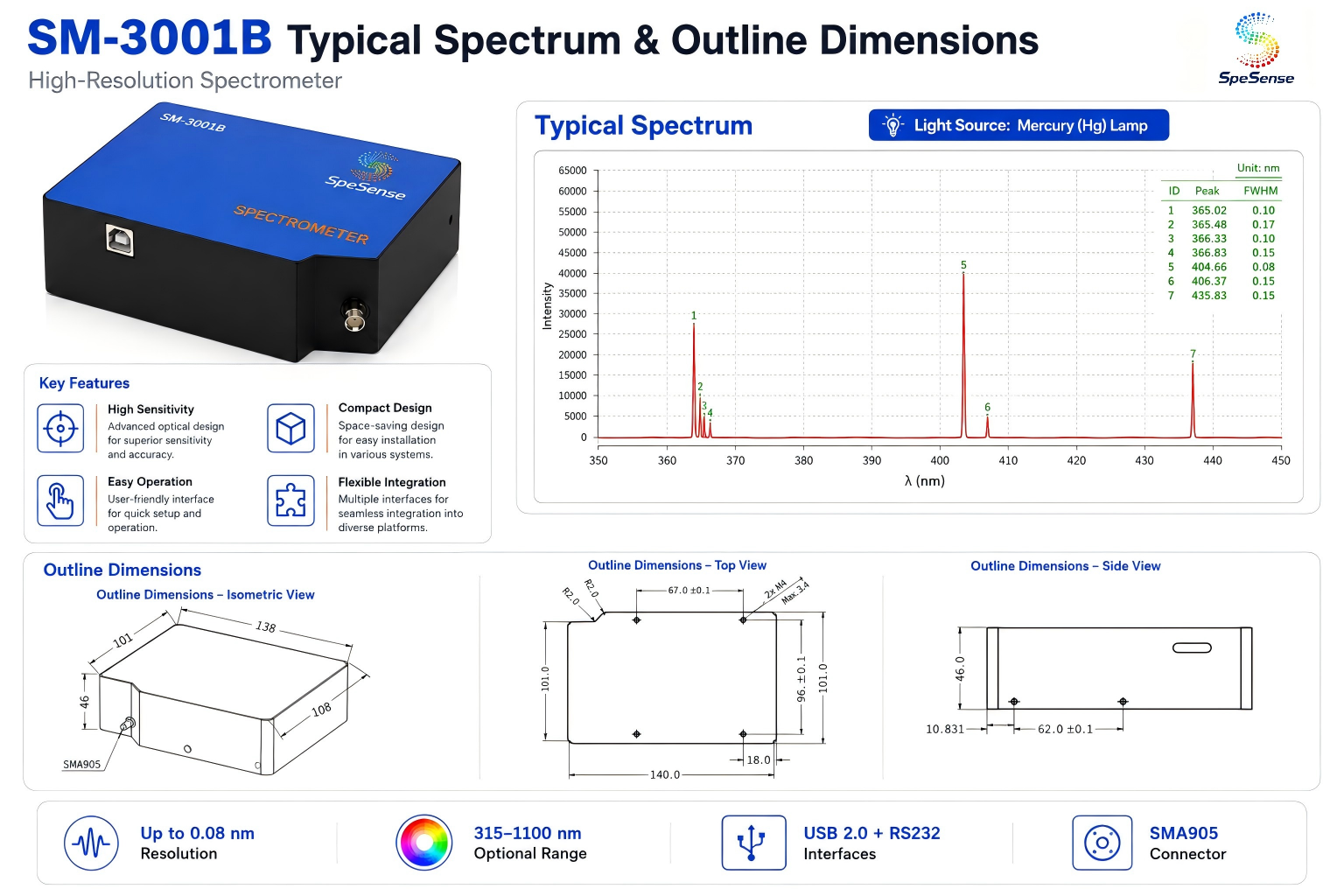

| Dimension | 94 × 60 × 34.5 mm (source specification table); see mechanical drawing for additional drawing references. |
| Weight | 0.3 kg |
