UV-Visible Spectrometers
SM-2001B
高性价比迷你光谱仪
产品亮点

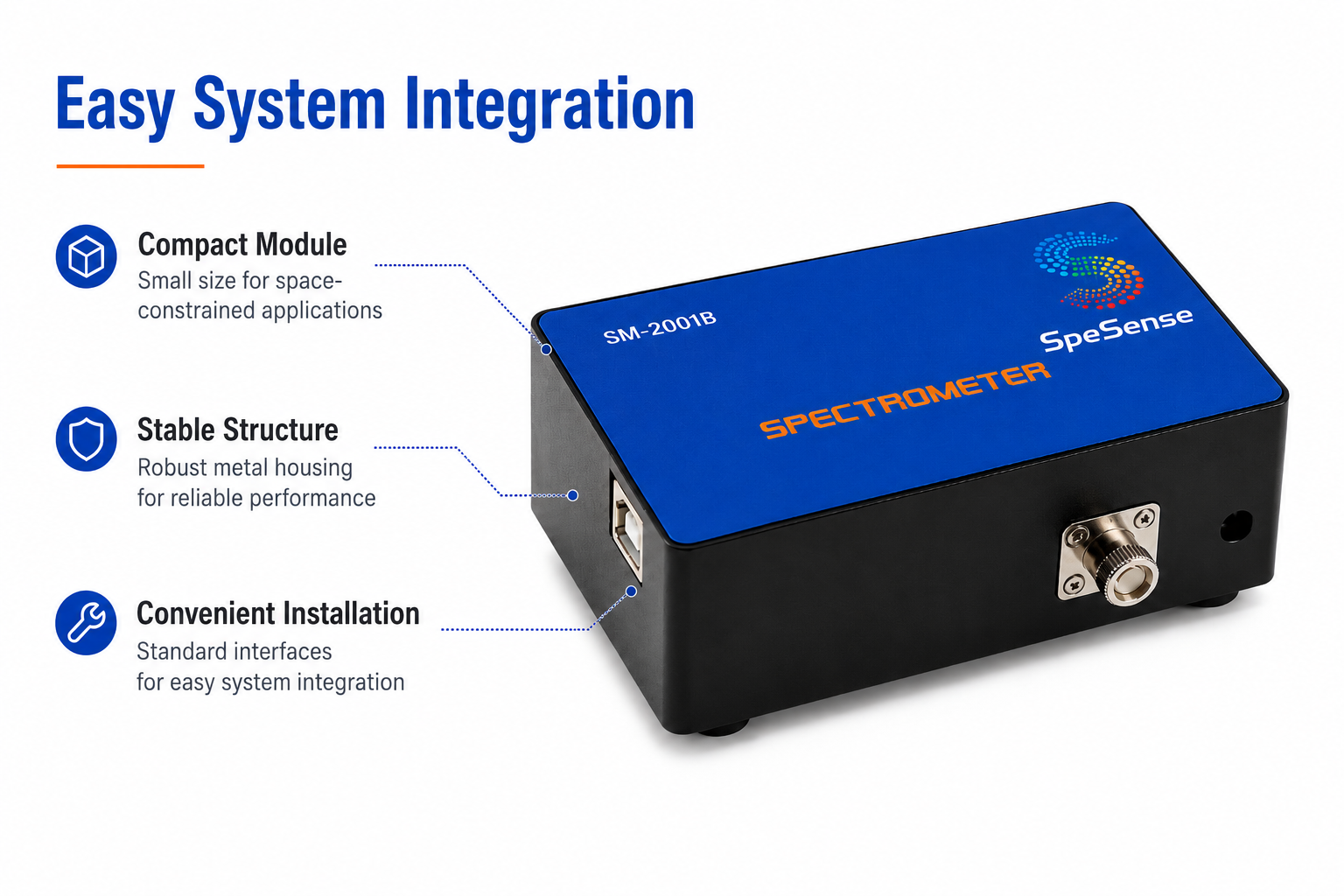

● Compact, portable, business-card-sized package.

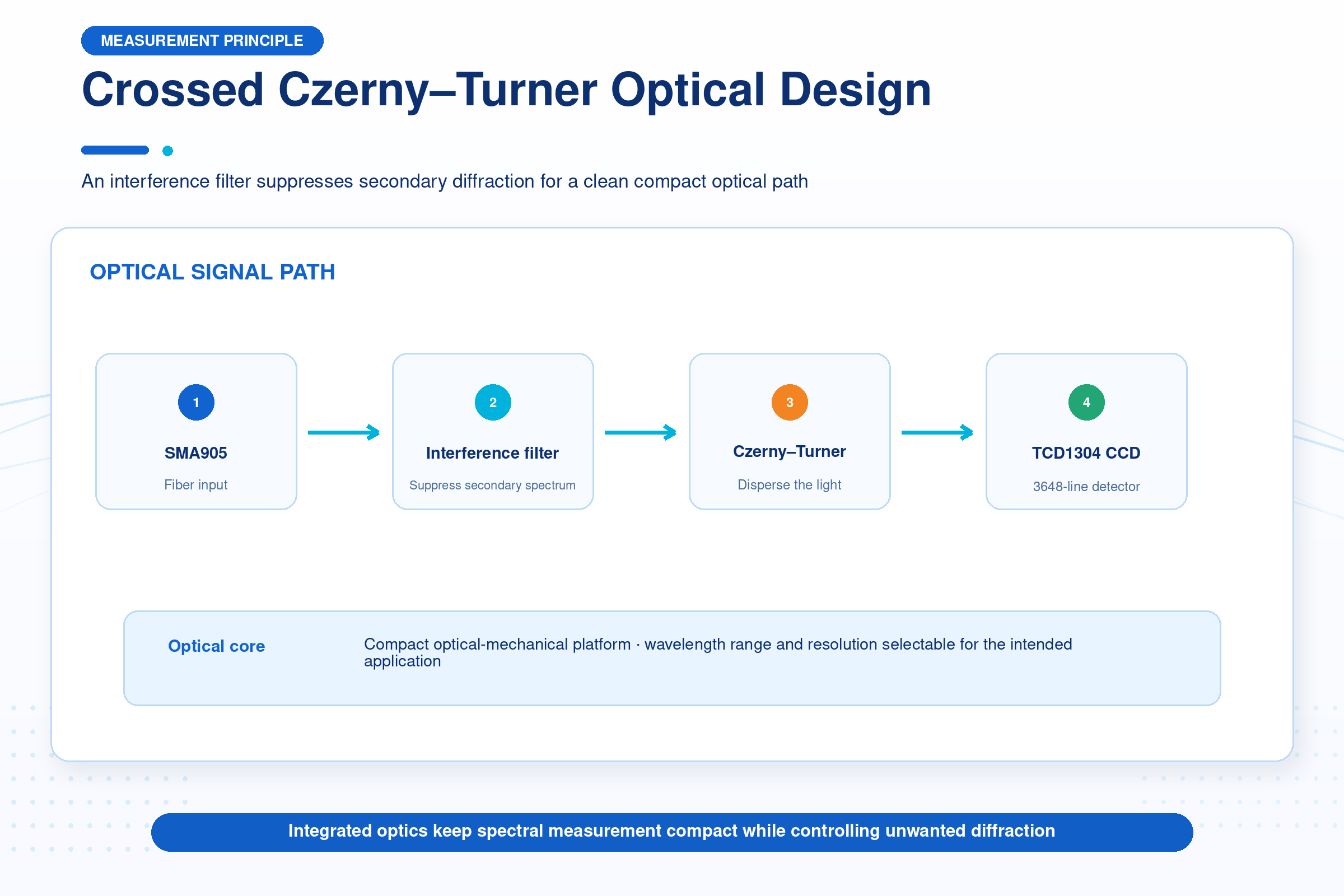

● Crossed Czerny-Turner optical design with interference filter to suppress secondary diffraction spectrum.

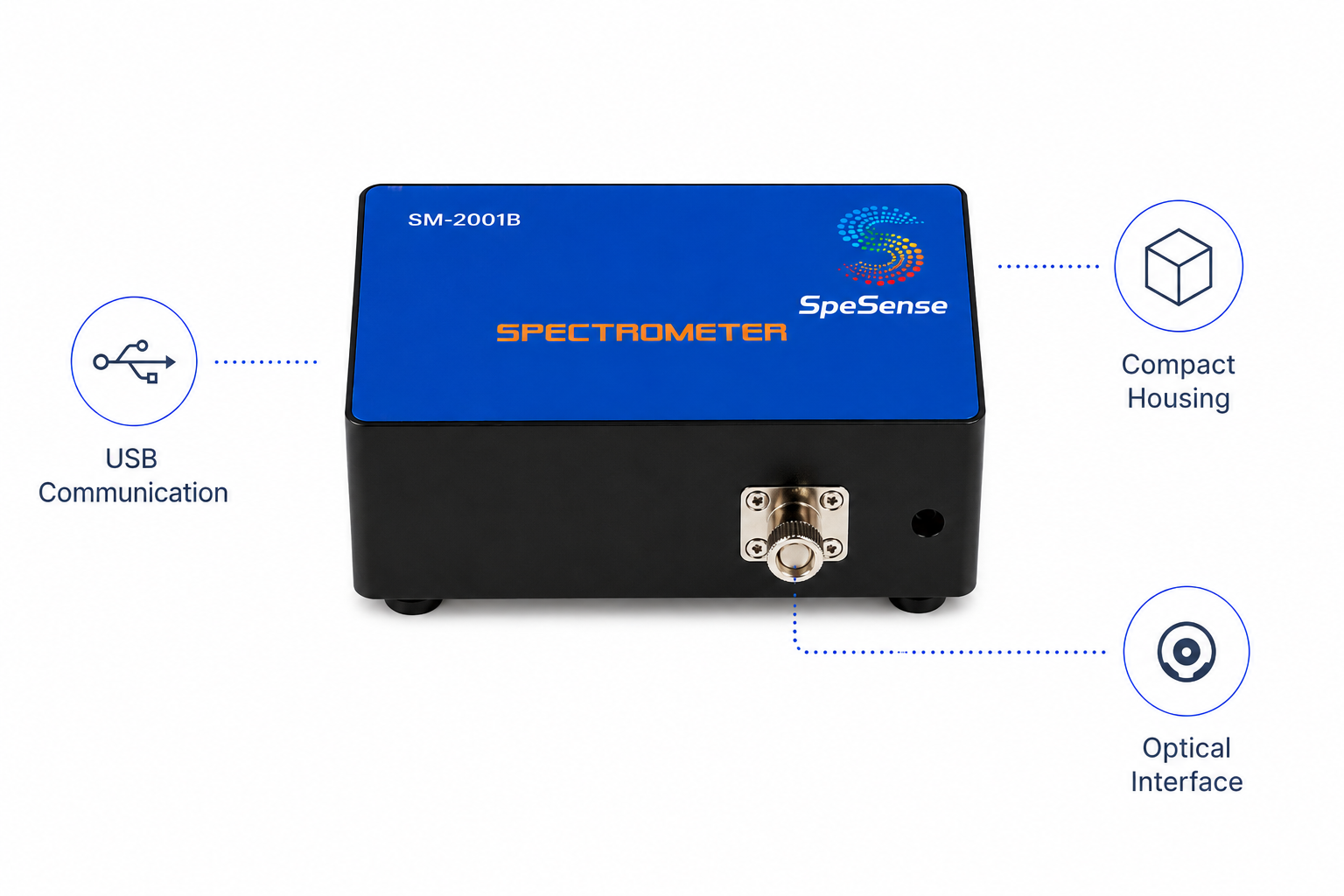

● Standard SMA905 fiber connector and selectable wavelength range / optical resolution.

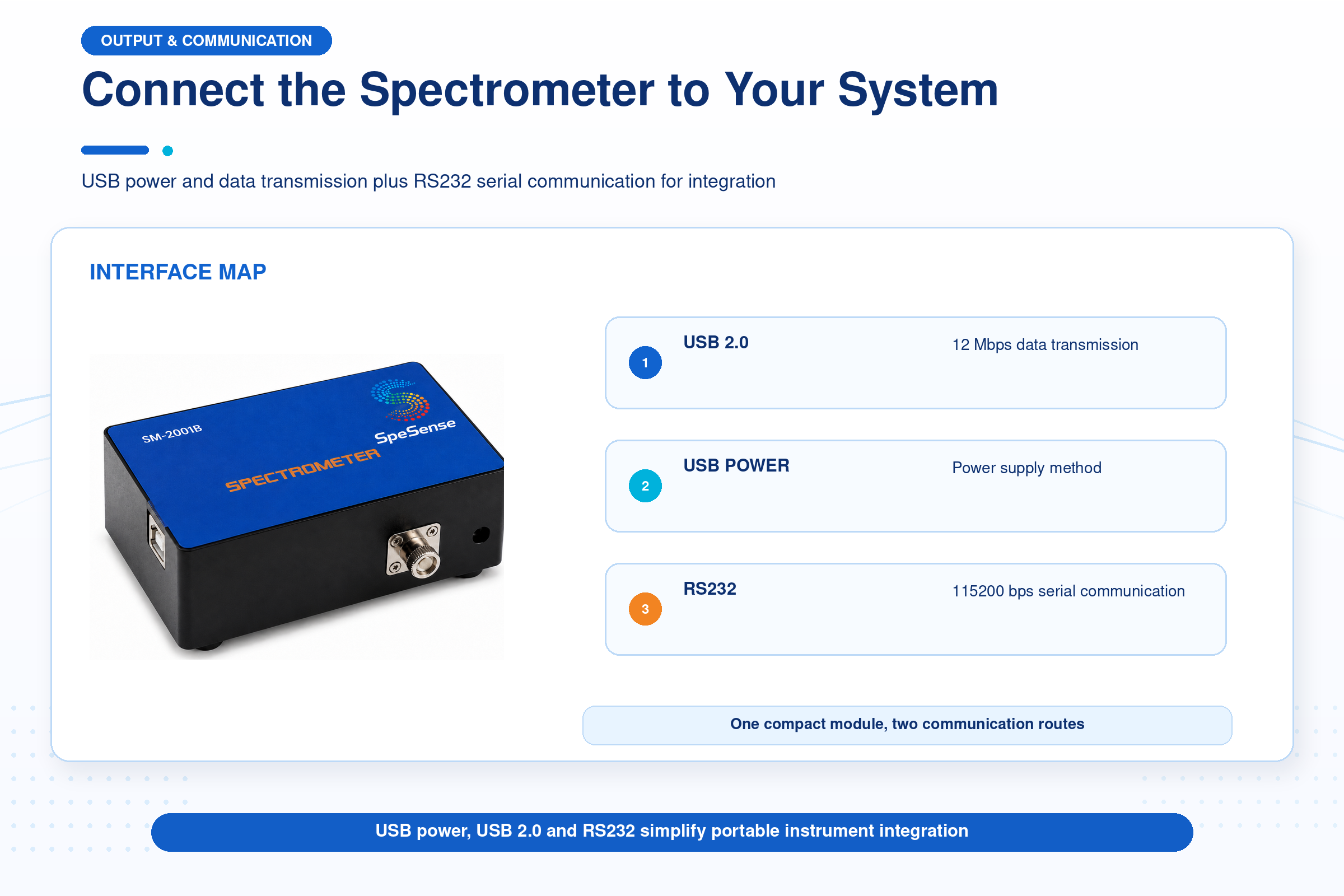

● USB 2.0 for data transmission and power supply; RS232 communication for system integration.

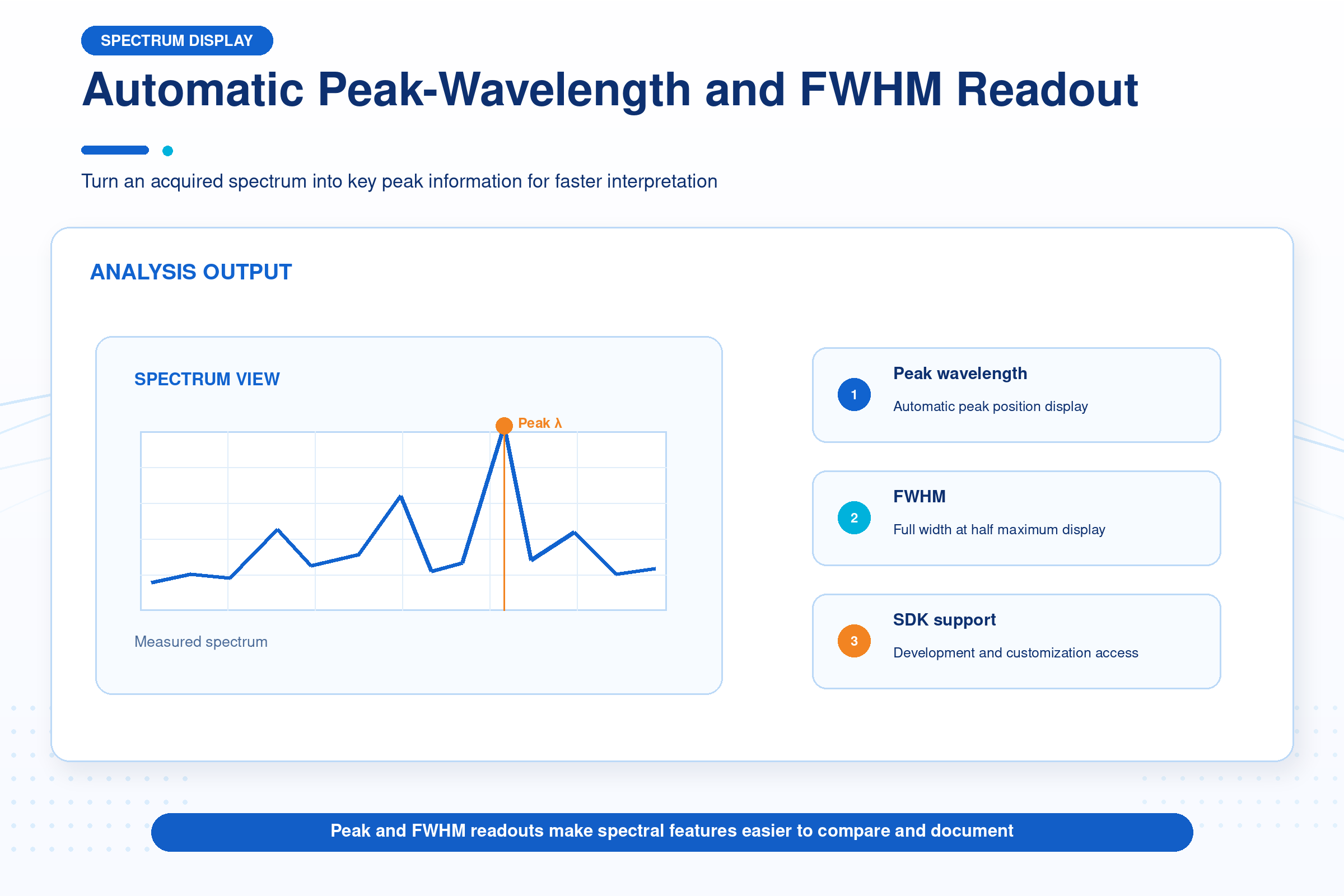

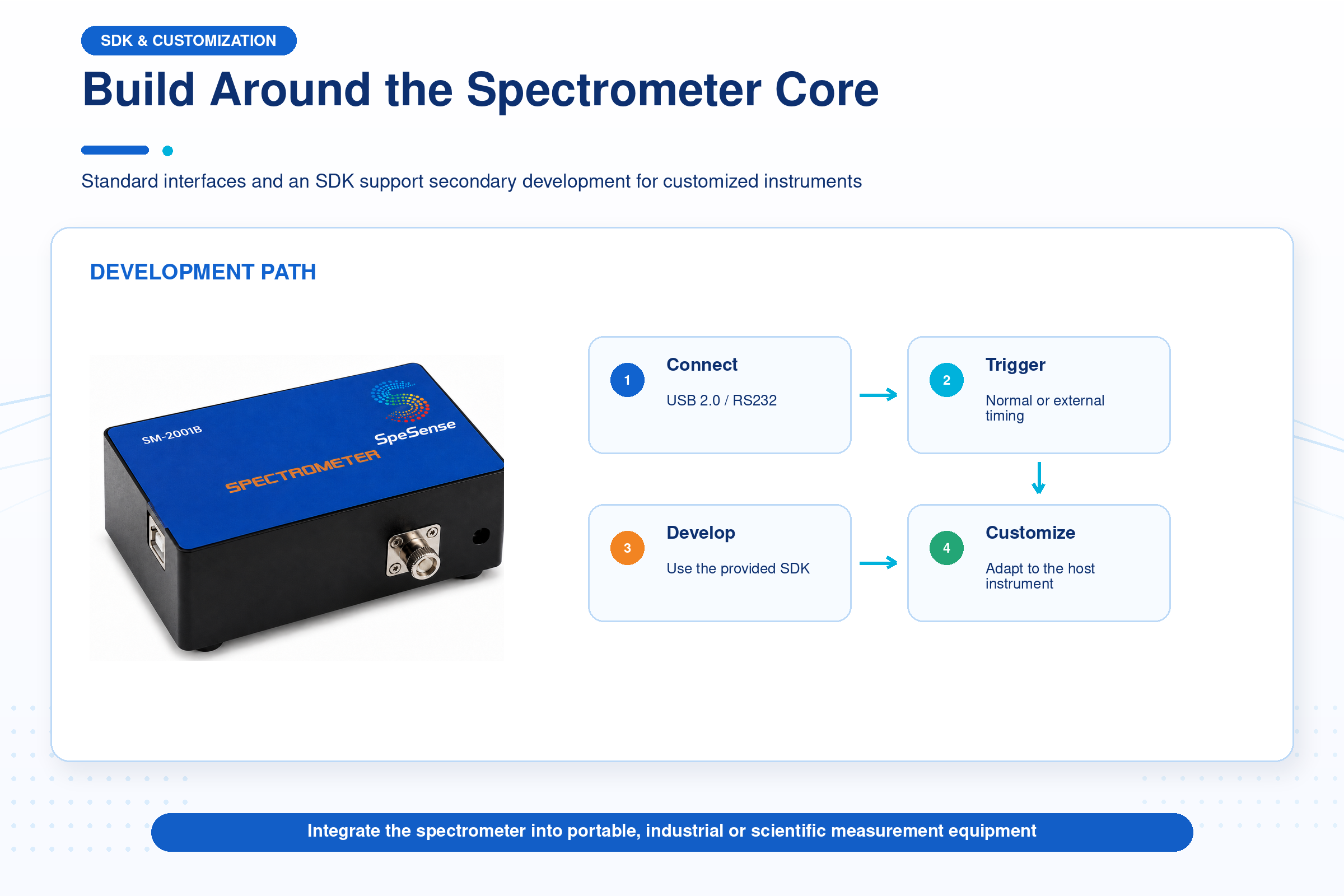

• Automatic peak-wavelength and FWHM display; SDK provided for development and customization.
● Crossed Czerny-Turner optical design with interference filter to suppress secondary diffraction spectrum.
● Standard SMA905 fiber connector and selectable wavelength range / optical resolution.
● USB 2.0 for data transmission and power supply; RS232 communication for system integration.
• Automatic peak-wavelength and FWHM display; SDK provided for development and customization.
产品概述

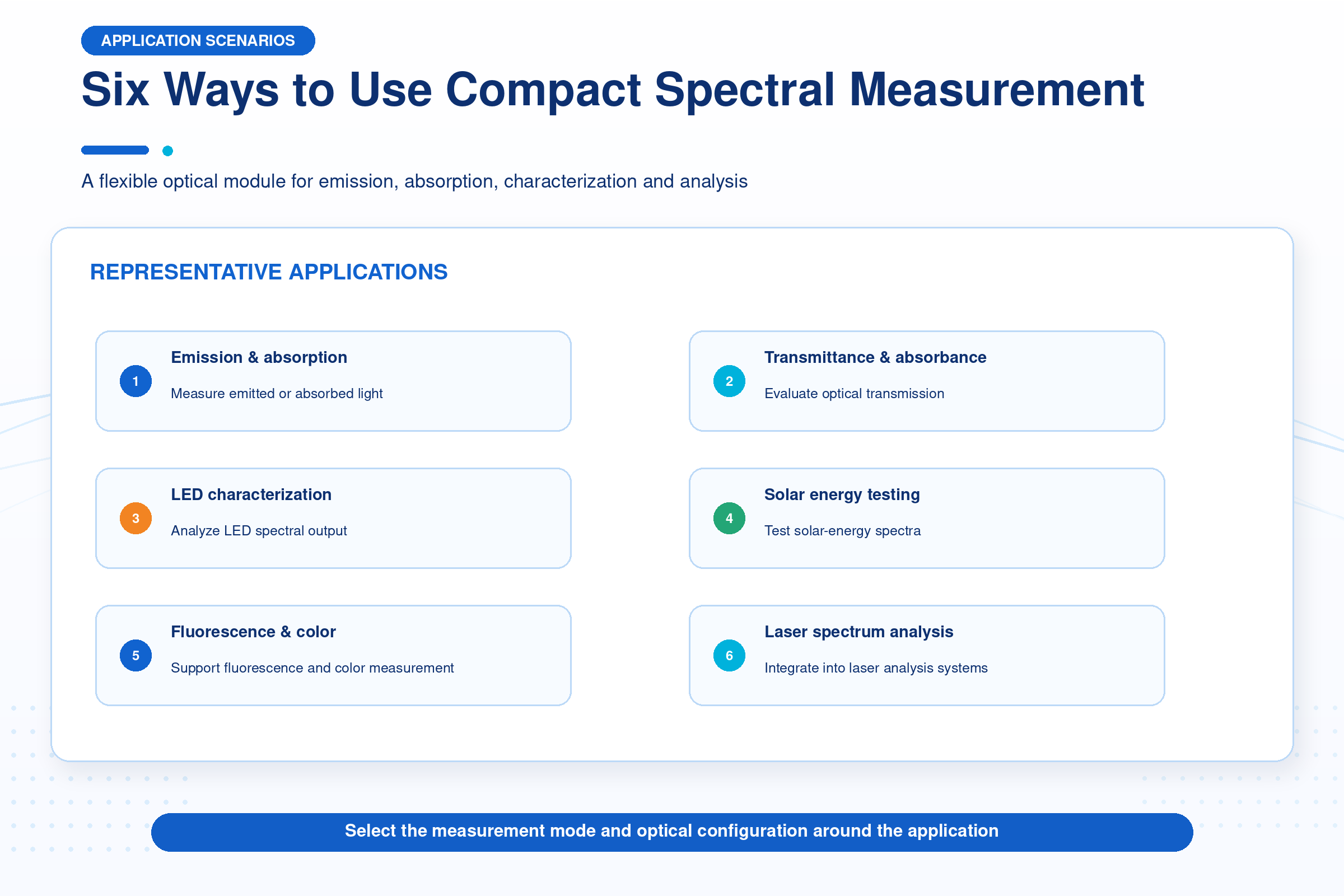

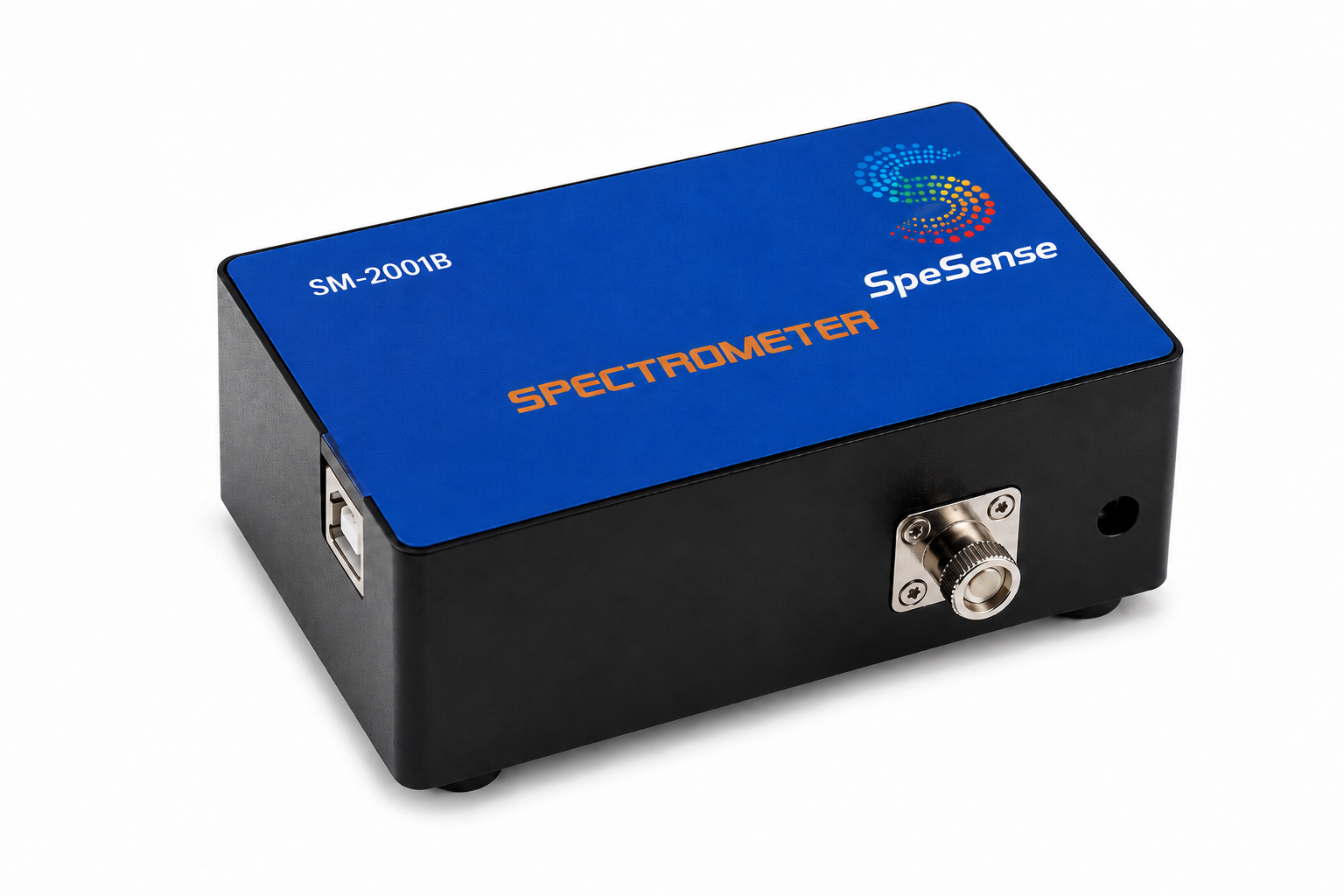

The SpeSense SM-2001B is a cost-effective miniature spectrometer designed for UV-Visible and near-infrared spectral measurement from 315 to 1100 nm. Its 3648-pixel linear CCD detector, SMA905 fiber interface and compact optical platform make it suitable for general spectroscopy, light-source measurement, LED testing, color analysis and OEM optical systems. With USB 2.0, RS232 communication and multiple trigger modes, the SM-2001B provides a flexible and economical spectrometer solution for laboratory, industrial and embedded applications.

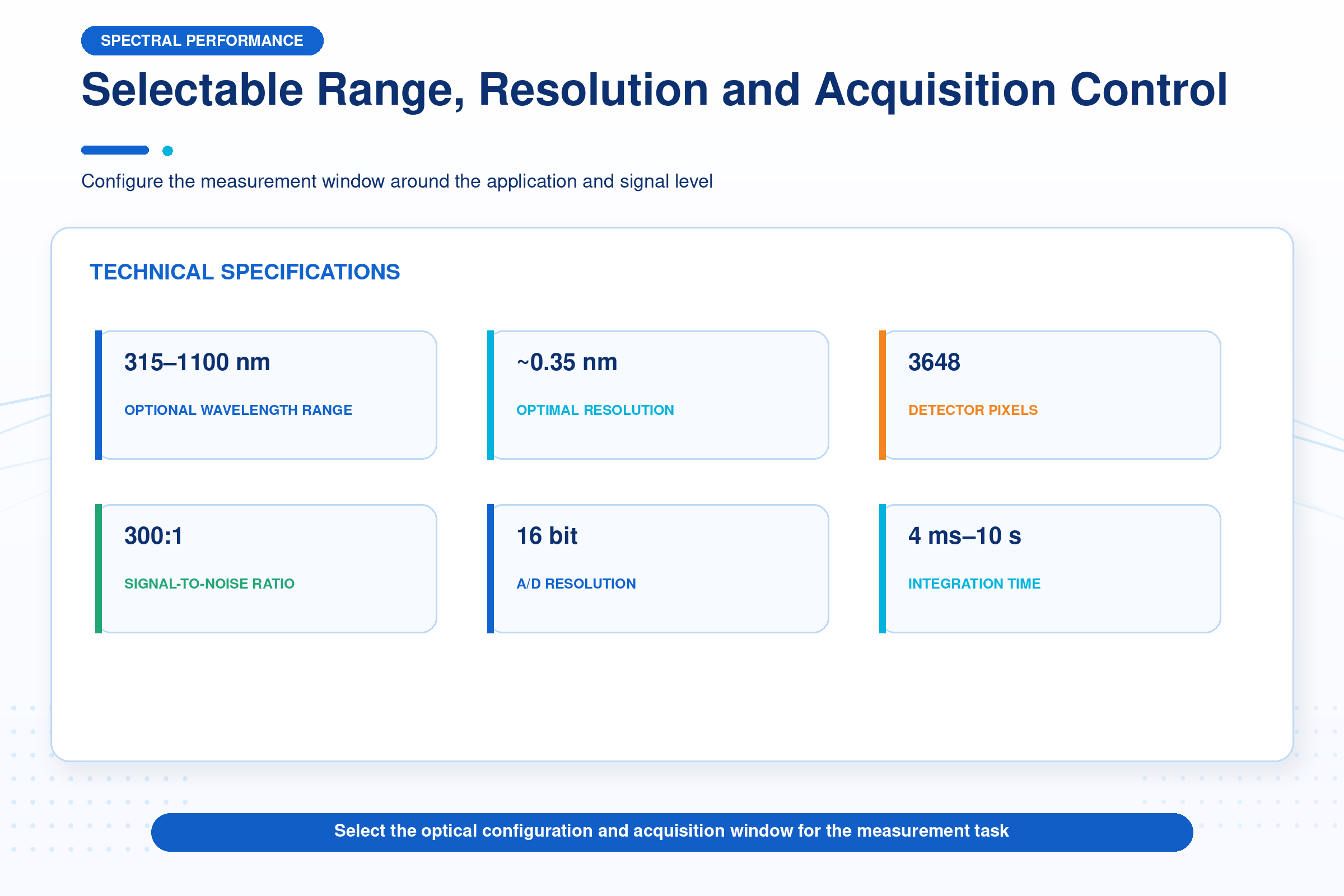

| Item | Specification |

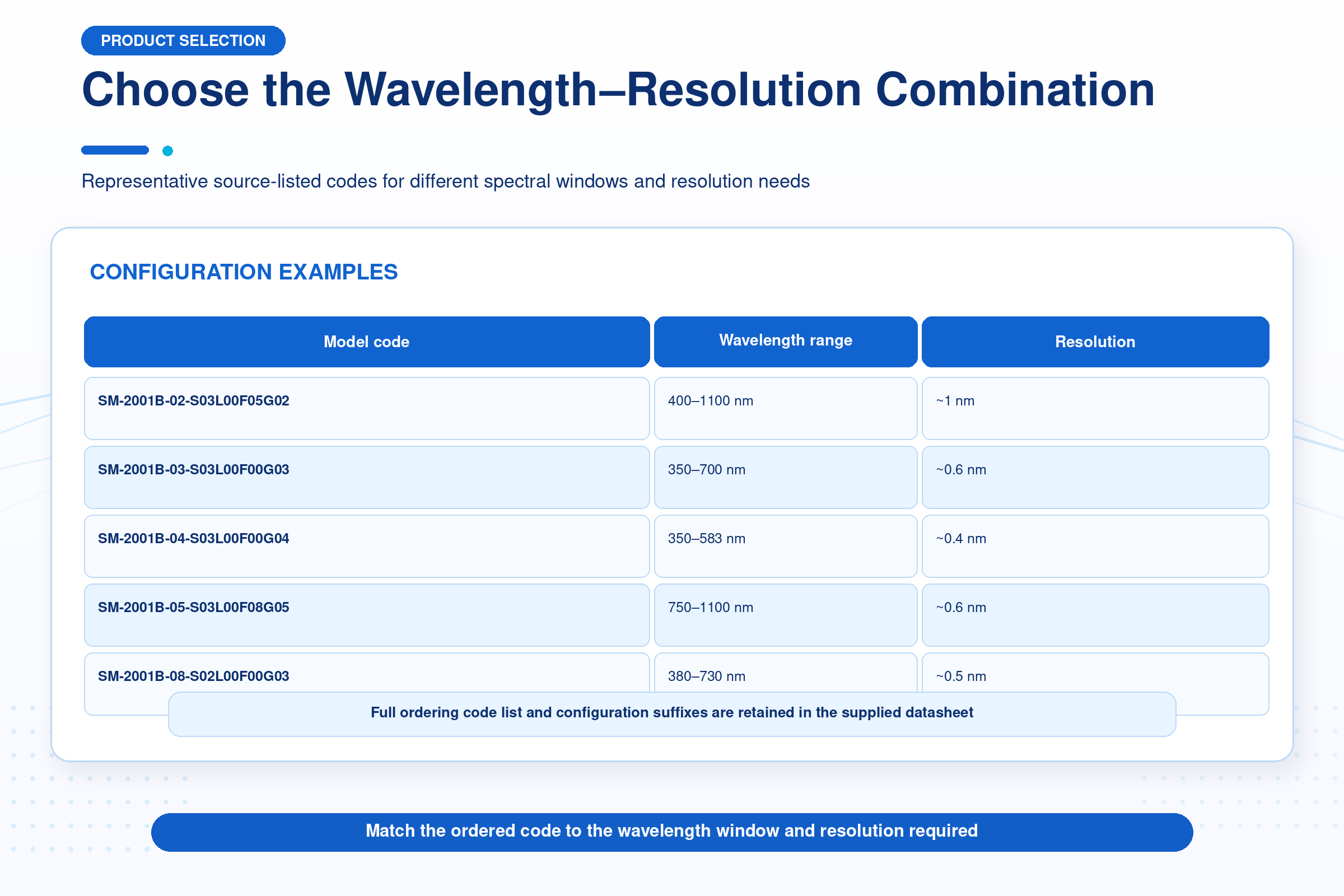

| Wavelength range | 315–1100 nm, optional |
| Optical resolution | Approx. 0.35 nm (optimal) |
| Fiber connector | SMA905 |
| Detector | TCD1304, 3648-line CCD |
| Detector pixels | 3648 pixels; each pixel 8 µm × 200 µm |
| Signal-to-noise ratio | 300:1 |
| A/D resolution | 16 bit |
| Integration time | 4 ms–10 s |
| Dynamic range | 10000:1 |

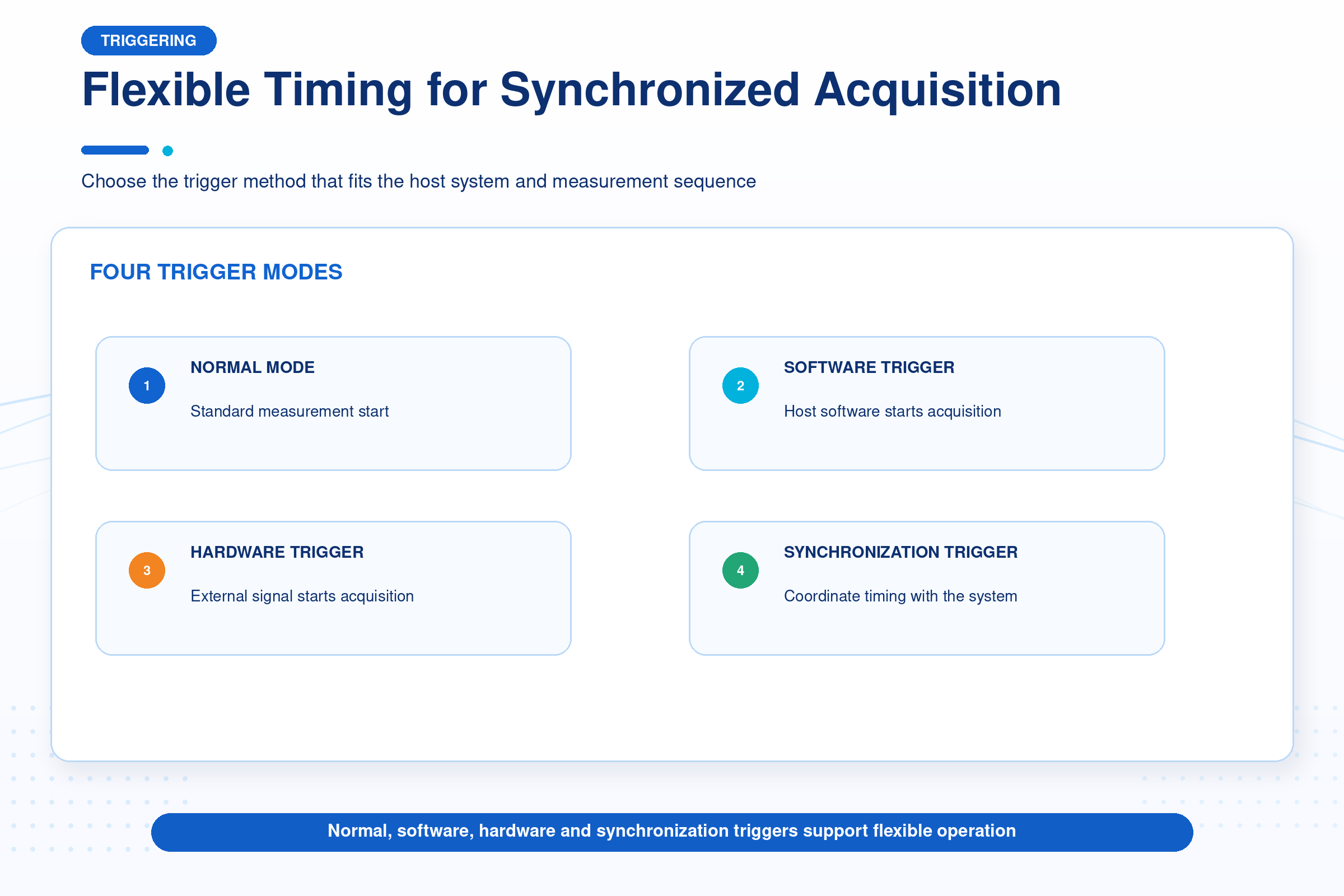

| Trigger modes | Normal mode; software, hardware and synchronization trigger |

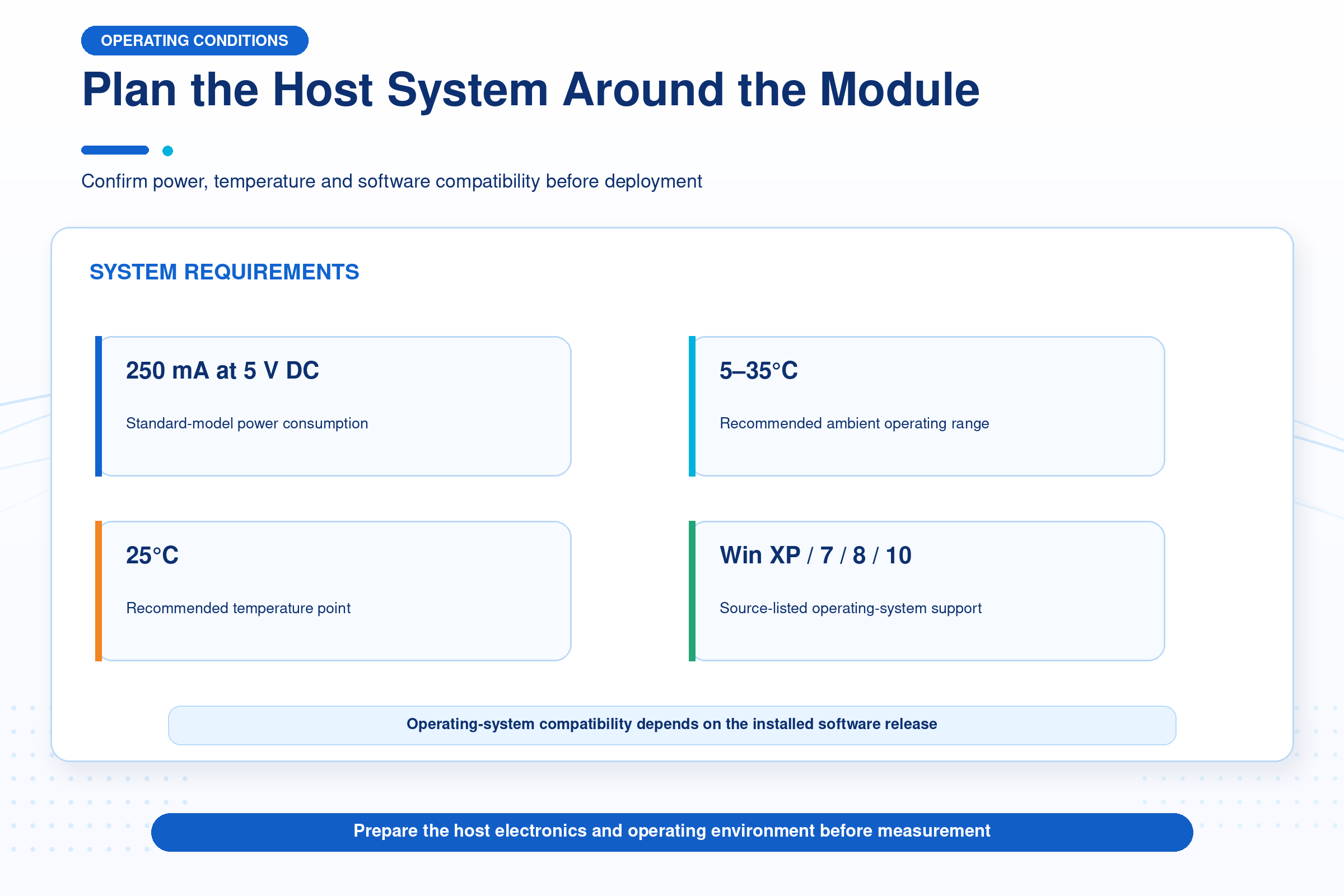

| Power consumption | 250 mA at 5 V DC |
| Operating temperature | 5–35°C (25°C recommended) |
| Communication interface | USB 2.0 (12 Mbps); RS232 (115200 bps) |
| Operating system | Win XP, Win 7, Win 8, Win 10 |
| Mounting holes | 4 × M3 threaded holes at bottom; 2 × M3 threaded holes at side |
| Power supply | USB |

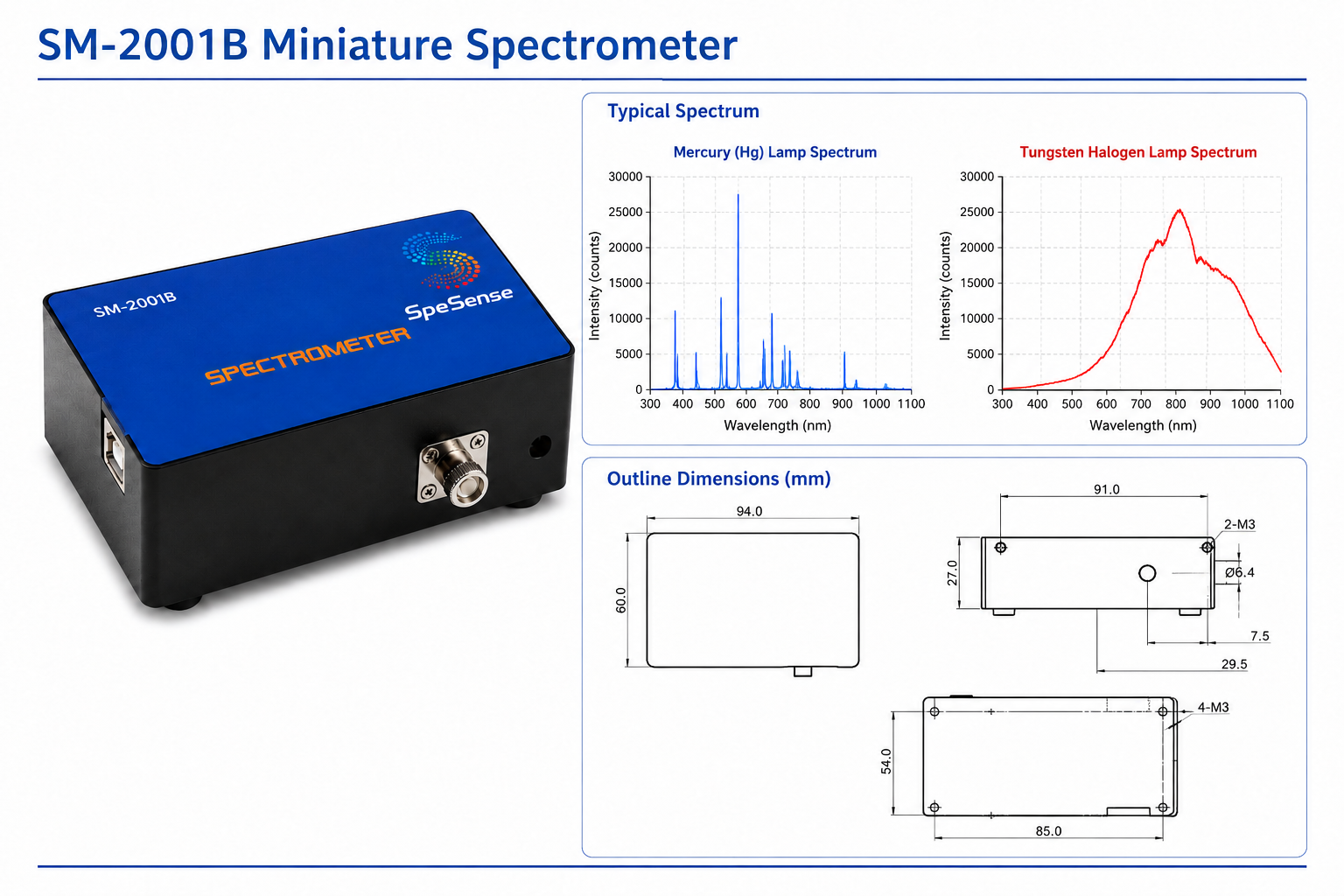

| Dimensions | 94 × 60 × 34.5 mm |
| Weight | 0.3 kg |
