FTIR Analyzer
SF 500Z
高灵敏度傅里叶
产品亮点
● High-Performance FTIR Analysis
● Intelligent Temperature & Humidity Monitoring
● Fully Sealed, Easy-Maintenance Optical System
● Flexible Sampling & Intelligent Software
● DSP-Controlled Interferometer for Enhanced Stability
● High Signal-to-Noise Ratio for Reliable Results
● Intelligent Temperature & Humidity Monitoring
● Fully Sealed, Easy-Maintenance Optical System
● Flexible Sampling & Intelligent Software
● DSP-Controlled Interferometer for Enhanced Stability
● High Signal-to-Noise Ratio for Reliable Results
产品概述

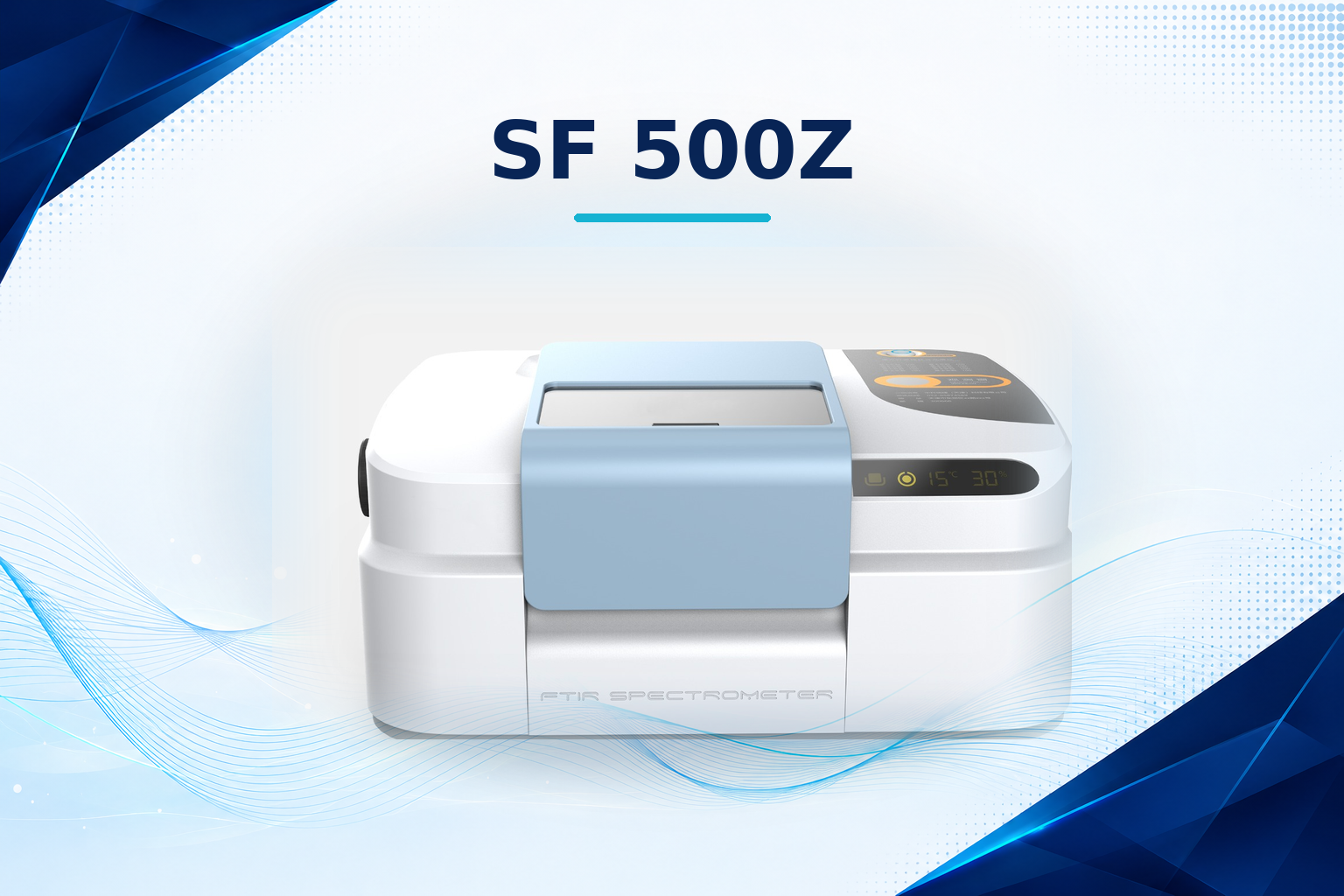

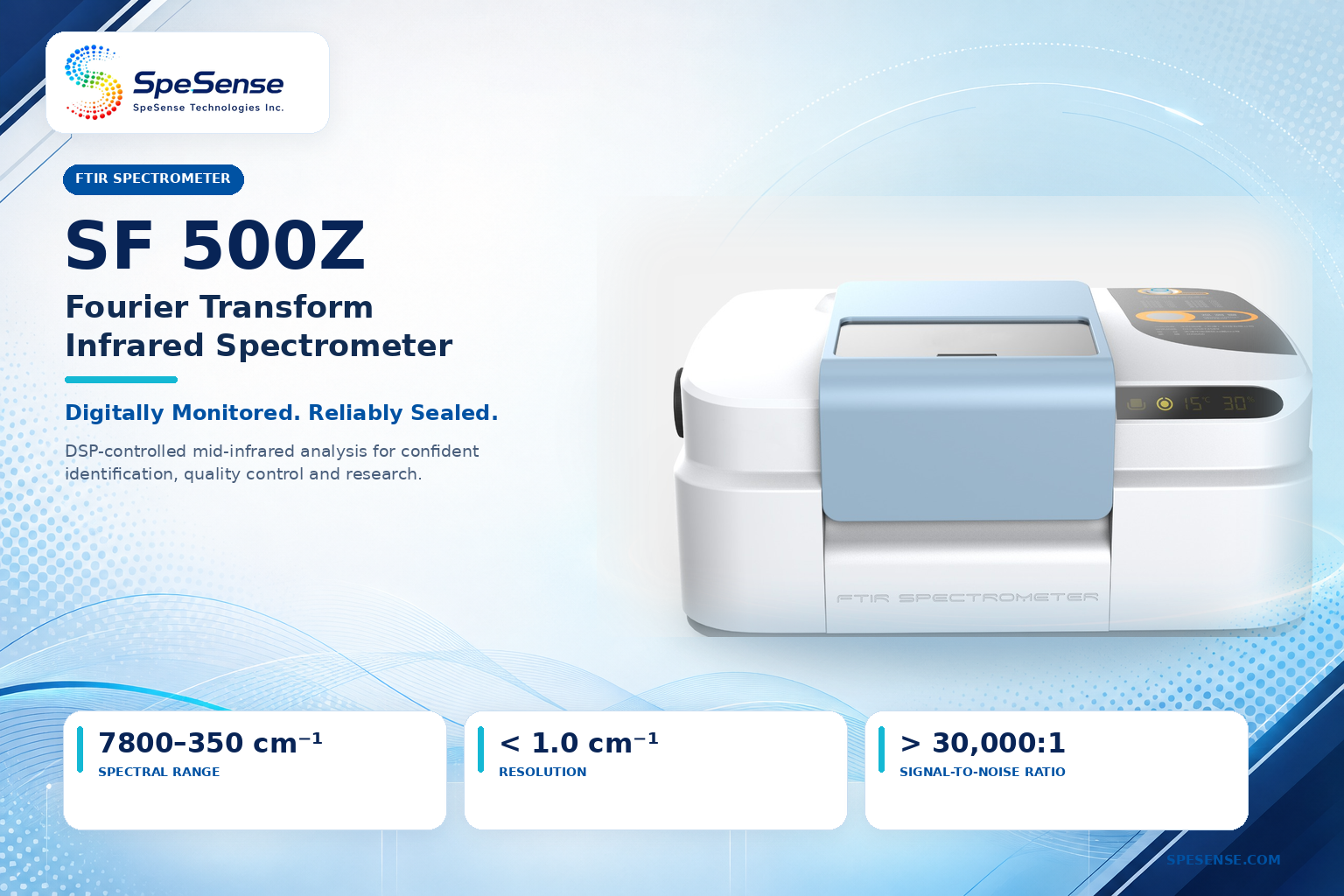

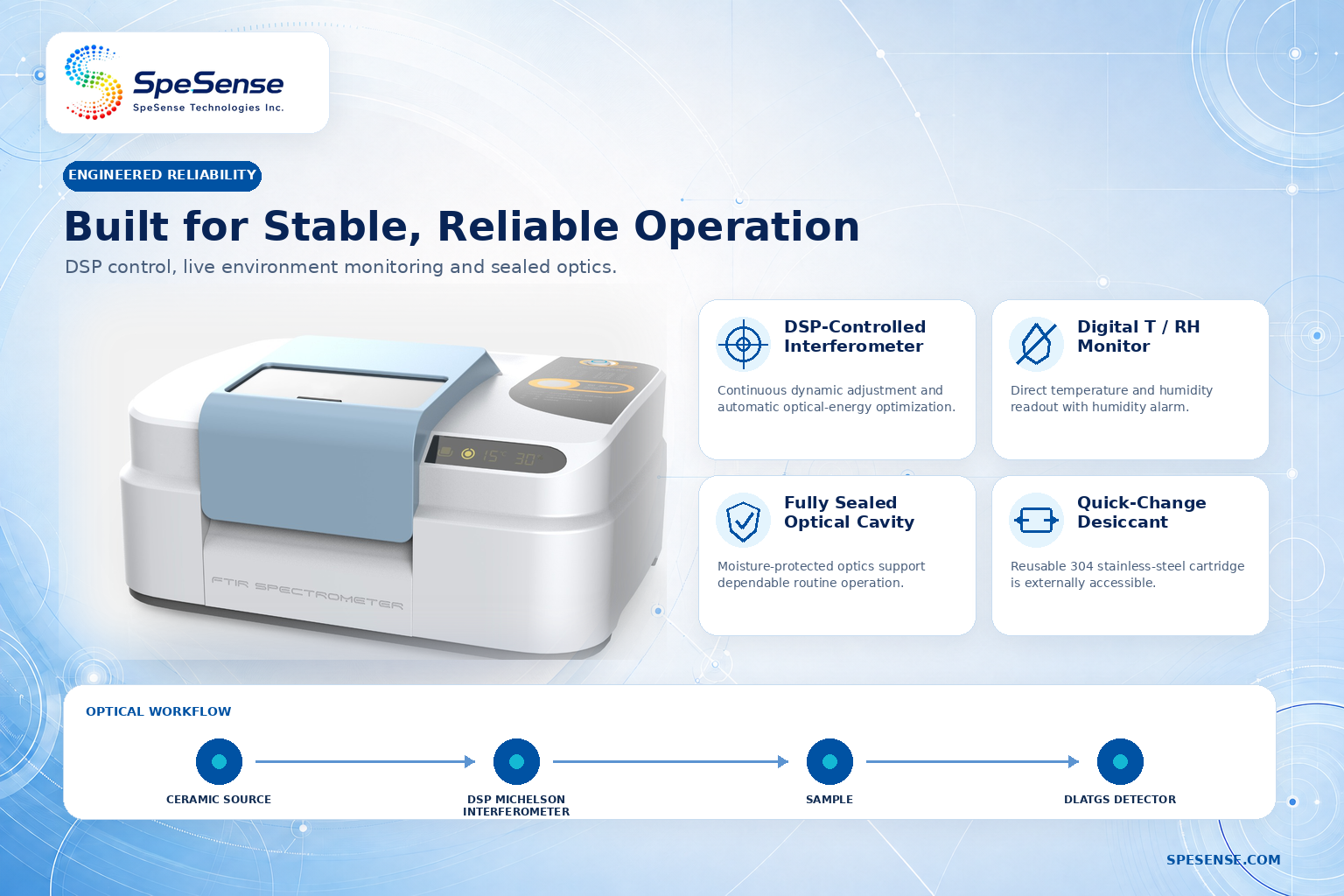

The SpeSense SF500Z High-Sensitivity FTIR Spectrometer is designed for reliable qualitative and quantitative infrared analysis in research, industrial and quality-control laboratories. Featuring a broad 7800–350 cm⁻¹ spectral range, resolution better than 1.0 cm⁻¹ and a signal-to-noise ratio above 30,000:1, it combines DSP-controlled interferometry, a fully sealed moisture-protected optical system and digital temperature and humidity monitoring for stable long-term performance. Flexible transmission, ATR and reflection sampling make the SF500Z suitable for material identification, polymer analysis, chemical testing, pharmaceutical research and routine FTIR spectroscopy.
| Item | Specification |
| Spectral range | 7800–350 cm⁻¹ (approx. 1.28–28.57 µm) |
| Spectral resolution | Better than 1.0 cm⁻¹ |

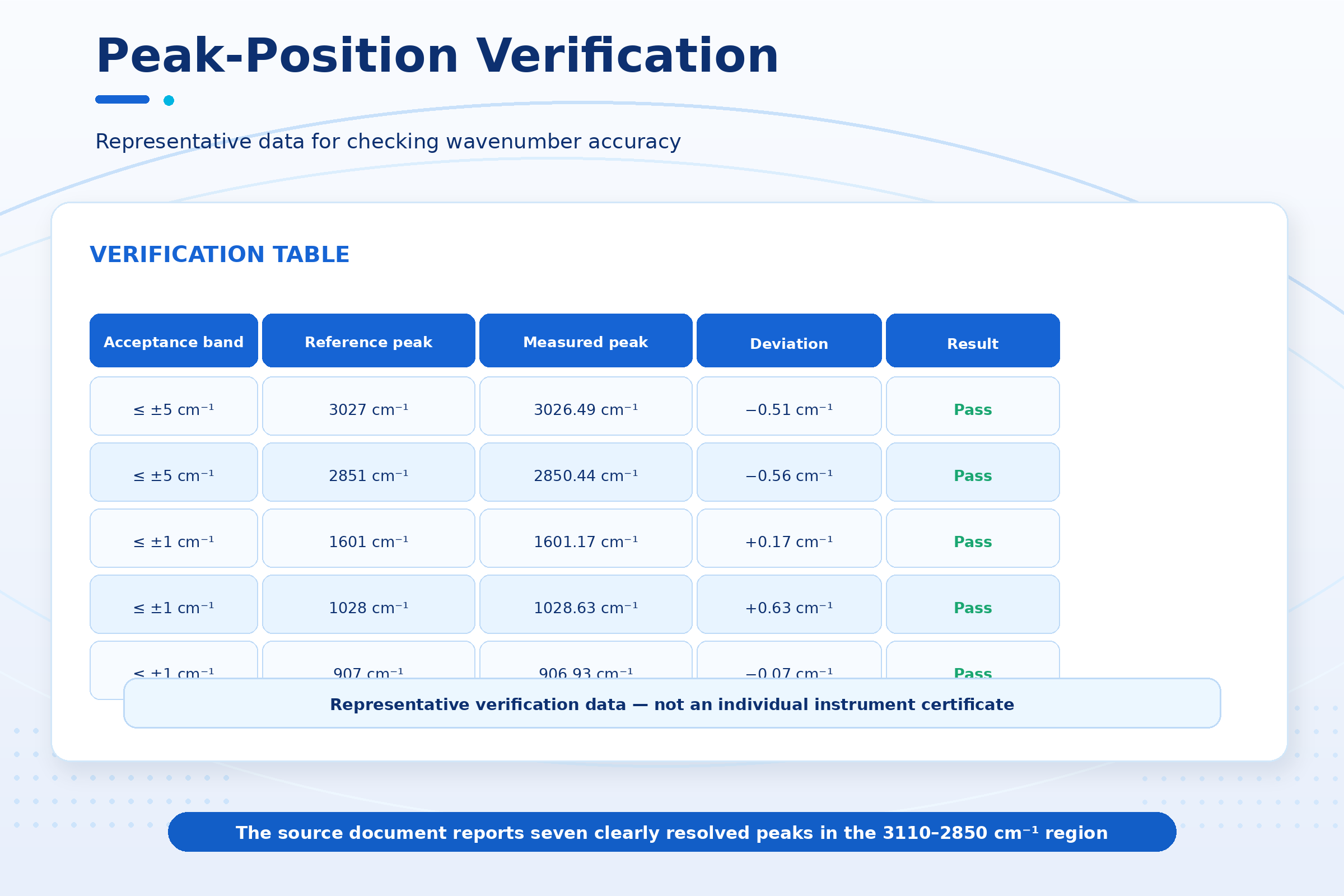

| Wavenumber precision | ≤ 0.01 cm⁻¹ |
| Signal-to-noise ratio | Better than 30,000:1 (peak-to-peak, 4 cm⁻¹, 1-minute acquisition) |

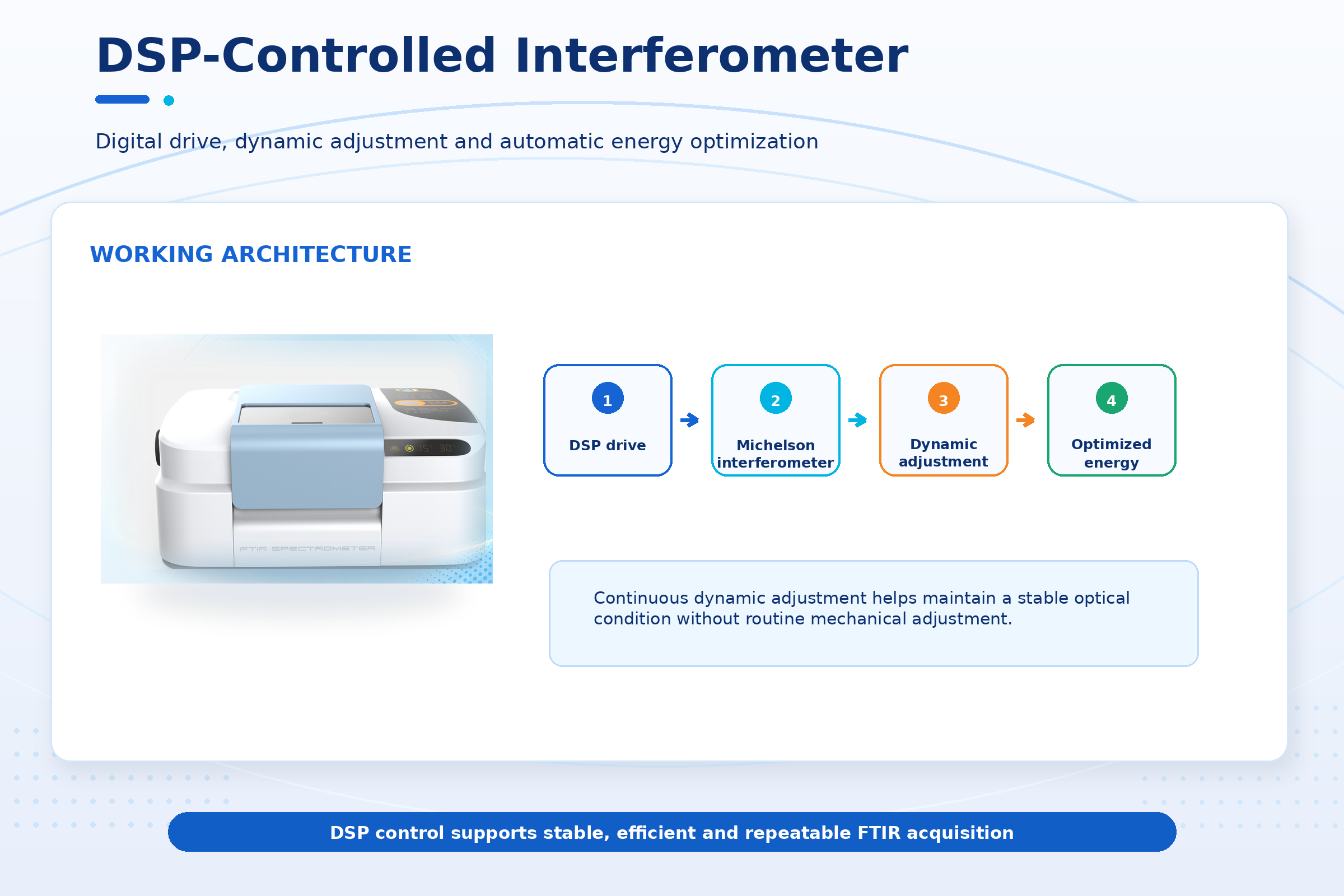

| Interferometer | Modified non-orthogonal Michelson; DSP-controlled electromagnetic drive with continuous dynamic adjustment |
| Optical alignment | Fixed three-dimensional right-angle gold-coated compensation mirror; no routine mechanical adjustment |

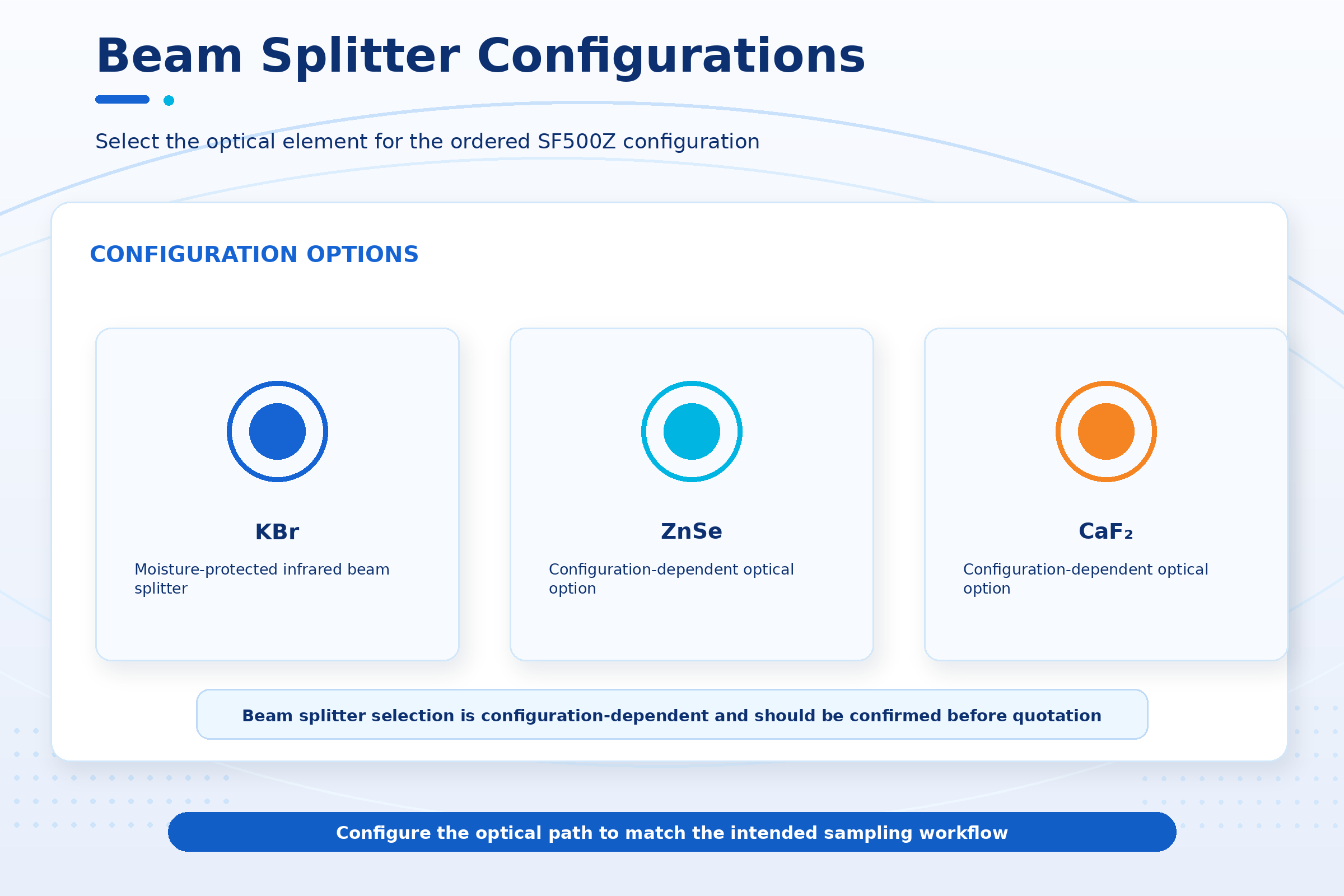

| Beam splitter | Germanium-coated KBr substrate with moisture protection |
| Detector | High-sensitivity DLATGS detector with moisture barrier |
| Infrared source | High-energy, high-efficiency, long-life ceramic source |

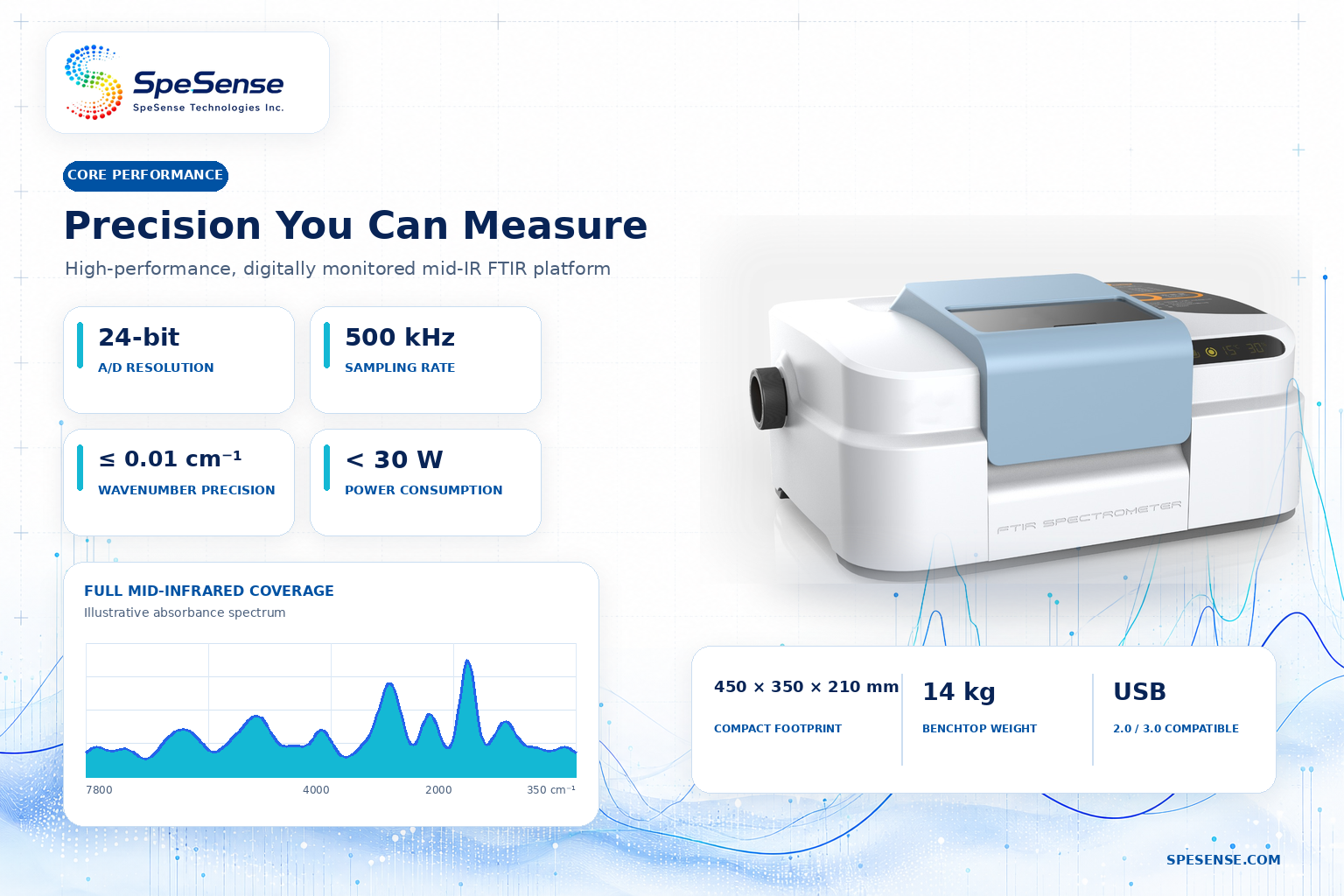

| Digital electronics | Full-digital architecture; 24-bit, 500 kHz A/D conversion |
| Environment monitor | Industrial-grade digital temperature/humidity display with humidity alarm |

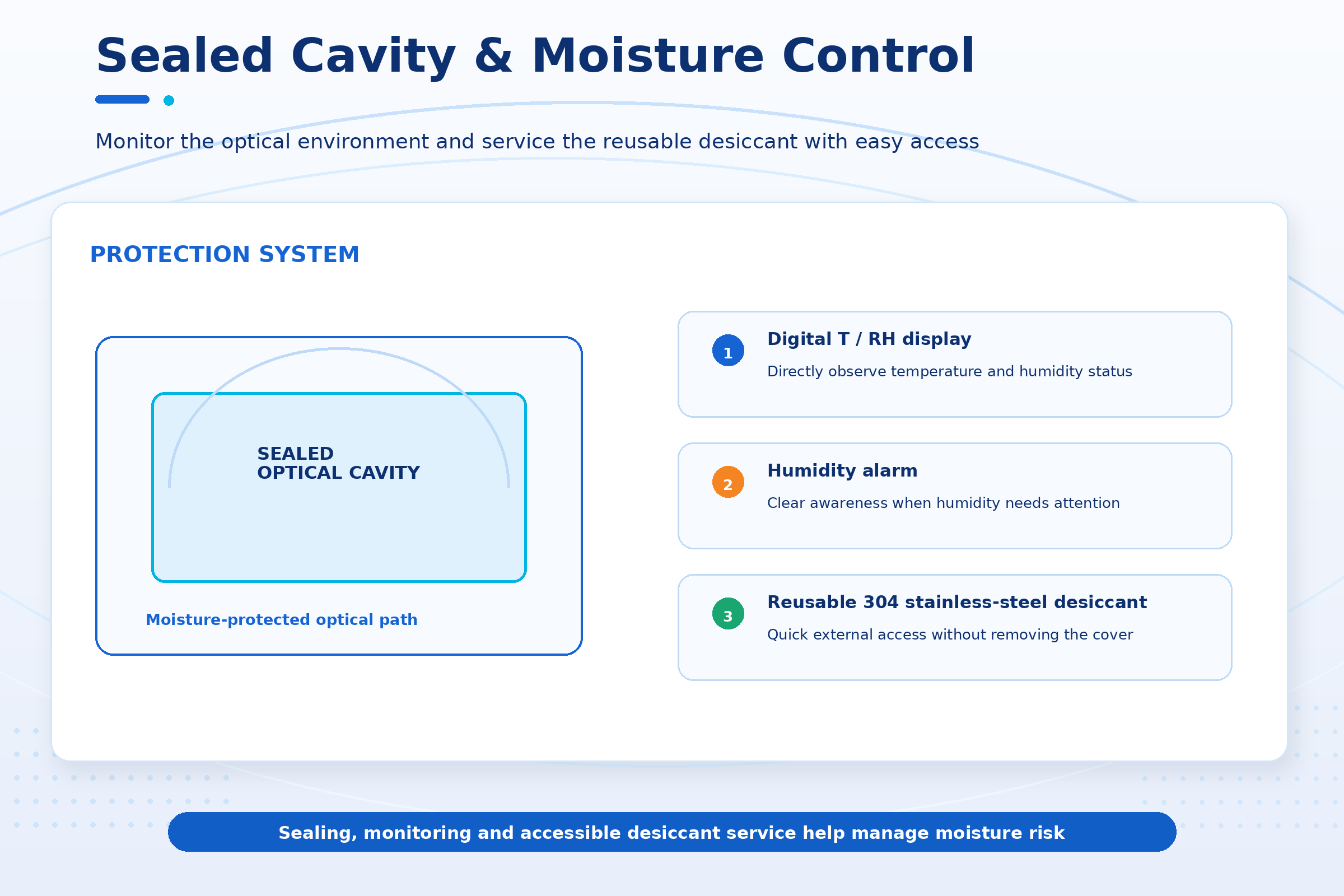

| Moisture management | Fully sealed cavity; reusable 304 stainless-steel boxed desiccant with quick external access |
| Data interface | USB 2.0; compatible with USB 3.0 host ports |

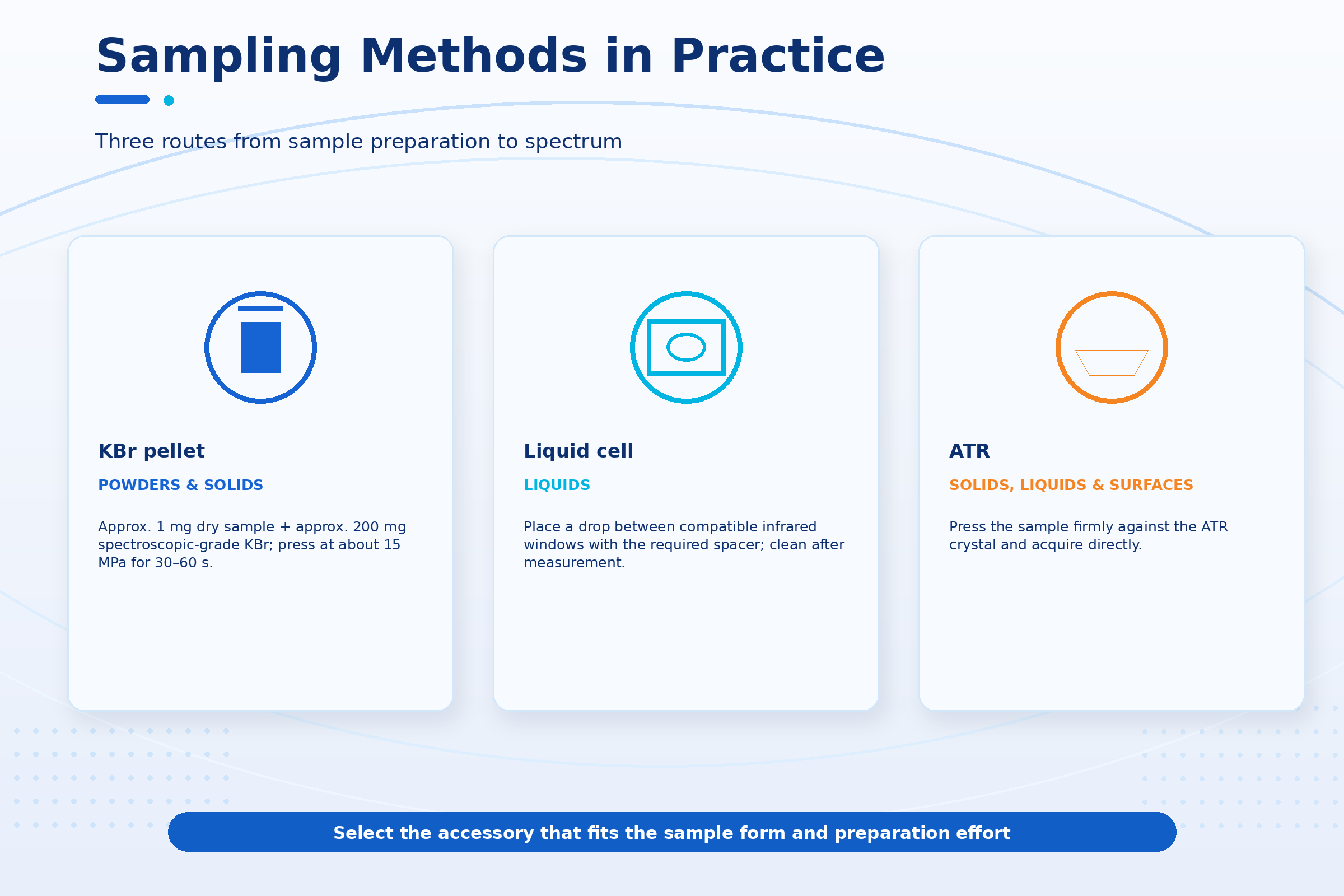

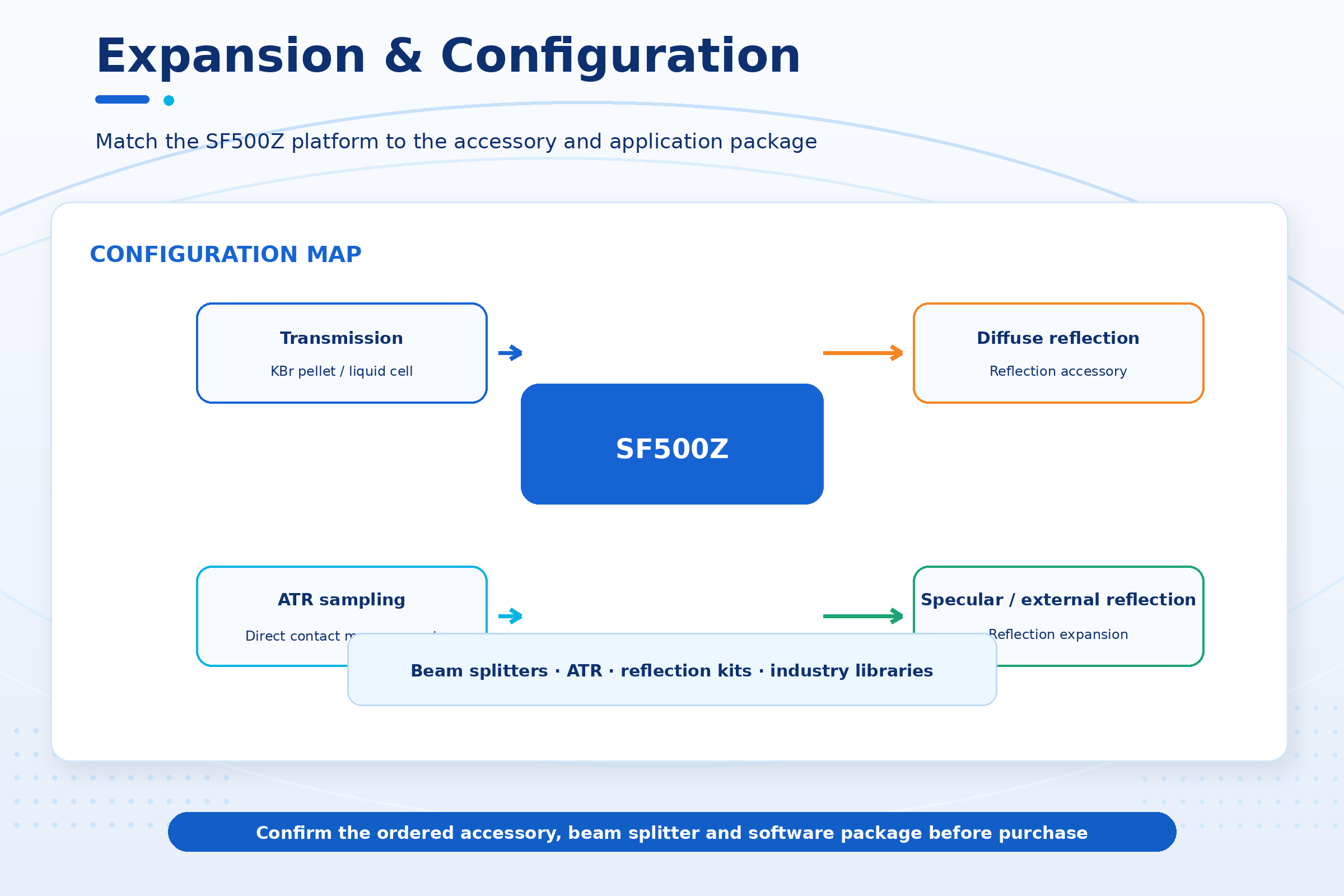

| Sample chamber | Large sliding-door compartment; supports transmission, ATR and reflection accessories |
| Power consumption | Less than 30 W during normal operation |
| Input power | 100–240 VAC, 50/60 Hz |
| Dimensions (W × D × H) | 450 × 350 × 210 mm |
| Weight | 14 kg |
| Software platform | Windows PC; supported operating-system versions depend on software release |

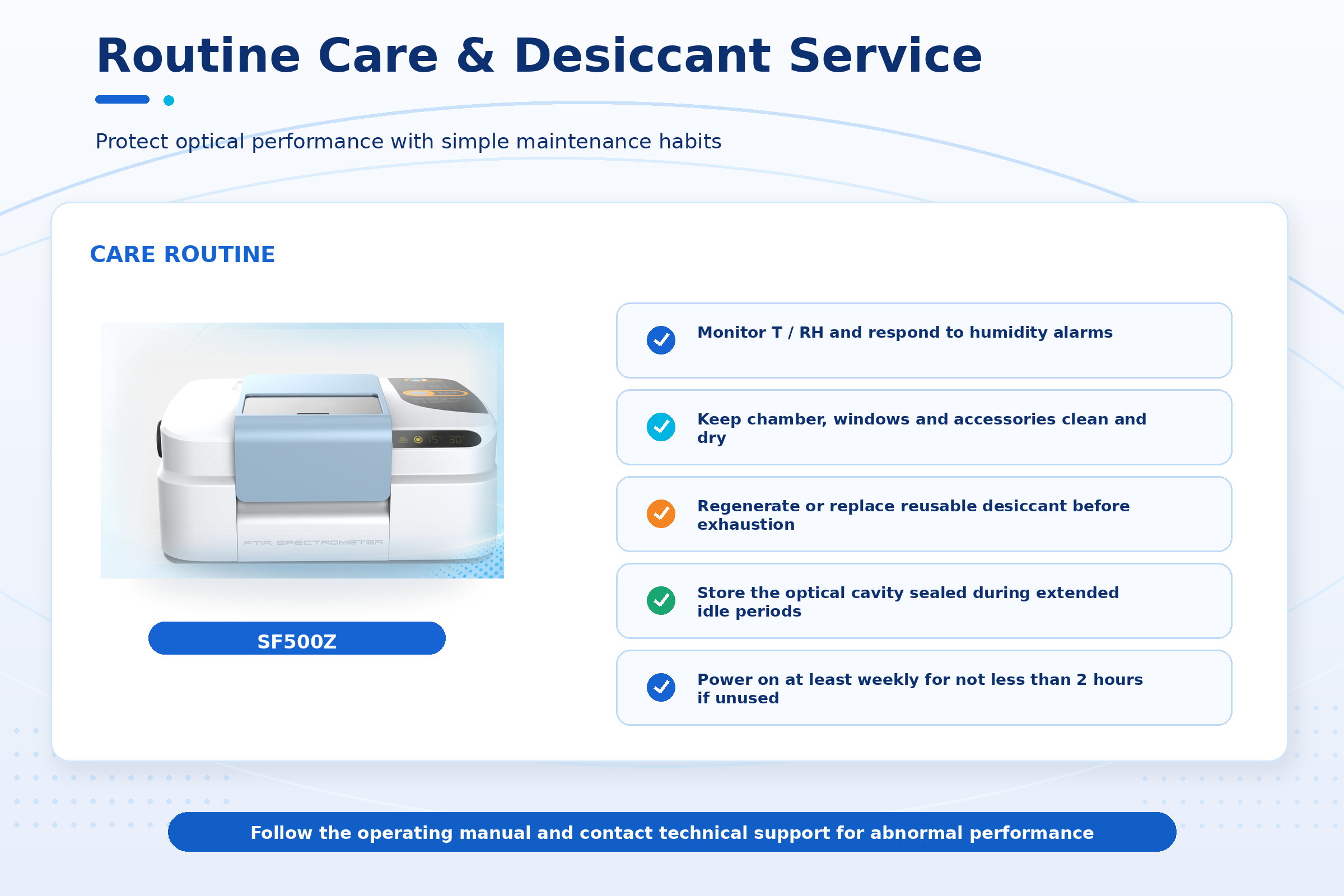

| Laboratory | Dry, clean, well ventilated and well sealed; protect the instrument from direct sunlight and dust |
| Humidity control | Use the built-in temperature/humidity display and humidity alarm; provide dehumidification as needed |
| Electrical | Stable, grounded 100–240 VAC, 50/60 Hz supply |
| Sample area | Keep the sample chamber, optical windows and accessories clean and dry |
| Long-term storage | Keep the optical cavity sealed and maintain the reusable desiccant in serviceable condition |
