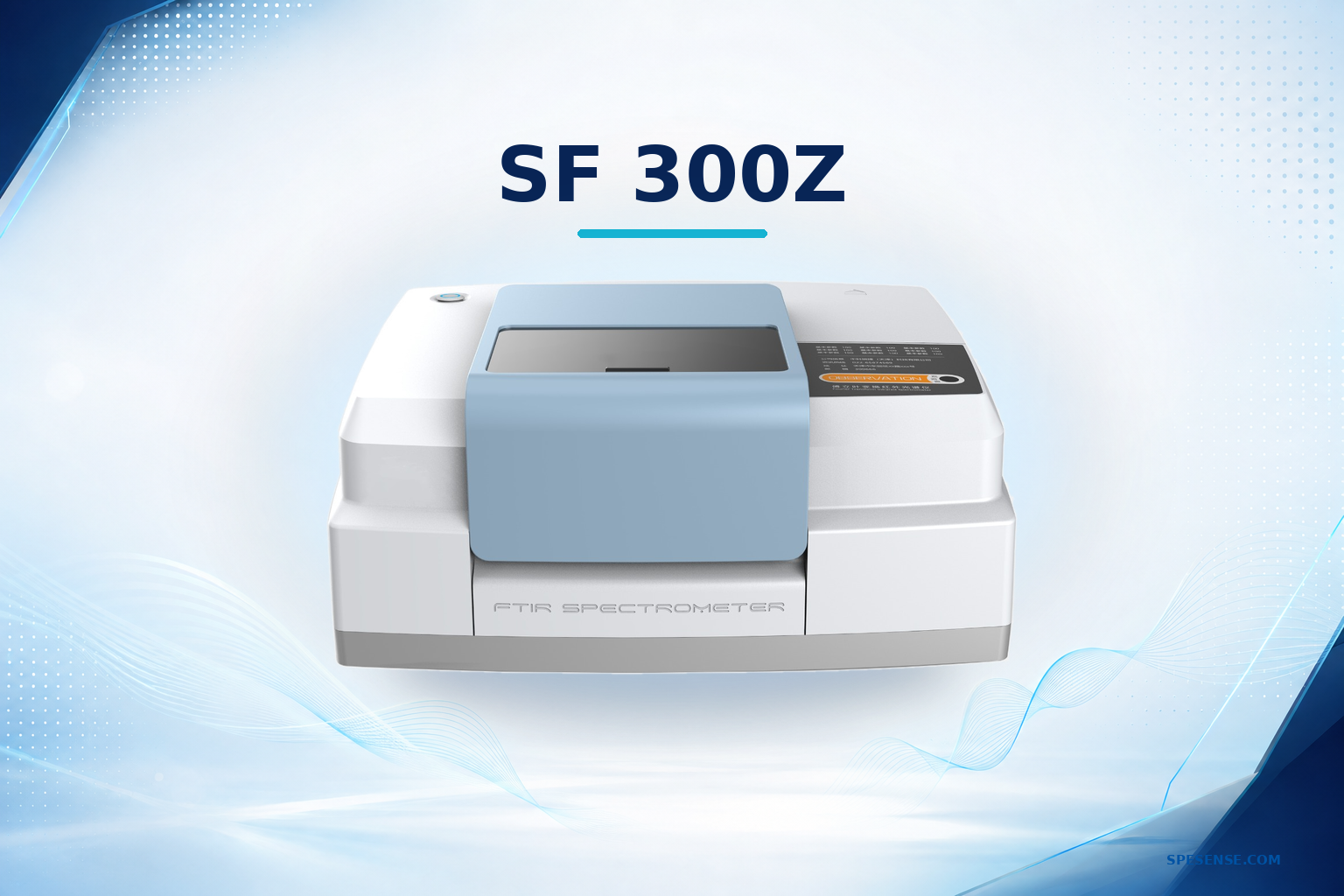

FTIR Analyzer
SF 300Z
高性价比傅里叶
产品亮点
● Wide Spectral Coverage
● High Resolution & Precision
● S/N Ratio up to 30,000:1
● Sealed Moisture-Protected Optics

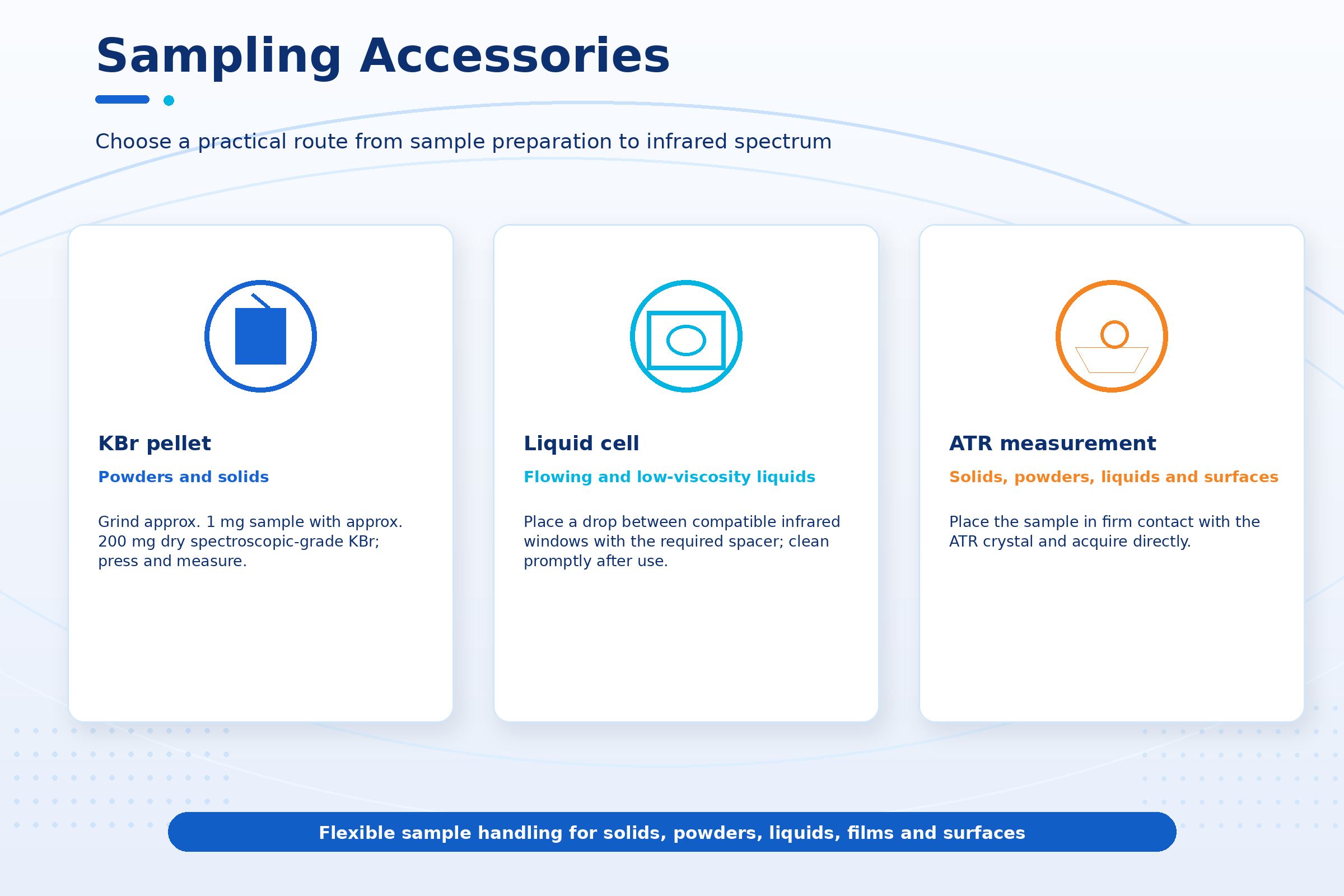

● Flexible ATR & Transmission Sampling

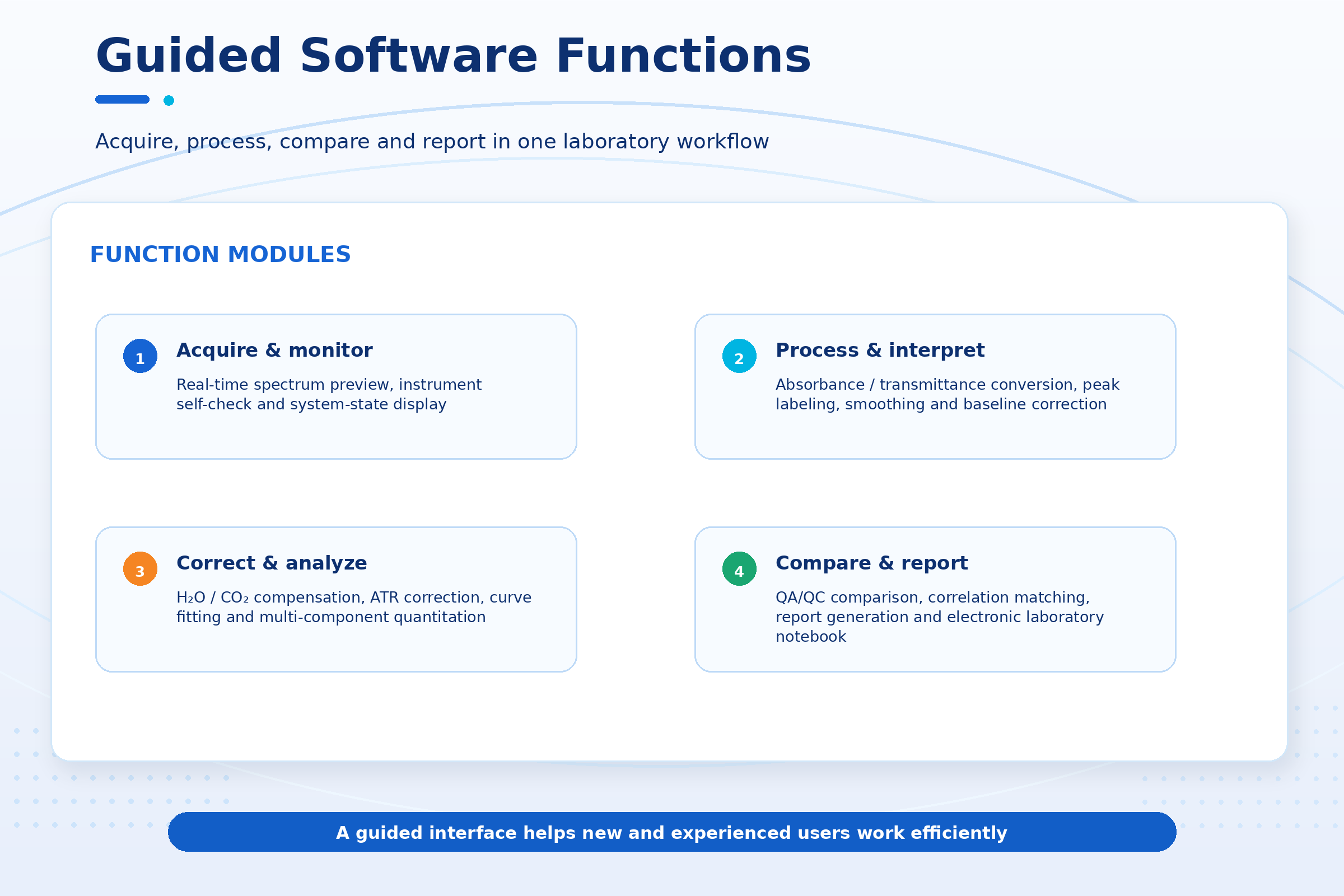

● Intelligent FTIR Software

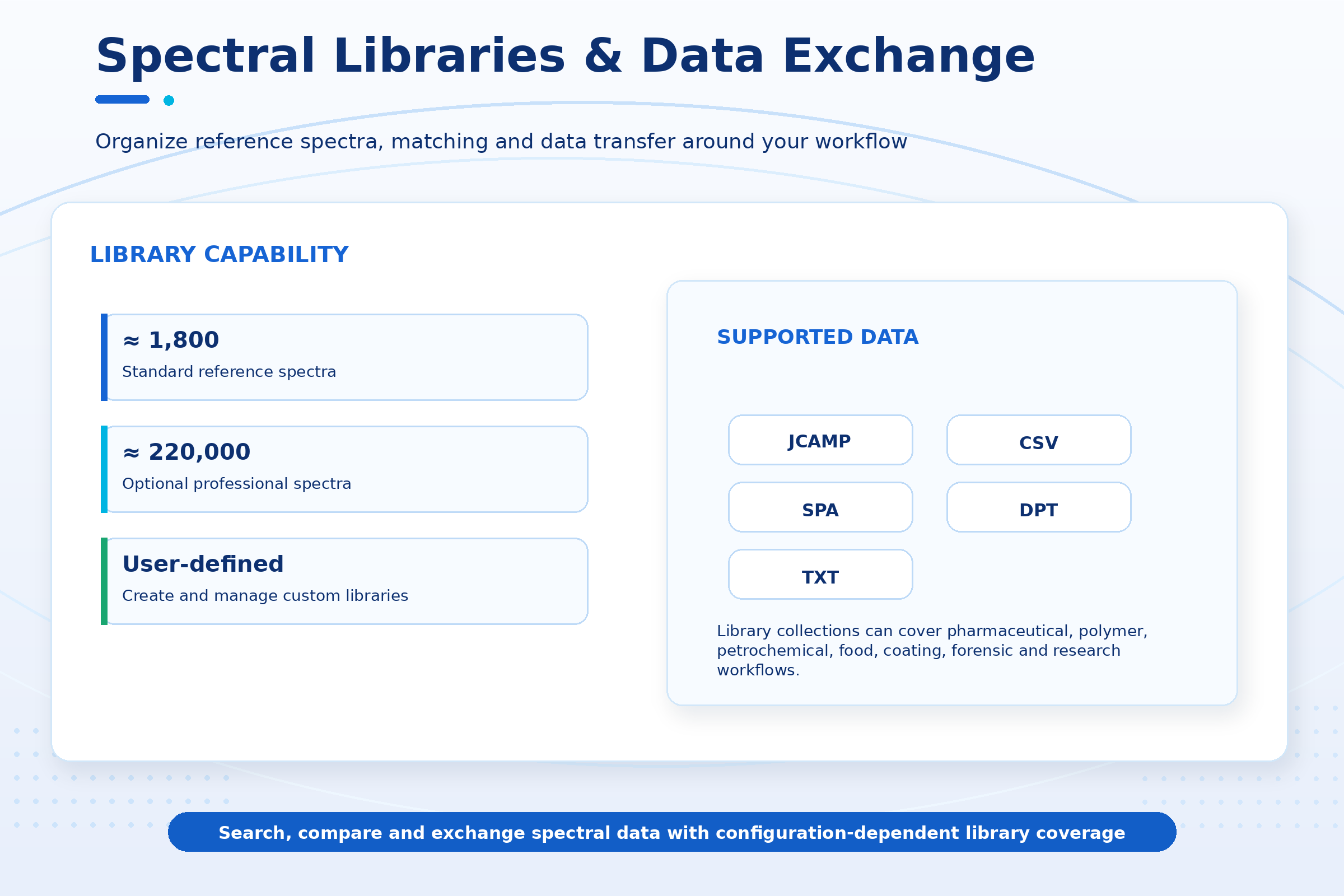

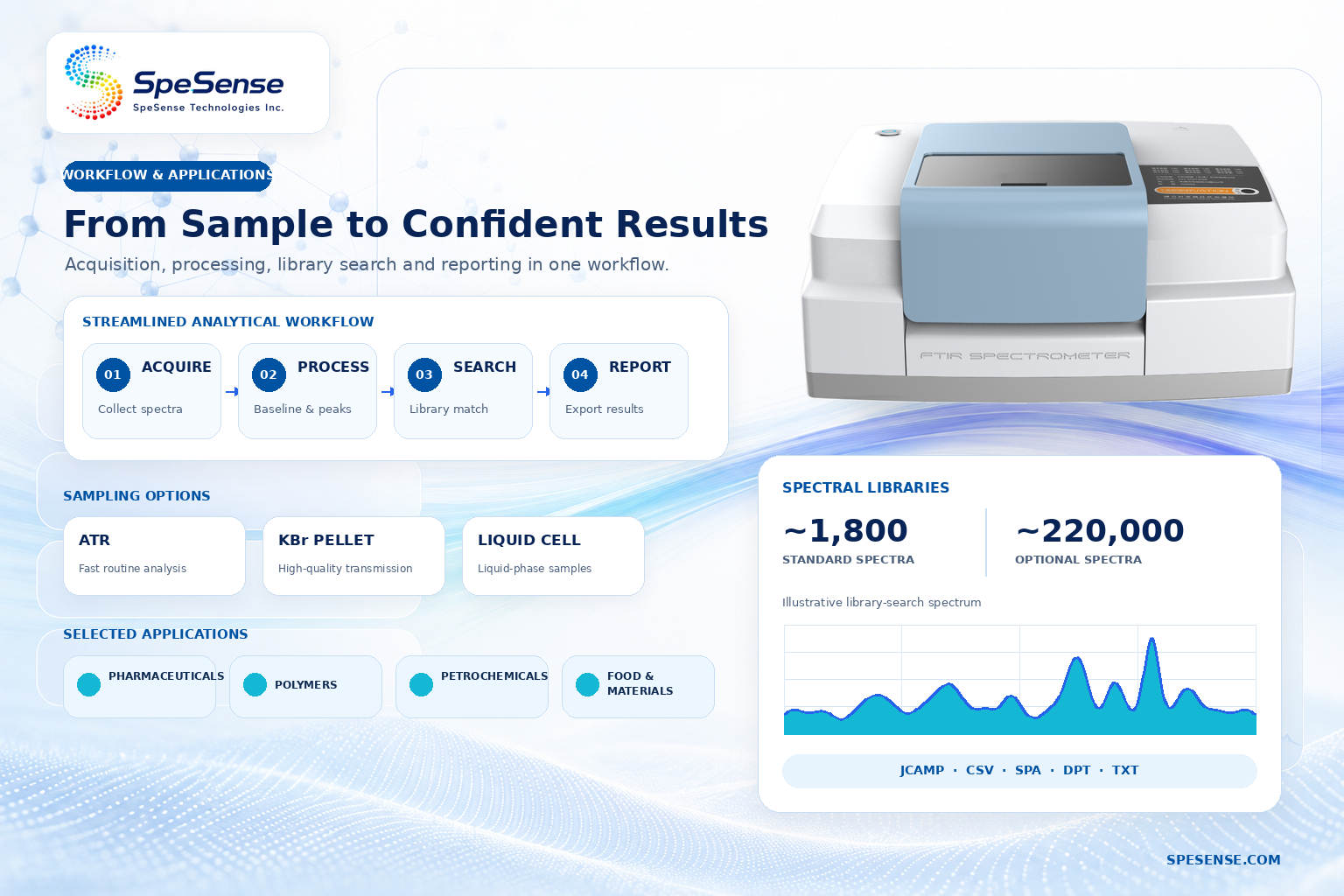

● Extensive Spectral Libraries
● Compact, Low-Power Design
● High Resolution & Precision
● S/N Ratio up to 30,000:1
● Sealed Moisture-Protected Optics
● Flexible ATR & Transmission Sampling
● Intelligent FTIR Software
● Extensive Spectral Libraries
● Compact, Low-Power Design
产品概述

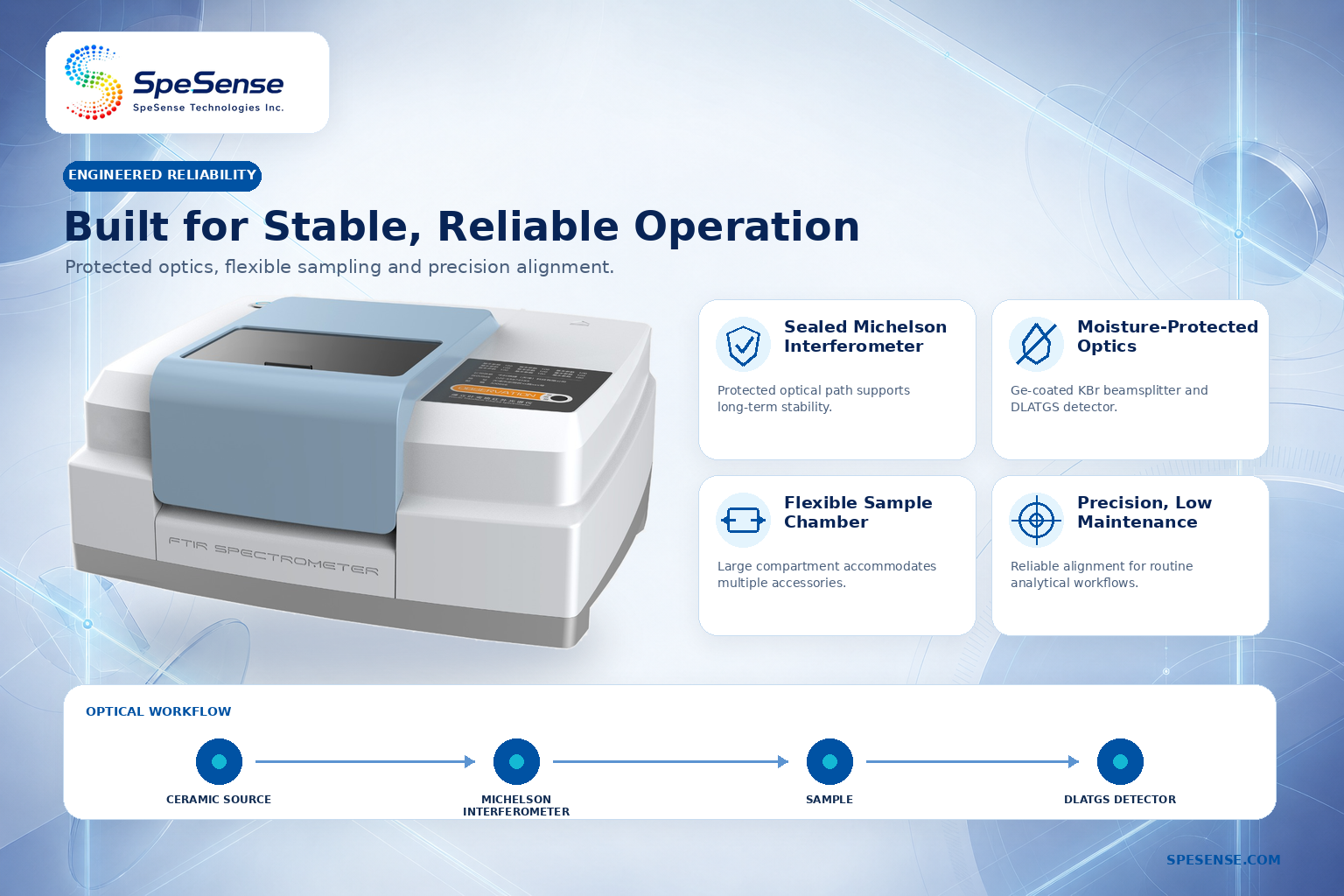

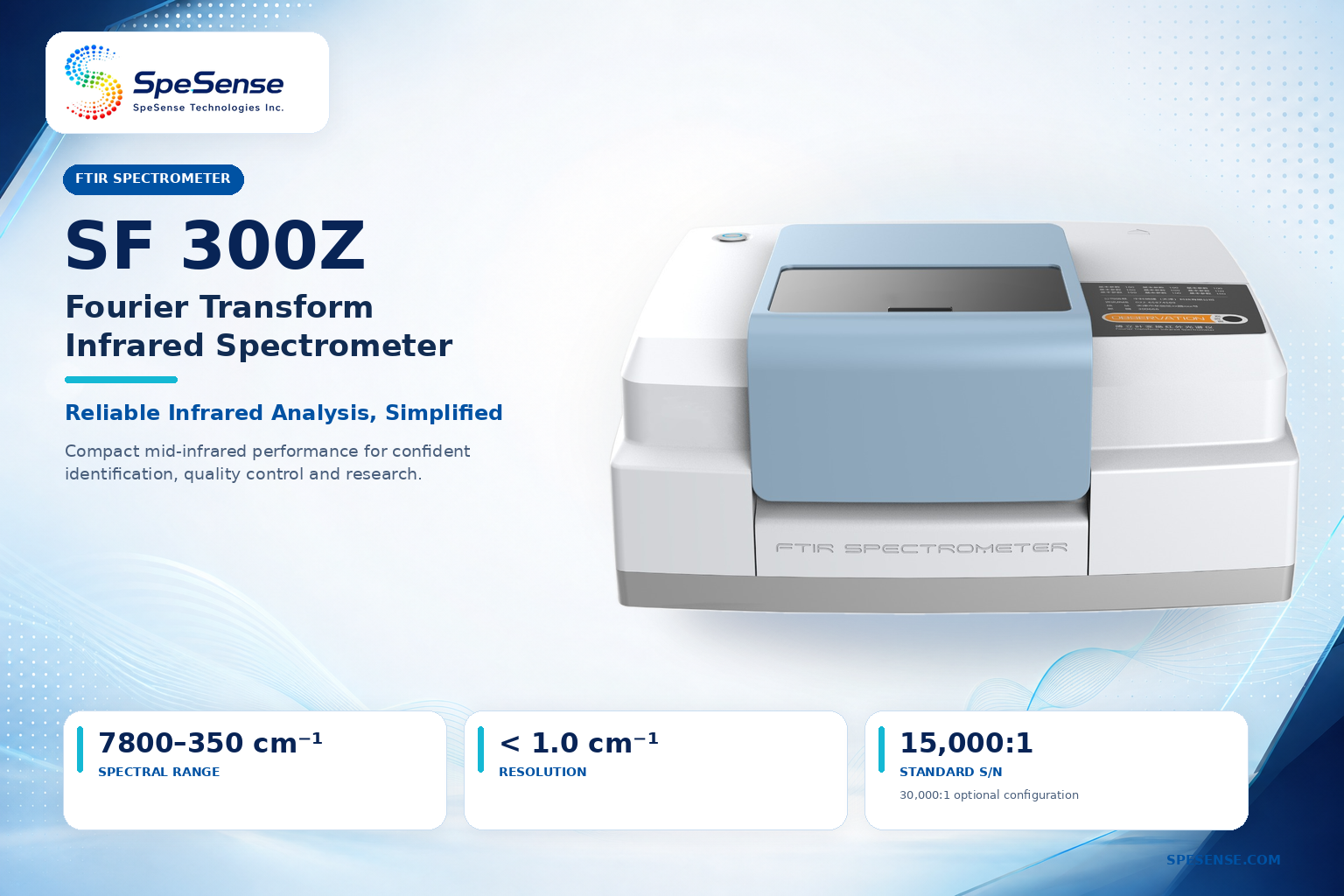

The SpeSense SF300Z is a cost-effective FTIR spectrometer designed for routine infrared analysis, material identification and laboratory spectroscopy. Covering a broad spectral range of 7800–350 cm⁻¹ with spectral resolution better than 1.0 cm⁻¹, the system combines a sealed moisture-protected optical design, high-sensitivity DLATGS detection and flexible ATR or transmission sampling. It is well suited for polymer identification, chemical analysis, pharmaceutical testing, raw-material inspection, quality control and academic research, providing reliable FTIR performance for both routine laboratories and general research applications.
| Item | Specification |

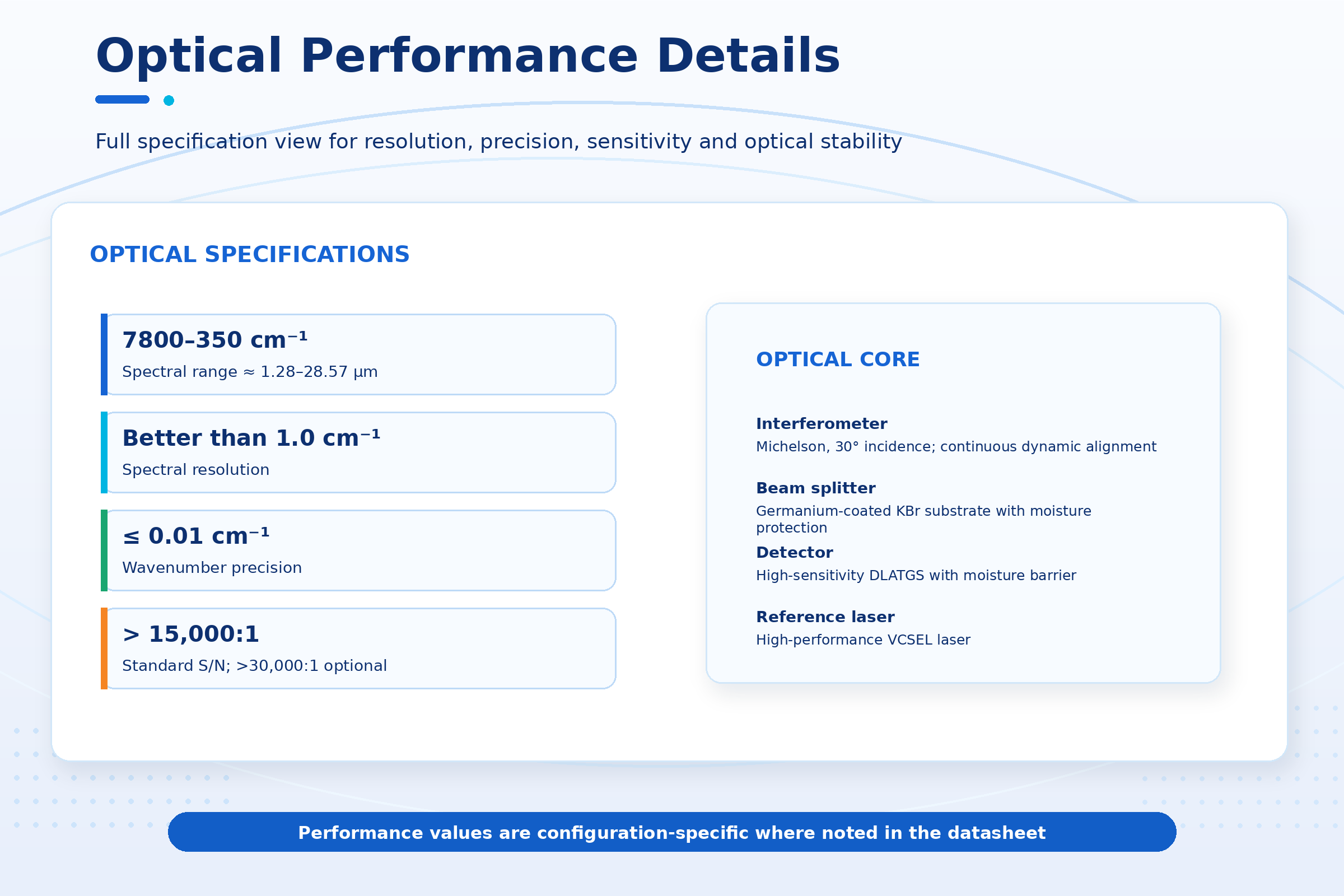

| Spectral range | 7800–350 cm⁻¹ (approx. 1.28–28.57 µm) |
| Spectral resolution | Better than 1.0 cm⁻¹ |

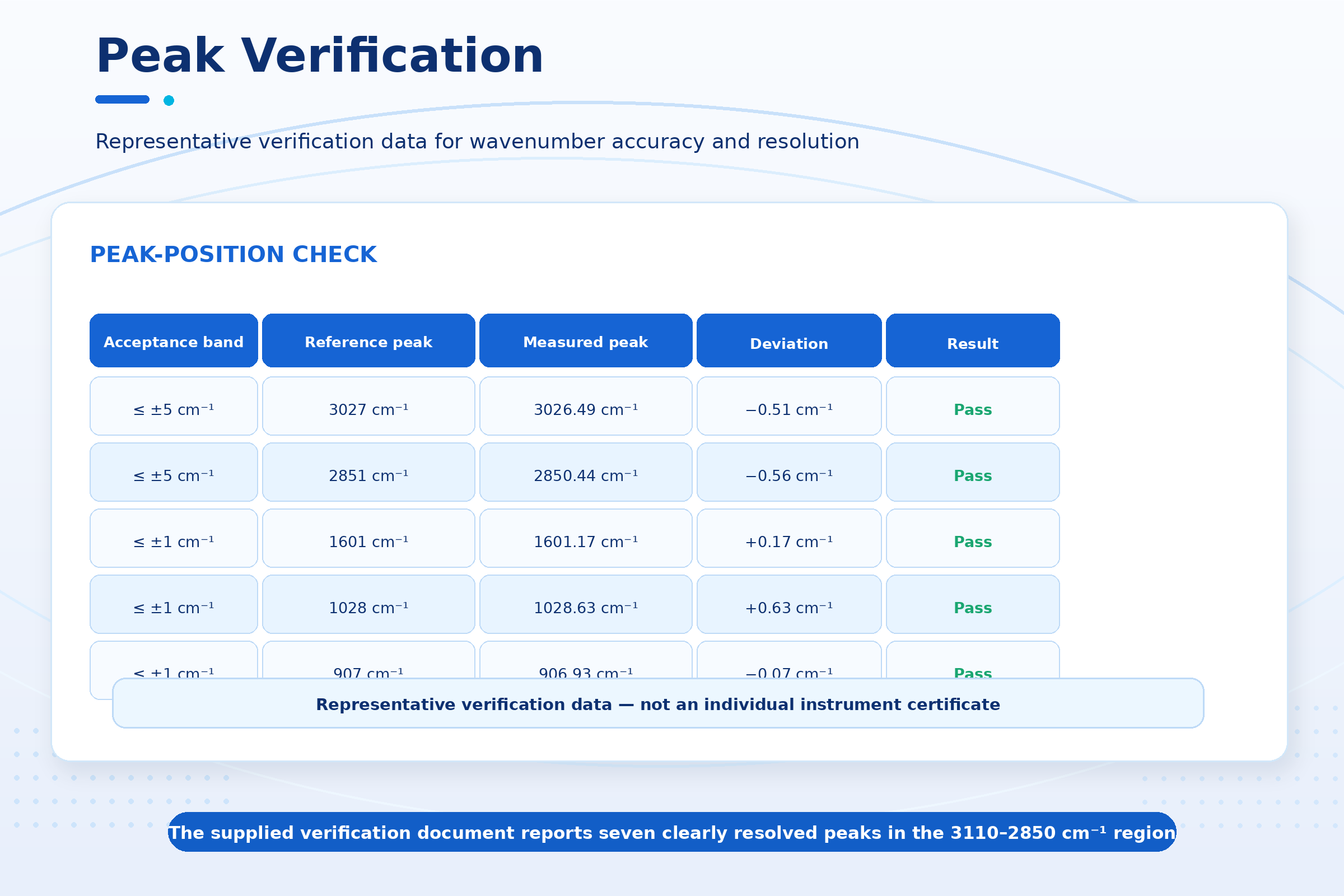

| Wavenumber precision | ≤ 0.01 cm⁻¹ |
| Signal-to-noise ratio | Better than 15,000:1 standard; better than 30,000:1 optional (peak-to-peak, 4 cm⁻¹, 1-minute acquisition) |

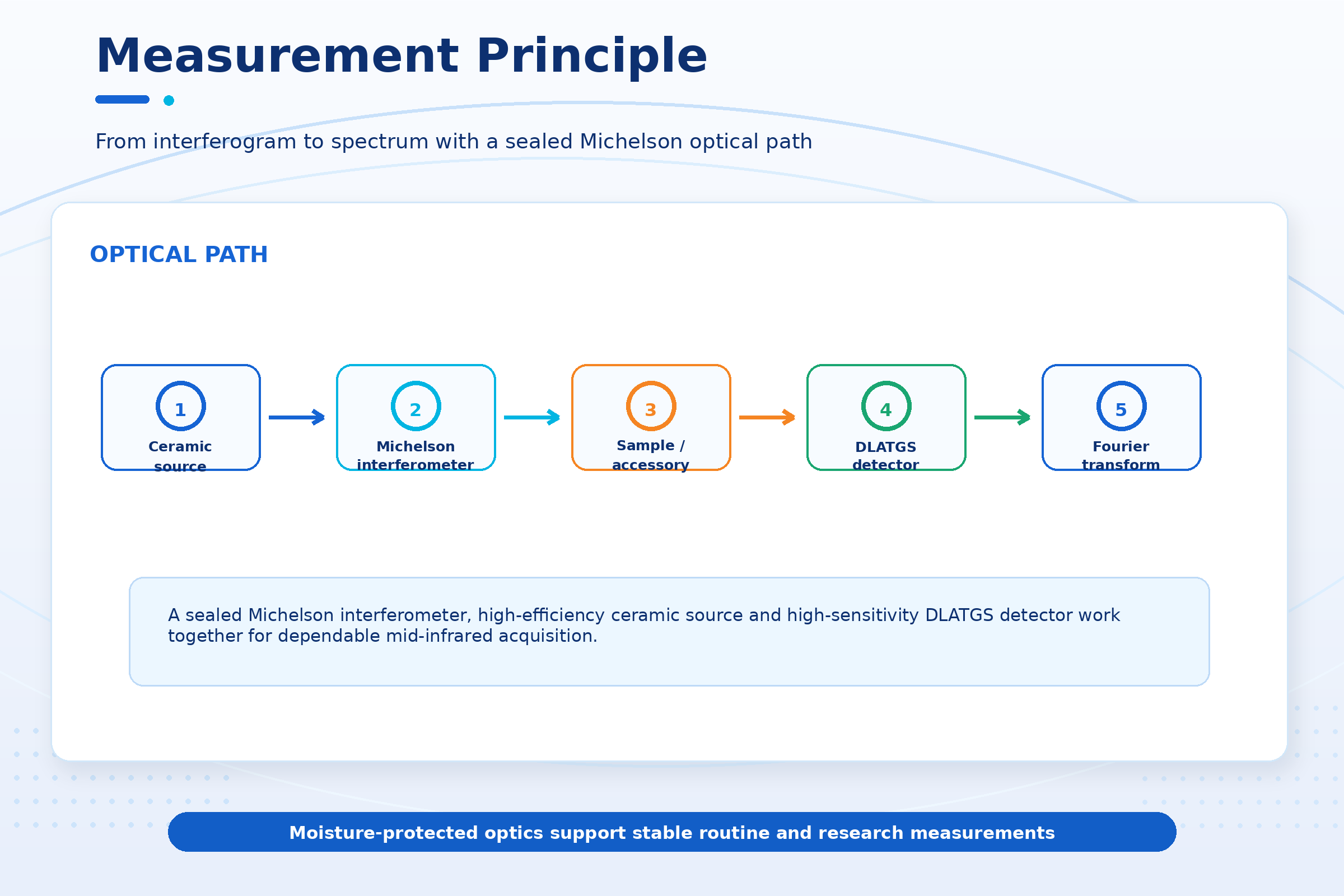

| Interferometer | Michelson interferometer, 30° incidence; continuous dynamic alignment |
| Beam splitter | Germanium-coated KBr substrate with moisture protection |
| Detector | High-sensitivity DLATGS detector with moisture barrier |
| Infrared source | High-energy, high-efficiency, long-life ceramic source |
| Reference laser | High-performance VCSEL laser |

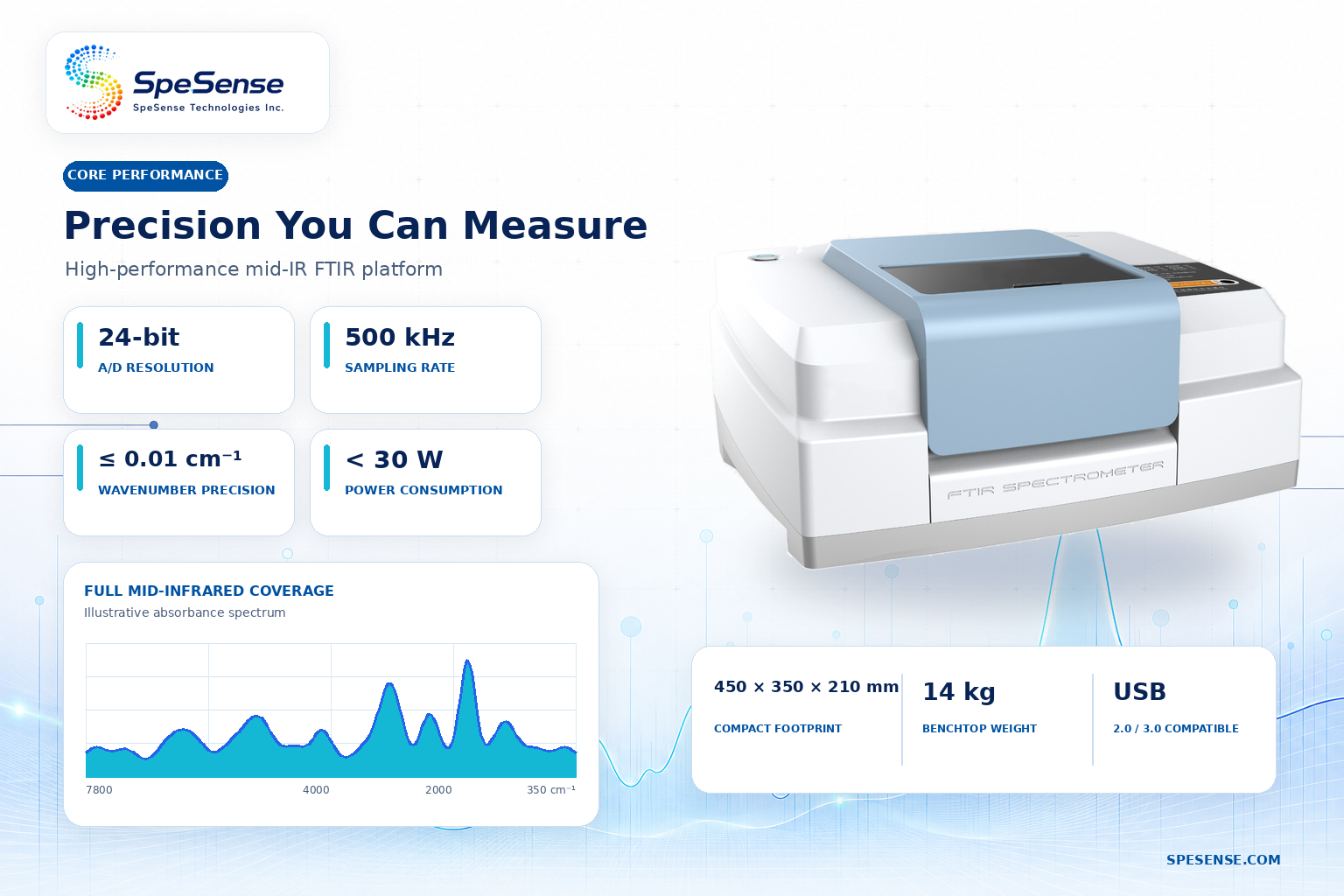

| A/D conversion | 24-bit, 500 kHz |
| Data interface | USB 2.0; compatible with USB 3.0 host ports |
| Data acquisition | Real-time spectral acquisition and instrument status monitoring |
| Sample chamber | Large compartment with sliding door; supports multiple accessory types |
| Power consumption | Less than 30 W during normal operation |
| Input power | 100–240 VAC, 50/60 Hz |
| Dimensions (W × D × H) | 450 × 350 × 210 mm |
| Weight | 14 kg |
| Software platform | Windows PC; supported operating-system versions depend on software release |
| Operating temperature | 15–30 °C |
| Operating relative humidity | 15%–65% RH |
| Storage temperature | −20 to 55 °C |

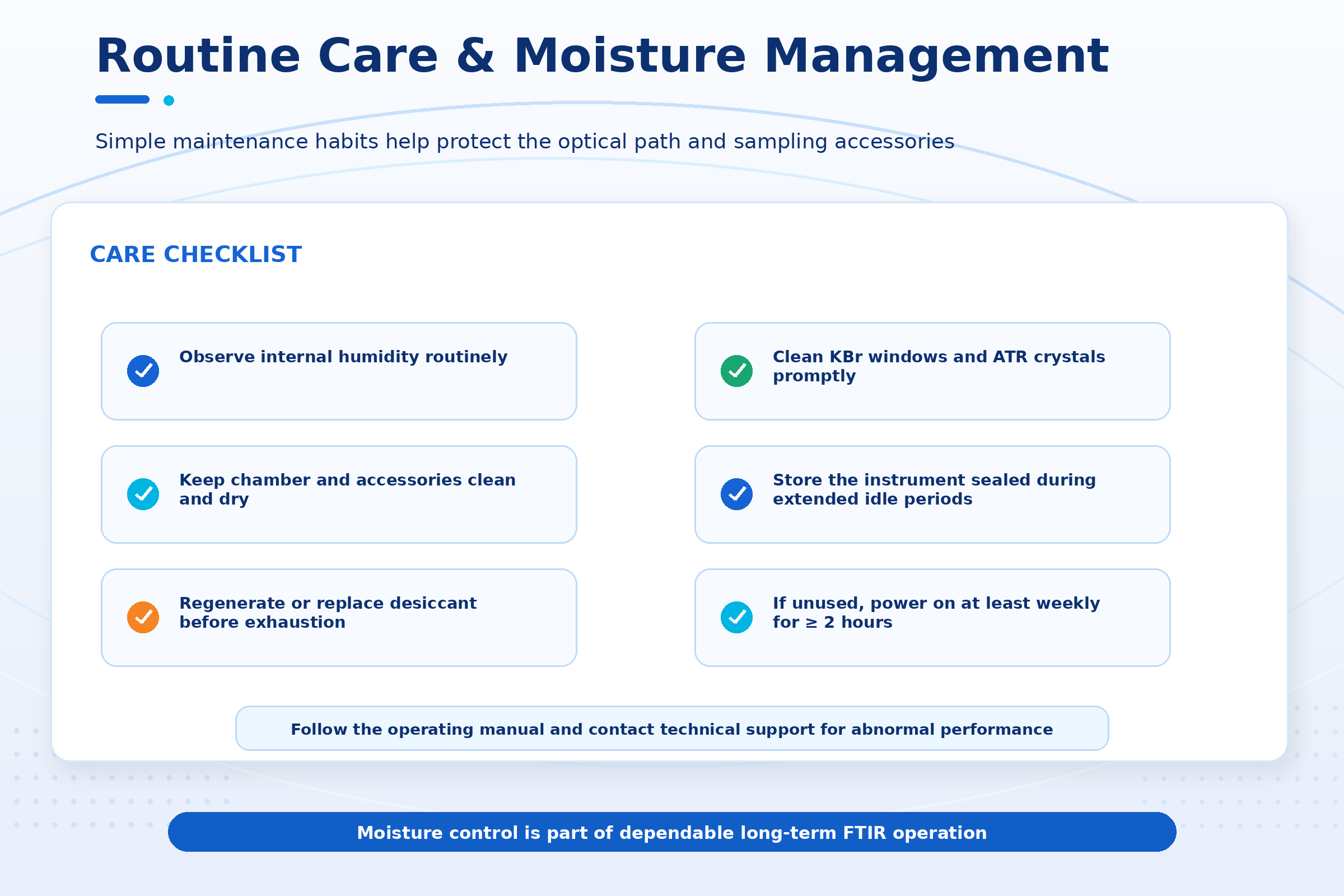

| Laboratory | Dry, well ventilated and protected from direct sunlight; air conditioning and dehumidification recommended |
| Electrical | Stable, grounded supply; at least four grounded sockets recommended for a complete workstation |
