LIBS analyzer
手持式LIBS激光测碳仪
秒级出结果，重新定义手持LIBS，现场碳含量分析
产品亮点
● Direct analysis without sample preparation, cutting, grinding, or chemical treatment.
● Measures carbon and multiple alloying elements, including Fe, Si, Cr, Ni, Mn, Cu, Al, and Ti.
● Micro-ablation technology minimizes damage to the sample surface.
● Lightweight 2 kg handheld design with an integrated battery for field testing.
● Spectral resolution below 0.1 nm for reliable material identification.
● Measures carbon and multiple alloying elements, including Fe, Si, Cr, Ni, Mn, Cu, Al, and Ti.
● Micro-ablation technology minimizes damage to the sample surface.
● Lightweight 2 kg handheld design with an integrated battery for field testing.
● Spectral resolution below 0.1 nm for reliable material identification.
产品概述

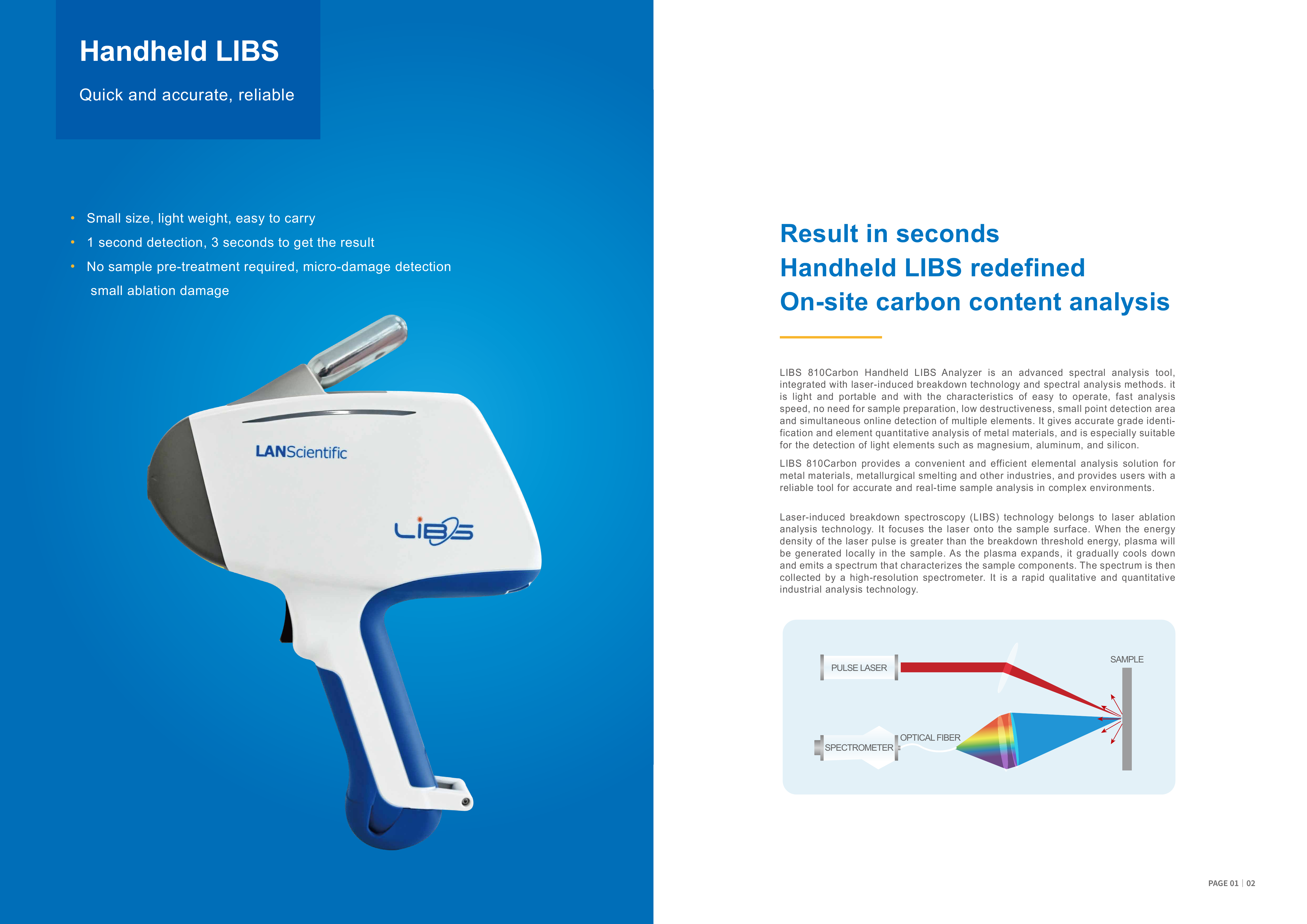

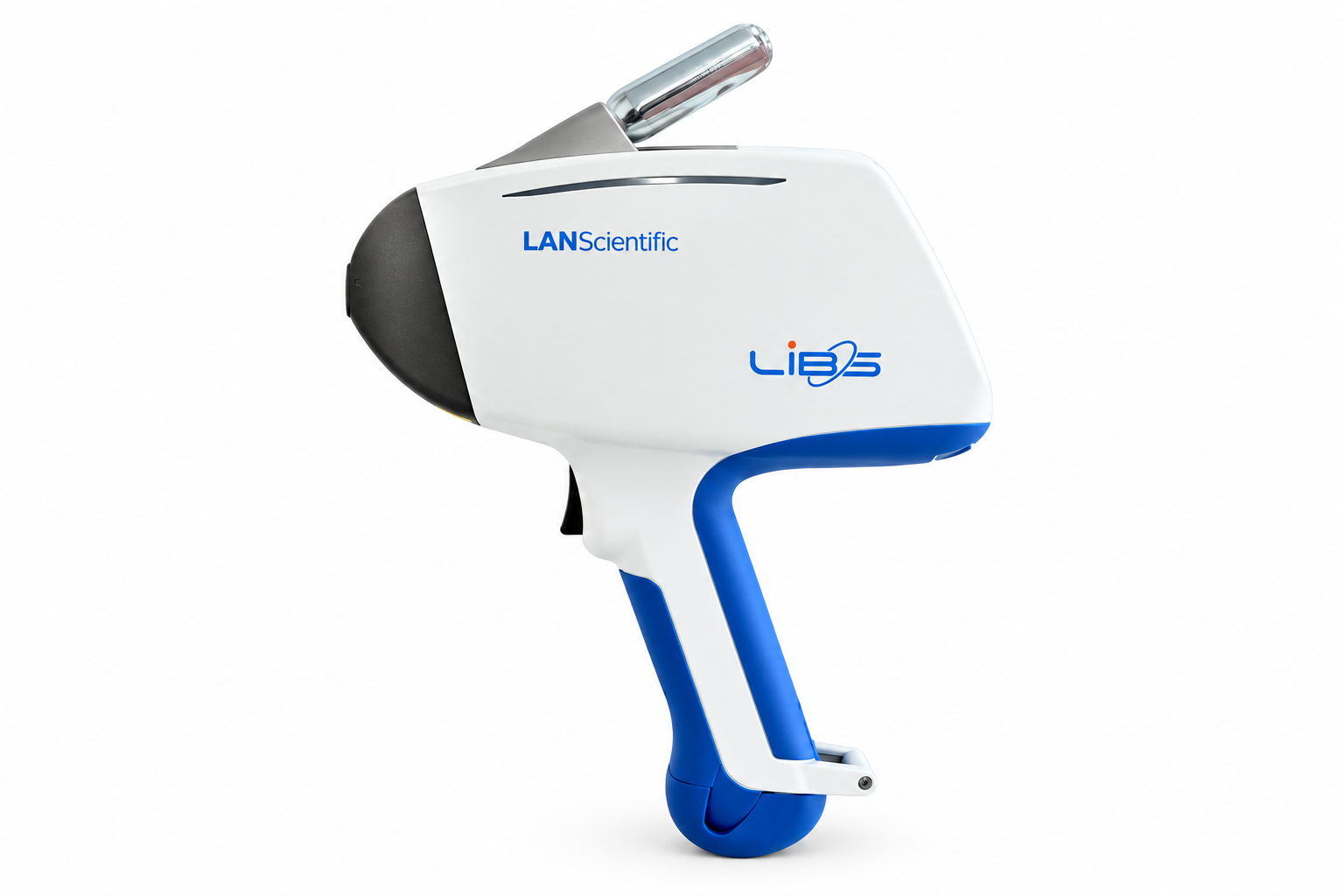

The Handheld LIBS Laser Carbon Analyzer is a portable elemental analysis instrument designed for fast, accurate, and non-destructive on-site testing of carbon and other alloying elements. Using laser-induced breakdown spectroscopy (LIBS), it delivers detection in approximately 1 second and test results in about 3 seconds, without sample preparation.
With its compact design, 4.3-inch industrial touchscreen, integrated battery, 32 GB storage, and lightweight 2 kg body, the analyzer is suitable for field inspection and quality control in demanding industrial environments. It supports the analysis of carbon, aluminum, copper, magnesium, nickel, iron, silicon, manganese, chromium, titanium, zinc, and other elements in low-alloy steel, medium-alloy steel, stainless steel, and various metal samples.
The handheld LIBS analyzer is ideal for automotive manufacturing, aerospace, metal processing, steel production, scrap metal recycling, energy and power industries, material identification, and on-site alloy verification. Its micro-damage detection, fast measurement speed, low detection limits, and portable operation make it an efficient solution for real-time material analysis and production quality control.
