LIBS analyzer
手持式LIBS合金分析仪
产品亮点
● Typical test results available in approximately one second.
● Direct alloy analysis with no or minimal sample preparation.
● Lightweight 1.5 kg handheld design for convenient field testing.
● Supports multi-element analysis for rapid alloy identification.
● Spectral resolution below 0.2 nm for reliable elemental analysis.
● Built-in professional grade library with up to 1,500 alloy grades.
● Direct alloy analysis with no or minimal sample preparation.
● Lightweight 1.5 kg handheld design for convenient field testing.
● Supports multi-element analysis for rapid alloy identification.
● Spectral resolution below 0.2 nm for reliable elemental analysis.
● Built-in professional grade library with up to 1,500 alloy grades.
产品概述

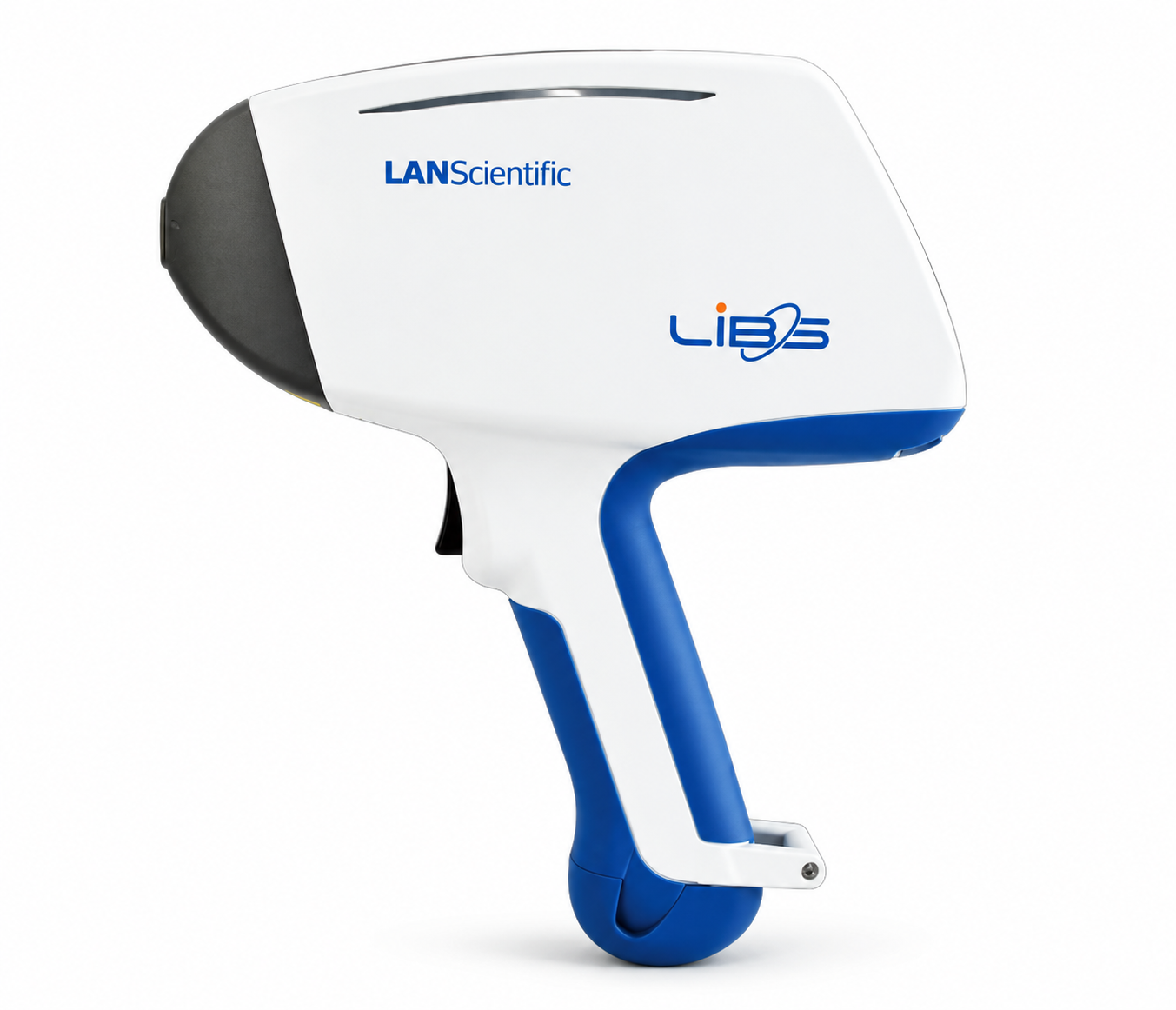

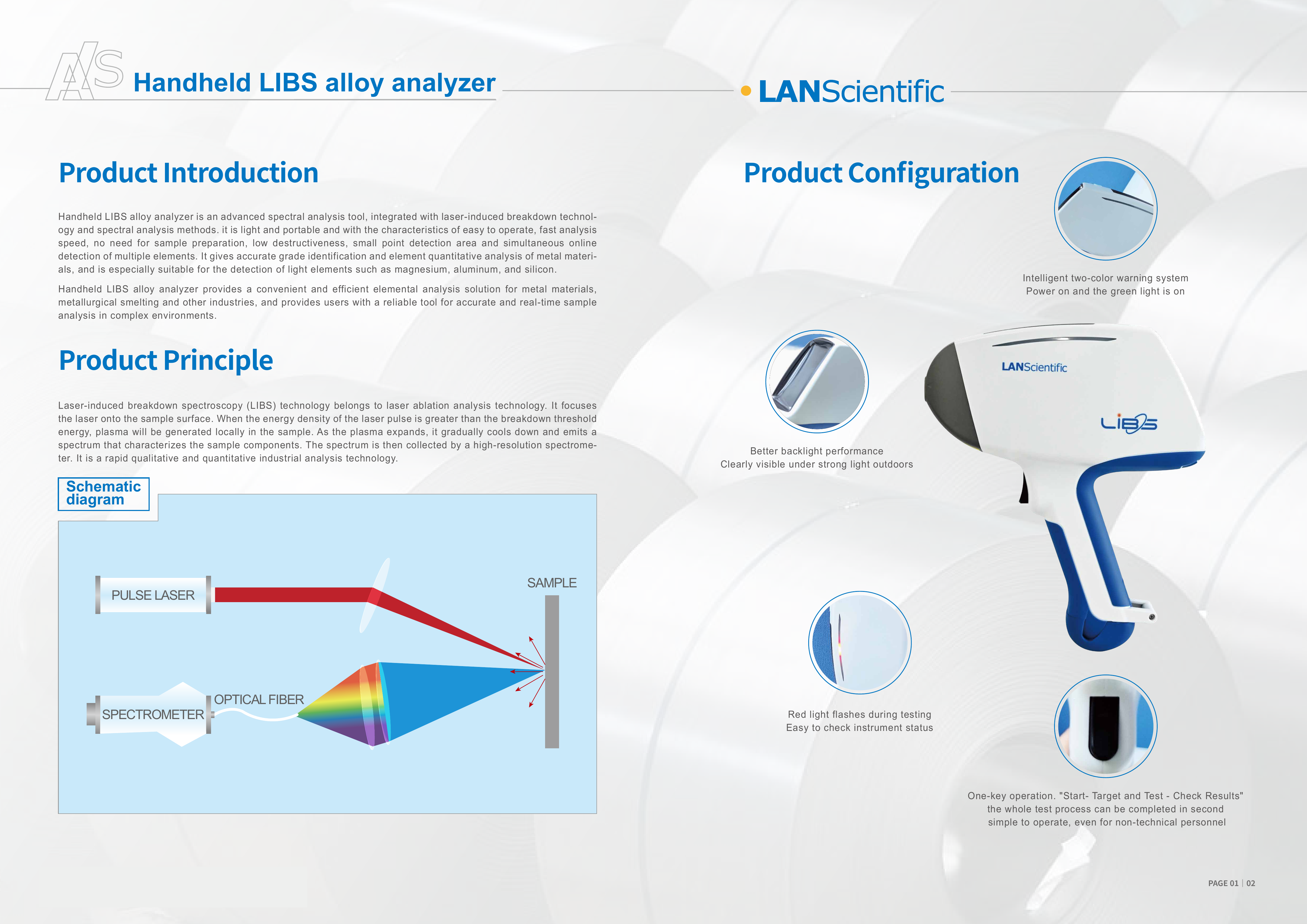

The Handheld LIBS Alloy Analyzer is a portable laser-induced breakdown spectroscopy instrument designed for fast and reliable on-site analysis of metals and alloys. It delivers typical test results in approximately one second without complex sample preparation, making it suitable for material identification, alloy grade verification, and elemental composition analysis.
With a lightweight 1.5 kg design, integrated battery, 4.3-inch industrial touchscreen, 32 GB storage, and IP54 protection, the analyzer is built for field inspection and industrial quality control. It supports the analysis of elements such as Mg, Al, V, Cr, Cu, Fe, Li, Mn, Ni, Si, Ti, Zn, Zr, Pb, Sn, and Sr, depending on the selected model and alloy library.

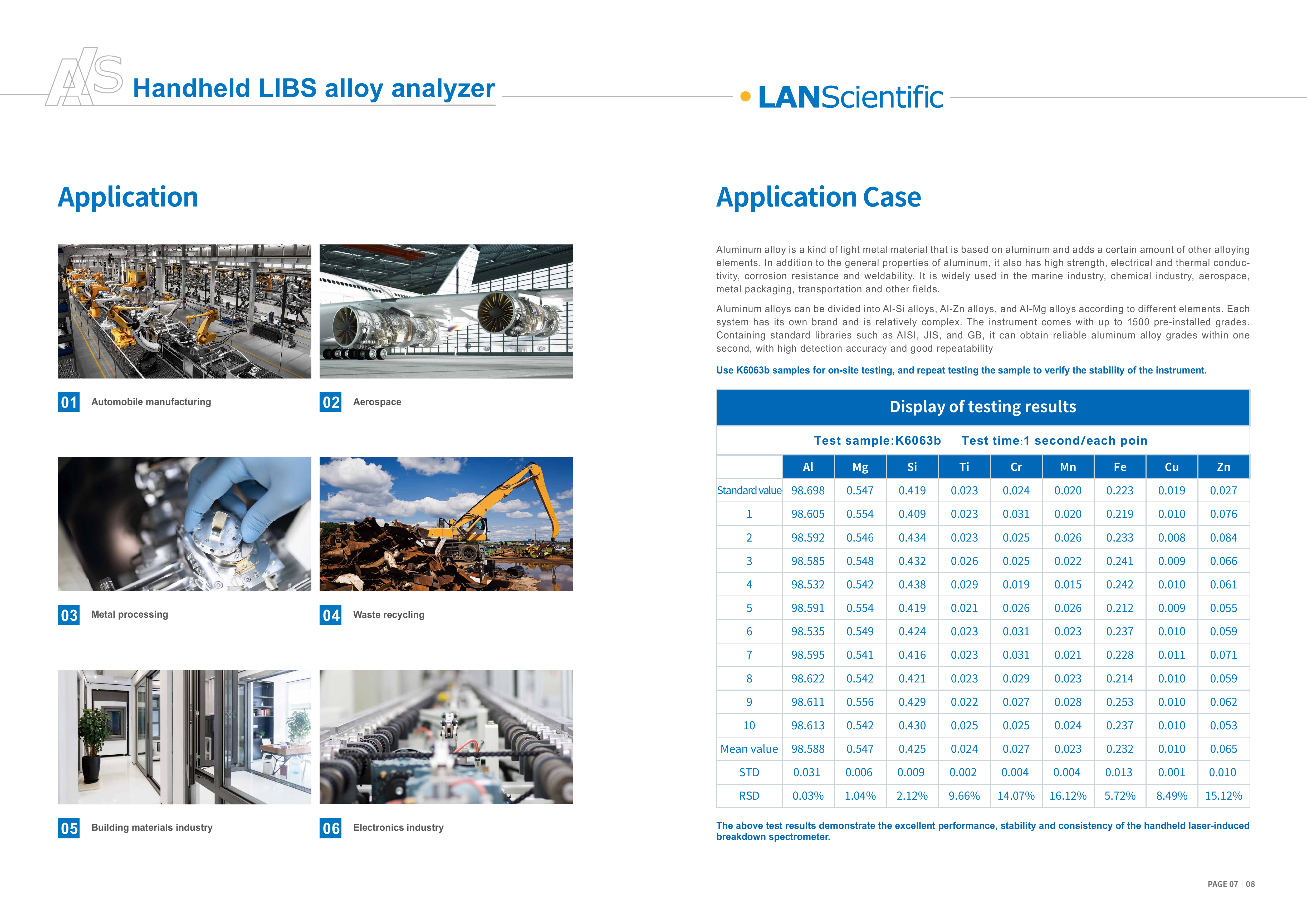

The handheld LIBS analyzer is suitable for magnesium alloys, aluminum alloys, copper alloys, nickel alloys, titanium alloys, stainless steel, medium- and low-alloy steel, lead alloys, and zinc alloys. It can analyze cylinders, thin plates, wires, foils, and large metal fragments with minimal surface damage.
